Reference. 10803864
Emergency eyewash / face wash with stainless steel collector
Emergency eyewash / face wash station with a powder coated, high-quality yellow stainless steel basin for direct wall installation.
Personal advice
Description
Emergency eyewash / face wash with painted stainless steel collector, coated with high-quality yellow powder paint for direct installation on the walls of industries, workshops or sites where staff are at risk of eye or physical damage due to fire, reactants, petroleum products, radioactive materials, acids...
Product details:
- The perfect distribution of the four spray heads offers a high-performance wash: provides rapid relief to eyes and face damaged by chemicals or foreign particles.
- Water inlet designed to receive a minimum water flow of 28 L/minute, thus providing a completely safe and effective eye wash.
- Activation by manually pressing an ergonomic and easily accessible push plate.
- Each spray head has a flow control and a filter to remove possible water impurities.
- Features a self-drainage system to remove residual water from the system.
- Comes standard with a universal emergency sign and an inspection control label.
Technical specifications:

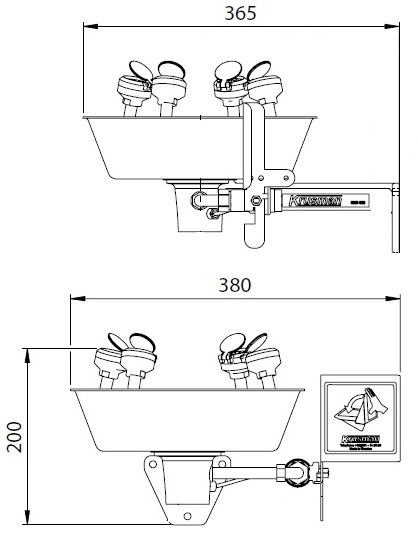

- Dimensions: 380 x 200 x 365 mm.
- Water flow: 28 L/min.
- Water inlet pressure: 2.4 – 6.5 bars.
- Water inlet: 1/2” female thread.
- Water outlet: 1 1/4” female thread.
- Net weight: 2.3 Kg.
Components and materials:
- 4 spray heads made of ABS plastic and assembled to chrome-plated brass tubes. Each head has an ABS plastic cover that prevents the entry of dust and foreign particles and automatically opens when the eyewash is activated.
- 1 basin made of painted stainless steel, coated with high-quality yellow powder paint, highly resistant to impact.
- 1 ergonomic and easily accessible eyewash lever, made of chrome-plated brass.
- 1 ball valve that opens automatically when the actuation plate is pressed. This is made of chrome-plated brass and remains open until manually closed by pressing the actuation lever in the opposite direction.
Regulations and certifications:
- ISO 9001/13485 certified.
- Meets quality policies.
- Manufactured according to ANSI Z358.1-2009, EN15154-1 and EN15154-2:2006 standards.
*The eyewash must have a water flow of 14 liters per minute to function properly. For this reason, it is very important that the dimensions of the water inlet pipe are correctly sized taking into account this data.
*The eyewash flow and pressure regulator automatically operates between 2.4 and 6.5 bars of pressure. If the water inlet pressure exceeds 7 bars, it will be necessary to install a pressure reducing valve.
*Place the emergency equipment sign next to the eyewash where it can be clearly seen.
Product details:
- The perfect distribution of the four spray heads offers a high-performance wash: provides rapid relief to eyes and face damaged by chemicals or foreign particles.
- Water inlet designed to receive a minimum water flow of 28 L/minute, thus providing a completely safe and effective eye wash.
- Activation by manually pressing an ergonomic and easily accessible push plate.
- Each spray head has a flow control and a filter to remove possible water impurities.
- Features a self-drainage system to remove residual water from the system.
- Comes standard with a universal emergency sign and an inspection control label.
Technical specifications:
- Dimensions: 380 x 200 x 365 mm.
- Water flow: 28 L/min.
- Water inlet pressure: 2.4 – 6.5 bars.
- Water inlet: 1/2” female thread.
- Water outlet: 1 1/4” female thread.
- Net weight: 2.3 Kg.
Components and materials:
- 4 spray heads made of ABS plastic and assembled to chrome-plated brass tubes. Each head has an ABS plastic cover that prevents the entry of dust and foreign particles and automatically opens when the eyewash is activated.
- 1 basin made of painted stainless steel, coated with high-quality yellow powder paint, highly resistant to impact.
- 1 ergonomic and easily accessible eyewash lever, made of chrome-plated brass.
- 1 ball valve that opens automatically when the actuation plate is pressed. This is made of chrome-plated brass and remains open until manually closed by pressing the actuation lever in the opposite direction.
Regulations and certifications:
- ISO 9001/13485 certified.
- Meets quality policies.
- Manufactured according to ANSI Z358.1-2009, EN15154-1 and EN15154-2:2006 standards.
*The eyewash must have a water flow of 14 liters per minute to function properly. For this reason, it is very important that the dimensions of the water inlet pipe are correctly sized taking into account this data.
*The eyewash flow and pressure regulator automatically operates between 2.4 and 6.5 bars of pressure. If the water inlet pressure exceeds 7 bars, it will be necessary to install a pressure reducing valve.
*Place the emergency equipment sign next to the eyewash where it can be clearly seen.
