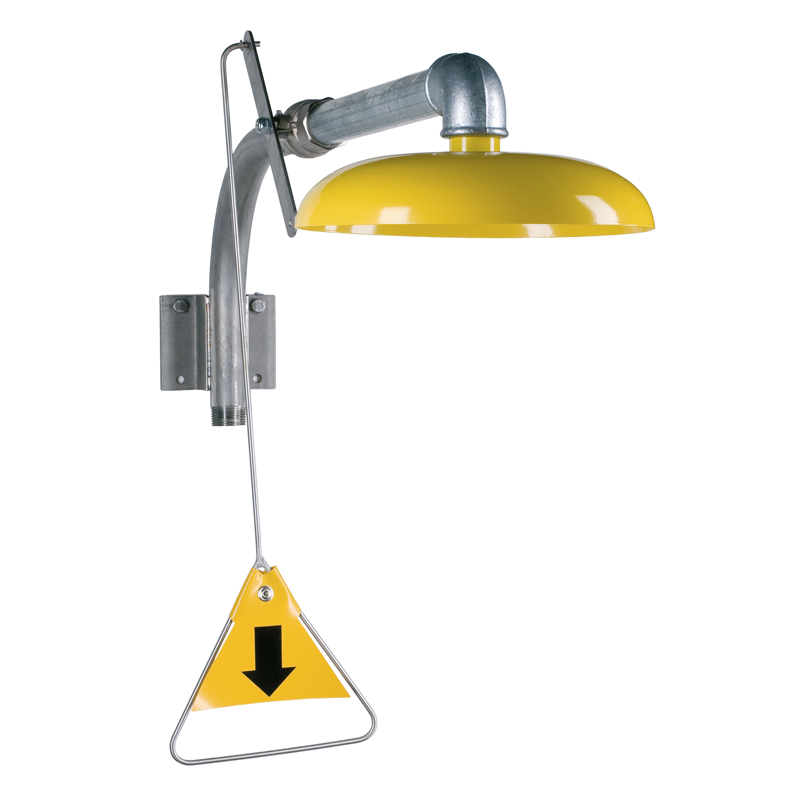

Wall-mounted emergency shower, with stainless steel head.

Emergency shower for wall mounting, with a stainless steel head, painted with high-quality powder paint in yellow color. Specifically designed for areas where staff are at risk of eye or physical damage from fires, reactants, petroleum products, radioactive materials, acids...

Product details:
- It decontaminates immediately when water flows when manually activated through the rigid handle.
- Water inlet designed to receive a minimum water flow of 170 L/min at a pressure of 2.4 bars, so it allows spraying the user's entire body in a time far below the usual average.
- Equipped with a universal emergency sign and an inspection control label.
- It comes with a wall bracket that assembles a fixing plate with 4 holes for fixing.

Components and materials:
- 1 shower head made of stainless steel, painted with high-quality powder paint in yellow color and providing a minimum flow of 170 L/min between 2.4 bars of pressure.
- 1 ball valve and automatic opening when activated through a bar ending in a triangular handle. It remains
open until it is manually closed by pushing the operating handle in the opposite direction.
- Wall bracket made of galvanized steel. It is mounted to the wall through 4 holes located in the fixing plate.

Technical specifications:

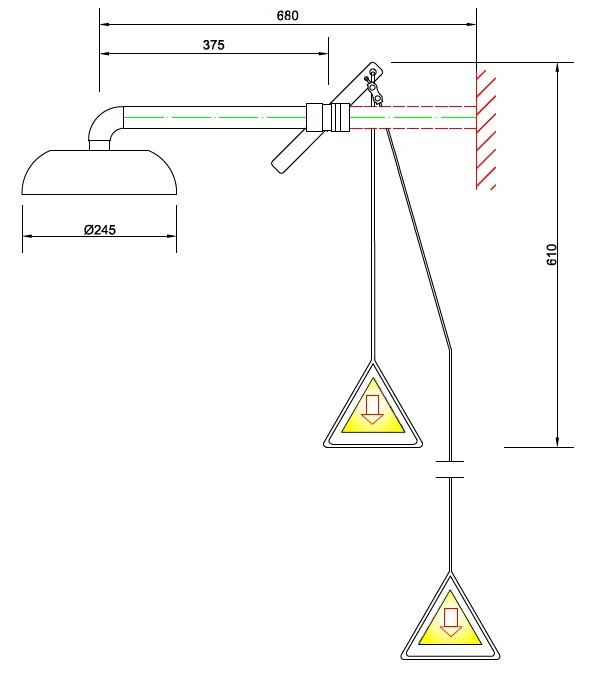

- Dimensions: 245 x 610 x 680 mm.
- Water flow: 170 L/min.
- Water inlet pressure: 2.4-6.5 bars.
- Water inlet: 1” female thread.
- Net weight: 2.5 kg.

Regulations and certifications:
- ISO 9001/13485 certified.
- Complies with quality policies.
-Manufactured according to ANSI Z358.1-2009, EN15154-1 and EN15154-2:2006 standards.

*The shower must have a water flow of 170 liters per minute at 2.4 bars to work properly. For this reason, it is very important that the dimensions of the water inlet pipe are sized correctly considering this data.
*Place the emergency equipment sign next to the shower where it can be clearly seen.
