Reference. 10803873

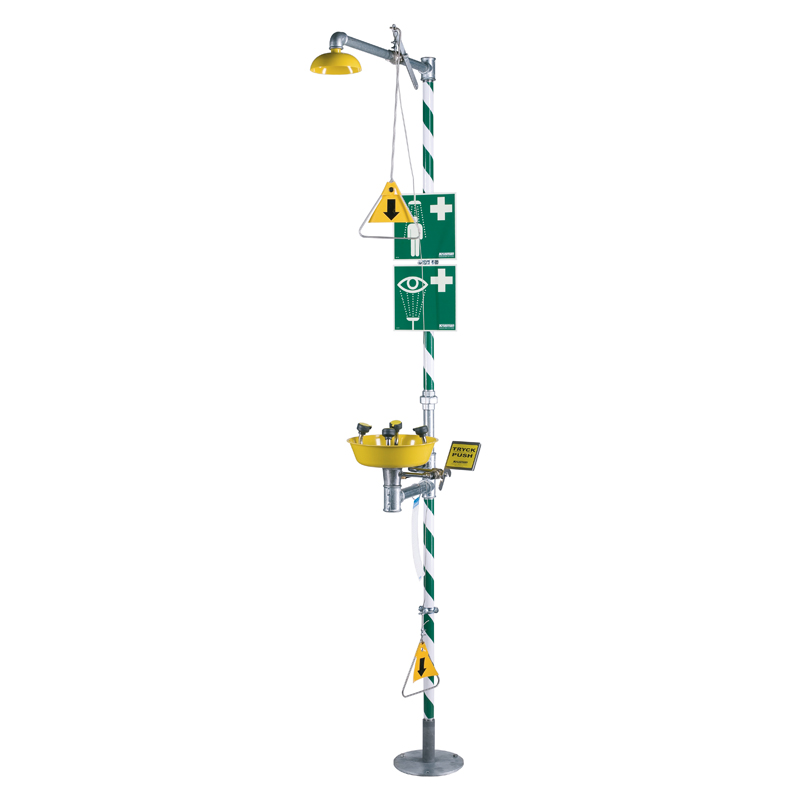

Combined emergency station (shower + eyewash + face wash) stainless steel.
Security station composed of a shower and an emergency eyewash / facewash, for direct installation on the floor of industries, workshops or locations where personnel are subject to the risk of eye or physical damage from fire, reagents, petroleum products, radioactive materials, acids..., to eliminate possible contamination of the body and eyes/face.
Personal advice
Description
Safety station consisting of a shower and an emergency eye/face wash, for direct installation on the floor of industries, workshops, or sites where personnel are at risk of eye or physical damage from fire, reagents, petroleum products, radioactive materials, acids..., to eliminate possible contamination of the body and eyes/face.
Product details:
- The showerhead is made of stainless steel painted with high-quality yellow powder paint, just like the eye/face wash basin.
- The pipes, however, are made of galvanized steel, painted white with green stripes.
- The shower is activated by a rigid triangular handle for better grip and a manual side-opening eye wash, activated by simple pressure.
- Equipped with a second handle to activate the shower, specially designed for wheelchair users.
- The emergency shower is able to spray the user's entire body in less than the usual time, thanks to its guaranteed minimum flow of 76L/min, at 2.4 bars.
- High-performance wash: the perfect distribution of the four spray heads of the eye/face wash provides quick relief to the person who has been damaged by chemicals or foreign particles.
- Each spray head has a flow control and a filter to remove possible impurities from the water.
- It has a self-drainage system to eliminate residual water from the system.
- Standard equipped with universal emergency signs for the shower and the eye/face wash and an inspection control label.
Components and materials:
- 4 spray heads made of ABS plastic and assembled to respective chrome-plated brass tubes. Each head has an ABS plastic cover that prevents the entry of dust and foreign particles and automatically opens when the eye wash is activated. They provide a minimum flow of 28L/min.
- 1 basin made of stainless steel painted with high-quality yellow powder paint, very resistant.
- 1 easy-to-access ergonomic eye wash lever, made of chrome-plated brass.
- 1 showerhead made of stainless steel painted with high-quality yellow powder paint, which provides a minimum flow of 76L/min, at 2.4 bars of pressure.
- Ball valves and automatic opening when the handle or lever is activated. They remain open until they are manually closed by pressing the lever in the opposite direction.
- Galvanized steel pipes with high visibility white and green coating.
Technical specifications:

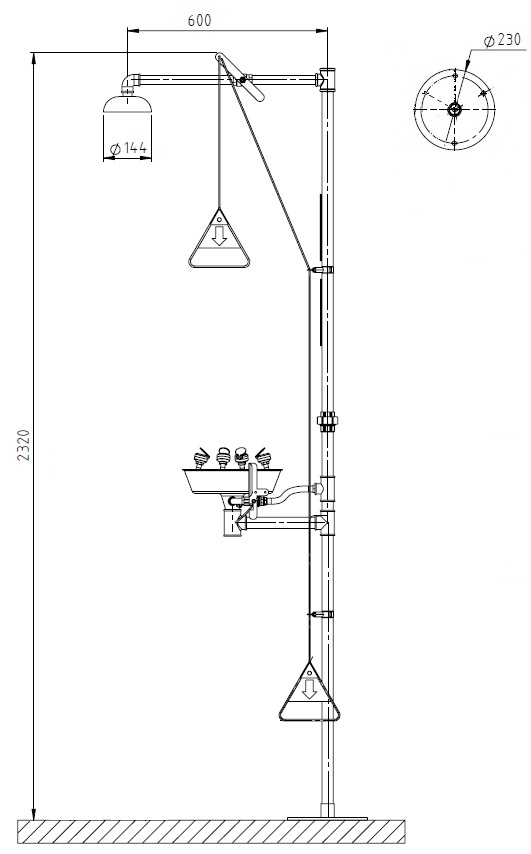

- Dimensions: 380 x 2,320 x 790 mm.
- Water flow: 28 L/min.
- Shower water flow: 76 L/min.
- Water inlet pressure: 2.4 – 6.5 bars.
- Water inlet: 1” female thread.
- Water outlet: 1 ¼” female thread.
- Net weight: 20 Kg.
Standards and certifications:
- ISO 9001/13485 certified.
- Complies with quality policies.
- Manufactured according to ANSI Z358.1-2009, EN15154-1 and EN15154-2:2006 standards.
*The eye wash must have a water flow of 28 liters per minute to function properly and the shower 76 L/min. For this reason, it is very important that the dimensions of the water inlet pipe are correctly sized taking this data into account.
*The flow and pressure regulator of the eye wash automatically works between 2.4 and 6.5 bars of pressure. If the water inlet pressure exceeds 7 bars, it will be necessary to install a pressure reducing valve.
*Place the emergency equipment sign next to the station where it can be clearly seen.
Product details:
- The showerhead is made of stainless steel painted with high-quality yellow powder paint, just like the eye/face wash basin.
- The pipes, however, are made of galvanized steel, painted white with green stripes.
- The shower is activated by a rigid triangular handle for better grip and a manual side-opening eye wash, activated by simple pressure.
- Equipped with a second handle to activate the shower, specially designed for wheelchair users.
- The emergency shower is able to spray the user's entire body in less than the usual time, thanks to its guaranteed minimum flow of 76L/min, at 2.4 bars.
- High-performance wash: the perfect distribution of the four spray heads of the eye/face wash provides quick relief to the person who has been damaged by chemicals or foreign particles.
- Each spray head has a flow control and a filter to remove possible impurities from the water.
- It has a self-drainage system to eliminate residual water from the system.
- Standard equipped with universal emergency signs for the shower and the eye/face wash and an inspection control label.
Components and materials:
- 4 spray heads made of ABS plastic and assembled to respective chrome-plated brass tubes. Each head has an ABS plastic cover that prevents the entry of dust and foreign particles and automatically opens when the eye wash is activated. They provide a minimum flow of 28L/min.
- 1 basin made of stainless steel painted with high-quality yellow powder paint, very resistant.
- 1 easy-to-access ergonomic eye wash lever, made of chrome-plated brass.
- 1 showerhead made of stainless steel painted with high-quality yellow powder paint, which provides a minimum flow of 76L/min, at 2.4 bars of pressure.
- Ball valves and automatic opening when the handle or lever is activated. They remain open until they are manually closed by pressing the lever in the opposite direction.
- Galvanized steel pipes with high visibility white and green coating.
Technical specifications:
- Dimensions: 380 x 2,320 x 790 mm.
- Water flow: 28 L/min.
- Shower water flow: 76 L/min.
- Water inlet pressure: 2.4 – 6.5 bars.
- Water inlet: 1” female thread.
- Water outlet: 1 ¼” female thread.
- Net weight: 20 Kg.
Standards and certifications:
- ISO 9001/13485 certified.
- Complies with quality policies.
- Manufactured according to ANSI Z358.1-2009, EN15154-1 and EN15154-2:2006 standards.
*The eye wash must have a water flow of 28 liters per minute to function properly and the shower 76 L/min. For this reason, it is very important that the dimensions of the water inlet pipe are correctly sized taking this data into account.
*The flow and pressure regulator of the eye wash automatically works between 2.4 and 6.5 bars of pressure. If the water inlet pressure exceeds 7 bars, it will be necessary to install a pressure reducing valve.
*Place the emergency equipment sign next to the station where it can be clearly seen.
