Reference. 10803870
Emergency eyewash station, with stainless steel catcher and pedestal for floor mounting.

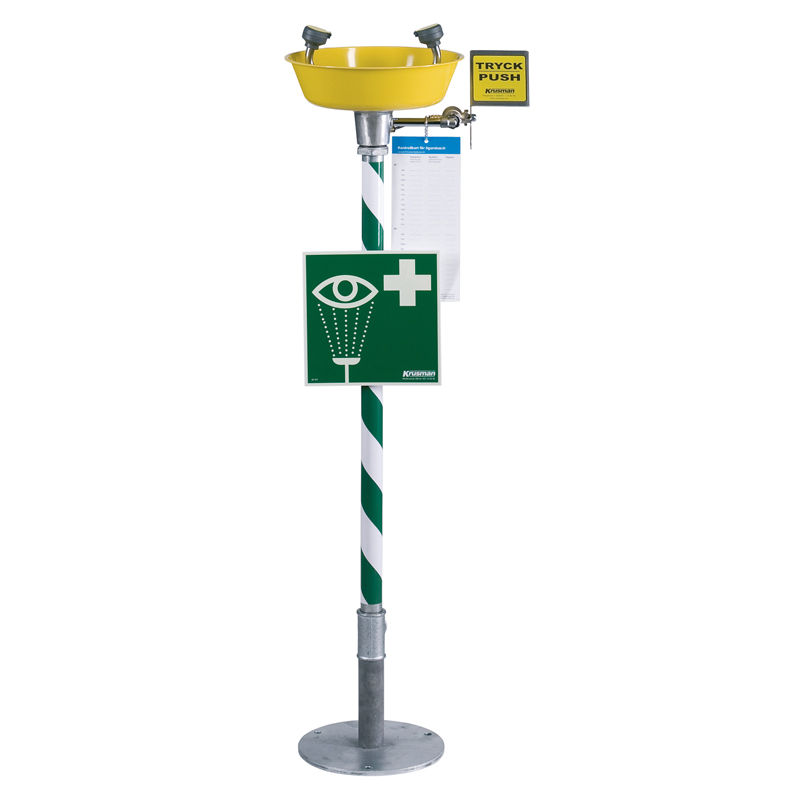

Emergency eyewash with collector made of stainless steel painted with high-quality yellow powder paint and pedestal for floor mounting, painted in white with green spiral stripes.
Personal advice
Description
Emergency eyewash station with stainless steel collector painted with high-quality yellow powder paint and a pedestal for mounting on the floor, painted white with green spiral stripes. Ideal for use in industries, workshops or locations where staff are at risk of eye or physical damage from fire, reactants, petroleum products, radioactive materials, acids...
Product Details:
- High-performance washing: provides quick relief for eyes damaged by chemicals or foreign particles.
- Water inlet designed to receive a minimum water flow of 14 L/minute, thus providing a completely safe and effective eye wash.
- Activation by manually pressing an ergonomic and easily accessible push plate.
- Each spray head has a flow control and a filter to remove any possible impurities from the water.
- Features a self-draining system to eliminate residual water from the system.
- Comes standard with a universal emergency sign and an inspection control label.
Technical Specifications:

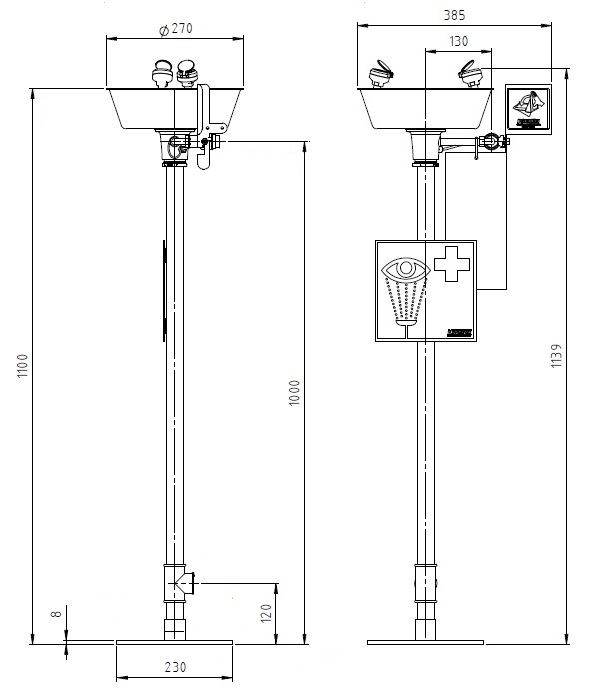

- Dimensions: 385 x 1139 x 270 mm.
- Water flow: 14 L/min.
- Water inlet pressure: 2.4 – 6.5 bars.
- Water inlet: 1/2” female thread.
- Water outlet: 1” female thread.
- Net weight: 12 Kg.
Components and Materials:
- 2 spray heads made of ABS plastic and assembled to two chrome-plated brass tubes. Each head has an ABS plastic cap that prevents dust and foreign particles from entering and opens automatically when the eyewash is activated.
- 1 basin made of stainless steel painted with high-quality yellow powder paint, highly resistant to impacts.
- 1 ergonomically designed and easily accessible eyewash lever, made of chrome-plated brass.
- 1 ball valve and automatic opening when the actuation plate is pressed. This is made of chrome-plated brass and remains open until manually closed by pressing the actuation lever in the opposite direction.
Regulations and Certifications:
- ISO 9001/13485 certified.
- Meets quality policies.
- Manufactured in accordance with ANSI Z358.1-2009, EN15154-1 and EN15154-2:2006 standards.
*The eyewash must have a water flow of 14 liters per minute to function properly. For this reason, it is very important that the dimensions of the water inlet pipe are correctly sized considering this data.
*The eyewash flow and pressure regulator works automatically between 2.4 and 6.5 bars of pressure. If the water inlet pressure exceeds 7 bars, it will be necessary to install a pressure reducing valve.
*Place the emergency equipment sign next to the eyewash where it is clearly visible.
Product Details:
- High-performance washing: provides quick relief for eyes damaged by chemicals or foreign particles.
- Water inlet designed to receive a minimum water flow of 14 L/minute, thus providing a completely safe and effective eye wash.
- Activation by manually pressing an ergonomic and easily accessible push plate.
- Each spray head has a flow control and a filter to remove any possible impurities from the water.
- Features a self-draining system to eliminate residual water from the system.
- Comes standard with a universal emergency sign and an inspection control label.
Technical Specifications:
- Dimensions: 385 x 1139 x 270 mm.
- Water flow: 14 L/min.
- Water inlet pressure: 2.4 – 6.5 bars.
- Water inlet: 1/2” female thread.
- Water outlet: 1” female thread.
- Net weight: 12 Kg.
Components and Materials:
- 2 spray heads made of ABS plastic and assembled to two chrome-plated brass tubes. Each head has an ABS plastic cap that prevents dust and foreign particles from entering and opens automatically when the eyewash is activated.
- 1 basin made of stainless steel painted with high-quality yellow powder paint, highly resistant to impacts.
- 1 ergonomically designed and easily accessible eyewash lever, made of chrome-plated brass.
- 1 ball valve and automatic opening when the actuation plate is pressed. This is made of chrome-plated brass and remains open until manually closed by pressing the actuation lever in the opposite direction.
Regulations and Certifications:
- ISO 9001/13485 certified.
- Meets quality policies.
- Manufactured in accordance with ANSI Z358.1-2009, EN15154-1 and EN15154-2:2006 standards.
*The eyewash must have a water flow of 14 liters per minute to function properly. For this reason, it is very important that the dimensions of the water inlet pipe are correctly sized considering this data.
*The eyewash flow and pressure regulator works automatically between 2.4 and 6.5 bars of pressure. If the water inlet pressure exceeds 7 bars, it will be necessary to install a pressure reducing valve.
*Place the emergency equipment sign next to the eyewash where it is clearly visible.
