Reference. 10803868

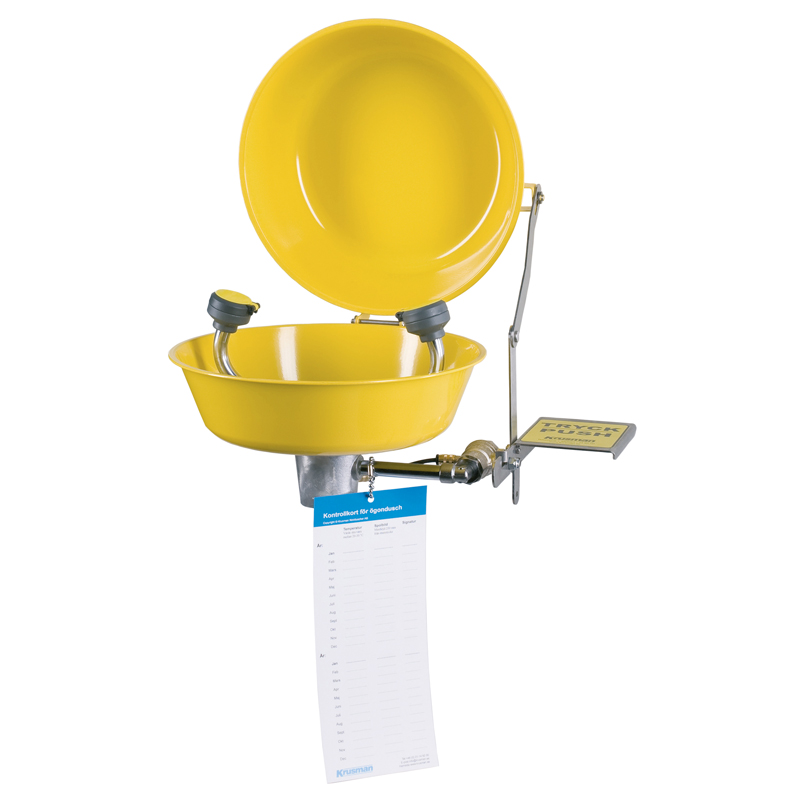

Emergency eyewash station, with water collector and protective cover, made of stainless steel
Emergency eyewash to be installed directly on the wall with water collector and protective cover, made of stainless steel painted with high-quality yellow powder paint.
Personal advice
Description
Emergency eyewash station with water collector and protective cover, made of stainless steel painted with high-quality yellow powder paint to be installed directly on the wall of industries, workshops or sites where staff may be at risk of eye or physical damage due to fire, reactive agents, petroleum products, radioactive materials, acids...
Product details:
- Assembles a yellow stainless steel cover that opens when the eyewash lever is activated and protects it from dust.
- High-performance washing: provides quick relief to eyes damaged by chemicals or foreign particles.
- Water inlet designed to receive a minimum water flow of 14 L/minute, thus providing a completely safe and effective eye wash.
- Activation by manually pressing an ergonomic and easily accessible push plate.
- Each spray head has a flow control and a filter to remove possible impurities from the water.
- Features a self-draining system to remove residual water from the system.
- Equipped as standard with a universal emergency sign and an inspection control label.
Technical specifications:

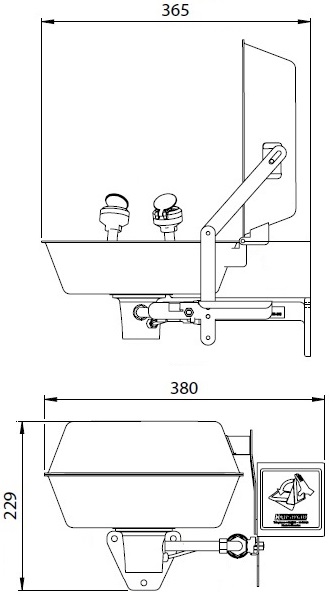

- Dimensions: 380 x 200 x 365 mm.
- Water flow: 14 L/min.
- Water inlet pressure: 2.4 – 6.5 bars.
- Water inlet: 1/2” female thread.
- Water outlet: 1 ¼” female thread.
- Net weight: 4 Kg.
Components and materials:
- 2 spray heads made of ABS plastic and assembled to two chrome-plated brass tubes. Each head has an ABS plastic cap that prevents the entry of dust and foreign particles and opens automatically when the eyewash is activated.
- 1 basin made of stainless steel painted with high-quality yellow powder paint, very resistant to impacts.
- 1 ergonomic and easily accessible eyewash activation lever, made of chrome-plated brass.
- 1 ball valve and automatic opening when the activation plate is pressed. This is made of chrome-plated brass and remains open until it is manually closed by pressing the activation lever in the opposite direction.
Regulations and certifications:
- ISO 9001/13485 certified.
- Complies with quality policies.
- Manufactured according to ANSI Z358.1-2009, EN15154-1 and EN15154-2:2006 standards.
*The eyewash must have a water flow of 14 liters per minute to function correctly. For this reason, it is very important that the dimensions of the water inlet pipe are correctly sized taking this data into account.
*The eyewash flow and pressure regulator works automatically between 2.4 and 6.5 bars of pressure. If the water inlet pressure exceeds 7 bars, it will be necessary to install a pressure reducing valve.
*Place the emergency equipment sign next to the eyewash where it can be clearly seen.
Product details:
- Assembles a yellow stainless steel cover that opens when the eyewash lever is activated and protects it from dust.
- High-performance washing: provides quick relief to eyes damaged by chemicals or foreign particles.
- Water inlet designed to receive a minimum water flow of 14 L/minute, thus providing a completely safe and effective eye wash.
- Activation by manually pressing an ergonomic and easily accessible push plate.
- Each spray head has a flow control and a filter to remove possible impurities from the water.
- Features a self-draining system to remove residual water from the system.
- Equipped as standard with a universal emergency sign and an inspection control label.
Technical specifications:
- Dimensions: 380 x 200 x 365 mm.
- Water flow: 14 L/min.
- Water inlet pressure: 2.4 – 6.5 bars.
- Water inlet: 1/2” female thread.
- Water outlet: 1 ¼” female thread.
- Net weight: 4 Kg.
Components and materials:
- 2 spray heads made of ABS plastic and assembled to two chrome-plated brass tubes. Each head has an ABS plastic cap that prevents the entry of dust and foreign particles and opens automatically when the eyewash is activated.
- 1 basin made of stainless steel painted with high-quality yellow powder paint, very resistant to impacts.
- 1 ergonomic and easily accessible eyewash activation lever, made of chrome-plated brass.
- 1 ball valve and automatic opening when the activation plate is pressed. This is made of chrome-plated brass and remains open until it is manually closed by pressing the activation lever in the opposite direction.
Regulations and certifications:
- ISO 9001/13485 certified.
- Complies with quality policies.
- Manufactured according to ANSI Z358.1-2009, EN15154-1 and EN15154-2:2006 standards.
*The eyewash must have a water flow of 14 liters per minute to function correctly. For this reason, it is very important that the dimensions of the water inlet pipe are correctly sized taking this data into account.
*The eyewash flow and pressure regulator works automatically between 2.4 and 6.5 bars of pressure. If the water inlet pressure exceeds 7 bars, it will be necessary to install a pressure reducing valve.
*Place the emergency equipment sign next to the eyewash where it can be clearly seen.
