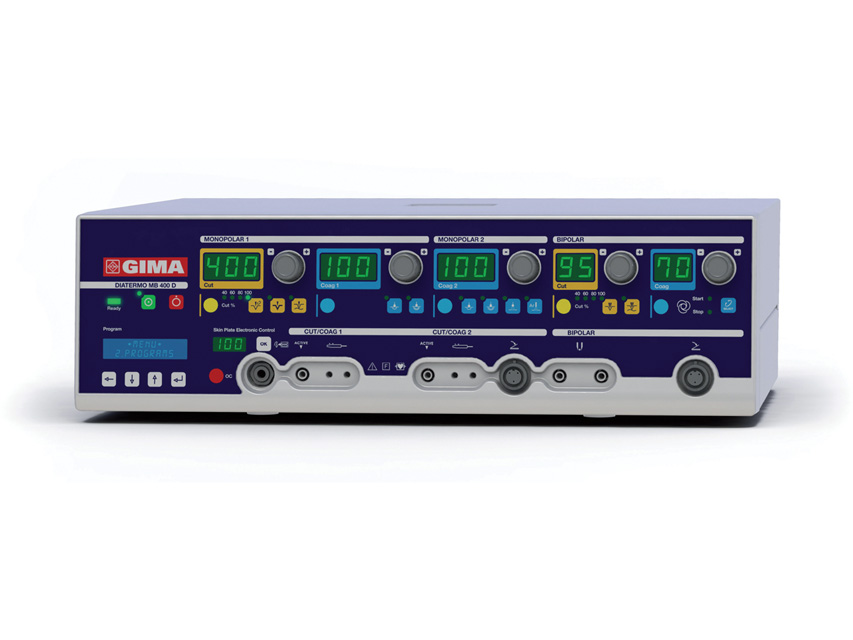

MB 400 D Hospital Diathermy Electrosurgical Unit

The Diatermo MB 400D electrosurgical unit is a high-frequency electrosurgical device capable of supplying current for monopolar cutting and coagulated cutting (with different levels of coagulation), bipolar cutting, and coagulation.

DOUBLE OPERATING ACTIVITY
- Two output channels for monopolar cutting
- Two independent configuration and output channels for more frequent monopolar coagulation

CONTROLLED CUTTING PROCEDURES
- Improved cutting current for eschar-free incision
- Cutting current with selectable coagulation property for controlled dissection of bleeding
- Low capacitance coupling by BLEND (blend) slow current for endoscopic procedures

DOUBLE CONTROL OF COAGULATION PROCEDURES
- SPEED (fast) and DEEP coagulation available for two operators
- SPRAY coagulation through manual or pedal control

BROAD BIPOLAR FEATURES
- Bipolar cutting current with selectable bleeding control
- BLEND (blend) slow cutting current
- Automatic start/stop coagulation functions

TOTAL SAFETY FOR THE SURGEON AND THE PATIENT
- Acceptability of the contact impedance between the patient's body and the return electrode continuously monitored by Skin Plate Electronic Control (SPEC)
- High-frequency leakage currents continuously monitored
- Network fluctuation is automatically compensated before the delivery of high-frequency power

CONFIGURABLE PROCEDURES
- Independent choice of coagulation currents and power levels by each of the two operators
- Up to 10 procedures can be configured and retrieved

EXTENSION CONTROL AND INTERLEAVED SIGNALS
- Output connection to the external Argon Plasma unit and to the smoke evacuation unit

AUTOMATIC SELF-DIAGNOSTICS
- Automatic diagnostic control of the full functionality of the electronic unit and connected accessories with coded report of faults or errors.

APPLICATIONS:
- Outpatient surgery
- General surgery
- Pediatric surgery
- Plastic surgery
- Thoracic surgery
- Vascular surgery
- Dermatology
- Endoscopy
- Gastroenterology
- Gynecology
- Neurosurgery
- Orthopedics
- Otorhinolaryngology
- Pneumology
- Urology
- Veterinary

Certificates:
- CE medical product Class II B according to Directive 93/42/EEC.
- Complies with the safety requirements of standards EN60601-1, EN60601-1-2 and EN60601-2-2.

Technical specifications:
• Maximum monopolar pure CUT output power: 400 W-300 Ohm.
• Maximum monopolar cut-coag CUT80% output power: 350 W-300 Ohm.
• Maximum monopolar cut-coag CUT60% output power: 250 W-300 Ohm.
• Maximum monopolar cut-coag CUT40% output power: 200 W-300 Ohm.
• Maximum output power of monopolar ENHANCED cut: 250 W-500 Ohm.
• Maximum monopolar cut-coag BLEND output power: 250 W-300 Ohm.
• Maximum monopolar coag SPEED output power: 120 W-500 Ohm.
• Maximum monopolar coag DEEP output power: 120 W-200 Ohm.
• Maximum monopolar coag SPRAY output power: 100 W-2000 Ohm.
• Maximum monopolar coag SPRAY ARGON output power: 100 W-2000 Ohm.
• Maximum bipolar CUT output power: 95 W-150 Ohm.
• Maximum bipolar cut-coag CUT80% output power: 95 W-150 Ohm.
• Maximum bipolar cut-coag CUT60% output power: 95 W-150 Ohm.
• Maximum bipolar cut-coag CUT40% output power: 60 W-150 Ohm.
• Maximum bipolar cut-coag BLEND output power: 90 W-150 Ohm.
• Maximum bipolar cut-coag BLEND output power: 70 W-100 Ohm.
• Monopolar/bipolar working frequency: 425 kHz/525 kHz.
• Patient circuit: F.
• Selectable input voltage: 115-230 V.
• Network frequency: 50-60 Hz.
• Electric input voltage: 1000 VA.
• Controls: monitoring of the patient circuit/plate, monitoring of the output power, self-check control.
• Dimensions: 470x150x400 mm.
• Weight: 17.5 kg.

Includes:
- 5 m power cable.
- Autoclavable two-button handle.
- Cold sterilizable two-button handle.
- Flat plate cable.
- Disposable REM control plates with solid gel, box of 25 units.
- Waterproof double foot control.
- Short blade electrode for 7 cm general surgery.
- Long blade electrode for 16 cm general surgery.
- Ball electrode for short general surgery of 4 mm diameter and 6 cm length.
- Brush type electrode.
- User manual in IT and GB.
