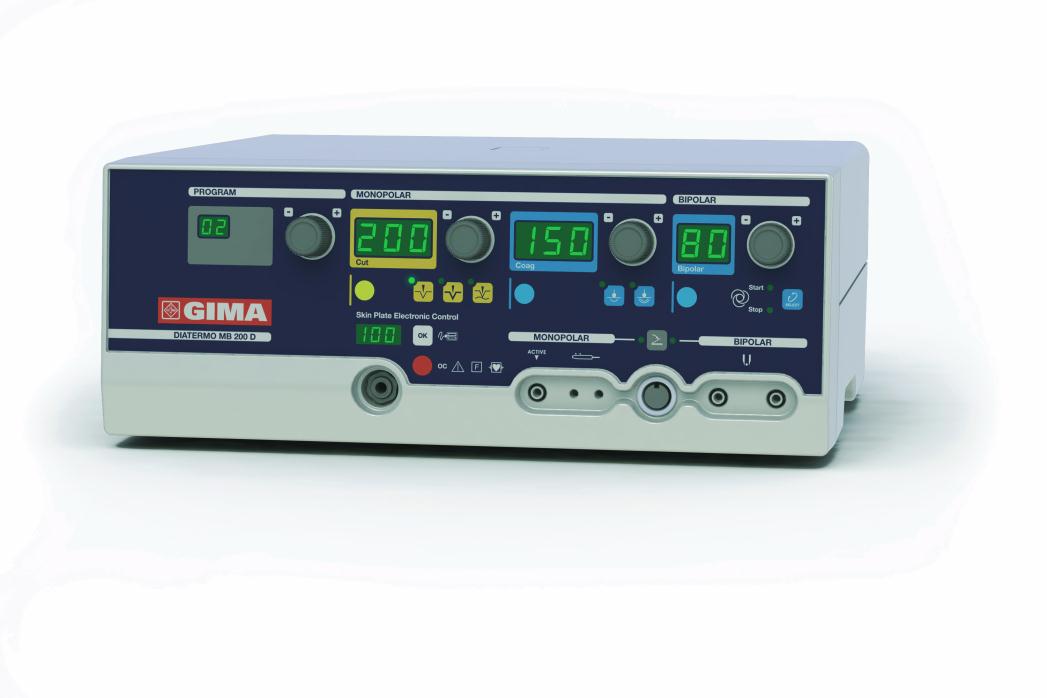

Diathermy Electrocautery MB 200D Mono-Bipolar

MB 200 is a high-frequency electrosurgery device suitable for light and medium surgery. It allows minimally invasive surgical procedures of resection, evaporation and coagulation.

MB 200 allows pure CUT, BLEND Cut-coagulation, incision with reduced scarring ENHANCED, superficial COAG FORCED coagulation, deep coagulation in absence of necrosis SOFT COAG, and bipolar coagulation.

Digital reading of the supplied power and monitoring through microcontroller of operational functions, ensure absolute reliability of working conditions.

MB 200 allows highly professional surgery through ergonomic and safety features. The neutral electrode connection is constantly monitored. Patient contact safety control with divided neutral electrode plate. Possibility to control output functions and power output delivery by the handle, allows surgical operation without diverting attention from the surgical field.

Applications:
• Outpatient surgery
• Endoscopy
• First aid
• Gastroenterology
• General surgery
• Gynecology
• Neurosurgery
• Orthopedics
• Otorhinolaryngology
• Pediatric surgery
• Plastic surgery
• Pneumology
• Urology
• Vascular surgery
• Veterinary

Certificates: CE Class II B medical device.

Technical specifications:
• Maximum output power (CUT): 200 W-250 Ohm.
• Maximum output power (ENHANCED): 120 W-250 Ohm.
• Maximum output power (BLEND): 120 W-200 Ohm.
• Maximum output power (FORCED COAG): 150 W-150 Ohm.
• Maximum output power (SOFT COAG): 90 W - 100 Ohm.
• Maximum output power (BIPOLAR COAG): 80 W - 50 Ohm.
• Working frequency: 600 kHz.
• Patient circuit: F.
• Mains voltage: 115-230 Vac.
• Mains frequency: 50-60 Hz.
• Input electrical power: 350 VA.
• Controls: monitoring of the patient/plate circuit, output power monitoring, self-check control.
• Dimensions: 370x144x319 mm.
• Weight: 6 kg.

Includes:
• Two-button autoclavable handle.
• Waterproof foot control.
• Flat neutral metal plate with cable.
• Kit 10 standard short electrodes of 2.4 mm diameter.
• 3 needles + 3 blades + 3 ball electrodes of 7 cm.
• 5 m power cable.
• User manual in GB and IT.

*To use it in bipolar mode it is necessary to purchase the bipolar connection cable (ref. 400130640/400130637) and bipolar forceps.
