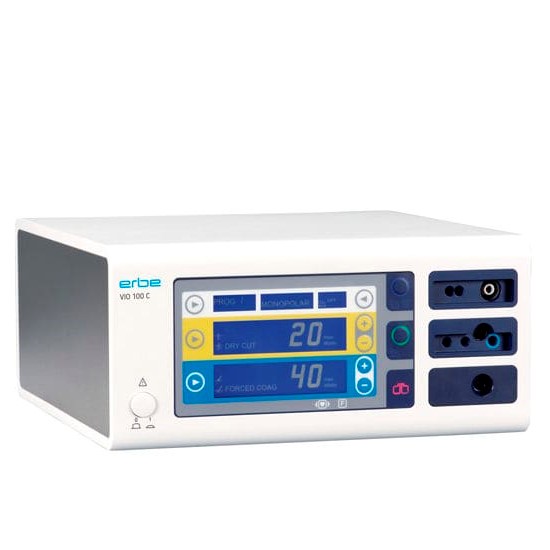

Erbe VIO 100C complete mono-bipolar electrosurgical unit

Complete VIO 100C electrosurgical unit that, thanks to its innovative design, covers the requirements of minor procedures and outpatient surgeries, both in monopolar incisions and in monopolar and bipolar coagulation. The device is capable of memorizing the 4 most recurring programs to facilitate the work of the professional. In addition, it features the AUTO START function, which automatically initiates coagulation for greater convenience and safety.

Modes:
- AUTO CUT: due to voltage regulation, the quality of the cut is automatically regulated. To ensure minimal necrosis and reproducible cut quality, this function is independent of the electrode used, the direction of the cut, or the tissue.
- DRY CUT: the combination of voltage regulation and modulated current shapes produces a surgical cut with excellent hemostasis, generating a minimal amount of smoke. This function is designed for operations that require rigorous hemostasis.
- SOFT COAG: soft coagulation reinforced by power dosing. Coagulations without carbonization and with minimal electrode adherence, recommended for careful but deep coagulations.
- FORCED COAG: quick and effective application for all standard coagulation requirements. Effective directly through the coagulation electrode or indirectly, for example, with a small insulating surgical clamp.
- BIPOLAR SOFT COAG: bipolar coagulation with low voltages, greatly reduces both instrument adherence and tissue carbonization.

Certificates:
- Classification according to EU regulation 3/42/EWG: II b.
- Protection class according to EN 60m 601 -1 standard: I.

Technical specifications:
- Maximum CUT power: 100 watts at 500 ohms.
- Maximum COAG power: 80 watts at 100 ohms.
- NE control system: yes.
- Nominal network voltage: 100-240 V.
- Nominal network frequency: 50/60 Hz.
- Dimensions (width x height x depth): 280x135x300 mm.
- Weight: 4 kg.

Includes:
- VIO 100C electrosurgical unit with 3 connector modules, 1 system software, 1 power cord and 1 instruction manual.
- Connection cable for neutral electrodes, VIO, ICC, ACC, third party devices, international, 4 m; for two-area neutral electrodes, with contact tab.
- Monopedal switch for VIO C, with AP & IP X8; with 5 m connection cable.
- Bipolar connection cable, VIO, ICC, ACC, international (2-Pin 22 mm), 4 m; for bipolar forceps with flat plug for Europe.
- Erbe NESSY Ω, two contact areas, VIO, ICC, ACC, contact surface 85 cm², equipotential ring 23 cm², without connection cable.
