Cubestress System HD+15 package

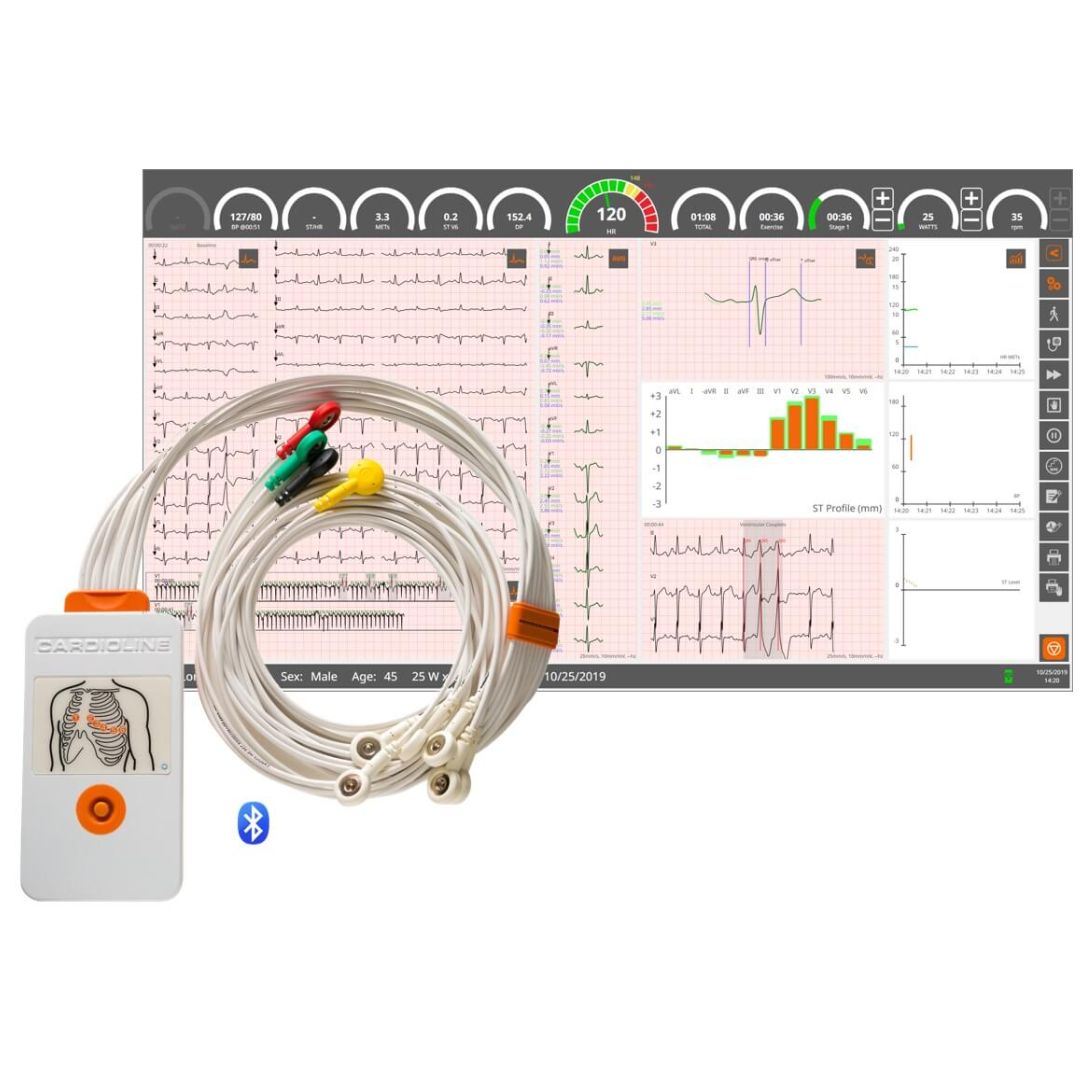

Stress test pack composed ofthe new HD+ 15 wireless ECG acquisition unit, lightweight, compact and equipped with Bluetooth wireless technology to connect to the PC and the dedicated software, capable of analyzing real-time beat-to-beat parameters.
Cubestress is an innovative 15-lead wireless stress test system that has been developed in collaboration with medical and technical experts specializing in stress testing. This system stands out for its exceptional signal quality and analysis, its ability to perform tests quickly and accurately, and its full integration into the company's information system, making it an indispensable tool for optimizing workflow and increasing productivity in clinical environments.

Features:
- Quality and analysis signal: Cubestress ensures high-quality ECG signal and sophisticated analysis, facilitating the safe and efficient execution of stress tests, with bidirectional connectivity that improves data management.

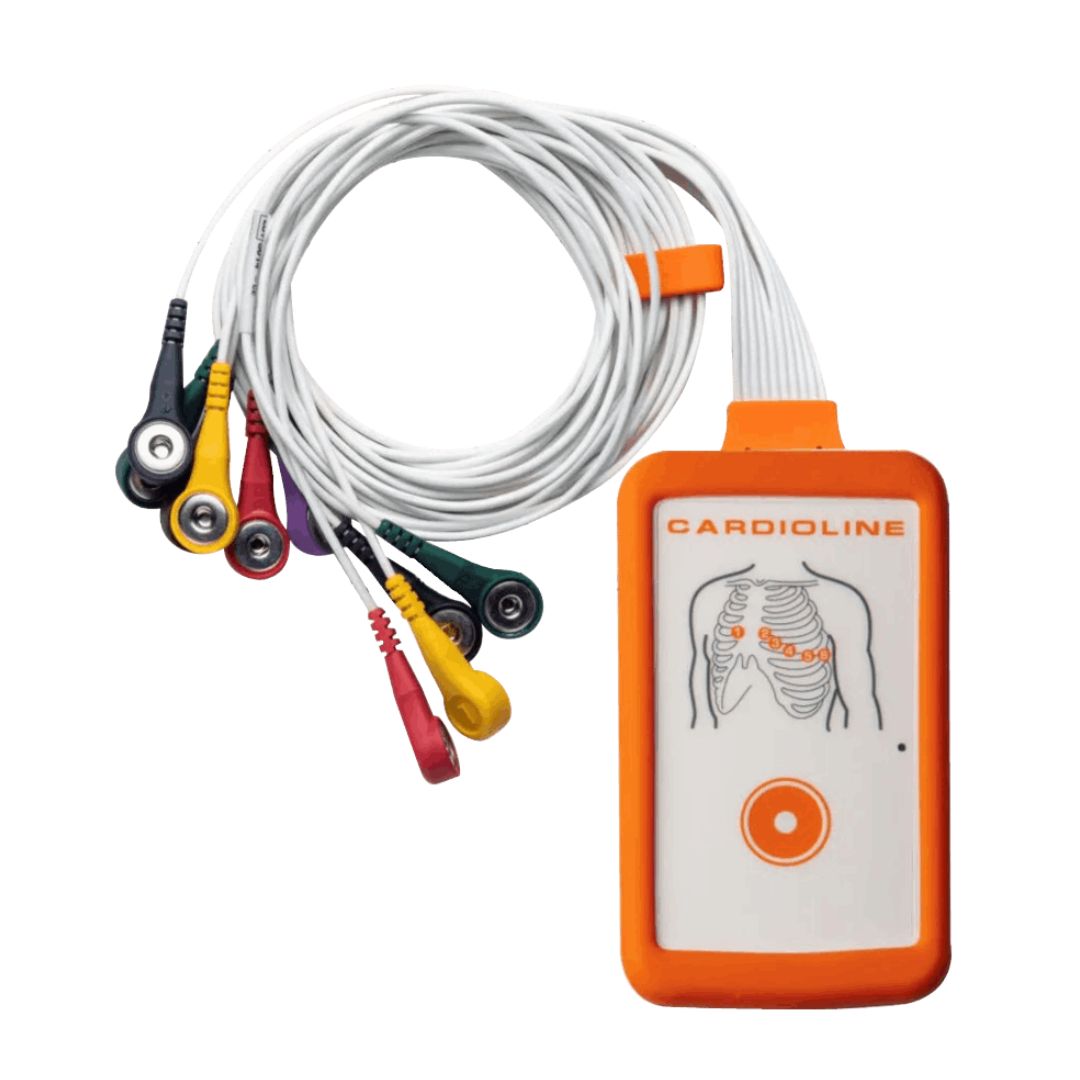

- HD+15 wireless module: ECG data acquisition is done through the HD+15 wireless module.
- Advanced algorithms: Incorporates industry-leading algorithms for complex detection, arrhythmia classification, ST analysis, QTc measurements, and risk factor calculations, providing reliable and quick diagnostic information.
- Connectivity and data management: Allows for patient information upload from HIS systems, report export in various formats and raw data storage for remote review, ensuring efficiency in the stress test lab.

*Cubestress is not compatible with HD+ versions 3.xx or lower.

Technical specifications:
- Weight: 0.9 kg.
- Dimensions: 11.5 x 6 x 1.5 cm.
- Leads: 15 leads (I, II, III, aVR-L-F, V1-6, E1-2-3).
- Replaceable 10-wire patient cable.
- CMRR: ≥100 dB.
- Input impedance: ≥100MΩ.
- A/D sampling: 24 bit 128,000 samples per second per channel. Sampling frequency for analysis: 500 c/s and 1000 c/s selectable from the PC application.

Standard accessories:
- HD+15 ECG acquisition unit.
- Important information booklet.
- Cubestress software.
- Multifunction Cardioline dongle.
- USB memory with installation software and manuals.
- ECG patient cable, IEC, 10 wires, clip for HD+15.
- Disposable Ag/AgCl stress electrodes, snap, 25 pcs.
- AAA 1.5-volt alkaline battery.
- Waist bag for HD+/HD+12/ HD+15.
- 24 months warranty.
