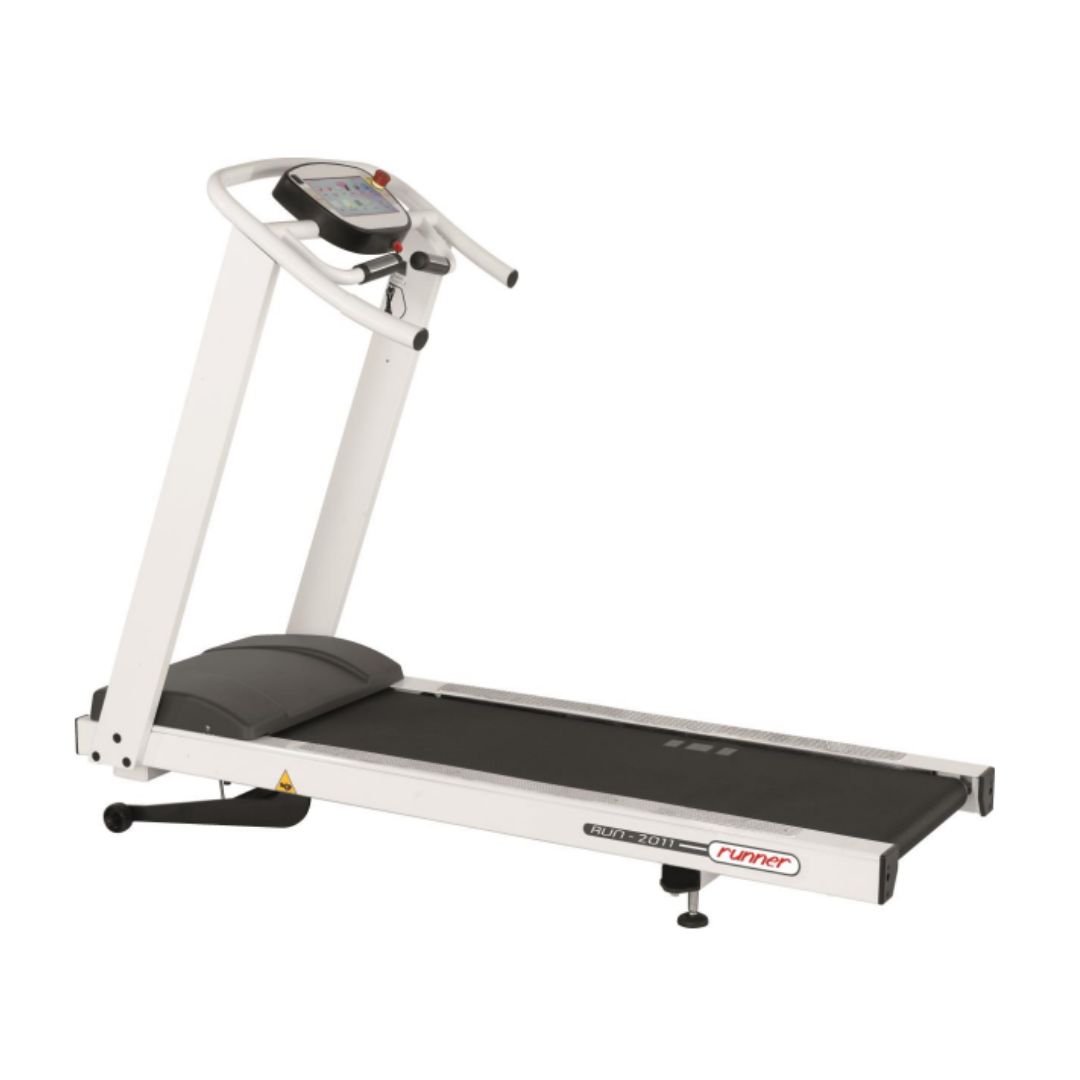

Treadmill RUN2011/TR-PC with touch console, 70 x 188 x 142 cm

Treadmill suitable for stress testing in the healthcare setting. It operates through a powerful motor and has a large walking surface, so it can be used by a wide range of patients. It features a manual and remote control touchscreen where the speed and inclination of the walk can be adjusted. On the other hand, its operation generates very little noise and is compatible with electrocardiogram devices from different brands, making it ideal for facilities such as hospitals or clinics.

It has been manufactured following the specifications marked by the ISO13485 standard and is classified as a Class IIa medical device. In addition, its electronic, mechanical, and electrical components have a 2-year warranty, while the external structure has up to 10.

General features
- Width: 70 cm
- Length: 188 cm
- Height: 142 cm
- Weight: 145 kg

Technical specifications
- Durable 10.1 inch touchscreen
- PC iMX6 DL 1 GB, Micro SD 8GB, S.O. Linux
- Analog RS323 interface with optical isolation for connection with ECG through the Trackmaster protocol (compatible with ECG Amedtec, Beneware, BTL, Cardioflex, Cardiolex, Cosmed, CubeStress Cardioline, Customed, Edan, Egoline, Fukuda, Imed-Cardiax, Labtech, Medical Econet, Neurosoft, Norav, Schiller, Sentinel 10, Teka, Vyaire, XScribe Mortara)
- Speed range: 0.1 - 20 km/h
- Inclination: 0%, +22%
- Speed increase: 0.1 km/h
- Inclination increase: 0.5 - 1%
- Electronic variation of speed and inclination
- Treadmill self-centering system
- Treadmill self-lubrication system
- Walking surface: 140 x 48 cm
- Toroidal transformer: 1700 VA
- Single-phase inverter: 230V ~ 1.5 kW
- Power supply: 220~240Vac, 50/60Hz, 10Amp
- Auxiliary incline circuit: 18 Vac
- Console auxiliary circuit: 12 Vdc
- Motor: 2 HP AC
- Power absorbed at maximum speed: 2000 VA
- Nominal power absorbed: 1500 VA
- Noise: < 30 dB
- Cushioned platform
- Maximum user weight: 150 kg
- Button and handle with magnet for emergency stop
- CE Conformity Certificate 93/42/EEC
- Compatibility with Polar H7, H9 and H10 BLE (Bluetooth Low Energy) chest bands through certified dongle (not included). The band can only be used if an ECG device is available.

Standard accessories (included)
- Wheels to move the treadmill
- Service equipment
- Power cable
- RS232 cable

Optional accessories (not included and with additional cost)
- Incline -3%, +19%
- Long handrails without holes for axillary support (maximum weight 150 kg) (Ref. 4063EE0639)
- Long handrails with holes for axillary support (maximum weight 150 kg) (Ref. 4063EE0654)
- Axillary support (maximum weight 150 kg) (Ref. 4063EE0623)
- Adjustable front and side handrails (maximum weight 150 kg) (Ref. 4063EE0706)
- Harness system for long handrails(maximum weight 150 kg) (Ref. 4063EE0640)
- Special support and vest for harness system(maximum weight 150 kg) (Ref. 4063EE0642)
- Ramp(maximum weight 150 kg) (Ref. 4063EE0692)
- Bluetooth dongle for Polar chest band (Ref. 4063EE0713)

Console functions
- Remote use through the RS232 interface
- Manual use
