Cubestress system package HD+12

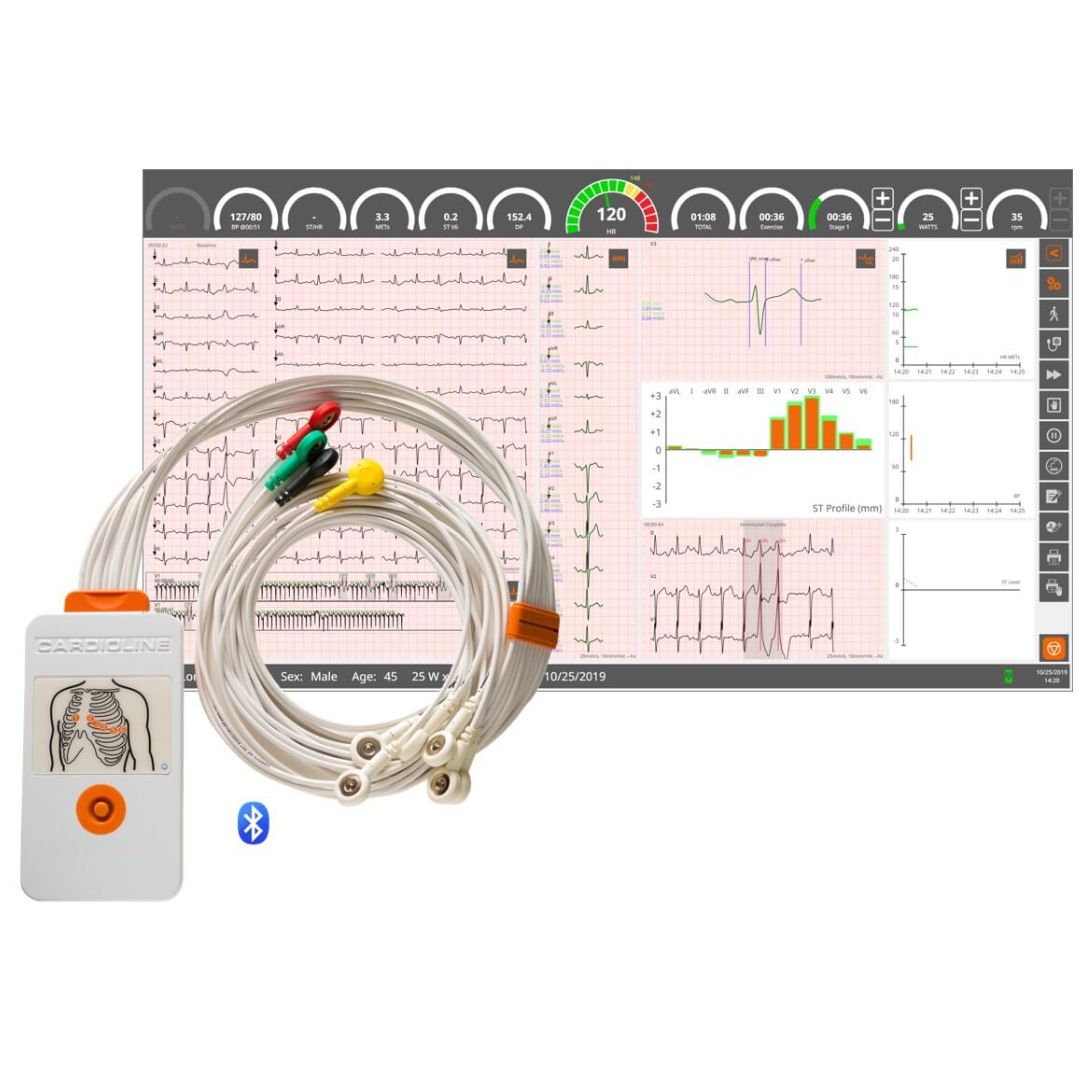

Stress test pack composed of the new wireless ECG acquisition unit HD+ 12, light, compact and equipped with wireless bluetooth technology to connect to the PC and dedicated software, capable of analyzing real-time beat-to-beat parameters, including 12-lead ECG, ST and QT interval.
Cubestress is an innovative 12-lead wireless stress test system that has been developed in collaboration with medical and technical experts specialized in stress tests. This system stands out for its exceptional signal quality and analysis, its ability to perform tests quickly and accurately and its full integration into the company's information system, making it an indispensable tool to optimize workflow and increase productivity in clinical environments.

Features:
- Quality and analysis signal: Cubestress guarantees a high-quality ECG signal and sophisticated analysis, facilitating the safe and efficient execution of stress tests, with bidirectional connectivity that enhances data management.

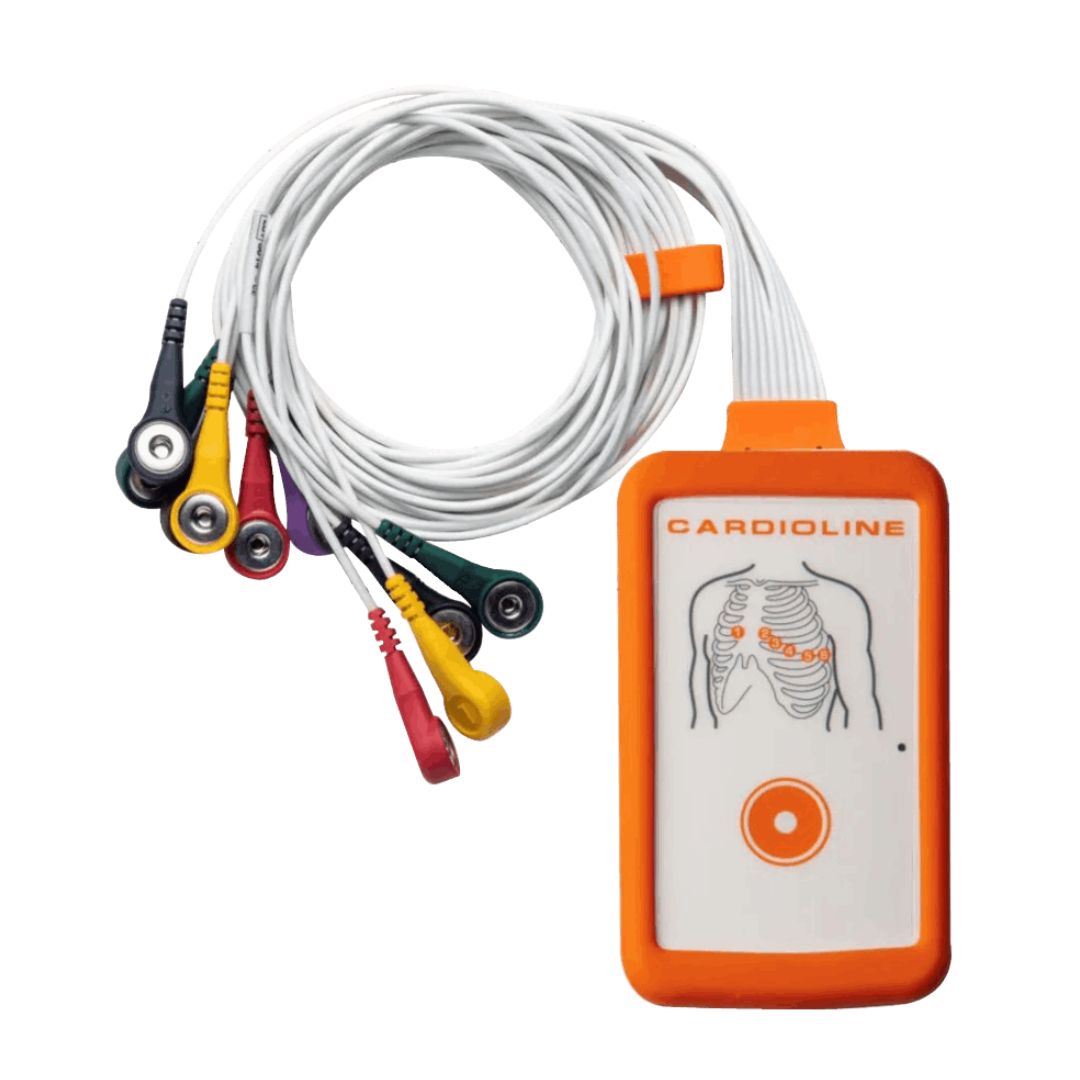

- HD+12 wireless module: ECG data acquisition is carried out through the HD+12 wireless module.
- Advanced algorithms: Incorporates industry-leading algorithms for complex detection, arrhythmia classification, ST analysis, QTc measurements and risk factor calculations, providing reliable and fast diagnostic information.
- Connectivity and data management: Allows patient information upload from HIS systems, report export in various formats and storage of raw data for remote review, ensuring efficiency in the stress test laboratory.

*Cubestress is not compatible with versions 3.xx or lower of HD+.

Technical specifications:
- Weight: 0.9 kg.
- Dimensions: 11.5 x 6 x 1.5 cm.
- Leads: 12 leads (I, II, III, aVR-L-F, V1-6).
- Replaceable 10-wire patient cable.
- CMRR: ≥100 dB.
- Input impedance: ≥100MΩ.
- A/D sampling: 24 bit 128,000 samples per second per channel. Sampling frequency for analysis: 500 c/s and 1000 c/s selectable from the PC application.

Standard accessories:
- Information booklet.
- Cubestress software.
- Multifunction Cardioline dongle.
- USB memory with installation software and manuals.
- ECG acquisition unit HD+12.
- ECG patient cable, IEC, 10 wires, clip for HD+12.
- Disposable stress electrodes Ag/AgCl, snap, 25 units.
- 2 AAA 1.5 volt alkaline batteries.
- HD+/HD+12/ HD+15 belt bag.
- 24 months warranty.
