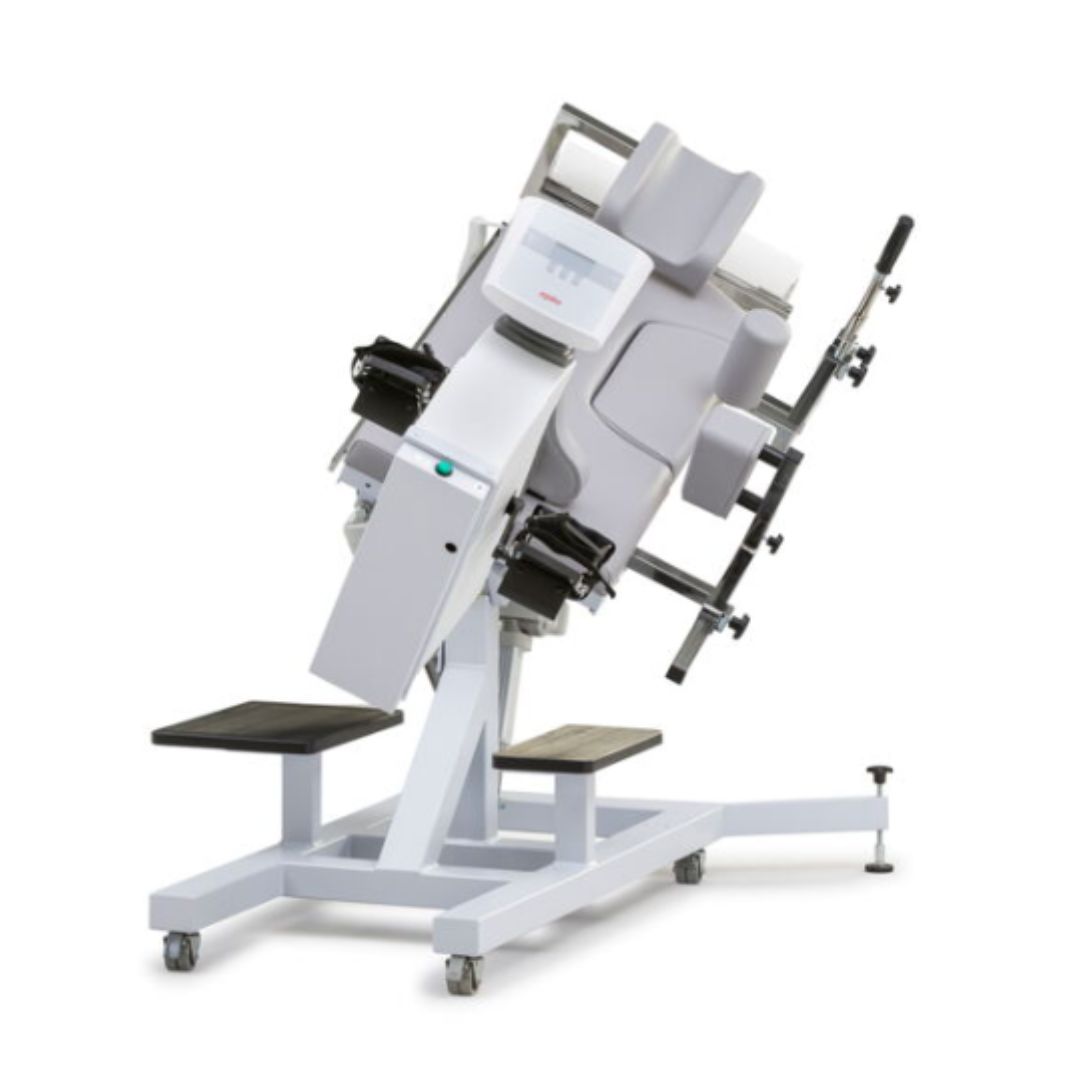

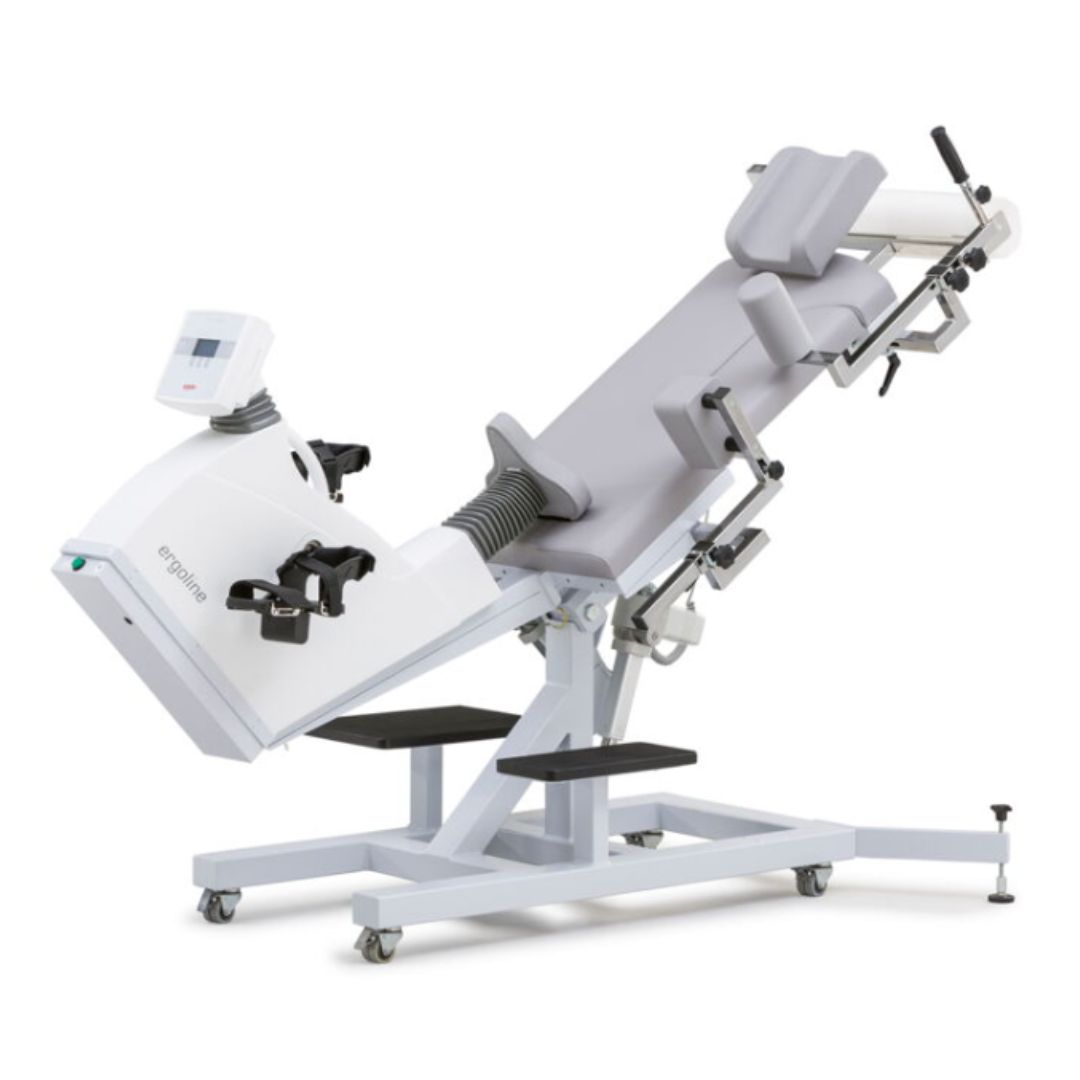

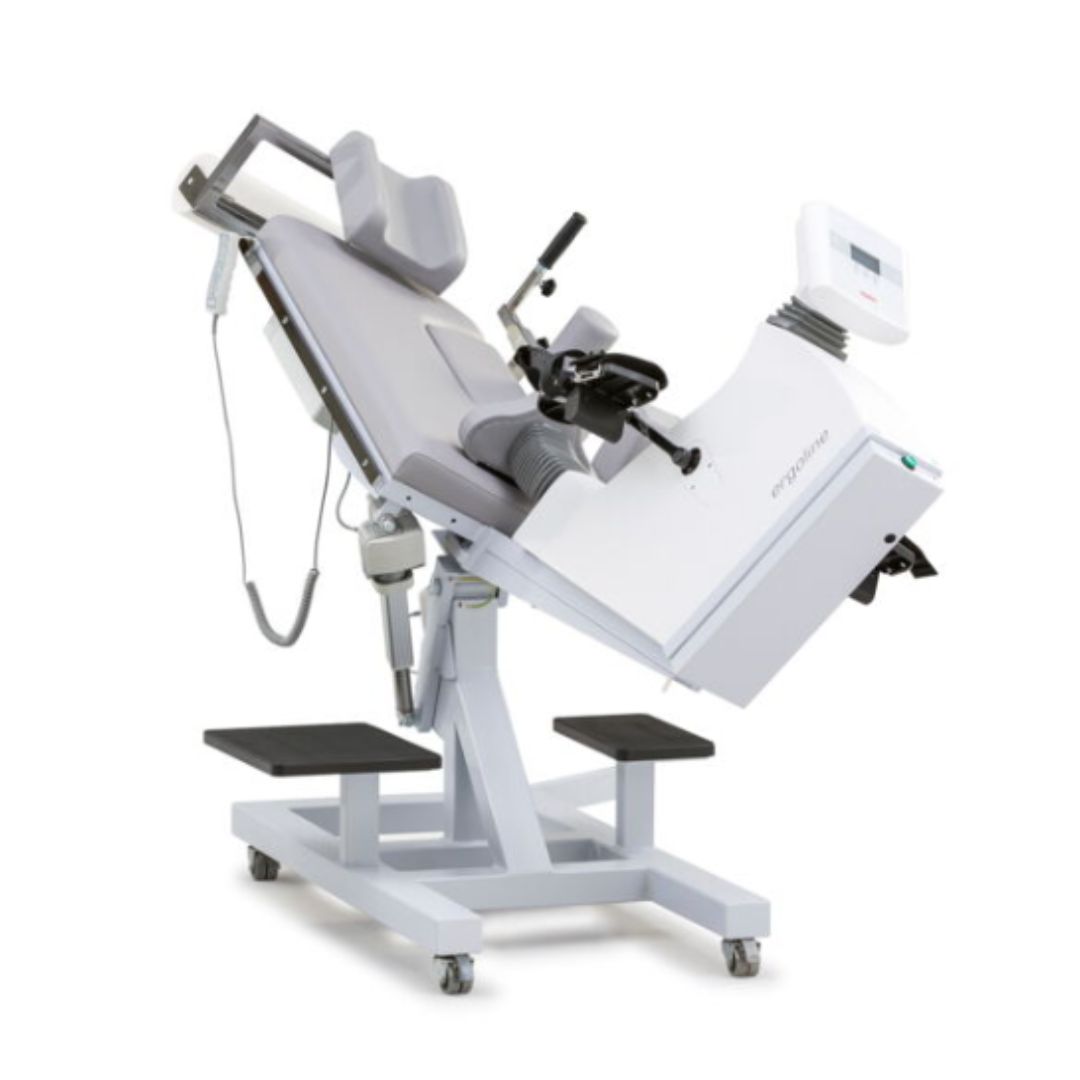

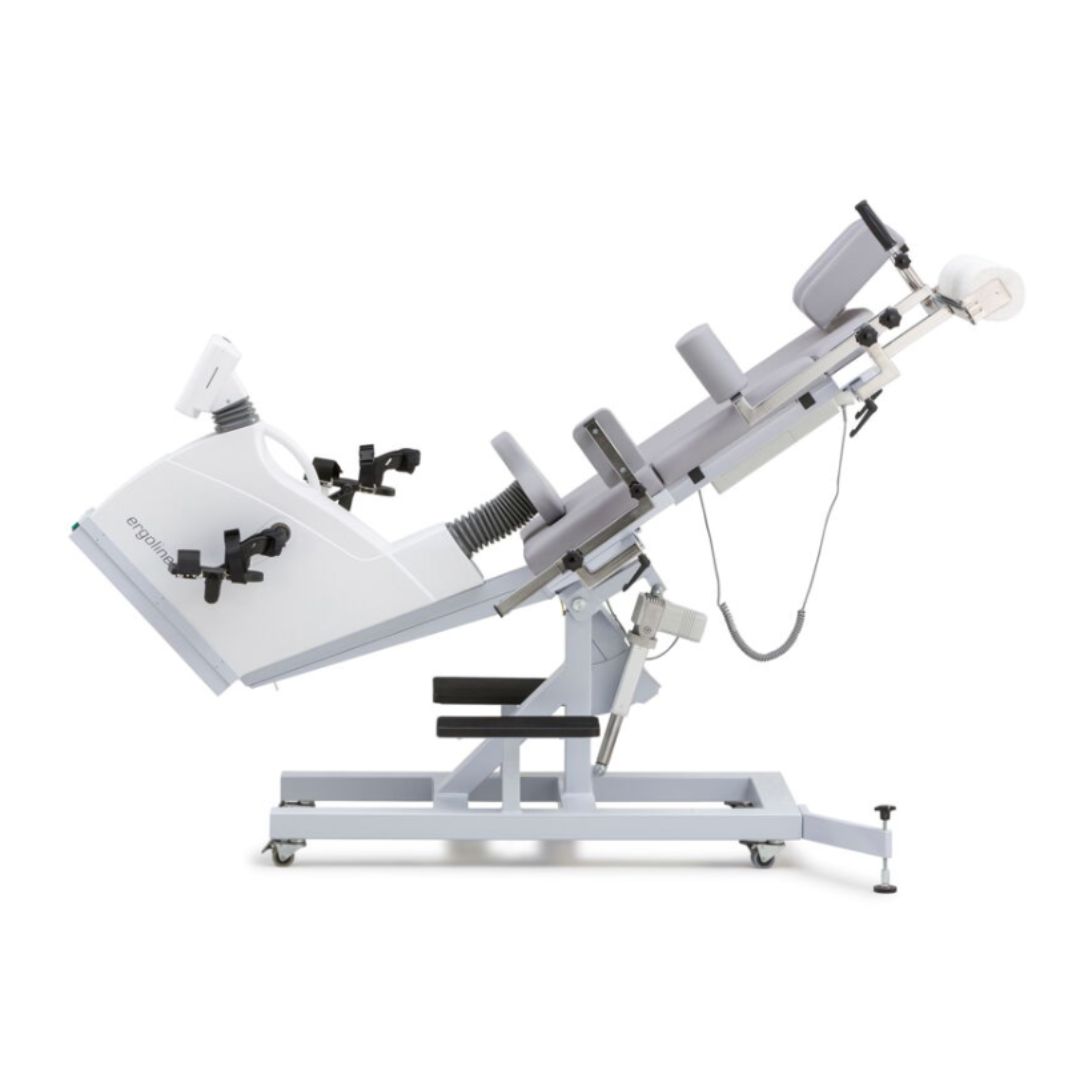

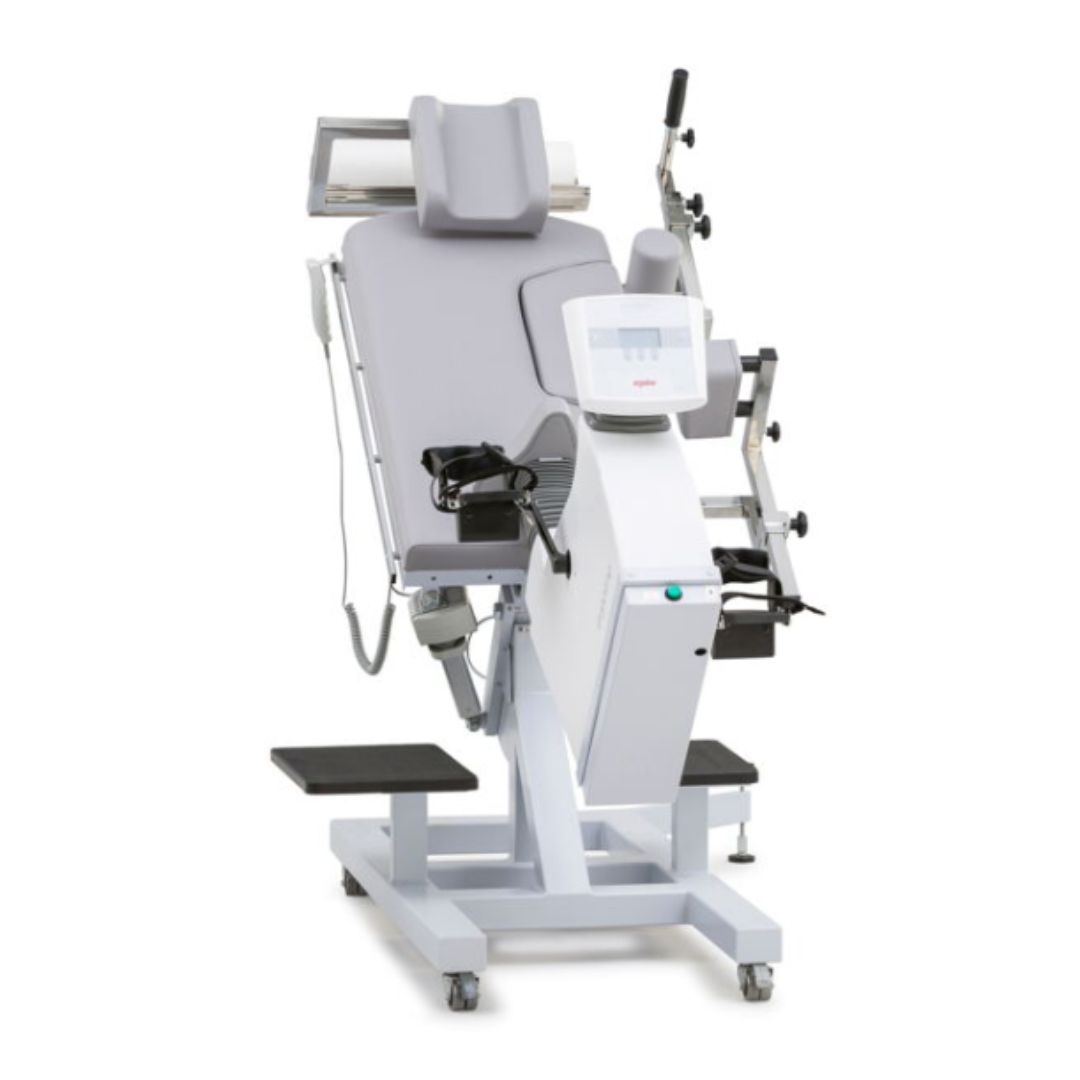

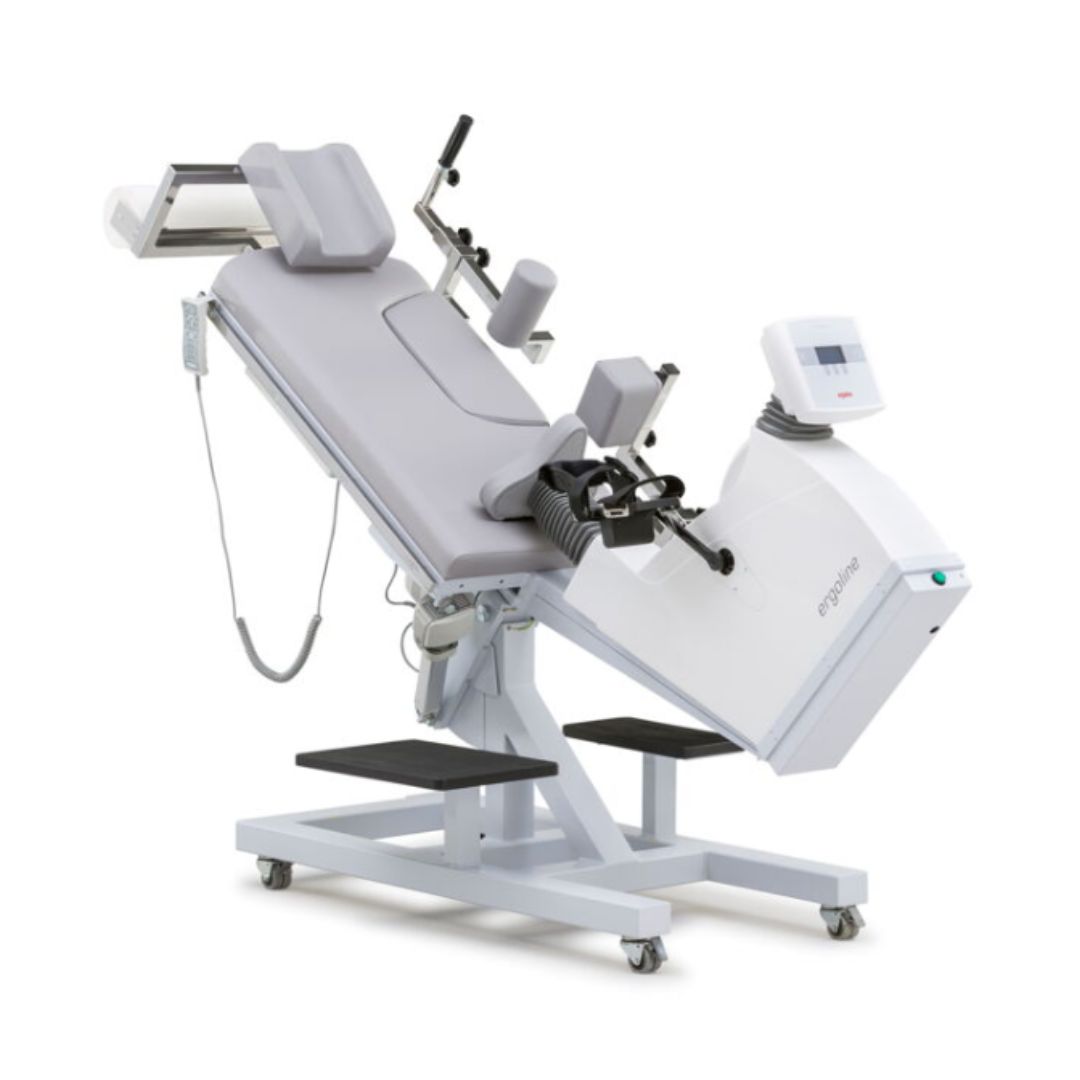

Reclining stretcher ergometer Ergoselect 1200

This reclining stretcher ergometer is the ideal model for stress echocardiograms. Its tilt angle is electrically adjustable in a range of 0 to 45 degrees, both horizontally and laterally. A folding cushion facilitates the echographic examination, while adjustable support elements keep the patient in a stable position, even in a lateral position. The ergometer features customizable exercise programs, intuitive handling, and universal interfaces for ECG, making it a versatile tool.

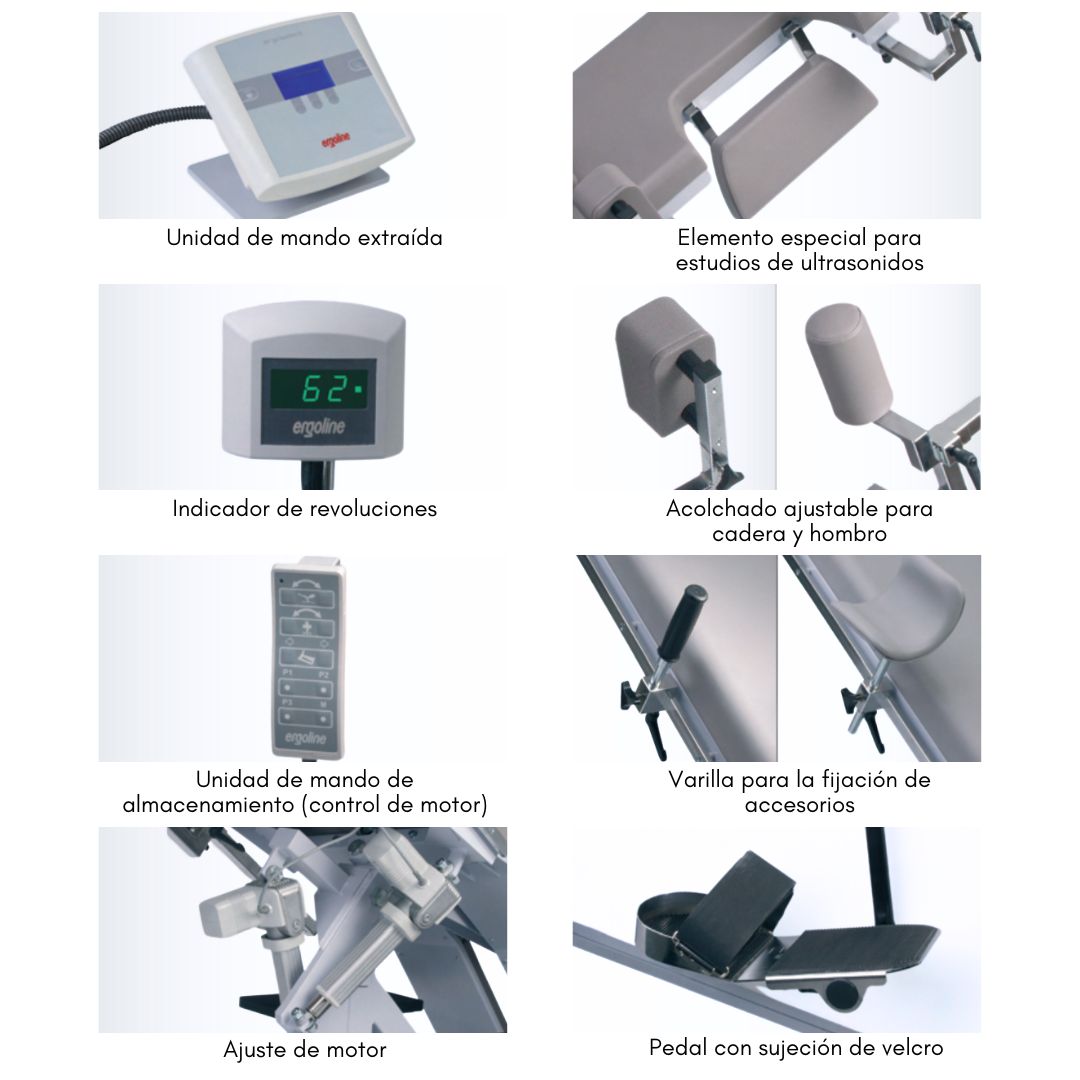

Features:
- The horizontal and lateral tilt angle can be electronically regulated between 0º and 45º.
- Remote motor control.
- Load range from 6 to 1000 Watts.
- Universal interfaces.
- Control screen: A comprehensive view of key data on a single screen. The LC screen stands out for its excellent readability. In addition to the option of control through the PC-ECG or ECG recorder, it also allows the implementation of customized ergometric test protocols or manual load adjustments.
- Folding section for echocardiography: The folding element significantly simplifies echocardiography exams in lateral patient positions.
- Remote control: The compact and easy-to-use remote control allows to adjust the motors of the stretcher and chair, and to store and recall three ergometer positions with just the press of a button.
- Support: It features a stable support that provides secure hold for the patient while the ergometer moves.
- Leg supports: The ergometer can be equipped with removable leg supports on both sides (not included in the price), making it suitable for intermediate exams.
- Variety of colors: The upholstery is available in many colors to suit any clinic or hospital style.
- ECG/universal connection: Ergoline ergometers support a wide variety of interfaces to connect to exercise ECG or ergospirometry systems from leading manufacturers. In addition to standard RS.232 and USB interfaces, analog and wireless connections are offered via Bluetooth or Wifi.

Technical specifications:
- Stretcher width: 50 cm.
- Horizontal and lateral tilt: from 0º to 45 ° motor driven.
- Motor control: Via control unit with membrane keyboard, 3 programmable positions.
- Continuous seat height adjustment, for patients from 120 cm to 210 cm (motorized).
- Maximum user weight: 140 kg.
- Brake system: microprocessor-controlled eddy current brake.
- Load: 6 - 999 watts, speed independent.
- Accuracy: according to DIN VDE 0750-238.
- Speed range: 30 – 130 rpm/min.
- Display / patient visualization: load, rpm, speed, time, blood pressure, heart rate (LCD) / rpm (LED).
- Membrane keyboard.
- User programmable: 10.
- Fixed incremental protocols (WHO, Hollmann, etc.): 5.
- Manual load adjustments.
- Interface: Digital (RS-232, USB).
- Power supply: 230 V (225 VA max.).

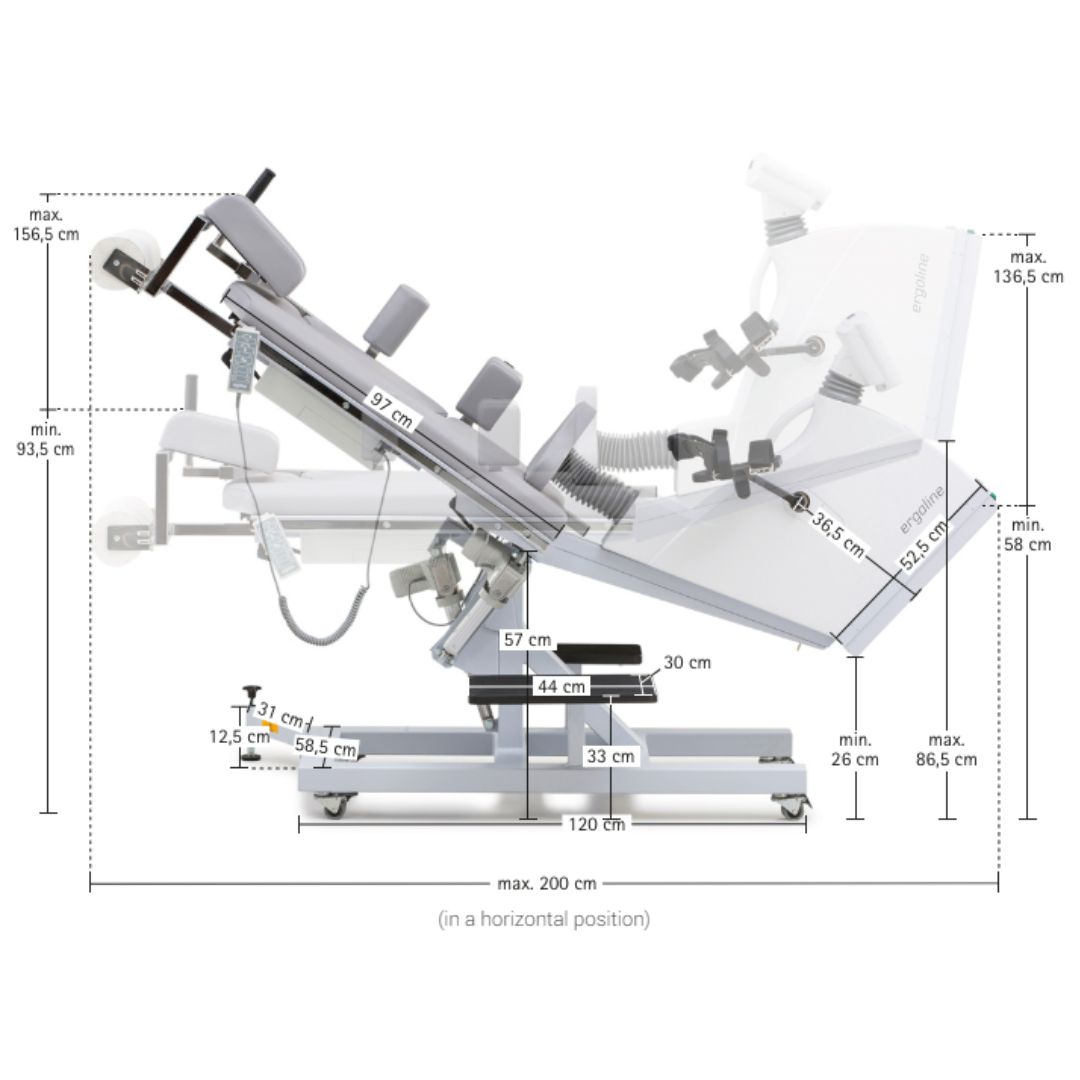

- Measurements:
   • Length: 240 cm.
   • Width: 90 cm.
   • Height: 180 cm (max.).
   • Weight: 140 kg approx.

Included accessories:
- User manual.
- Power cord.
- XR450/600 USB communication cable.
- 24 month warranty.
