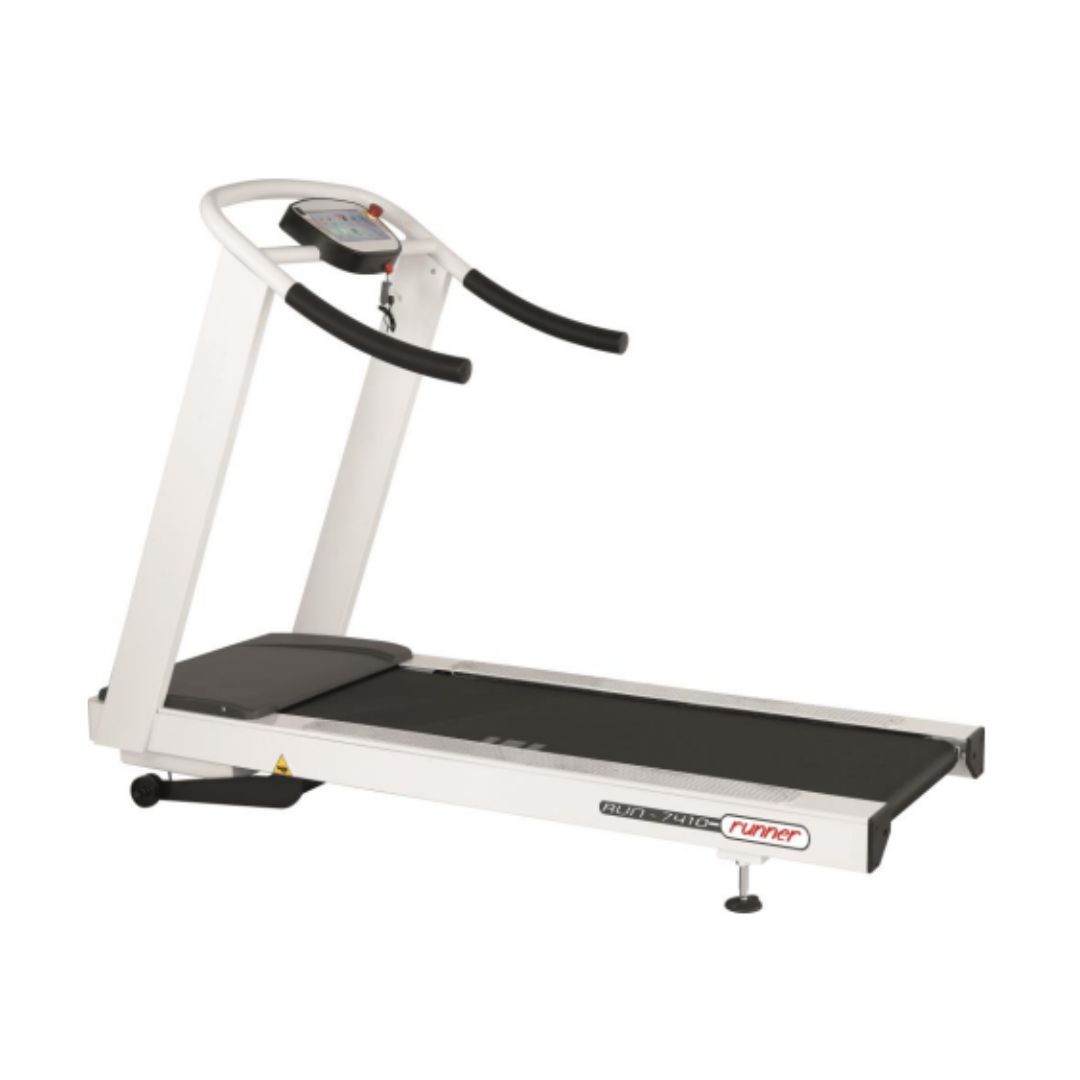

RUN7410/T-PC treadmill with remote control console, 81 x 210 x 150 cm

Treadmill intended for medical diagnosis through stress tests capable of supporting 150 kilograms. Its exceptional motor and its wide walking surface make it a versatile option adaptable to each type of patient and clinical case. It has a screen that is controlled remotely and has a wide range of speeds and inclines, being able to reach 25 kilometers per hour and a 20% slope. It operates through a state-of-the-art system that barely emits noise and is compatible with the most used electrocardiograms in the professional sector, making it an ideal option for facilities such as medical centers, clinics, and hospitals.

It has been designed according to the specifications set by the ISO13485 standard and is categorized as a class IIa medical device. In addition, it has a 10-year warranty on the external structure and 2 years on the electrical, electronic, and mechanical parts.

General features
- Width: 81 cm
- Length: 210 cm
- Height: 150 cm
- Weight: 180 kg

Technical specifications
- Durable 10.1-inch touch screen
- PC iMX6 DL 1 GB, Micro SD 8GB, S.O. Linux
- RS323 analog interface with optical isolation for connection with ECG through the Trackmaster protocol (compatible with Amedtec, Beneware, BTL, Cardioflex, Cardiolex, Cosmed, CubeStress Cardioline, Customed, Edan, Egoline, Fukuda, Imed-Cardiax, Labtech, Medical Econet, Neurosoft, Norav, Schiller, Sentinel 10, Teka, Vyaire, XScribe Mortara ECG)
- Speed range: 0.1 - 25 km/h
- Inclination: 0%, +25%
- Speed increase: 0.1 km/h
- Incline increase: 0.5 - 1%
- Electronic variation of speed and incline
- Belt self-centering system
- Belt self-lubrication system
- Walking surface: 154.5 x 54 cm
- Toroidal transformer: 1700 VA
- Single-phase inverter: 230V ~ 2.2 kW
- Power supply: 220~240Vac, 50/60Hz, 12Amp
- Auxiliary inclination circuit: 18 Vac
- Auxiliary console circuit: 12 Vdc
- Motor: 3 HP AC
- Power absorbed at maximum speed: 2500 VA
- Nominal power absorbed: 2000 VA
- Noise: < 30 dB
- Cushioned platform
- Maximum user weight: 220 kg (without optional components)
- Button and handle with magnet for emergency stop
- CE conformity certificate 93/42/CEE
- Compatibility with Polar H7, H9 and H10 BLE chest straps (Bluetooth Low Energy) via certified dongle (not included). The strap can only be used if an ECG device is available.

Standard accessories (included)
- Wheels to move the treadmill
- Service team
- Power cable
- RS232 cable

Optional accessories (not included and at an additional cost)
- Long handrails without holes for axillary support (maximum weight 150 kg) (Ref. 4063EE0634)
- Long handrails with holes for axillary support (maximum weight 150 kg) (Ref. 4063EE0644)
- Axillary support (maximum weight 150 kg) (Ref. 4063EE0621)
- Harness system for long handrails (maximum weight 150 kg) (Ref. 4063EE0640)
- Special support and vest for harness system (maximum weight 150 kg) (Ref. 4063EE0642)
- Ramp (maximum weight 220 kg) (Ref. 4063EE0691)
- Bluetooth dongle for Polar chest strap (Ref. 4063EE0713)

Console functions
- Remote use through the RS232 interface
