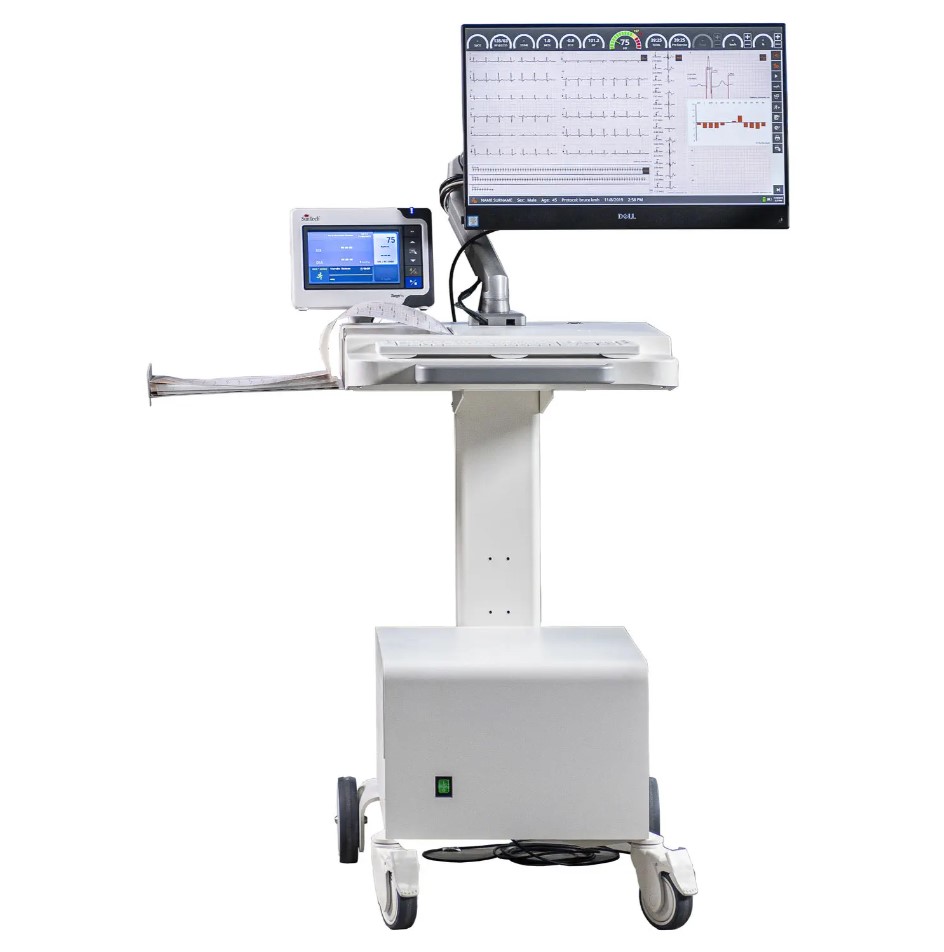

Cubestress System stress test equipment with B/W ISO Laser Printer

Cubestress uses the HD+ wireless acquisition module. The lightweight and portable design enhances patient comfort and mobility while on the treadmill, bicycle, or when reclining for stress echo tests. Additionally, it transmits high-resolution, high-quality ECG signals while freeing patients from wires, reducing interference from displacements.

It features industry-leading algorithms. New algorithms have been designed for complex detection, arrhythmia classification, ST analysis, as well as QTc measurements and risk factor calculations, to provide diagnostic information with total confidence.

Patient information can be imported from the worklist through a HIS or entered manually and the final report can be exported in PDF format (DICOM, HL7, GDT or ECGWebApp from Cardioline).
In addition, the whole test can be stored with raw data, allowing doctors to review, edit, and print the data remotely.

Its large touchscreen allows easy and intuitive navigation through the stress test process. It displays important information organized in different windows that can be closed or individually modified, providing a fully customizable interface.

Features:
- 12-lead stress test system.
- Secure BlueTooth connection through Cardioline Dongle.
- Predetermined protocols for bicycle, treadmill, pharmacological. Possibility to add user-defined protocols.
- Patient demographic data interested directly or from the worklist (DICOM, HL7, GDT or ECGWebApp from Cardioline).
- Large 18.5" color touch LCD screen, customizable by the user. Windows OS.
- Wireless keyboard with integrated touchpad.
- Aluminum support with brake-equipped wheels and accessory basket.

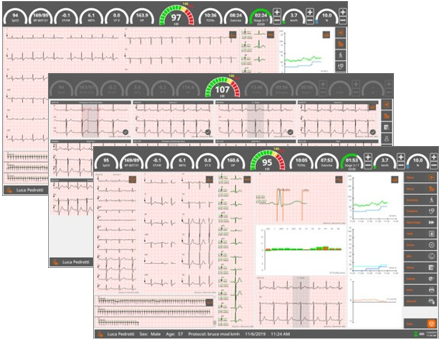

- User-selectable windows: Real-time 12-lead ECG, average 12-lead with real-time ST measurements, extended lead with max. ST, ST slope, trends and captured arrhythmias.
- Pre-exercise resting ECG with Glasgow algorithm for measurements and interpretation of resting ECG.
- Real-time arrhythmia detection.
- Derived indices: Framingham and Duke risk scores, heart rate recovery index, functional aerobic impairment.
- Full workout review and repeat.
- PDF report export (DICOM, HL7, GDT or ECGWebApp from Cardioline).
- Remote workout review by the doctor through Cardioline's ECGWebApp.

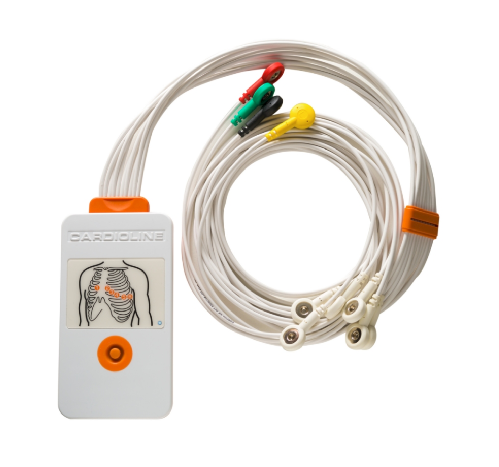

HD+ Acquisition Unit:
- Robust BlueTooth wireless transmission through Cardioline's Dongle.
- Lightweight (90 grams) for patient comfort.
- IP24 and drop-proof protection.
- ECG Resolution: 500/1000 samples/second/channel (user selectable).
- TTL output.
