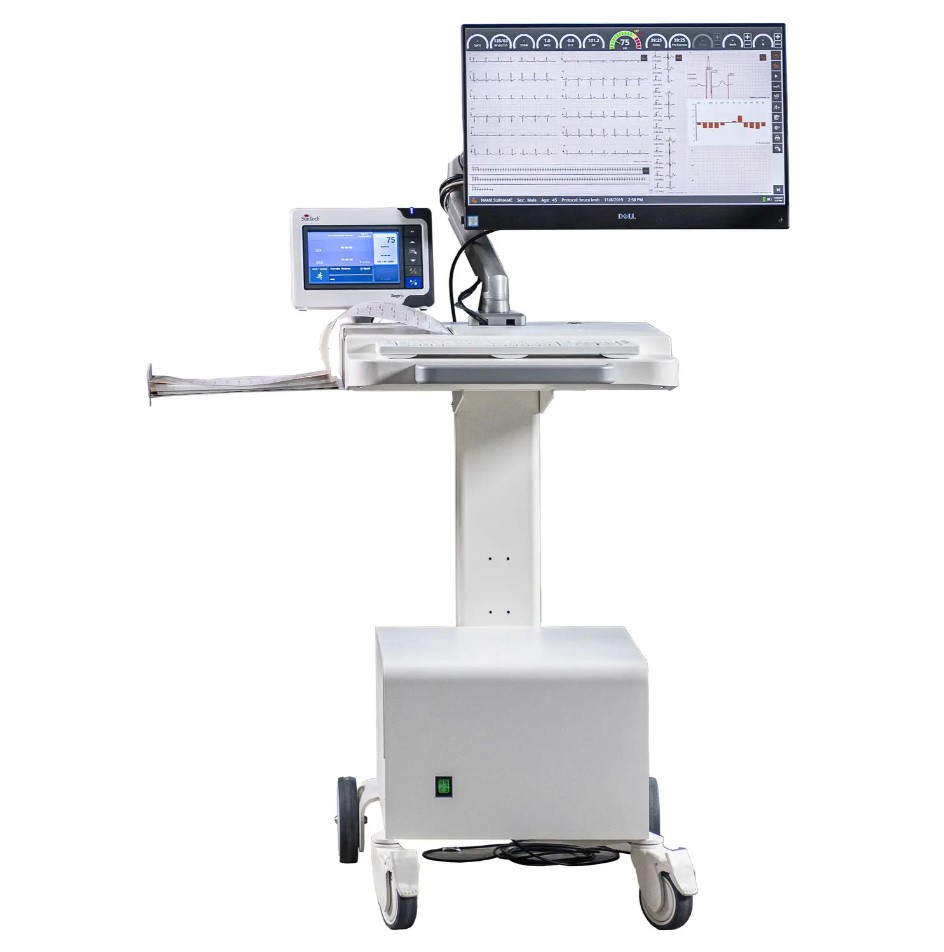

Cubestress System stress test equipment with B/W Laser Printer

Cubestress uses the HD+ wireless acquisition module. The lightweight and portable design improves patient comfort and mobility while on the treadmill, bicycle, or reclining for echo-stress tests. Additionally, it transmits high-resolution, high-quality ECG signals while freeing patients from cables, reducing interference from movements.

It features industry-leading algorithms. New algorithms have been designed for complex detection, arrhythmia classification, ST analysis, as well as QTc measurements and risk factor calculations, to provide diagnostic information with total confidence.

Patient information can be imported from the worklist through a HIS or manually entered, and the final report can be exported in PDF format (DICOM, HL7, GDT or ECGWebApp by Cardioline).
In addition, the entire test with raw data can be stored, allowing doctors to review, edit, and print data remotely.

Its large touchscreen allows for easy and intuitive navigation through the stress test process. It displays important information organized in different windows that can be individually closed or modified, providing a fully customizable interface.

Features:
- 12-lead stress test system.
- Secure BlueTooth connection through Cardioline Dongle.
- Preset protocols for bicycle, treadmill, pharmacological. Possibility to add user-defined protocols.
- Patient demographic data entered directly or from the worklist (DICOM, HL7, GDT or ECGWebApp by Cardioline).
- Large 18.5" color touchscreen LCD, customizable by the user. Windows OS.
- Wireless keyboard with integrated touchpad.
- Aluminum stand with brake-equipped wheels and accessories basket.

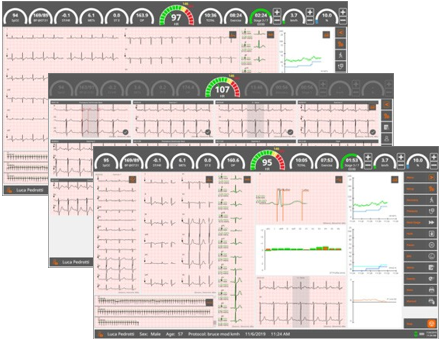

- User-selectable windows: Real-time 12-lead ECG, 12-lead average with real-time ST measurements, expanded lead with max. ST, ST slope, trends, and captured arrhythmias.
- Pre-exercise resting ECG with Glasgow algorithm for resting ECG measurements and interpretation.
- Real-time arrhythmia detection.
- Derived indices: Framingham and Duke risk scores, heart rate recovery index, functional aerobic impairment.
- Full exercise review and repeat.
- PDF report export (DICOM, HL7, GDT or ECGWebApp by Cardioline).
- Remote exercise review by the doctor through Cardioline's ECGWebApp.

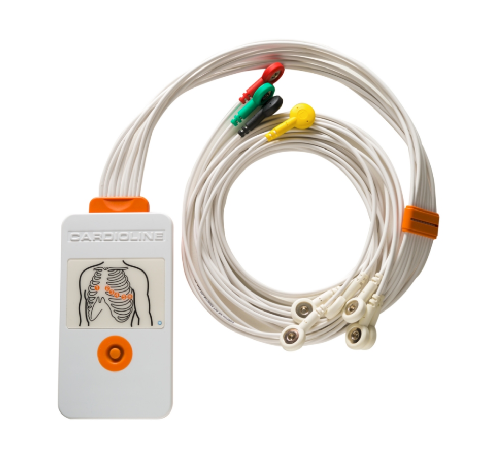

HD+ acquisition unit:
- Robust BlueTooth wireless transmission through Cardioline Dongle.
- Lightweight (90 grams) for patient comfort.
- IP24 and drop-proof protection.
- ECG resolution: 500/1000 samples/second/channel (user selectable).
- TTL output.
