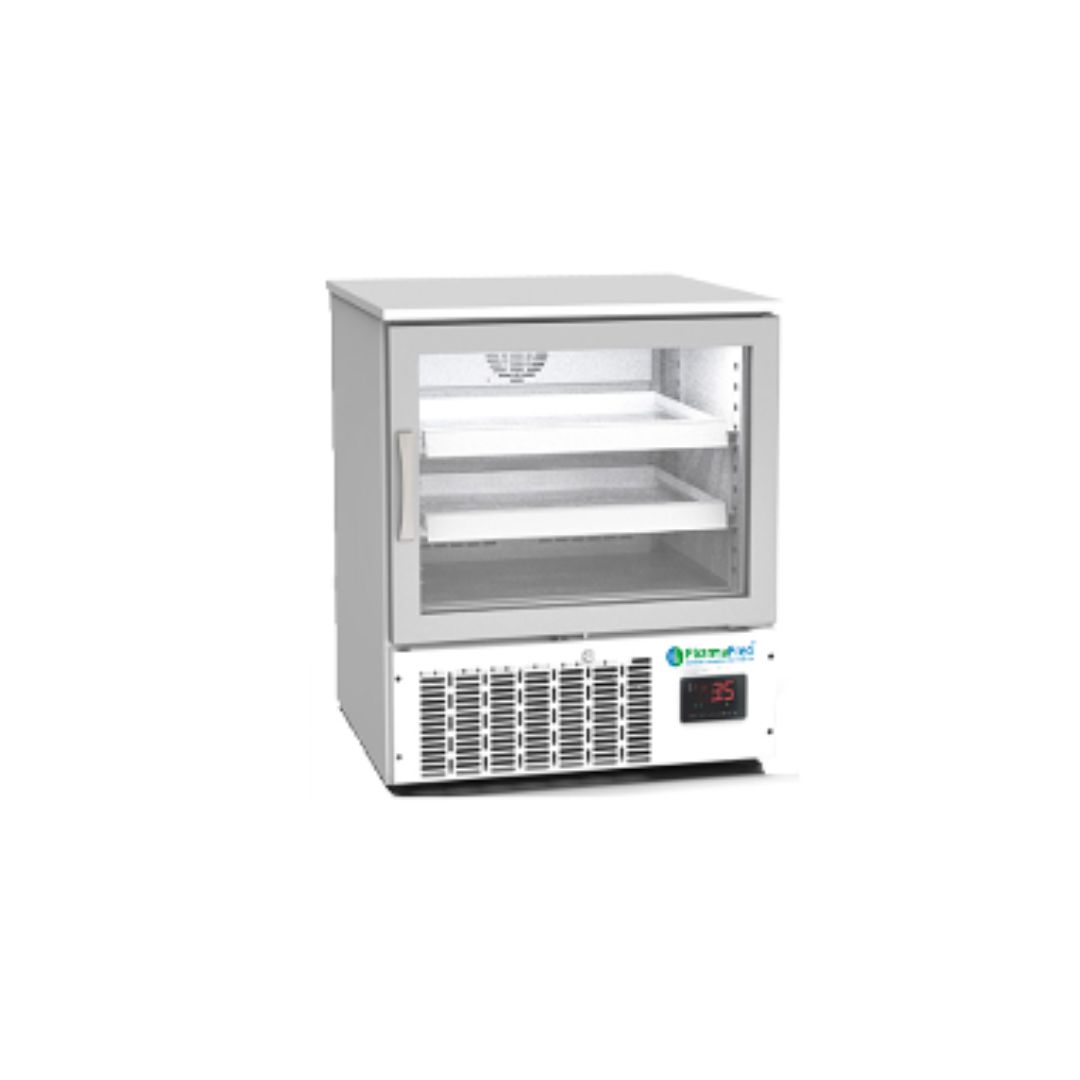

125L capacity refrigerator with glass door and two shelves. DIN 13277 standard

This refrigerator has been designed to preserve all types of medicines, substances, and vaccines without affecting their quality. It has been built with approved materials that include epoxy steel, stainless steel, and thermoformed ABS. It operates with a refrigeration motor and state-of-the-art refrigeration systems and uses only ecological refrigerants. Also, it has compressors and fans with low electrical consumption, which ensures greater energy savings and less noise generation.

The PHG120 model has been manufactured based on the standards set by DIN 13277 (formerly known as DIN 58345), so its systems have constant climate control and emergency monitoring mechanisms against supply cuts. When it detects a temperature change, the refrigerator emits acoustic and optical alarm signals to alert the operator, allowing for the detection of malfunctions before they cause damage to the stored material. It is also capable of remotely monitoring the state of the cooling, allowing its status to be checked in real time with a margin of error of ±0.1°C.

General Features
- Laboratory refrigerator with glass door and white plasticized steel finishes
- Interior temperature with great uniformity for effective preservation of samples and solutions
- Interior with curved corners and removable rubber gasket for optimized cleaning, facilitates its conservation work
- Door with reversible opening mechanism and automatic closing, ensures practical use
- Double interior LED lighting system for optimal visualization of the refrigerator's interior
- Equipped with optical and acoustic alarms for high and low temperature, open door with timer and probe and supply failure
- Interior racks and guides in AISI 304 stainless steel adjustable in 100 millimeters
- Built-in automatic defrost mechanism and optimized defrost for high performance
- Perimeter frame of the door provided with a heated system for superior insulation
- Floating contact free of tension, guarantees a higher safety during its use
- Includes two drawers of steel sheet with epoxy coating and height-adjustable label holders for efficient space management

Technical Specifications
- Net capacity: 125 liters
- Adjustable temperature range: +2°C / +8°C
- Digital controller precision: 0.1°C
- External dimensions: 645 x 640 x 805 mm
- Drawer dimensions: 40 mm
- Dimensions of interior racks and guides: 100 mm
- CFC-free insulation thickness: 40 mm
- Zero GWP and zero ODP thermal insulation density: 40 kg/m2
- Interior bottom material: AISI 304 18/8 stainless steel
- Cooling system: forced draft ventilated cooling
- Distributed load capacity: 100 kg/m3
- Noise level: <60 db
- Backup lithium battery autonomy for temperature monitoring: +12 hours
- Diameter of the feed-through: 12 mm
- Refrigerant gas: R290
- Consumption: 170 W/h
- Power supply: 230V/1/50Hz

Regulations and certificates
- Directive 2014/34/EU (components)
- DIN 13277 standard (formerly DIN 58345)

Standard Accessories (included)
- 2 adjustable drawers
- Lock with key
- Backup lithium battery (for temperature monitoring only)
- 4 adjustable legs
- Feed-through for passage of external probe
- Product simulation probe
- Remote alarm connection
- Antifreeze safety thermostat
- System of adjustable interior racks and guides

Optional Accessories (not included and with additional cost)
- Datalogger USB temperature recorder
- Datalogger WIFI temperature recorder
- Modbus RS485 communication port
- Graphic panel with USB
- Additional 40 mm drawer with guides
- 70 mm drawer with telescopic guides
- Set of wheels
- Sets of legs (90 mm or 135 mm)
- 20 mm regulator
- Display shelves
- Internal electrical socket for equipment connection
- AISI 304 stainless steel finish
