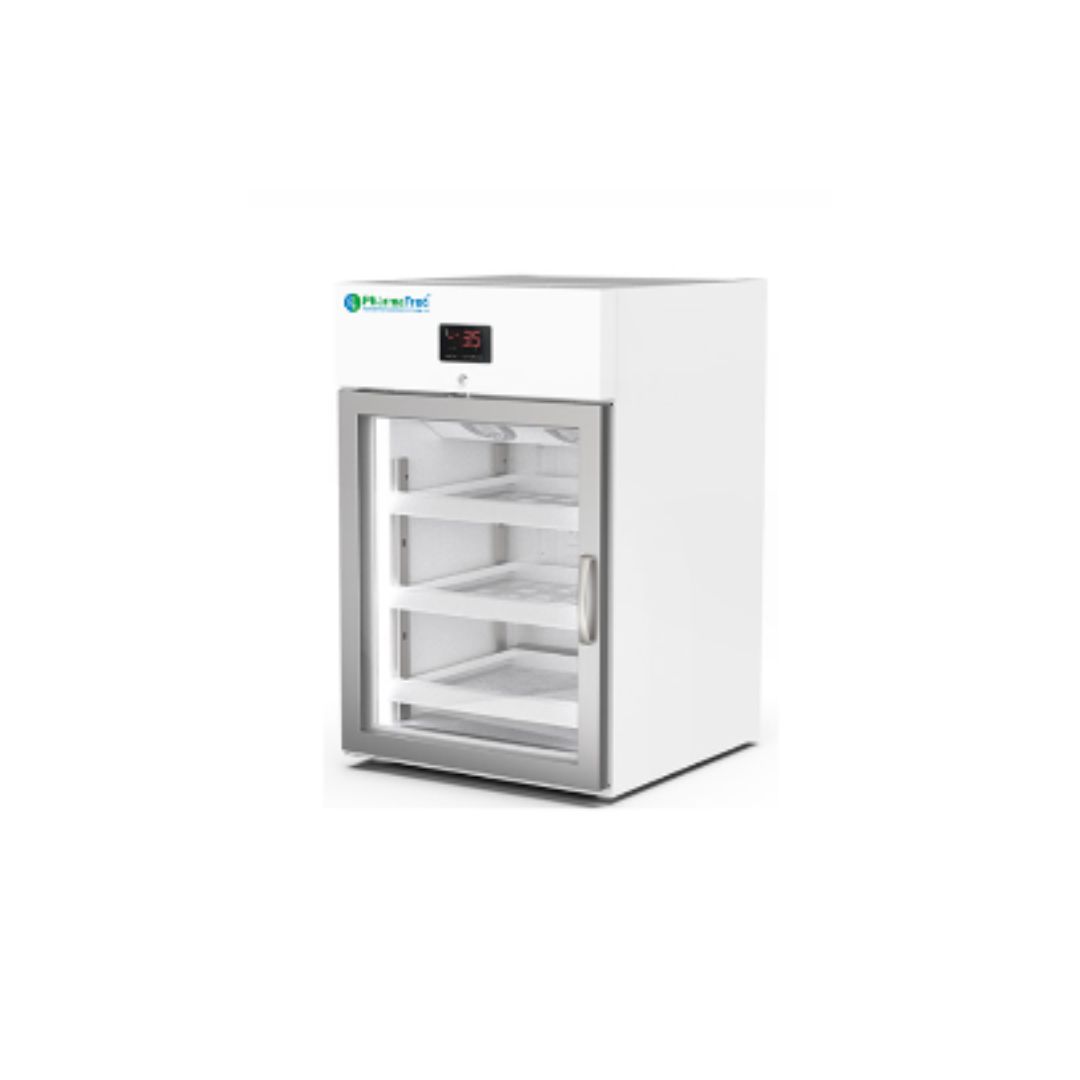

Refrigerator with a capacity of 172L with a transparent door and 3 shelves. Designed according to DIN 13277 standard.

This refrigerator is designed to store medicines, vaccines, and substances in a professional setting. Built with approved materials such as stainless steel, epoxy steel, or thermoformed ABS, it is one of the best options on the market for the preservation of medical products. Moreover, it has been designed according to the specifications indicated by DIN 13277 standard (formerly known as DIN 58345), which guarantees exceptional functionality and safety.

The PGH170 refrigerator also has eco-friendly and cutting-edge cooling systems, ensuring optimal preservation of clinical material with a low environmental impact. It comes equipped with real-time climate control sensors, which can detect any anomalies that may deviate from the recommended temperature range. Additionally, it has optical and acoustic alarm systems and remote monitoring mechanisms to prevent the cold chain from breaking. In case of device power failure, an emergency battery with an autonomy of more than 12 hours is activated to monitor its internal temperature.

General features
- Transparent glass door
- Rounded corners for easy cleaning
- Exterior and interior finishes in white plasticized steel
- 3 adjustable 40 mm drawers
- Uniform temperature throughout the interior
- Racks and interior guides in ASI-304 stainless steel adjustable 100mm
- Steel plate drawers with epoxy coating and label holders
- Double LED lighting
- Reversible door opening
- Door with automatic self-closure
- Heated door perimeter frame
- Key lock
- Easily removable rubber seal
- Floating contact (tension-free)
- Ventilated cooling system (forced draft)
- Automatic defrost
- Optimized defrost
- Digital controller of maximum precision (0.1°C margin)
- Optical and acoustic alarms for high and low temperature
- Door open alarm with timer
- Probe failure alarm
- High condensation temperature alarm
- Power supply failure alarm
- Backup lithium battery (only for temperature monitoring)
- Remote alarm connection
- Anti-freezing safety thermostat
- Product simulation probe
- Through-wall for passage of external probe
- Set of 4 adjustable legs

Technical specifications
- Nominal capacity liters: 172 liters
- Adjustable temperature range: +2°C / +8°C
- External dimensions (in mm): 600 x 650 x 1020
- CFC-free insulation thickness: 50 mm
- Zero GWP and zero ODP thermal insulation density: 40 kg/m2
- Interior base: INOX AISI 304 18/8
- Distributed load capacity: 100 kg/m3
- Noise level: <60 db
- Components according to ATEX 014/34/UE
- Emergency monitoring battery autonomy: +12 hours
- Through-wall diameter: 12 mm
- Eco-friendly refrigerant gas: R600a
- W/h consumption: 235
- Power supply: 230 V/1/50Hz

Accessories (not included)
Optionally and at an additional cost, you can purchase the following accessories for the refrigerator:
- USB Datalogger temperature recorder.
- WIFI Datalogger temperature recorder.
- Modbus RS485 communication port.
- Graphic panel with USB.
- Additional shelf with guides
- Drawer with telescopic guides.
- Set of wheels
- Sets of legs (90 mm; 135 mm)
- 20 mm regulator
- Display shelves.
- Internal electrical outlet for equipment connection.
- Finish in AISI 304 stainless steel
