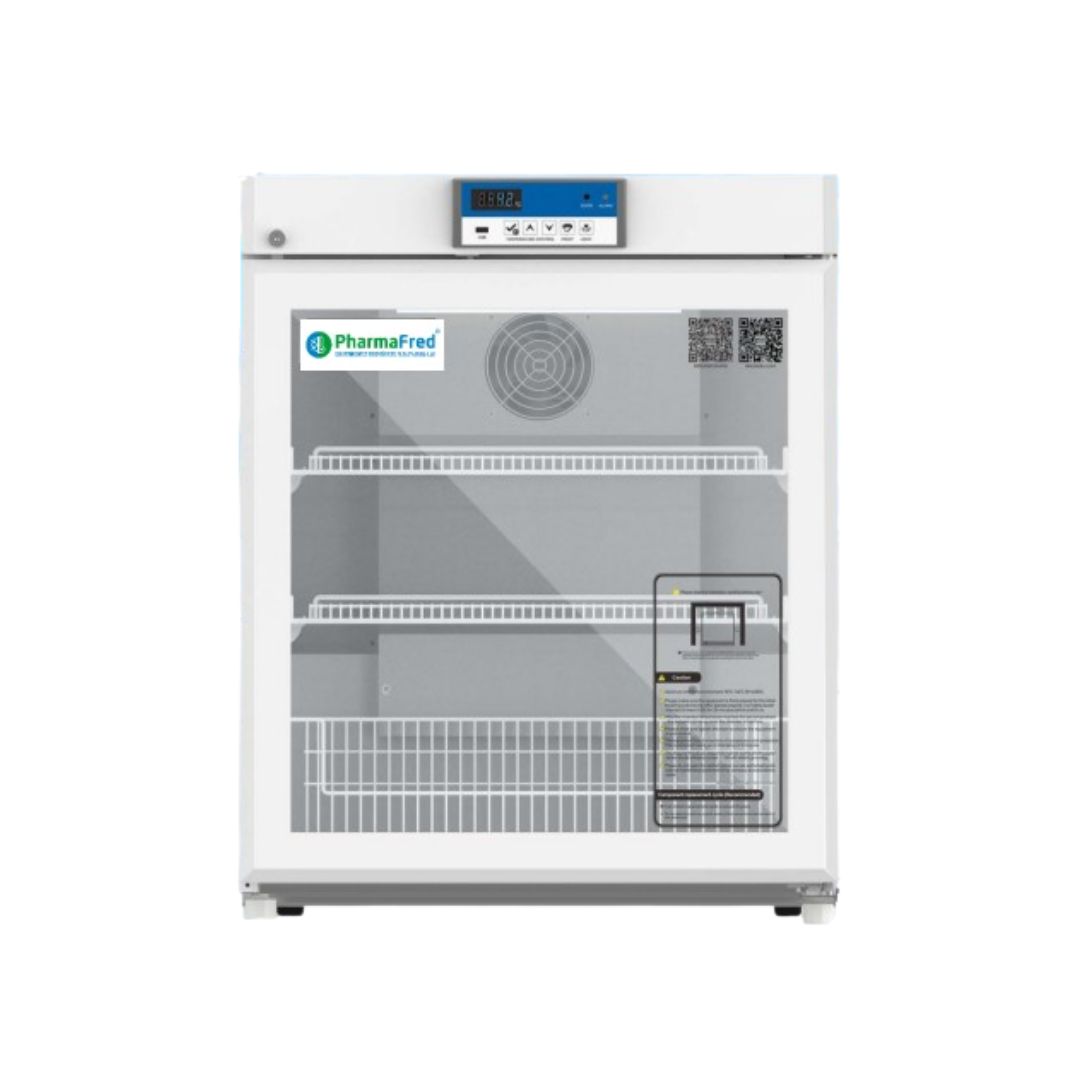

130L refrigerator with glass door, 650 x 625 x 810 mm. DIN 13277 standard

Refrigeration unit designed to store laboratory samples, medications and vaccines. Designed according to the specifications of the DIN 13277 standard and manufactured in white steel, it is capable of maintaining a homogeneous internal temperature between 2°C and 8°C. It has a total volume of 130 liters and has a glass door equipped with a key lock to ensure that only authorized users have access to the stored content.

The device operates through an environmentally friendly refrigeration system that uses R600a, a hydrocarbon refrigerant gas. It includes a digital thermal control screen that allows tracking of the device's internal temperature and has an alarm mechanism that activates if it detects any malfunction that could compromise the stored material. Additionally, it has an integrated USB export interface that allows the download of device operation data logs.

General features
- Cabinet type: vertical
- Capacity: 130 liters
- Internal dimensions (W*D*H): 554 x 510 x 588 mm
- External dimensions (W*D*H): 650 x 625 x 810 mm
- Packaging dimensions (W*D*H): 723 x 703 x 880 mm
- Net Weight / Gross Weight: 51/56 kg

Performance
- Temperature range: 2°C / 8°C
- Ambient temperature:16~32℃
- Cooling performance: 5°C
- Climate class: N
- Controller: Microprocessor
- Display: Digital display

Refrigeration
- Compressor: 1
- Cooling method: Forced draught cooling
- Defrost mode: Automatic
- Refrigerant: R600a
- Insulation thickness: 50 mm

Construction
- External material: White steel
- Interior material: Powder-coated aluminum plate
- Shelves: 3 white plastic-coated steel
- Key-locking door
- Lighting: LED
- Pass-through: 1pc. Ø 25 mm
- Wheels: 2 (+ 2 leveling legs）
- Data logging/Interval/Memory capacity: USB/Record every 10 minutes/12 months
- Heated door perimeter frame

Alarm
- Temperature: High/low temperature, high ambient temperature
- Electrical: Power failure, low battery
- System: Probe failure, door open, failure of built-in USB data logger, communication failure

Electrical
- Power supply: 220~240/50 V/Hz
- Power: 150 W
- Electrical consumption: 2.55 kW/h per 24 hours
- Amperage: 0.98 A

Optional accessories (not included and at an additional cost)
- RS485
- Remote alarm contact
- Printer
