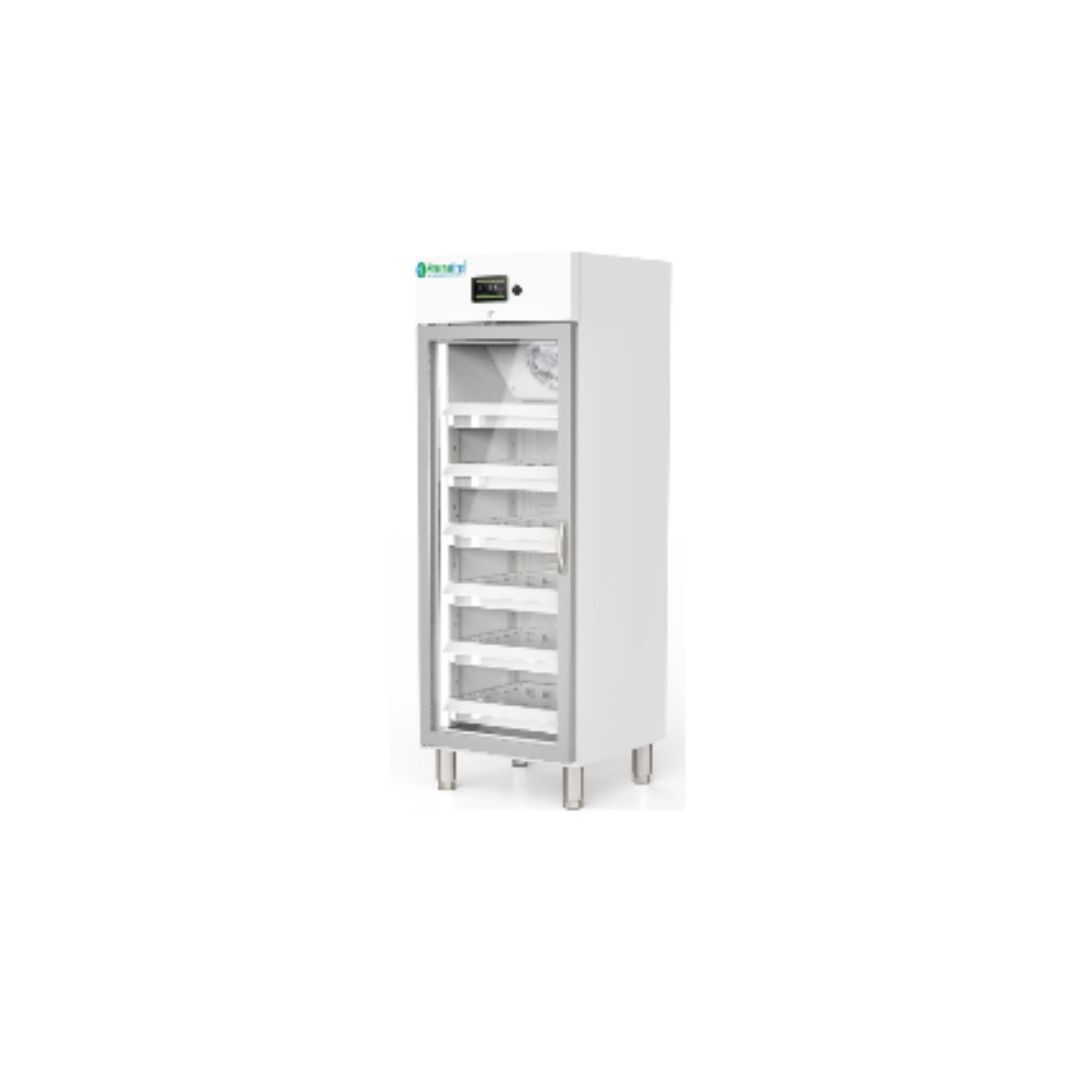

320L capacity refrigerator with transparent door and 5 shelves. DIN 13277 standard

Refrigerator made from approved materials combining epoxy steel, stainless steel, and thermoformed ABS. Designed according to DIN 13277 standards, the device uses eco-friendly refrigerants for the preservation of clinical samples. It has local and remote supervision mechanisms and features an acoustic and optical alarm system that activates when the temperature rises or falls beyond established limits. In emergency situations due to a power outage, it can continue monitoring the interior temperature thanks to its backup battery with over 12 hours of autonomy.

The device operates using state-of-the-art cooling systems, making it more efficient but with a lower environmental impact. On the other hand, the refrigerators of the PHG320 line have installed low-consumption compressors and fans, making better use of electricity and creating a quiet working environment (below 60 decibels).

General Features
- Glass door
- Exterior and interior finishes in white plasticized steel
- Rounded corners for easy cleaning
- 5 adjustable 40 mm drawers
- Rack and rail system in adjustable ASI-304 stainless steel 100mm
- Steel drawers with epoxy coating and label holder
- Double LED lighting
- Reversible door opening
- Door with automatic self-closing
- Heated door frame
- Key lock
- Easily removable rubber gasket
- Floating contact (Voltage free)
- Automatic defrost
- Optimized defrosting
- Digital controller with maximum precision 0.1°C
- Optical and acoustic alarms for high and low temperature
- Open door alarm with timer
- Probe failure alarm
- Power supply failure alarm
- High condensation temperature alarm
- Backup lithium battery (only for monitoring temperature)
- Remote alarm connection
- Anti-freeze safety thermostat
- Product simulation probe
- Wall pass for probe passage
- Set of 4 adjustable legs

Technical Specifications
- Nominal capacity liters: 321L
- Adjustable temperature range: +2°C / +8°C
- External dimensions (mm): 600 x 650 x 1800
- CFC-free insulation thickness: 50 mm
- Zero GWP and zero ODP thermal insulation density: 40 kg/m2
- Interior base: INOX AISI 304 18/8
- Distributed load capacity: 100 kg/m3
- Noise level: <60 db
- Components according to ATEX 014/34/UE
- Diameter of the wall pass: 12 mm
- Eco-friendly refrigerant gas: R600a
- Consumption W/h: 265
- Power supply: 230V/1/50Hz

Accessories (not included)
Optionally and at an additional cost, you can purchase the following accessories for the refrigerator:
- Datalogger USB temperature recorder.
- Datalogger WIFI temperature recorder.
- Modbus RS485 communication port.
- Graphic panel with USB.
- Additional 40 mm drawers with rails
- 70 mm drawer with telescopic rails.
- Set of wheels
- Set of legs (90 mm; 135 mm)
- 20 mm regulator
- Display shelves.
- Internal electrical socket for equipment connection.
- Finish in AISI 304 stainless steel
