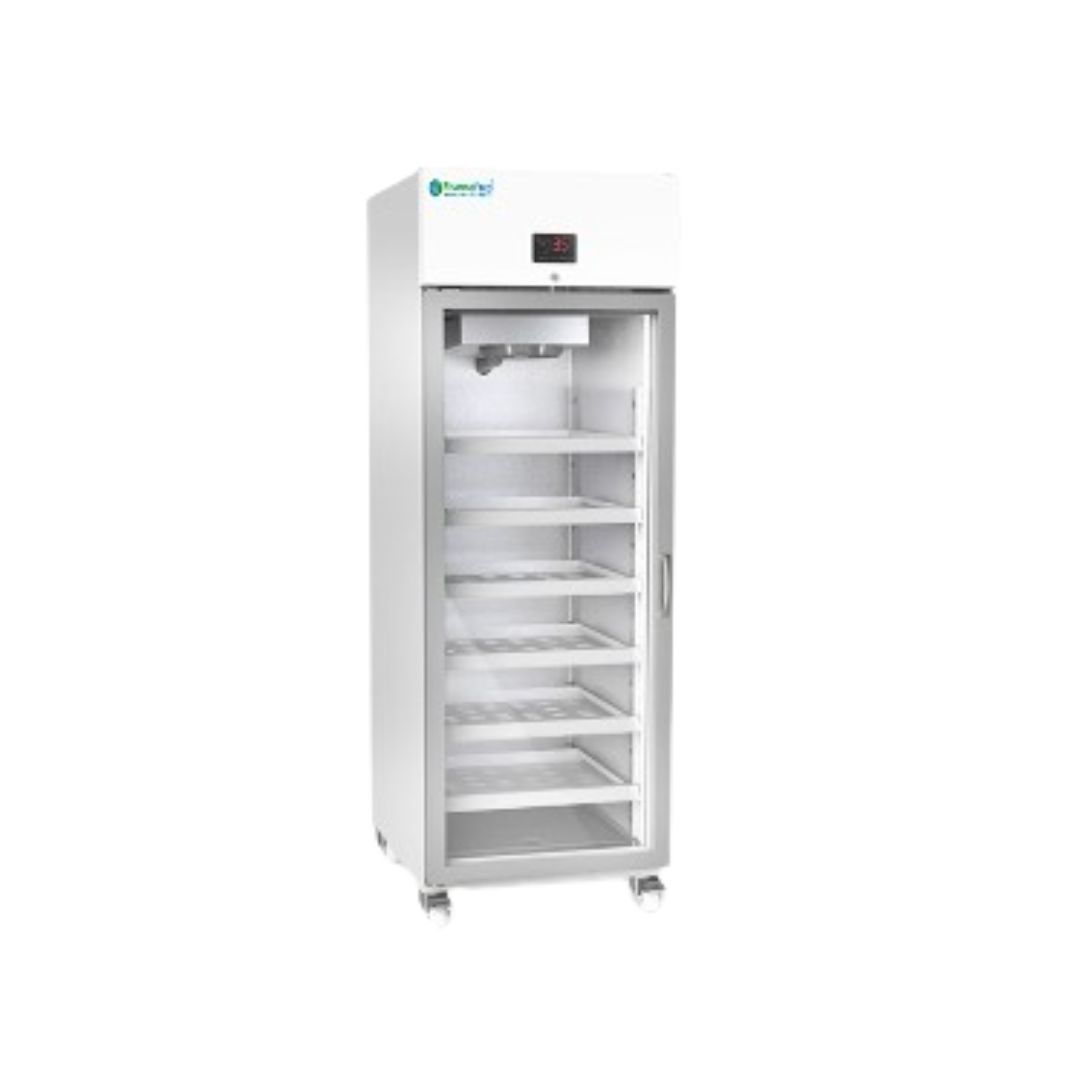

645L capacity refrigerator with glass door and 6 removable shelves. DIN 13277 standard

Refrigerator with 6 removable shelves and 645 liters of capacity. Made from approved materials combining epoxy painted steel, stainless steel and thermoformed ABS. Designed according to specifications set by the DIN 13277 standard, which allows the safe and quality preservation of medications, substances, and clinical samples. It features alarm systems for high or low temperature, open door, or probe failure. Similarly, it can detect a power supply cut and activate an emergency battery to monitor its internal temperature for up to 12 hours.

The device operates using environmentally friendly cooling systems that provide high efficiency without negatively impacting the environment. Likewise, it has installed low-energy compressors and fans, which means energy savings and less noise.

General features
- Glass door
- Finished in white plasticized steel
- 6 adjustable 40 mm drawers
- Uniform temperature throughout its interior
- Corner with curves for easy cleaning
- Rack and guide system inside made of adjustable 100 mm stainless steel ASI-304
- Steel sheet drawers with epoxy coating and label holders
- Double LED lighting
- Reversible door opening
- Door with automatic self-closing
- Heated door perimeter frame
- Lock with key
- Easily removable rubber gasket
- Floating contact (tension-free)
- Ventilated cooling system (forced draft)
- Automatic defrost
- Optimized defrosting
- Digital controller with maximum precision 0.1°C
- Optical and acoustic alarms
- High and low temperature alarm
- Open door alarm with timer
- Probe failure alarm
- High condensation temperature alarm
- Power supply failure alarm
- Backup lithium battery (only for temperature monitoring)
- Remote alarm connection
- Anti-freeze safety thermostat
- Product simulation probe
- Wall pass for passage of external probe
- Set of 4 wheels (2 with brakes)

Technical specifications
- Nominal capacity liters: 645 liters
- Adjustable temperature range: +2°C / +8°C
- External dimensions: 705 x 850 x 2080
- CFC-free insulation thickness: 85 mm
- Zero GWP and zero ODP thermal insulation density: 40 kg/m2
- Interior bottom: stainless steel AISI-304 18/8
- Distributed load capacity: 100 kg/m3
- Noise level: <60 db
- Components according to ATEX 014/34/UE
- Backup battery autonomy for emergency monitoring: +12 hours
- Wall pass diameter: 12 mm
- Ecological refrigerant gas: R290
- Consumption W/h: 260
- Electric power supply; 230V/1/50Hz

Accessories (not included)
For an additional cost, these optional accessories for the refrigerator can be purchased:
- USB Datalogger temperature recorder.
- WIFI Datalogger temperature recorder.
- Modbus RS485 communication port.
- Additional 40 mm drawer with guides
- Drawer with telescopic guides.
- Set of wheels
- Sets of legs (90 mm; 135 mm)
- Regulator 20 mm
- Display shelves.
- Internal electric plug for equipment connection.
- Finished in stainless steel AISI 304
- HACCP functions, record of the last 3 alarms
