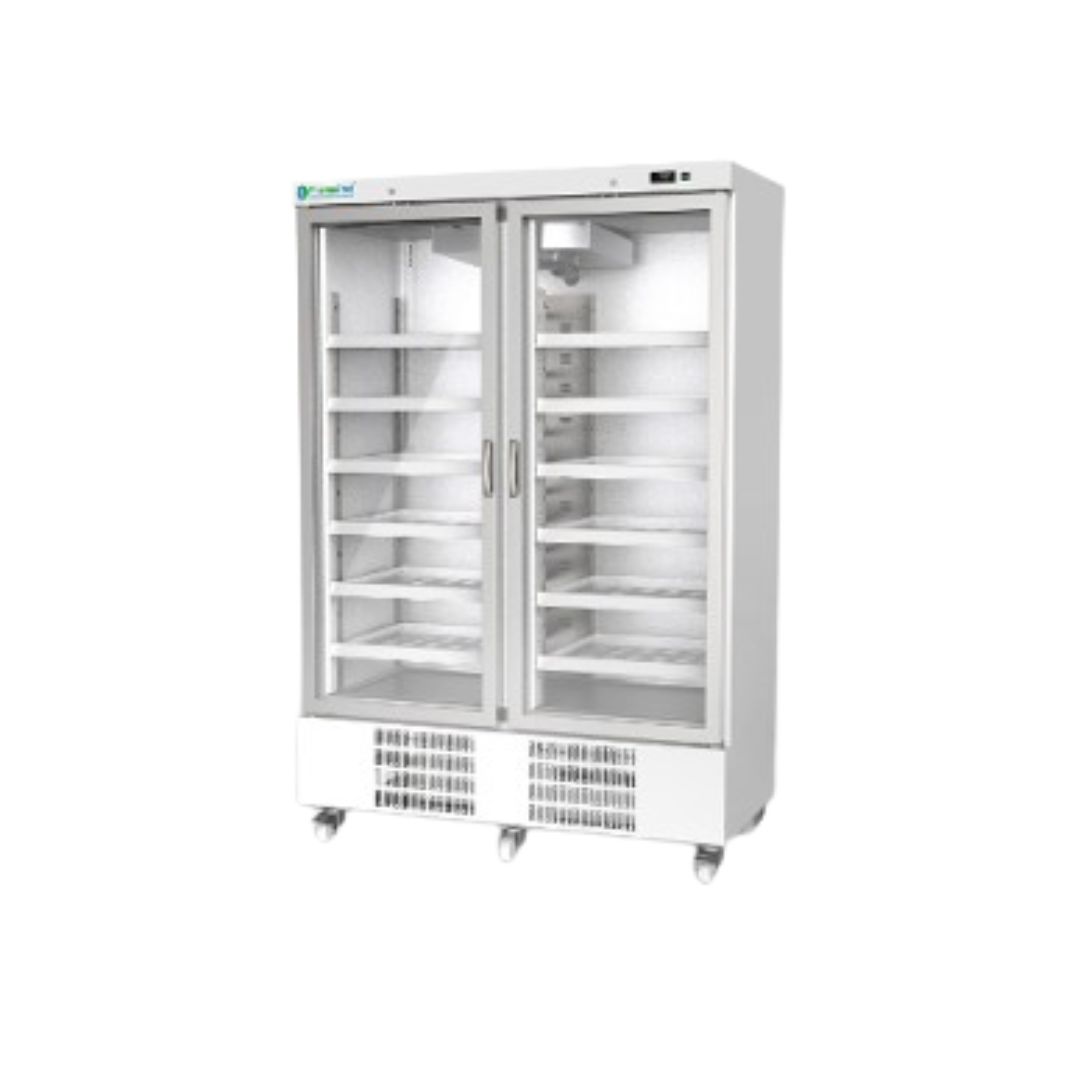

Refrigerator with a capacity of 1200L, glass doors, and 12 shelves. DIN 13277 standard.

Refrigerator designed following the requirements of DIN 13277 standard. Constructed in approved materials that combine epoxy steel, stainless steel and thermoformed ABS, this device allows safe storage of medicines and vaccines in the professional field. It features multiple temperature monitoring systems, both locally and remotely, and has acoustic and optical alarms that activate when the cold chain is broken. In case of emergency, a backup lithium battery is activated with a 12-hour autonomy to control the interior temperature even if there is no power supply.

The device only uses ecological refrigeration systems, so its operation does not have a negative environmental impact. Also, the refrigerator incorporates low power consumption compressors and fans, which results in greater energy efficiency and low noise.

General Features
- Double glass door
- Finished in white plasticized steel
- 12 adjustable 40 mm drawers
- Uniform temperature throughout the interior
- Corner with curves for easy cleaning
- Rack and rail system and interior guides in adjustable ASI-304 stainless steel 100 mm
- Epoxy coated steel sheet drawers and label holders
- Double LED lighting
- Door with auto-closing
- Heated door perimeter frame
- Lock with key
- Easily removable rubber gasket
- Forced air cooling system (forced draught)
- Automatic defrosting
- Optimized defrosting
- Floating contact free of tension
- Digital controller with maximum precision 0.1°C
- Optical and acoustic alarms for high and low temperature
- Open door alarm with timer
- Probe failure alarm
- Lack of condensation temperature alarm
- Power supply failure alarm
- Backup lithium battery (only for monitoring temperature)
- Remote alarm connection
- Anti-freezing safety thermostat
- Product simulation probe
- Wall passage for external probe
- Set of 6 wheels (2 with brakes)


Technical Specifications
- Nominal capacity liters: 1201 liters
- Adjustable temperature range: +2°C / +8°C
- External dimensions (mm): 1370 x 730 x 2145
- CFC free insulation thickness: 70 mm
- Zero GWP and zero ODP thermal insulation density: 40 kg/m2
- Interior bottom: AISI-304 18/8 stainless steel
- Distributed load capacity: 100 kg/m3
- Noise level: <60 db
- Components according to ATEX 014/34/UE
- Autonomy of the emergency monitoring battery: +12 hours
- Wall passage diameter: 12 mm
- Ecological refrigerant gas: R290
- Power consumption W/h: 627
- Power supply: 230V/1/50Hz

Accessories (not included)
Optionally and at an additional cost, you can purchase the following accessories for the refrigerator:
- USB Datalogger temperature recorder.
- WIFI Datalogger temperature recorder.
- Modbus RS485 communication port.
- Additional 40 mm drawer with guides
- 70 mm drawer with telescopic guides.
- Set of wheels
- Sets of legs (90 mm; 135 mm)
- 20 mm regulator
- Display shelves.
- Internal electrical outlet for equipment connection.
- Finished in AISI 304 stainless steel
- HACCP functions, record of the last 3 alarms
