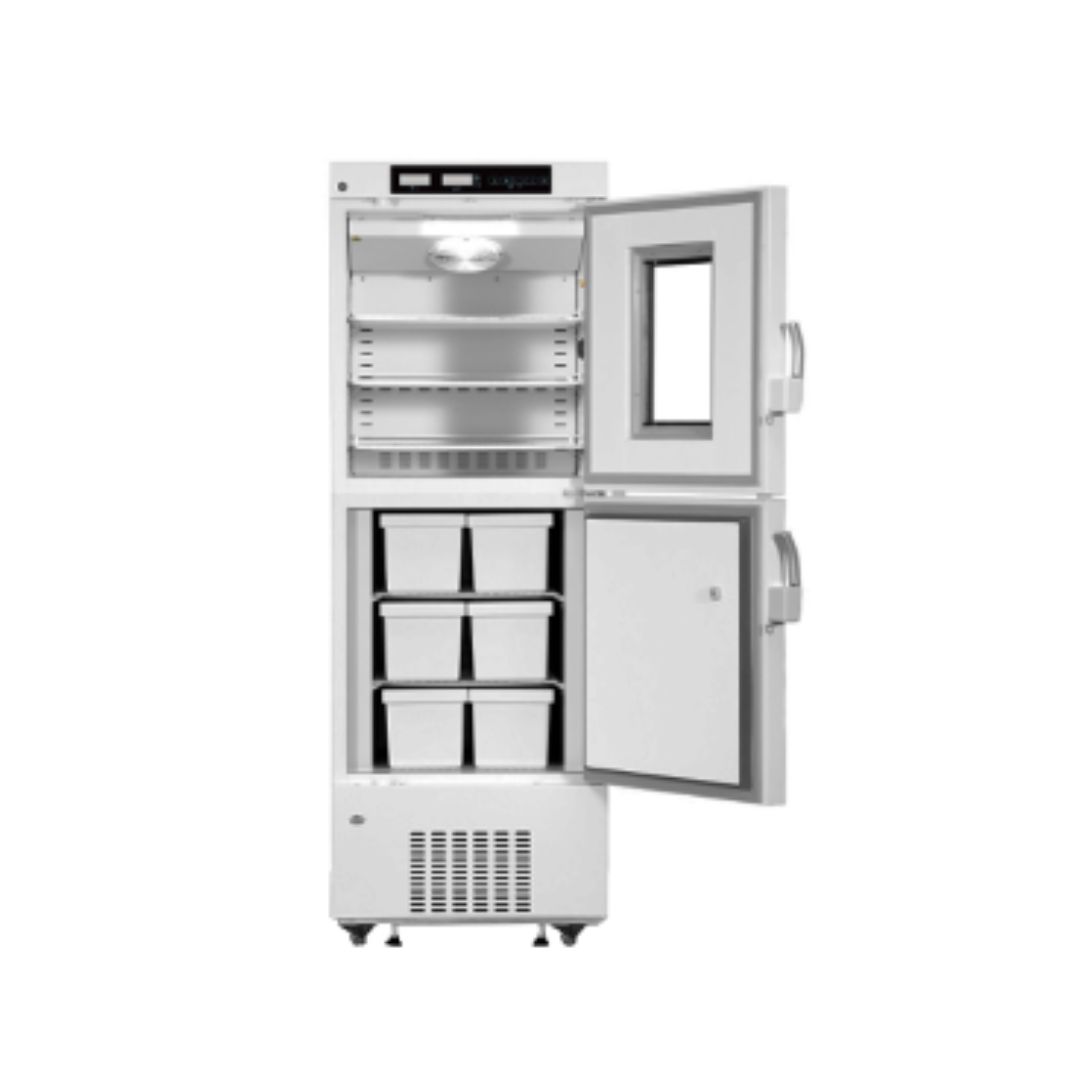

Refrigerator of 183L with 185L freezer, 720 × 830 × 1870 mm

Combined refrigeration and freezing unit that allows for the preservation of a wide range of samples, from biological reagents and lyophilised samples to nucleic acids and plasma samples. It has been designed and manufactured according to ISO9001, ISO13485 and ISO14001 specifications, therefore it comes with guarantees in terms of quality and sustainability.

The top part consists of a refrigeration module with a capacity of 183 litres, while the freezer has a total volume of 185. It is made of steel and the interiors incorporate curved designs that facilitate the cleaning and maintenance of the equipment. It operates through eco-friendly refrigerants and incorporates low power consumption compressors and fans with reduced noise emission. The device has an alarm system that activates in situations such as power cut-off, excessive increase or decrease in temperature or probe failure. For emergency situations, it has a backup battery with an autonomy of more than 12 hours to monitor the internal temperature even when there is no power.

General features
- Exterior finish: white steel
- Interior finish: powdered steel
- Number of shelves: 5
- Number of drawers: 6
- Easily removable shelf material: white plasticised steel
- Freezer drawer material: ABS
- Uniform temperature throughout the interior
- Rounded corners for easy cleaning
- LED lighting with independent switch
- Main switch
- Key lock
- Door with automatic self-closing system
- Floating contact free of tension
- Recessed handle and corrosion-resistant hinges
- Ventilated refrigeration (forced draft) with fan
- Refrigerator defrosting: automatic
- Freezer defrosting: manual
- High precision digital controller - microprocessor
- Optical and acoustic alarms
- High and low temperature alarm
- Open door alarm with timer
- Temperature probe failure alarm
- USB failure alarm
- Power supply failure alarm
- Backup battery (only for monitoring temperature)
- USB output temperature logger
- Records every 10 minutes / 1 week PDF / 10 years CSV
- Remote alarm connection
- Pass-through for external probe
- Set of 4 wheels + 2 levelling feet

Technical specifications
- Net capacity: 368 litres
- Refrigerator net capacity: 183 litres
- Freezer net capacity: 185 litres
- Adjustable temperature range refrigerator: +2°C / +8°C
- Adjustable temperature range freezer: -25°C / -10°C
- Set temperature of the refrigerator: +5ºC
- Set temperature of the freezer: -25ºC
- Type of heated double glass refrigerator door: glass
- Type of heated freezer door: opaque
- External dimensions W x D x H: 720 × 830 × 1870 mm
- Refrigerator interior dimensions W x D x H: 580 x 626 x 625 mm
- Freezer interior dimensions W x D x H: 466 x 636 x 625 mm
- CFC free insulation thickness: 70 mm
- Load bearing capacity: 100 kh/m3
- Noise level: <50 dB
- Backup battery autonomy: +12 hours (only for monitoring temperature)
- Pass-through diameter: 25 mm
- Eco-friendly refrigerant: R290
- Number of independent compressors: 2
- Electrical power: 363 W
- Power supply: 220V 50Hz/60Hz
- Certifications: ISO9001, ISO13485, ISO14001 and CE
- Packaging dimensions W x D x H: 780 x 920 x 2000
- Net weight: 130 kg
- Gross weight: 170 kg
- Volume: 1.44 m3

Optional accessories (not included and with additional cost)
- Product simulation probe
- Smart supervision system - MAX LOGGER WIFI. Includes temperature deviation and power failure warning by email, app, IOT software, call or SMS; data analysis and reports by temperature and humidity control and real-time data verification 24/7.
- Internal electrical socket for equipment connection
- HACCP functions, recording of the last 3 alarms
- Modbus RS485 communication port
