Description

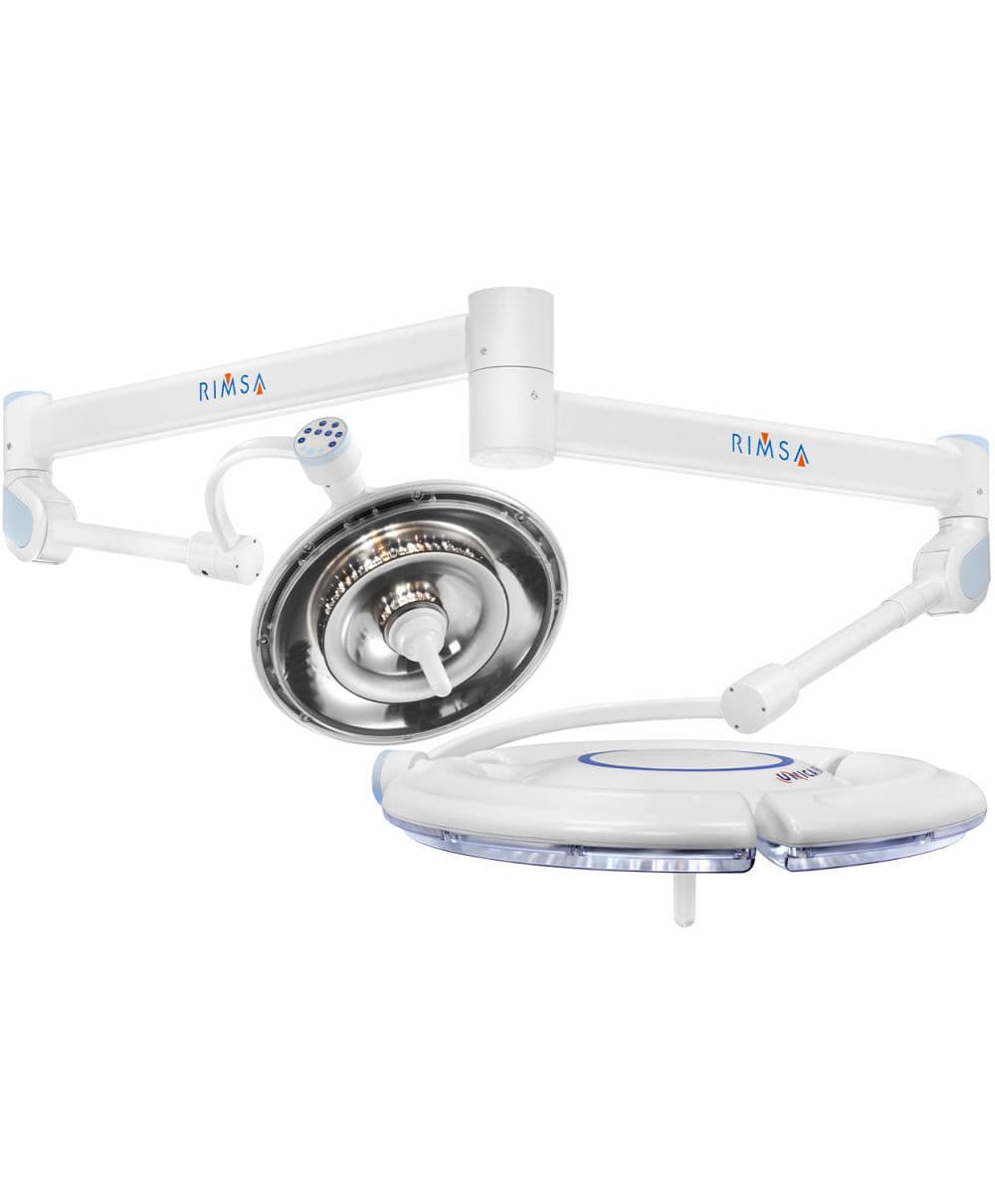

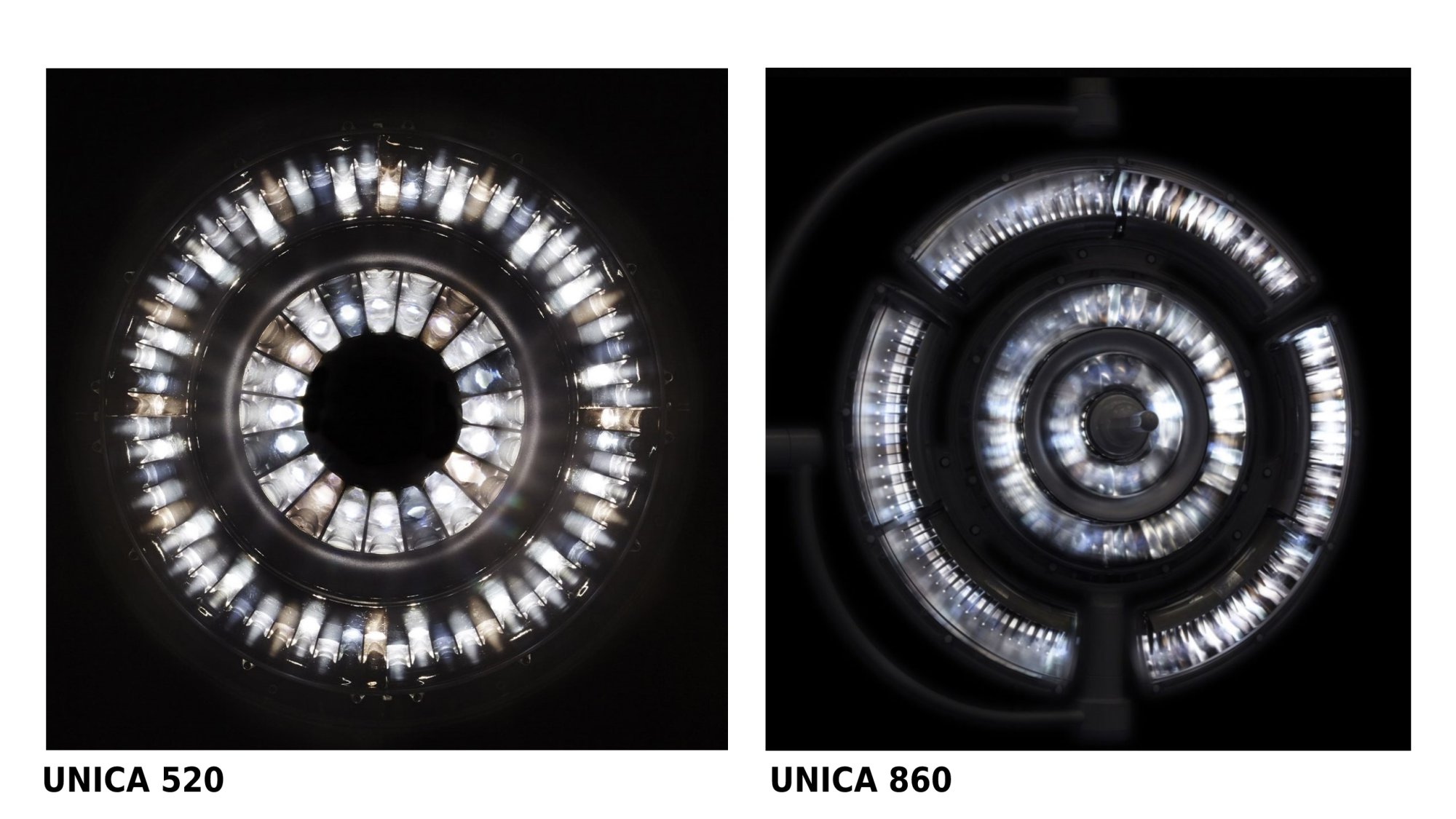

Surgical lamp with dual arm that combines a dome of the Unica 520 model and another of the Unica 860, offering an exceptional configuration of innovative design. Both domes have been developed with a multiple mirror system so that the light emitted by the lenses is reflected in them and generates a double reflection. In this way, shadowless illumination is achieved, with great depth and a larger light emission surface. In addition, it guarantees doubly indirect illumination, so it does not cause glare in the surgeon's eyes.
Features:
- It is possible to adjust the color temperature of both domes in 7 selections between 3,800 and 5,400ºK.
- The domes have been designed with a central LED module that allows to achieve greater depth in illumination. This function is intended for the surgeon to operate with rigorous 3D illumination, especially optimal in cavities.
- Both domes feature the additional light source E-View (Extended-View), developed to expand the light field at the edges without affecting the light intensity in the center (Ec). Designed for the following procedures: thoracic surgery, abdominal surgery, cesarean deliveries, and all those procedures where the surgeon needs to operate with a larger illuminated field.
- The two domes have been configured with a high color rendering index to ensure an optimal contrast effect and display the different shades of tissues, even the smallest color details.

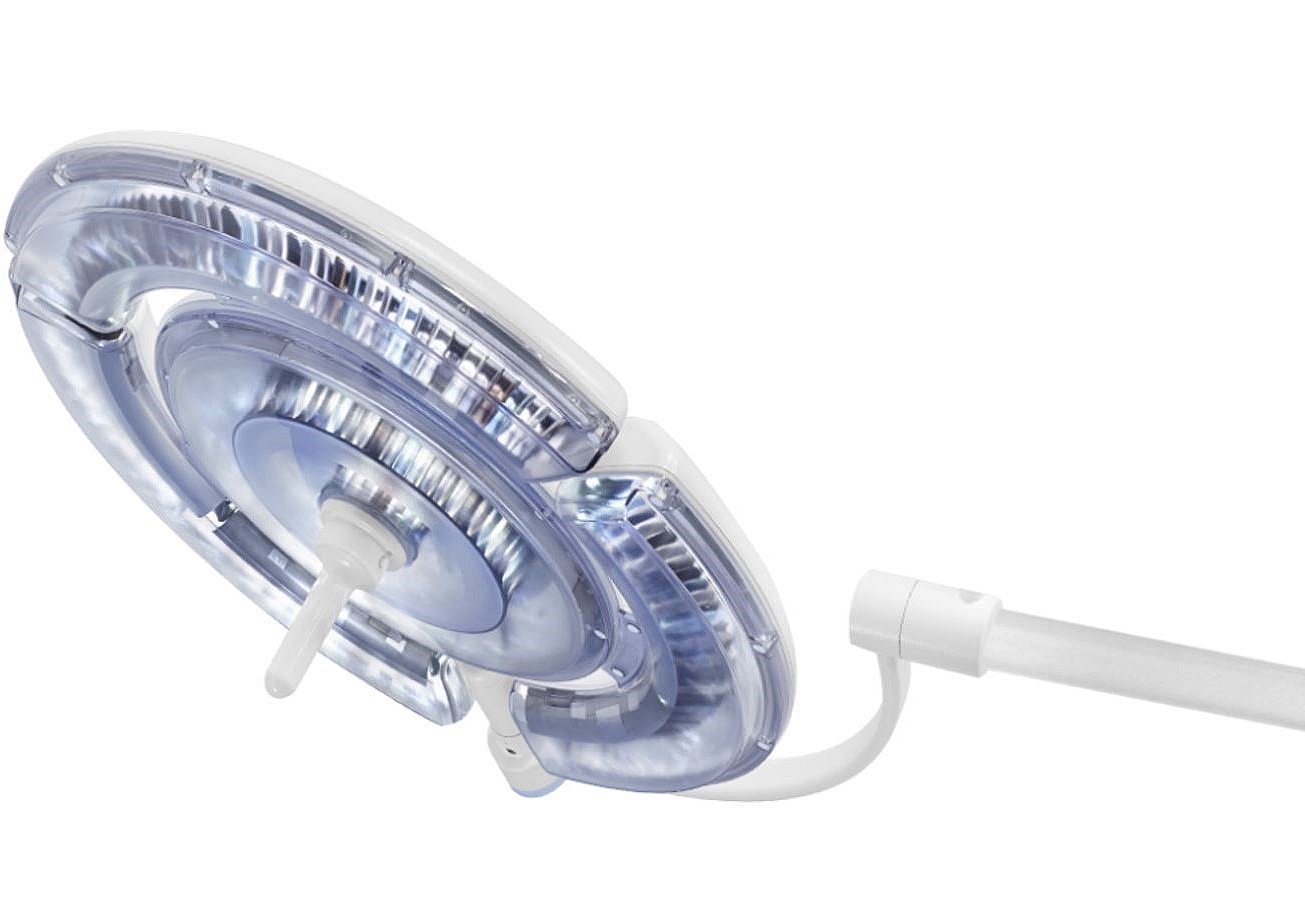

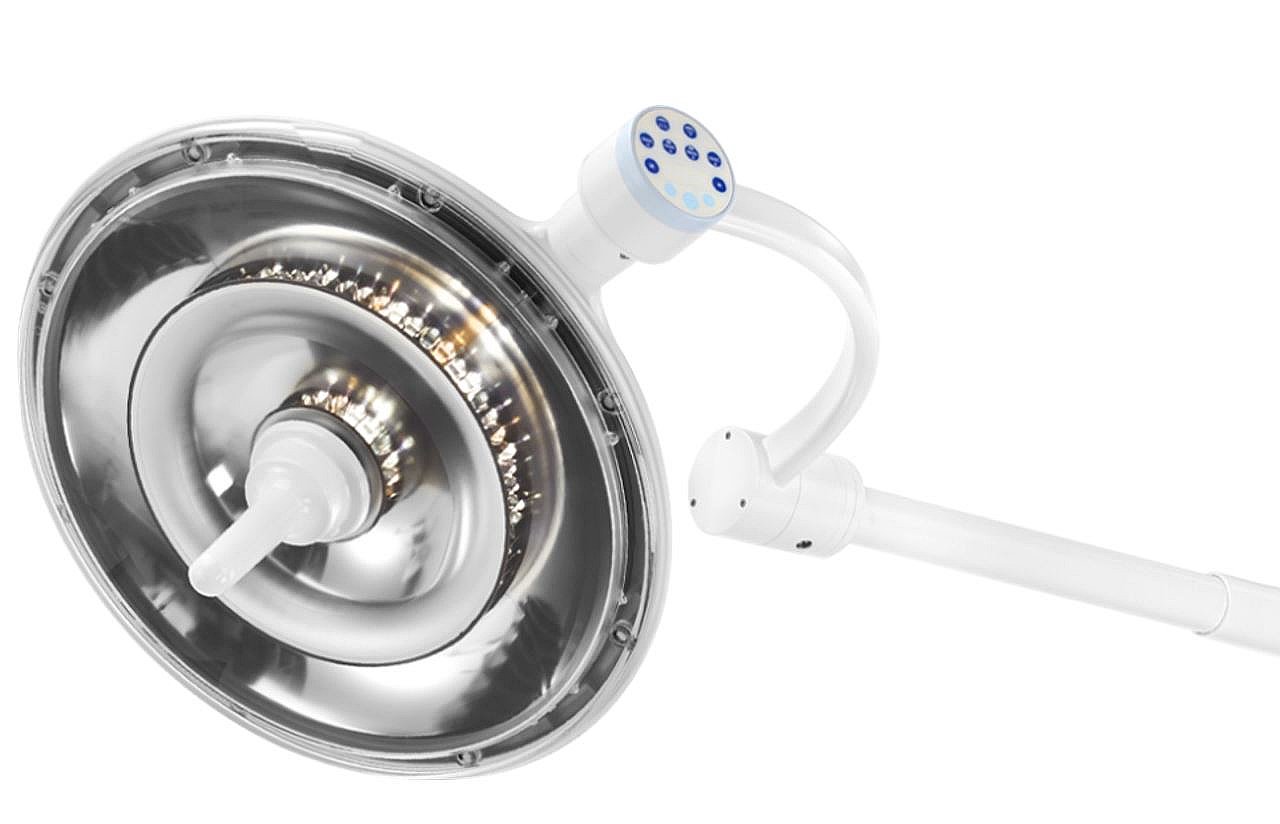

- The diameter of the illuminated field can be adjusted according to the needs of the procedure. In the case of the Unica 520, it is regulated from the keys available on the dome, while in the Unica 860 it is adjusted with the removable and sterilizable handle.
- Both domes have been developed with an ultra-thin design to provide greater ergonomics.
- Itcomes prepared for the installation of a camera with native 4K resolution (not included and at an additional cost) adaptable to Full HD through a combination of easily configurable buttons. It also has an RS232 interface to connect it to external integration systems easily. Please contact us if you want to know more about this.
Certificates:
- CE medical product in accordance with Directive 93/42/EEC.
- Meets the requirements of the standard IEC 60601-2-41.
- Environmental product declaration (EPD) certified by UL, in line with ISO 14025 standard.
Technical specifications:
Support: ceiling mount (up to 3 m high).
*Installation not included.
Features:
- It is possible to adjust the color temperature of both domes in 7 selections between 3,800 and 5,400ºK.
- The domes have been designed with a central LED module that allows to achieve greater depth in illumination. This function is intended for the surgeon to operate with rigorous 3D illumination, especially optimal in cavities.
- Both domes feature the additional light source E-View (Extended-View), developed to expand the light field at the edges without affecting the light intensity in the center (Ec). Designed for the following procedures: thoracic surgery, abdominal surgery, cesarean deliveries, and all those procedures where the surgeon needs to operate with a larger illuminated field.
- The two domes have been configured with a high color rendering index to ensure an optimal contrast effect and display the different shades of tissues, even the smallest color details.
- The diameter of the illuminated field can be adjusted according to the needs of the procedure. In the case of the Unica 520, it is regulated from the keys available on the dome, while in the Unica 860 it is adjusted with the removable and sterilizable handle.
- Both domes have been developed with an ultra-thin design to provide greater ergonomics.
- Itcomes prepared for the installation of a camera with native 4K resolution (not included and at an additional cost) adaptable to Full HD through a combination of easily configurable buttons. It also has an RS232 interface to connect it to external integration systems easily. Please contact us if you want to know more about this.
Certificates:
- CE medical product in accordance with Directive 93/42/EEC.
- Meets the requirements of the standard IEC 60601-2-41.
- Environmental product declaration (EPD) certified by UL, in line with ISO 14025 standard.
Technical specifications:
| Unica 520 | Unica 860 | |
| Luminous intensity | 160,000 lux at 1 m | 160,000 lux at 1 m |
| Dome diameter | 52 cm | 86 cm |
| Color temperature | 7 selections between 3,800 and 5,400ºK | 7 selections between 3,800 and 5,400ºK |
| Color rendering index | 96 Ra | 97 Ra |
| Illuminated field diameter | 170 - 380 mm | 170 - 400 mm |
| 60% illumination depth |
490 mm |
620 mm |
| 20% illumination depth |
1030 mm |
850 mm |
| Total radiated energy |
580 W/m² |
580 W/m² |
| LEDs lifespan |
over 60,000 hours |
over 60,000 hours |
| Luminous intensity adjustment |
3 - 100% |
3 - 100% |
| Electric consumption |
53 W, 60 VA |
130 W, 150 VA |
| Weight |
90 kg |
|
Support: ceiling mount (up to 3 m high).
*Installation not included.
