Description

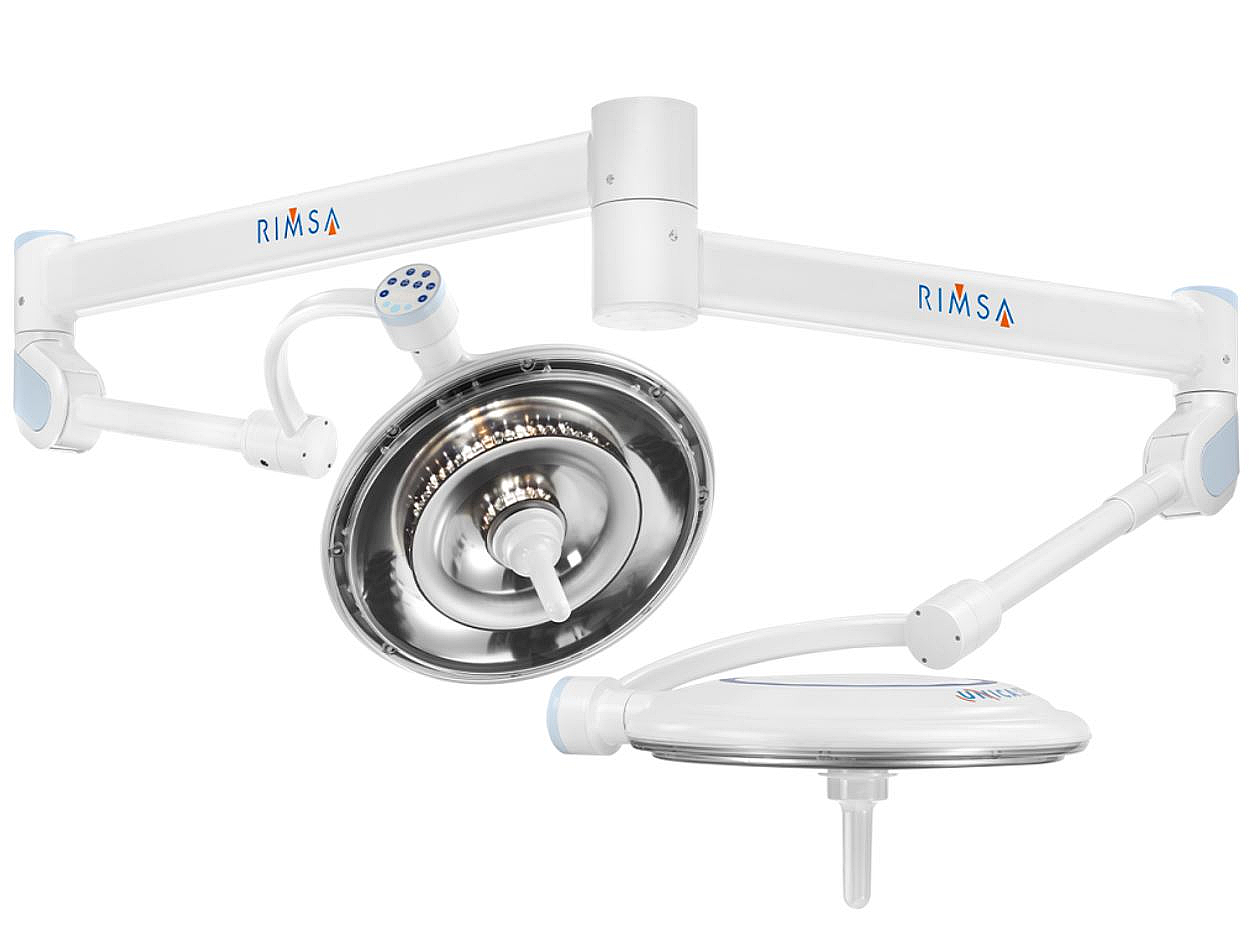

The Unica 520 surgical lamp, developed with a double arm, provides comprehensive and far-reaching illumination in the work area, allowing the domes to be placed at different heights and positions depending on the needs of the procedure. Both domes are configured with a system of bright mirrors to achieve a double reflection. This design is specifically intended to completely suppress shadow creation, maximizing the light emission surface and achieving deeper, glare-free illumination.
It is possible to only turn on the central LED module with the Endoled (E-Deep) function, designed to achieve greater depth in illumination. This feature allows you to adjust the luminous intensity and color temperature of the central module specifically. Thanks to this design, the surgeon can operate with rigorous 3D lighting, especially optimal when dealing with cavities. Additionally, it incorporates the E-View function, which allows expanding the illuminated field at the edges without affecting the light intensity in the center (Ec). This function is specifically designed for the following procedures: thoracic surgery, abdominal surgery, cesarean deliveries, and all those procedures where the surgeon needs to operate with a larger illuminated field.
The Unica 520 model comes prepared for the installation of a native 4K resolution camera (not included and at an additional cost) adaptable to Full HD through an easily configurable button combination. Additionally, it includes an RS232 interface to easily link the equipment with external integration systems to improve its connectivity. Please contact us if you want to know more.
Features:
- Allows activating the Endoled function to illuminate the work area with a soft light.
- The color temperature can be adjusted in 7 selections between 3,800 and 5,400ºK.
- Ensures a high color rendering index to visualize the real shades of tissues.
- Ultra-flat dome design for greater ergonomics.

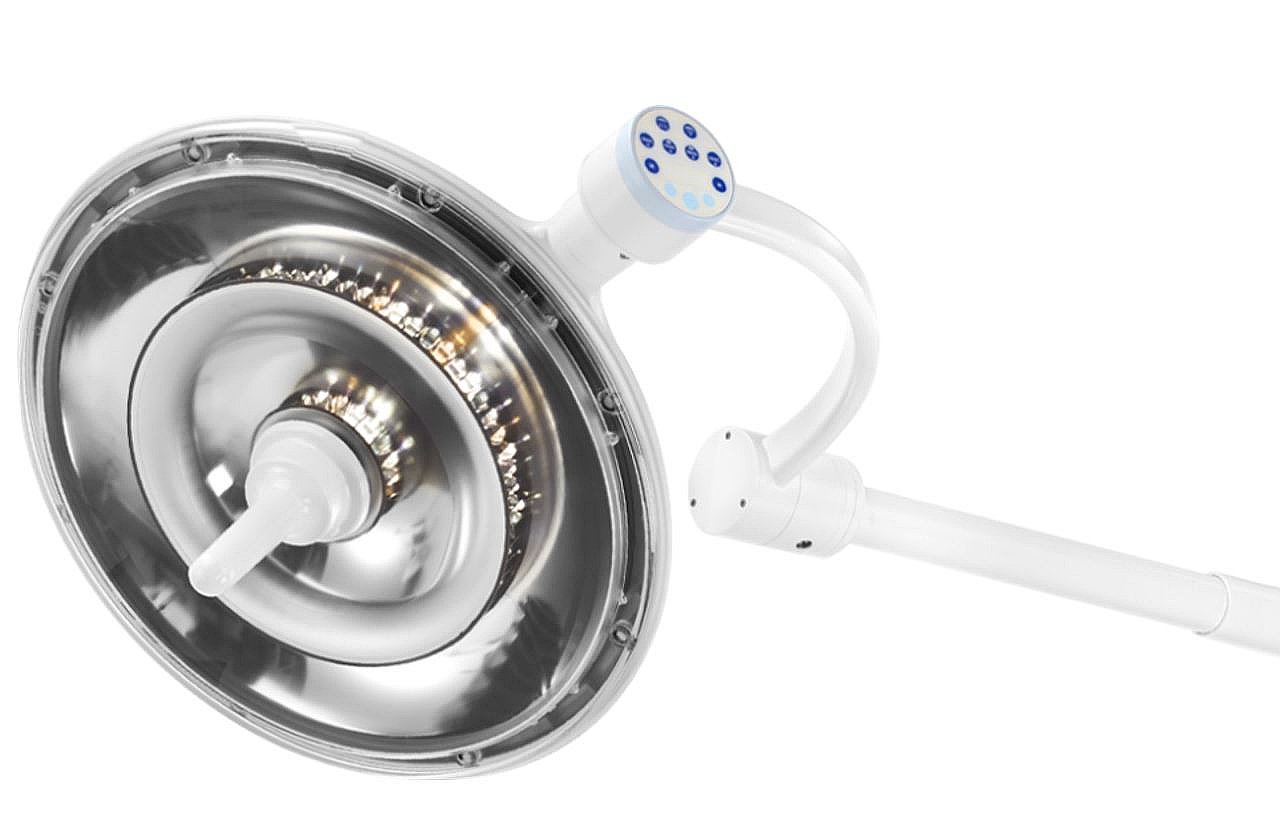

- The diameter of the illuminated field can be adjusted with the keys incorporated in the dome.

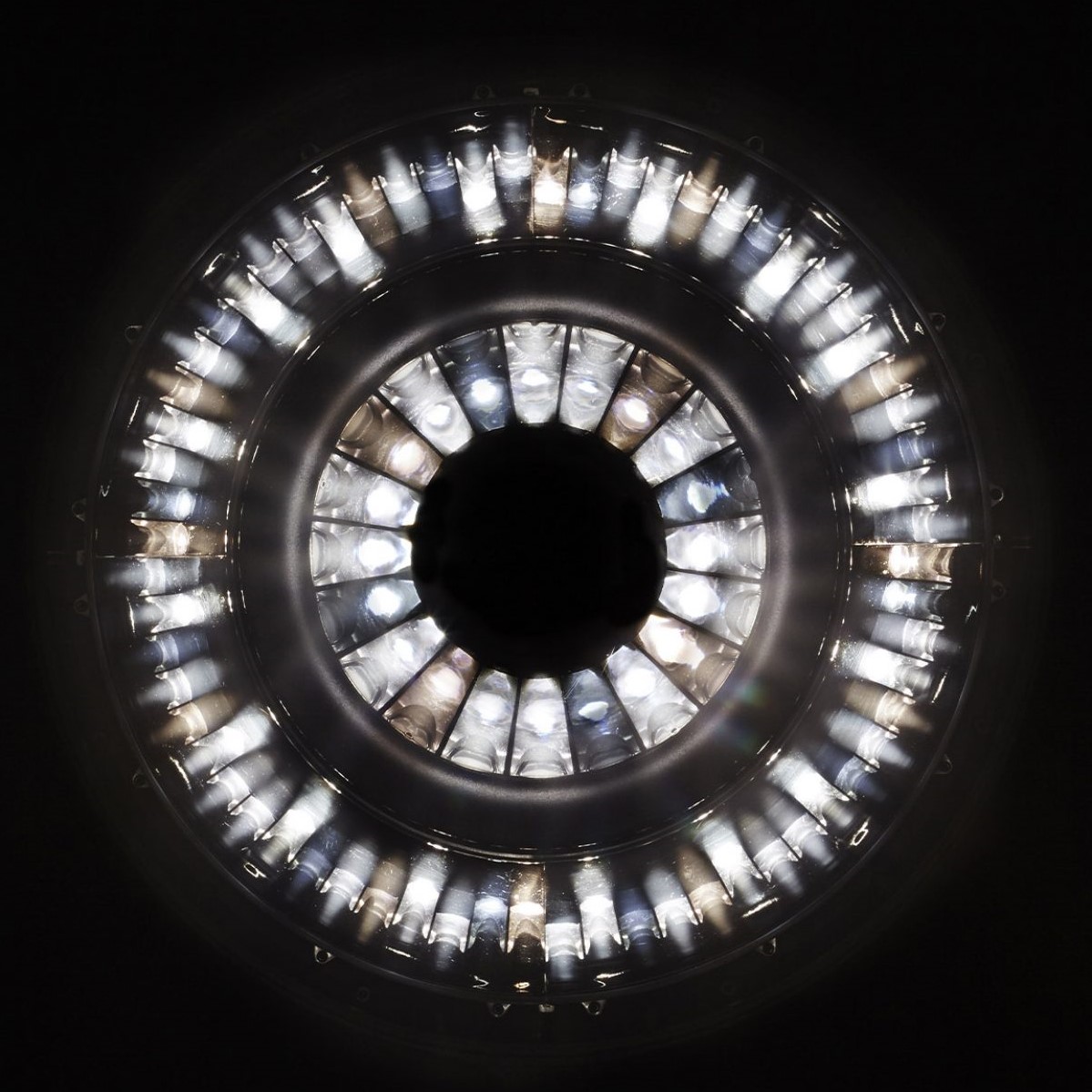

- Through an electronic system, it allows activating an additional group of LEDs that, reflected in the mirrors, create two different light diameters.
Certificates:
- CE medical product according to Directive 93/42/EEC.
- Meets the requirements of standard IEC 60601-2-41.
- Environmental Product Declaration (EPD) certified by UL, in accordance with ISO 14025 standard.
Technical specifications for each arm:
- Luminous intensity: 160,000 lux at 1 m.
- Dome diameter: 52 cm.
- Color temperature: 7 selections between 3,800 and 5,400ºK.
- Color rendering index: 96 Ra.
- Diameter of the illuminated field: 170 - 380 mm.
- Total radiated energy when the light reaches the maximum level: 580 W/m².
- Ratio between radiated energy Ee and illuminance Ec: 3.68.
- LED lifespan: over 60,000 hours.
- Adjustable luminous intensity: 3 - 100%.
- Electrical consumption: 53 W, 60 VA.
- Weight: 75 kg.
Support: Ceiling mount (up to 3 m high).
*Installation not included.
