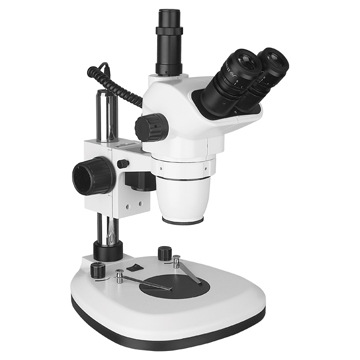

Triocular Zoom SQF-L-LED Stereomicroscope. Objectives: 13.4X and 90X.
Triocular Zoom SQF-L-LED Stereomicroscope. Objectives: 13.4X and 90X.
Personal advice
Description
Triocular Zoom SQF-L-LED Stereomicroscope developed with an adjustable triple LED lighting system with incident light on the head and transmitted on the circular stage, both activated separately or simultaneously and adjustable in intensity. It has a system for changing magnifications through continuous zoom with bilateral controls for proper parfocality and optimal centering. It is designed with a 45° inclined tricoular head with macrometric focus by vertical sliding of the head by rack and with adjustable tension.
Features:
- Image resolution in three dimensions, without inversion of the sides, with excellent contrast and color fidelity.
- The optics are fully protected against possible impacts.
- The interpupillary distance can be modulated between 54 and 75 mm.
- The head can rotate 360º to facilitate access to bulky bodies.
- Pair of wide-field WF 20X eyepieces.
- Both eyepieces have a ±5 dp diopter corrector.
- The eyepieces are fixed by a safety screw and have rubber binoculars.
- Solid base with platform with opaque circular stage of double contrast (white/black) and translucent frosted light diffuser, with fixing screw and specimen holder clips.
- Supplied with photographic adapter and WF 10X eyepiece with viewer to correct focus.
Technical specifications:
- Head: triocular.
- Zoom range: 0.67X-4.5X.
- Eyepieces: 20X.
- Magnifications: 13.4X-90X.
- Field of view diameter: 17.9-2.7 mm.
- Working distance: 105 mm.
- Lighting system: simultaneously.
- Weight: 6.4 kg.
Supplied with protective cover.
