Reference. 10445313113

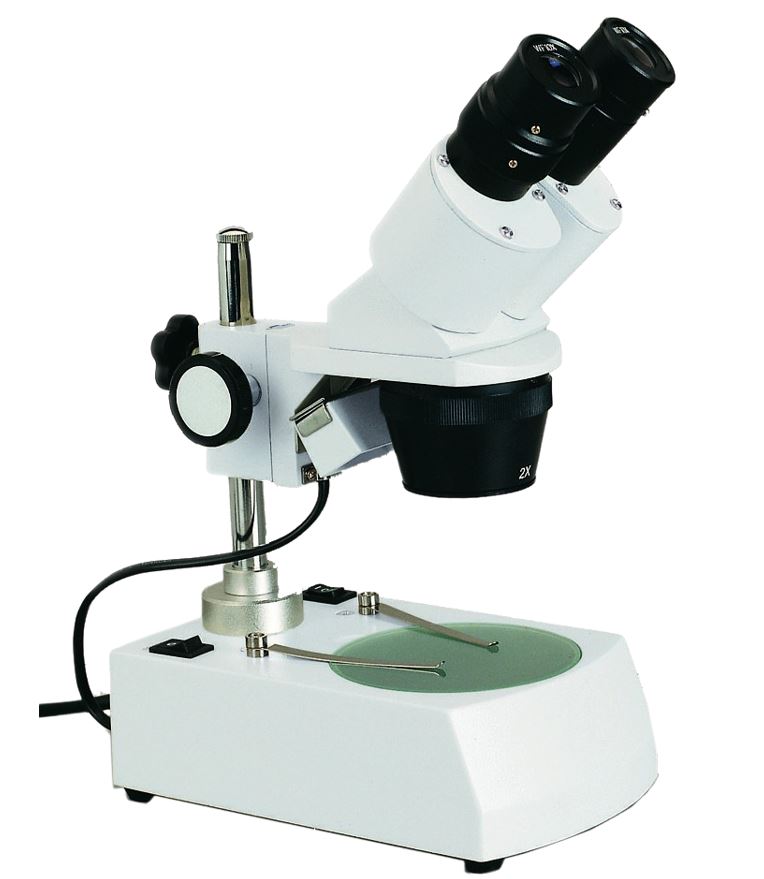

Stereoscopic magnifying glass XTX-3C LED. Objectives: 20X and 40X
Stereoscopic magnifying glass XTX-3C LED. Objectives: 20X and 40X
Personal advice
Description
Stereoscopic magnifying glass XTX-3C LED designed with a 45° inclined binocular head with adjustable interpupillary distance between 55 and 75 mm. It allows a double quick focus by vertical sliding of the head through the column and by means of bilateral macrometric adjustment by pinion and rack with tension regulation. It has been developed with an LED lighting system in the head and the circular plate.
2X and 4X objectives housed in the double objective holder revolver with rotation in both directions and fixing on the axis.
Features:
- Three-dimensional image resolution, without inversion of the sides, with excellent contrast and color fidelity.
- Rotating head up to 360° to facilitate access to bulky bodies.
- The left eyepiece holder has a diptric corrector of ±5 dp.
- Pair of wide-field eyepieces WF 10X, 20 mm in diameter, with rubber binoculars.
- The eyepieces are fixed by a safety screw.
- Solid base composed of a platform with an opaque circular plate of double contrast (white/black) and frosted translucent light diffuser, with fixing screw and slide holder clips.
- Comes with a hook type key to regulate the axis tension.
- Includes a rechargeable battery3x1800 Ah and an external charger.
Technical specifications:
- Objectives: 2X and 4X.
- Eyepieces: WF-10X.
- Magnification: 20X and 40X.
- Field of view diameter: 10-5 mm.
- Working distance: 57 mm.
- Lighting system: transmitted or incident.
- Height: 270 mm.
- Width: 117 mm.
- Depth: 190 mm.
- Weight: 2.8 kg.
Comes with a protective plastic cover.
2X and 4X objectives housed in the double objective holder revolver with rotation in both directions and fixing on the axis.
Features:
- Three-dimensional image resolution, without inversion of the sides, with excellent contrast and color fidelity.
- Rotating head up to 360° to facilitate access to bulky bodies.
- The left eyepiece holder has a diptric corrector of ±5 dp.
- Pair of wide-field eyepieces WF 10X, 20 mm in diameter, with rubber binoculars.
- The eyepieces are fixed by a safety screw.
- Solid base composed of a platform with an opaque circular plate of double contrast (white/black) and frosted translucent light diffuser, with fixing screw and slide holder clips.
- Comes with a hook type key to regulate the axis tension.
- Includes a rechargeable battery3x1800 Ah and an external charger.
Technical specifications:
- Objectives: 2X and 4X.
- Eyepieces: WF-10X.
- Magnification: 20X and 40X.
- Field of view diameter: 10-5 mm.
- Working distance: 57 mm.
- Lighting system: transmitted or incident.
- Height: 270 mm.
- Width: 117 mm.
- Depth: 190 mm.
- Weight: 2.8 kg.
Comes with a protective plastic cover.
