Reference. 10445313311

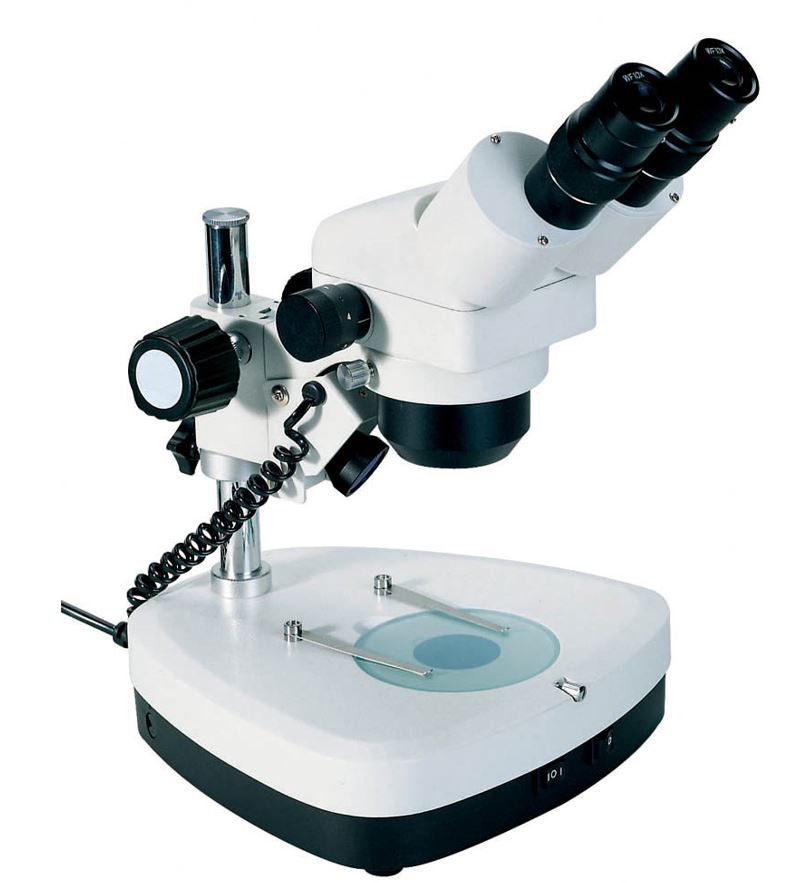

Binocular Stereoscopic Magnifying Glass Zoom SQF-L-LED. Objectives: 10X and 40X
Binocular Stereoscopic Magnifier Zoom SQF-L-LED. Objectives: 10X and 40X
Personal advice
Description
Binocular Stereoscopic Magnifying Glass Zoom SQF-L-LED designed with a system of magnification change through continuous zoom with bilateral controls for total parfocality and centering. It offers a three-dimensional image resolution, without inversion of the sides, of excellent contrast and color fidelity. It features a triple LED lighting system with incident light on the head and transmitted (diascopic) light on the circular stage, both can be activated separately or simultaneously and adjustable in intensity.
Objectives: 10X and 40X.
Features:
- Optics fully protected against accidental impacts.
- Binocular head inclined at 45°.
- Adjustable interpupillary distance between 54 and 75 mm.
- The head can rotate 360° to facilitate access to bulky bodies.
- Diopter corrector of ±5 dp in both eyepieces.
- Eyepiece fixation by safety screw.
- Designed with a pair of wide field WF 10X eyepieces, 22 mm in diameter.
- Eyepieces with rubber binoculars.
- Macrometric focus by vertical sliding of the head by rack and with adjustable tension.
- Solid base composed of a platform with opaque circular stage of double contrast (white/black) and translucent frosted diffusing light, with fixing screw and slide holding clips.
Technical specifications:
- Head: binocular.
- Zoom range: 1X-4X.
- Eyepieces: 10X.
- Magnification: 10X-40X.
- View field diameter: 26-5.8 mm.
- Working distance: 90 mm.
- Illumination system: transmitted or incident.
- Weight: 5.5 kg.
It comes with a protective cover.
Objectives: 10X and 40X.
Features:
- Optics fully protected against accidental impacts.
- Binocular head inclined at 45°.
- Adjustable interpupillary distance between 54 and 75 mm.
- The head can rotate 360° to facilitate access to bulky bodies.
- Diopter corrector of ±5 dp in both eyepieces.
- Eyepiece fixation by safety screw.
- Designed with a pair of wide field WF 10X eyepieces, 22 mm in diameter.
- Eyepieces with rubber binoculars.
- Macrometric focus by vertical sliding of the head by rack and with adjustable tension.
- Solid base composed of a platform with opaque circular stage of double contrast (white/black) and translucent frosted diffusing light, with fixing screw and slide holding clips.
Technical specifications:
- Head: binocular.
- Zoom range: 1X-4X.
- Eyepieces: 10X.
- Magnification: 10X-40X.
- View field diameter: 26-5.8 mm.
- Working distance: 90 mm.
- Illumination system: transmitted or incident.
- Weight: 5.5 kg.
It comes with a protective cover.
