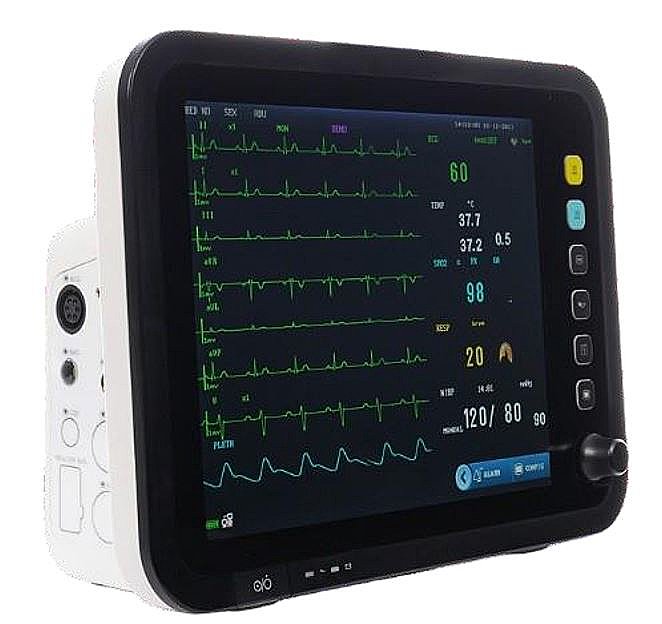

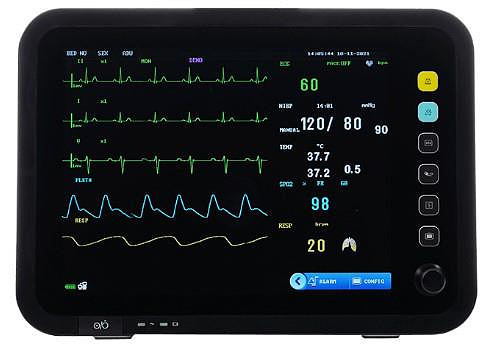

12" multiparametric monitor YK-8000C (ECG, NIBP, TEMP, RESP, SpO2)

Latest generation multiparameter monitor YK-8000C that accurately monitors the following parameters: ECG, PANI, SpO2, temperature and respiration. It is designed with a large 12" color TFT screen that displays up to 5 waves simultaneously. To ensure maximum safety, it incorporates visual and acoustic alarms to detect any type of anomaly in the patient's diagnosis. In addition, it is suitable for use in neonatal, pediatric and adult patients. Developed with a lithium battery that lasts approximately 1 hour. It is supplied without a printer. Certifications: CE medical product according to Directive 93/42/EEC and FDA certification. Technical specifications: - ECG: - 5 leads: RA, LA, RL, LL and V. - Leads: I, II, III, aVR, aVL, aVF and V. - Input impedance: >5MΩ. - Protection in case of defibrillation. - ST detection. - ST analysis accuracy: 0.02mV. - ST analysis range: -2.0mV -+ 2.0mV. - NIBP (PANI): - Method: Oscillometry. - Operating modes: manual/automatic/STAT. - Unit of measure: mmHg. - Types of measurement: systolic, diastolic, mean. - Integrated pressure overprotection. - SpO2: - Measurement range: 0-100%. - Resolution: 1%. - Accuracy: 70% - 100% ± 2% / 40 % - 69% ±3%. - TEMP: - Measuring range: 0-50°C. - Resolution: 0.1°C. - Accuracy: ± 0.1°C. - RESP: - Impedance method between RA-LL. - Resolution: 1rpm. - Accuracy: 7-150rpm (± 2rpm)/0-6rpm. - Allows trend recording. - Power supply: 100-240V. - Dimensions: 310x150x275 mm. - Weight: 2.8 kg. - Warranty: 2 years. Includes: - 1 ECG cable with a set of disposable clip-type electrodes. - 1 cuff for monitoring blood pressure, adult size. - 1 interconnection tube with PANI cuff. - 1 probe for monitoring temperature. - 1 SpO2 sensor, adult size. - Power cable.
