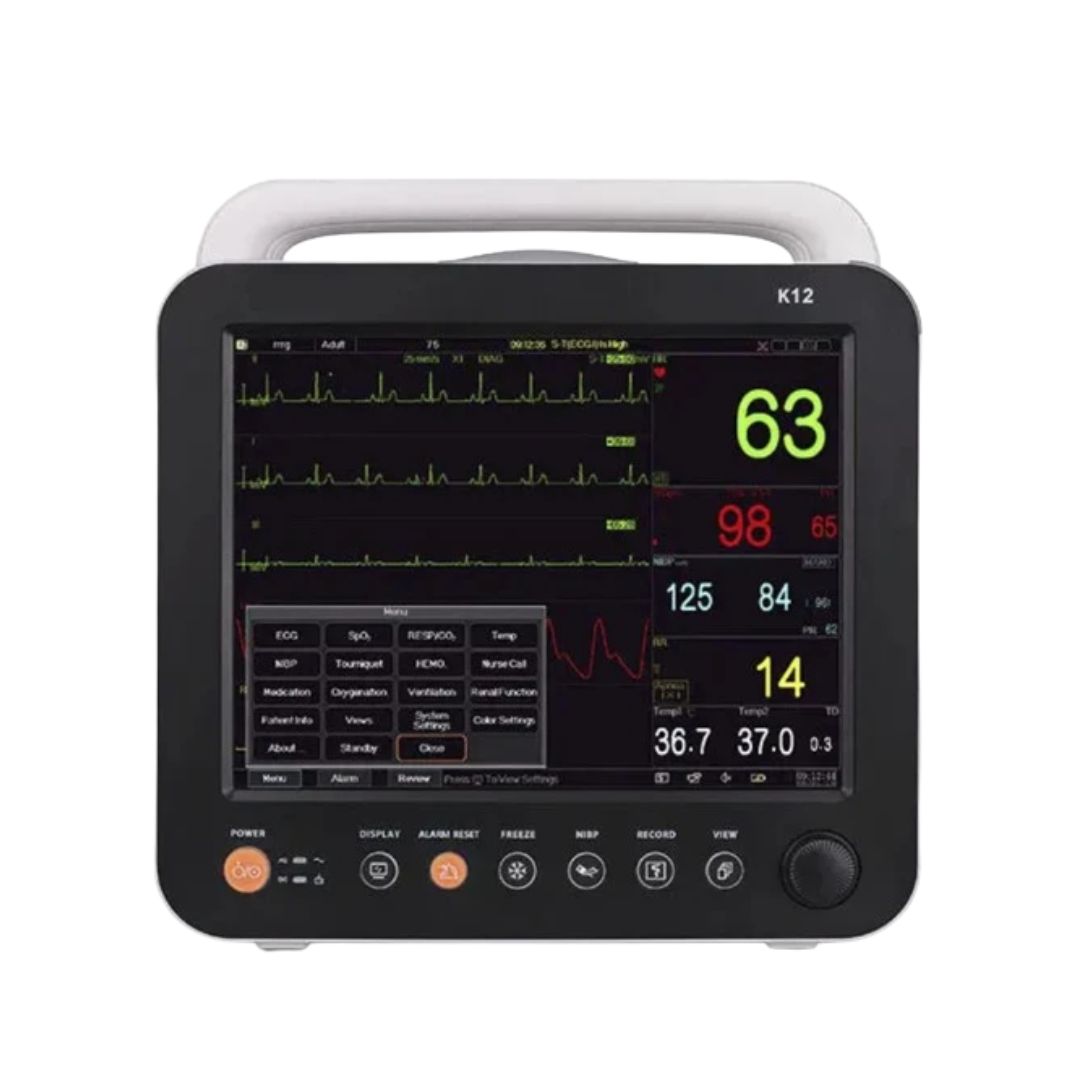

Multiparameter monitor with K12 touchscreen (ECG, NIBP, PR, TEMP, RESP, SpO2)

The K12 patient monitor is a state-of-the-art device designed to provide comprehensive and accurate monitoring of multiple physiological functions. This monitor is ideal for demanding clinical environments, such as Intensive Care Units (ICU) and bedside monitoring, thanks to its ability to record up to 13 waveforms simultaneously.

The K12 monitor is an essential tool for healthcare professionals seeking precision and efficiency in continuous monitoring. Its ability to customize PENI measurement cycles in up to five phases and its versatile clinical calculations make it a device adaptable to various clinical needs. In addition, its modular design allows for custom configurations according to the specific needs of the hospital environment.

Features:
- High-resolution display. Equipped with a 12.1-inch screen that facilitates clear and detailed visualization of patient data.
- User-customized NIBP measurement with cycles of up to 5 phases.
- Versatile clinical calculations that facilitate application
- Ability to display 9 waveform traces on screen and up to 13 at most
- Versatile power supply. It works with AC current (100V-240V) or via an integrated lithium battery that allows up to 4 hours of continuous monitoring.
- Includes SpO2 sensors, NIBP cuffs, ECG cables, and temperature probes.
- Allows software updates and data export via USB, facilitating hemodynamic, respiratory, oxygenation, drug concentration, and real function calculations.

Technical specifications:
ECG+PR (RC)
- Dynamic input range: ±(0.5mVp~5mVp).
- Differential input impedance: ≥10MΩ.
- Bandwidth: 0.05~150Hz (Diagnostic), 0.5~40Hz (Monitor), 1~20Hz (Operation).
- CMRR: ≥90dB (Diagnostic), ≥105dB (Monitor & Operation).
- Sensitivity selection: ×1/8, ×1/4, ×1/2, ×1, ×2, ×4, Auto.
- Printing speed: 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s.
- PR measurement range: 15~350lpm.
- PR accuracy: ±1% or ±1 lpm, whichever is greater.
- Pacemaker pulse detection and rejection function.

RESP
- Measurement range: Adult:0 rpm-120 rpm, Pediatric and neonatal: 0 rpm-150 rpm.
- Measurement accuracy: Adult: 7-120 rpm: ±2 rpm or ±2%, whichever is greater. Pediatric/neonatal: 7-150 rpm: ±2 rpm or ±2%, whichever is greater 0-6 rpm: not defined.

TEMP
- Measurement range: 0~50 ℃.
- Measurement accuracy: ±0.1℃.

NIBP (PANI)
- Technique: Oscillometric method.
- Typical measurement time: <30 seconds (adult cuff).
- PANI measurement range: SIS: 25-290mmHg (Adult), 25-240mmHg (Pediatric), 25-140mmHg (Neonatal).
- PANI measurement range: DIA: 10-250mmHg (Adult), 10-200mmHg (Pediatric), 10-115mmHg (Neonatal).
- PANI measurement range: MAP: 15-260mmHg (Adult), 15-215mmHg (Pediatric), 15-125mmHg (Neonatal).
- PANI measurement accuracy: Mean difference: ±5mmHg, Standard deviation: 8mmHg.
- PANI measurement mode: Manual, Auto, STAT, Multicycle.
- Automatic measurement intervals: 1-480min.

SpO2
- Technique: Dual wavelength optical method.
- Measurement range: 0%~100%.
- Measurement accuracy: Error less than 2% for SpO2 range 70~100%.
- Pulse measurement range: 30~250lpm.
- Pulse measurement accuracy: ±2lpm or ±2%, whichever is greater.
- Low perfusion accuracy: 0.3%.

Other specifications
- Power supply: AC 100V-240V, 50/60Hz, 60VA.
- Internal lithium battery: 11.1V/4400mAh.
- Display: 12.1" TFT screen.
- Alarm methods: 3-level audio/visual alarms.
- Network: Ethernet.
