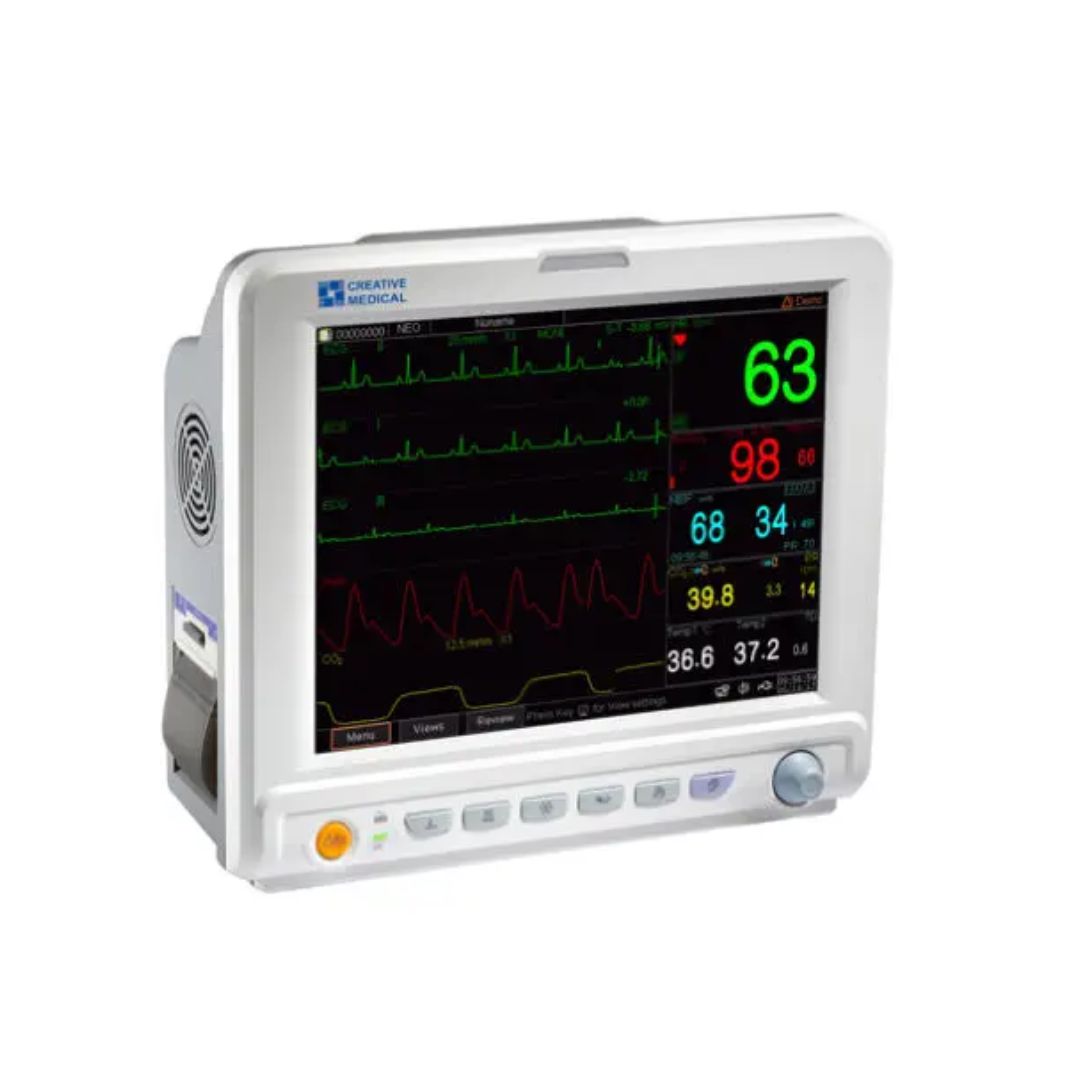

UP7000 Multiparameter Patient Monitor (ECG, NIBP, PR, TEMP, RESP, SpO2)

Multiparameter patient monitor ECG, RESP, SpO2, TEMP, PR, NIBP.

Personal advice

UP7000 Multiparameter Patient Monitor (ECG, NIBP, PR, TEMP, RESP, SpO2)

Offer!

-25% 521,00€ ~~695,00€~~ (630,41€ VAT INCLUDED)

Secure payment

Approximate delivery time of 10 to 20 days

Inquiry about the product

Description

Multiparameter patient monitor with high-resolution 12.1" TFT color screen with LED backlight, 3-channel ECG amplification, arrhythmia analysis and ST segment analysis.

Features:
- Up to 2,000 groups of parameter data and 24 hours of storage and retrieval of ECG waveforms.
- Displays up to 9 waveforms simultaneously.
- Storage and retrieval of 72-hour ECG waveform data.
- Measurement modes for adults/pediatrics/neonates.
- Visual and audible alarms.
- Built-in rechargeable lithium battery.
- Multilingual internal software: GB, FR, IT, ES, PT, PL, TR, RU, CN.
- 2000 hours data trends with graphical and tabular view.
- Storage of events, ARR and SpO2 of 2000 groups.

Technical specifications:
NIBP Monitoring (PANI)
- Measurement method: oscillometric
- Typical measurement time: <30 seconds.
- Measurement range (systolic pressure): [Adult: 40~275 mmHg] [Pediatric: 40~200 mmHg] [Neonatal: 40~135 mmHg].
- Measurement range (diastolic pressure): [Adult: 10~210 mmHg] [Pediatric: 10~150 mmHg] [Neonatal: 10~95 mmHg].
- Measurement range (mean arterial pressure): [Adult: 20~230 mmHg] [Pediatric: 20~165 mmHg] [Neonatal: 20~110 mmHg].
- Measurement mode: Manual, Auto, STAT.
- Automatic measurement intervals: 1~480min.

TEMP Monitoring:
- Measurement range: 21.0°C ~ 50.0°C.
- Measurement accuracy: ±0.2°C for range from 25.0°C~45.0°C.

SpO2 and PR (RC) Monitoring:
- Transducer: Dual wavelength LED.
- SpO2 measurement range: 0%~100%.
- SpO2 measurement accuracy: 2% for a range of 70% to 100%.
- Low perfusion performance: As low as 0.4%.
- PR measurement range: 0bpm~250bpm.
- PR measurement accuracy: ±2bpm or ±2%, whichever is greater.

ECG Monitoring:
- Input dynamic range: ±0.5 mVp ~ ±5 mVp.
- HR measurement range: 15 bpm ~ 350 bpm.
- HR measurement accuracy: ±1% or ±2bpm, whichever is greater.
- HR alarm delay time: ≤10s.
- Sensitivity selection: ×1/4, ×1/2, ×1, ×2, ×4 and Auto
- Sweep speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
- ECG noise level: ≤30μVp-p
- ECG input loop current: ≤0.1 μA
- Differential input impedance: ≥10Mohm
- Common mode rejection ratio: ≥105dB (monitoring mode) (CMRR): ≥89dB (diagnostic mode).
- Time constant ≥0.3 s (monitoring mode), ≥3.2 s (diagnostic mode).

RESP Monitoring
- Measurement method: thoracic impedance.
- Monitoring range: 0 rpm ~ 120 rpm.
- Measurement accuracy: ±5% or ± rpm, whichever is greater.

Other technical specifications:
- Power supply: 100 ~ 240 Vac, 50/60 Hz.
- Built-in 4400 mAh lithium battery.
- 12.1 inch screen (Resolution 800*600).
- Alarm mode: Audible-visual alarm.
- Network port: Ethernet port.

Includes:
- Adult SpO2 probe.
- Adult PANI cuff.
- Skin temperature probe.
- 5 lead ECG cable (RA - LA - LL - PL - C).
- Rechargeable battery.
- Power cable.
- Disposable electrode.
