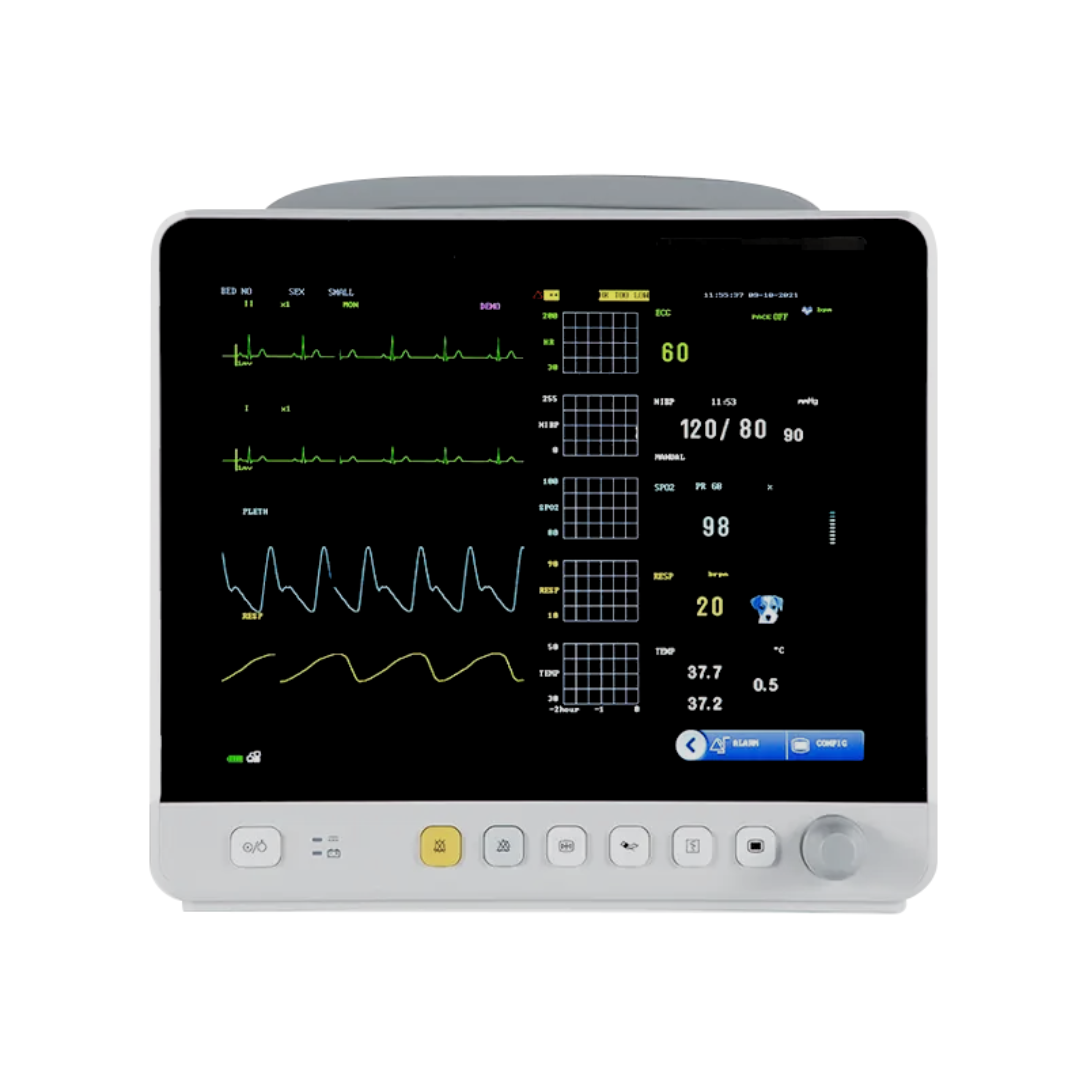

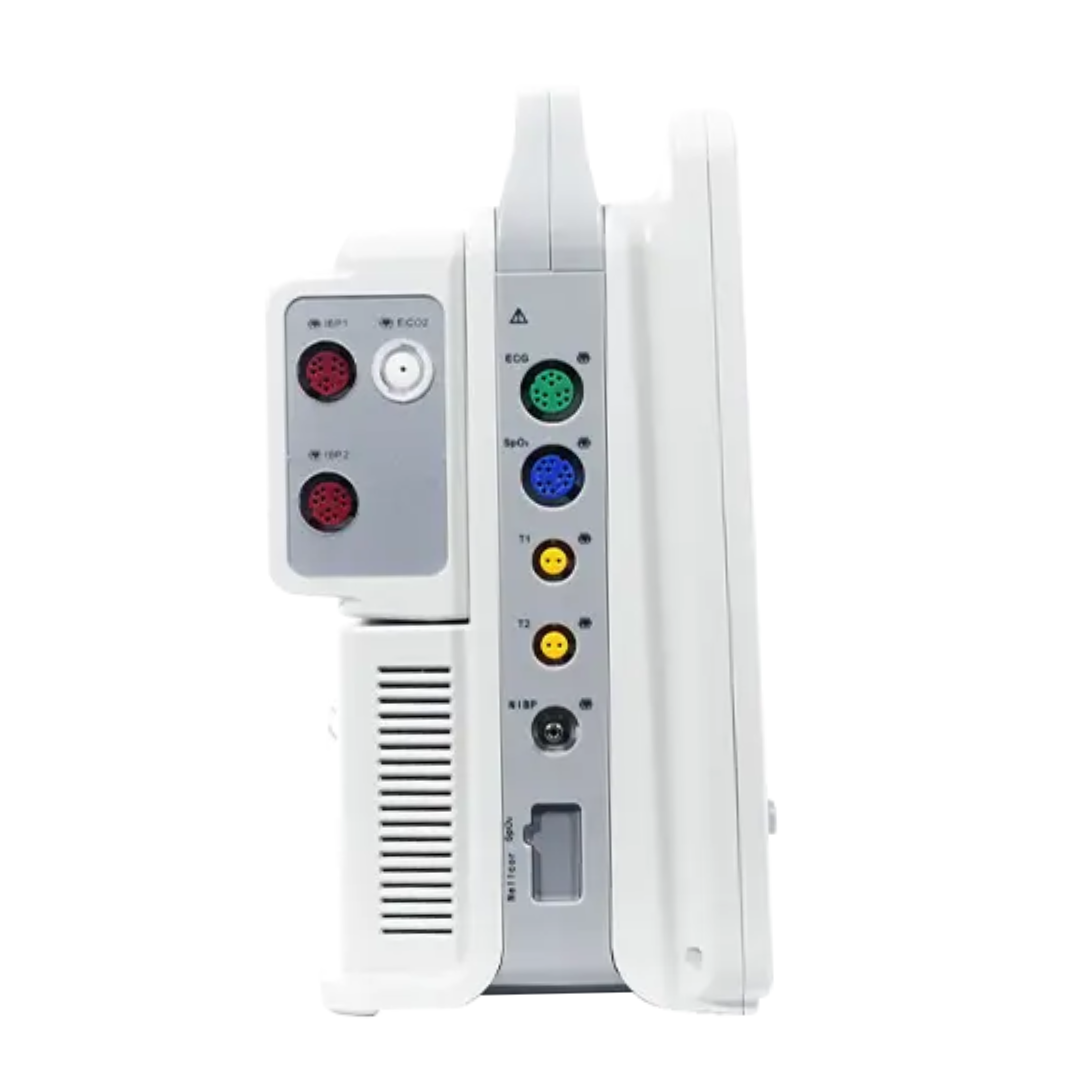

VE12 Multiparameter Monitor for Veterinary (ECG, SpO2, NIBP, RESP, TEMP, PR and EtCO2)

This veterinary monitoring equipment has been carefully designed to provide reliable and accurate readings even in unfavorable situations. Its innovative modular design allows for the addition of new functionalities to monitor more parameters, and its multiple measurement algorithms have been reinforced to effectively suppress any interference. For all these reasons, it is ideal for keeping track of the vital constants of any veterinary patient, whether a feline or a canine. General Features - Highly accurate multiparameter monitor suitable for veterinary use - Modular design, capable of integrating new monitoring systems - ECG and SpO2 analysis using fusion of homologous signals taken by intraoperative cable - Highly reliable readings even with unstable connections or interrupted measurements - Incorporates a rechargeable emergency battery for power outages - Includes alarms to alert against dysfunctions that may compromise the patient's health General Technical Specifications - Power supply: 220 V AC, 50/60 Hz (maximum current of 70 VA) - Electrical protection standard: class I (with internal power) - Electrical resistance standard: CF application - Liquid level: standard sealed equipment (no specific sealing for liquid prevention) - Screen indications: up to 6 simultaneous waves, alarm indicator (yellow/red), operating indicator (green) and charging indicator (green). Three alarm tones. - Battery life: > 30 minutes - Printer paper compatibility: 48 mm wide paper - Printer speed: 25 mm/s - Printer waves: 2 - Type of record: real-time 8s record - Frequency in short sampling (1 hour): resolution every 1 or 5 seconds - Frequency in long sampling (72 hours): 1, 5 or 10 minutes - Storage: up to 400 PANI records Non-Invasive Blood Pressure (NIBP) Module - Measurement system designed for the cardiac characteristics of animals - Reinforced with algorithms to correct interference and weak signals - Measurement method: pulse wave oscillation - Measurement model: manual/automatic - Measurement intervals in automatic mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240, 480 min - Measurement time in continuous measurement: 5 min - Heart rate range: 40 - 240 bpm - Systolic pressure range: 40 - 270 mmHg - Diastolic blood pressure: 10 - 215 mmHg - Mean pressure: 20 - 235 mmHg - Static pressure range: 0 - 300 mmHg - Static pressure accuracy: ±3 mmHg - Blood pressure accuracy: ±5 mmHg (maximum average error), 8 mmHg (maximum standard deviation) RESP Module - Measurement method: RA-LL impedance method - Respiratory impedance detection range: 0.3 - 3 Ω - Base impedance range: 200 - 400 Ω - Bandwidth: 0.1 - 2.5 Hz - Respiratory rate (dogs/cats): 0 - 150 rpm - Resolution: 1 rpm - Accuracy: ± 2 rpm - Asphyxia alarm: 10 - 40 s SpO2 Module - Measurement mechanism with correction of interference and weak perfusion - SpO2 measurement range: 0 - 100% - SpO2 resolution: 1% - SpO2 accuracy (dogs): 70 - 100%, ±2; 0 - 69%, undefined - SpO2 accuracy (cats): 70 - 100%, ±3; 0 - 69%, undefined - Pulse frequency measurement range: 20 - 300 bpm - Pulse frequency resolution: 1 bpm - Pulse frequency accuracy: ±3 bpm - Pulse frequency data update: 1 s TEMP Module - Sensor: YSI/CYF - Channels: 2 - Measurement range: 0 - 50°C - Resolution: 0.1°C - Accuracy: ±0.1°C (without error sensor included) ECG and PR Modules - Latest generation ECG measurement algorithm patented by Mindray - Capable of detecting a wide spectrum of arrhythmic dysfunctions - Measurement of the average heart rate and reading sweep every second - Can perform readings on patients with and without pacemakers - Lead configuration: 3 leads; RA, LA, LL; lead mode: I, I, I - Acquisition: automatic, 0.25, 0.5 or 1.2 - Deviation: < 0.66% per minute, < ±10% per hour - Heart rate measurement range: 15 - 350 bpm (dogs/cats) - Selection and accuracy of time reference point: 25 mm/s (6.25 mm/s, 2.5 mm/s and 50 mm/s optional); duration error of < ±10% - Response time to changes in heart rate: increase 80 - 120 bpm in less than 12 s; decrease from 80 - 40 bpm in less than 12 s - Alarm activation time: cardiac arrest in less than 12 s; low heart rate in less than 12 s and high heart rate in less than 12 s - Heart rate alarm range (dogs/cats): 17 - 350 bpm (upper limit) and 15 - 348 bpm (lower limit), resolution of 1 bpm and error limit of ±1% or ±1 bpm - Interference suppression: variations of < ±10% thanks to interference suppression - Overload protection: > 1 V - QRS wave range (P-V RTI): 0.5 - 5 mV - QRS wave width (dogs/cats): 40 - 120 ms - Response absence: range (P-V RTI) < 1.5 mV, wave amplitude of 1 mV < 10 ms - Power frequency voltage tolerance: > 100 uV - Dynamic input range: wave amplitude < ± 5 mV; rhythm (RTI) < 320 mV/s; DC trend voltage -300 - 300 mV; signal output change < ±10%; screen failure < 50% - System noise: < 30 μV - Multichannel cross talk: < 5% - Channel amplitude: > 30 mm, aspect ratio of 0.4 s/mV - Accuracy of input signal reconstruction: total error ±20% or larger than 100% μV - Frequency response: input sinusoidal frequency of 0.67 - 40 Hz, corresponding to output frequency of 0.67 - 40 Hz (attenuation of -3dB). The triangular input wave of 20 ms attenuates from 0 - 20% against the highest amplitude. - Common mode rejection: >90 dB (diagnostic mode), >100 dB (monitoring mode) and >100 dB (operational pattern) - Electrode polarization voltage range: ± 300 mV - Suppression of fast ECG signals by pacemaker with pulse detector: 1 V/s RTI, 5% accuracy - Stability and control of the reference point: recovery time < 3 s after reset; drift rate < 10 s that 10 uV/s; reference point drift of < 500 uV in 1 h and reference point drift < 50 uV/C at room temperature - Drift tolerance: triangular amplitude (P-V RTI) of 4 mV, QRS amplitude (P-V RTI) of 0.5 mV, QRS wave amplitude of 100 ms, QRS wave repetition of 80 bpm ETC02 Module - Measurement of CO2 level mainstream or side flow - Suitable for monitoring spontaneous ventilations and mechanical ventilations - Side flow preheating time: 2s (monitor wave), 25°C/10 min (total specification) - Side flow measurement range: 0 - 114 mmHg; 0 - 15%; 0 - 15 kPa - Side flow resolution: 0.1 mmHg: 0 - 69 mmHg; 0.25 mmHg: 70 - 150 mmHg - Side flow accuracy: 0 - 40 mmHg, ±2 mmHg; 41 - 70 mmHg, ±5%; 71 - 100 mmHg, ±8% and 101 - 150 mmHg, ±10% - Side flow respiratory rate: 3 - 160 rpm - Side flow respiratory rate accuracy: ±1 rpm - Mainstream flow preheating time: 2s (monitor wave), 25°C/10 min (total specification) - Mainstream flow measurement range: 0 - 114 mmHg; 0 - 15%; 0 - 15 kPa - Mainstream flow resolution: 0.1 mmHg: 0 - 69 mmHg; 0.25 mmHg: 70 - 150 mmHg - Mainstream flow accuracy: 0 - 40 mmHg, ±2 mmHg; 41 - 70 mmHg, ±5%; 71 - 100 mmHg, ±8% and 101 - 150 mmHg, ±10% - Mainstream flow respiratory rate: 3 - 160 rpm - Mainstream flow respiratory rate accuracy: ±1 rpm Optional Accessories (not included and at additional cost) - Nellcor blood oxygen module - SunTech blood pressure module - Invasive Blood Pressure (IBP) module
