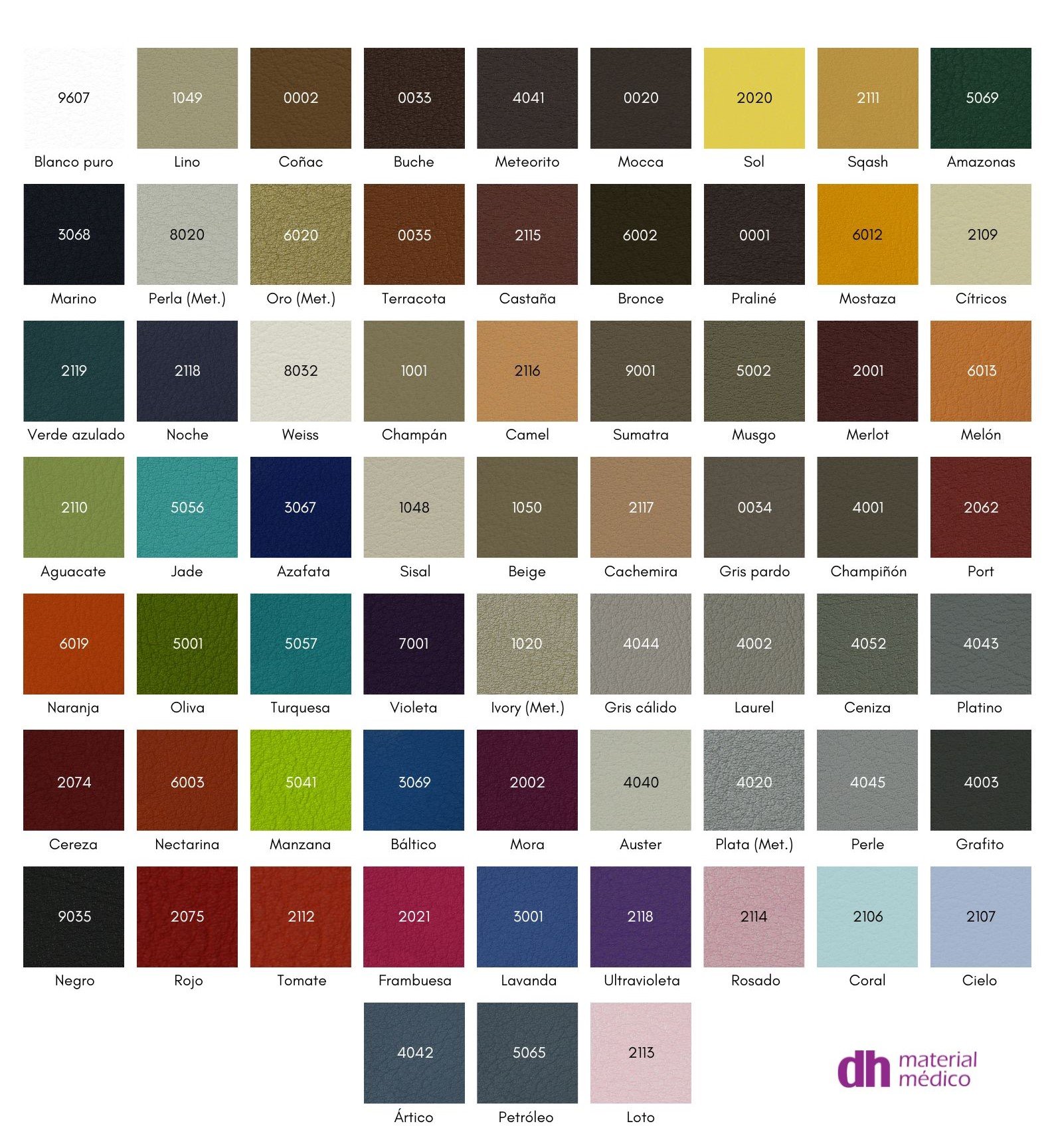

Inclined plane of 1 body with 2 motors, 62x190cm, adjustable height. Various colors.

The inclined flat type stretcher is ideal for neuromotor adaptation exercises from supine to standing.

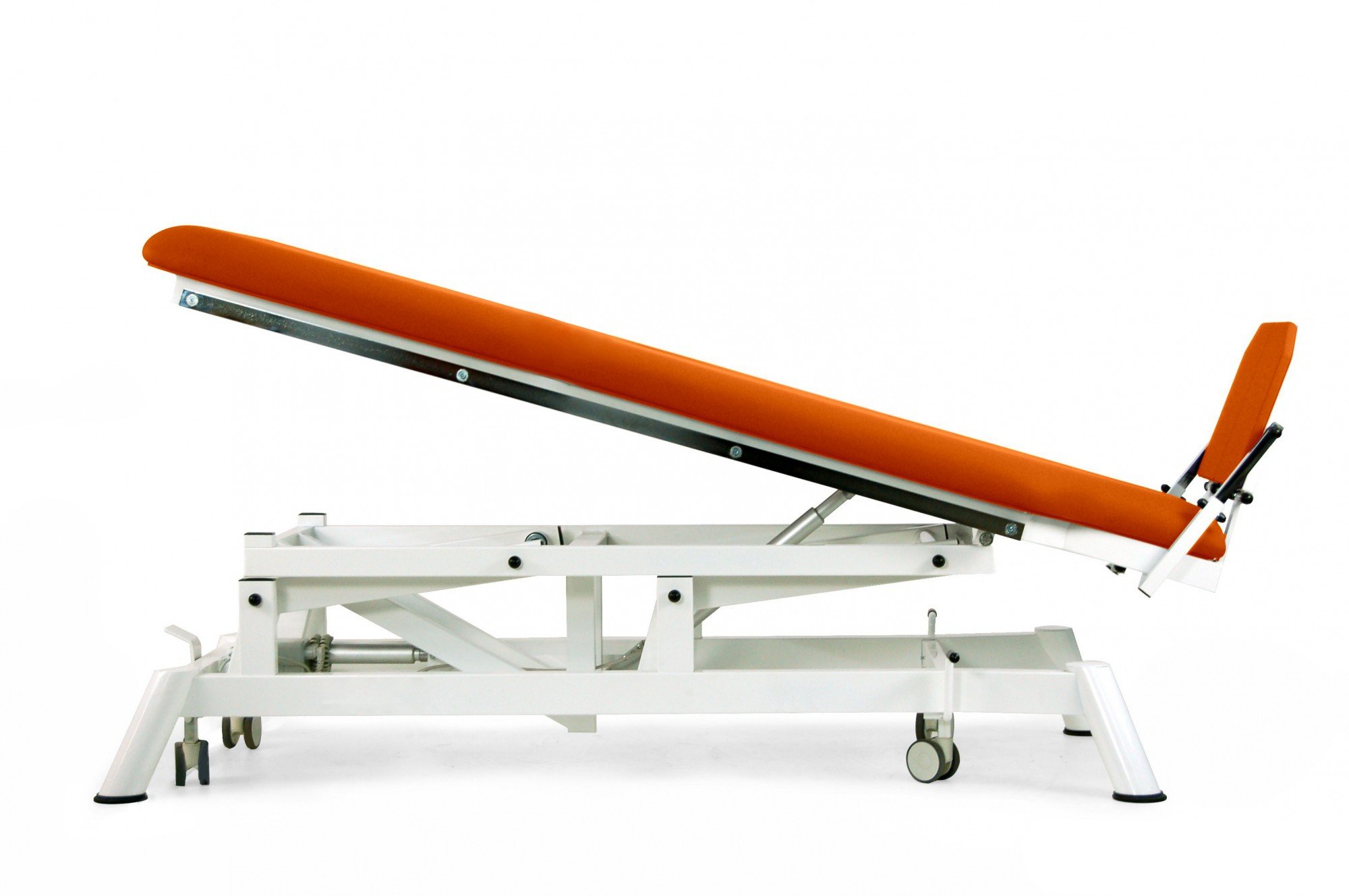

One motor adjusts the height and facilitates the transfer of patients, while the other motor ensures a smooth and effortless inclination.

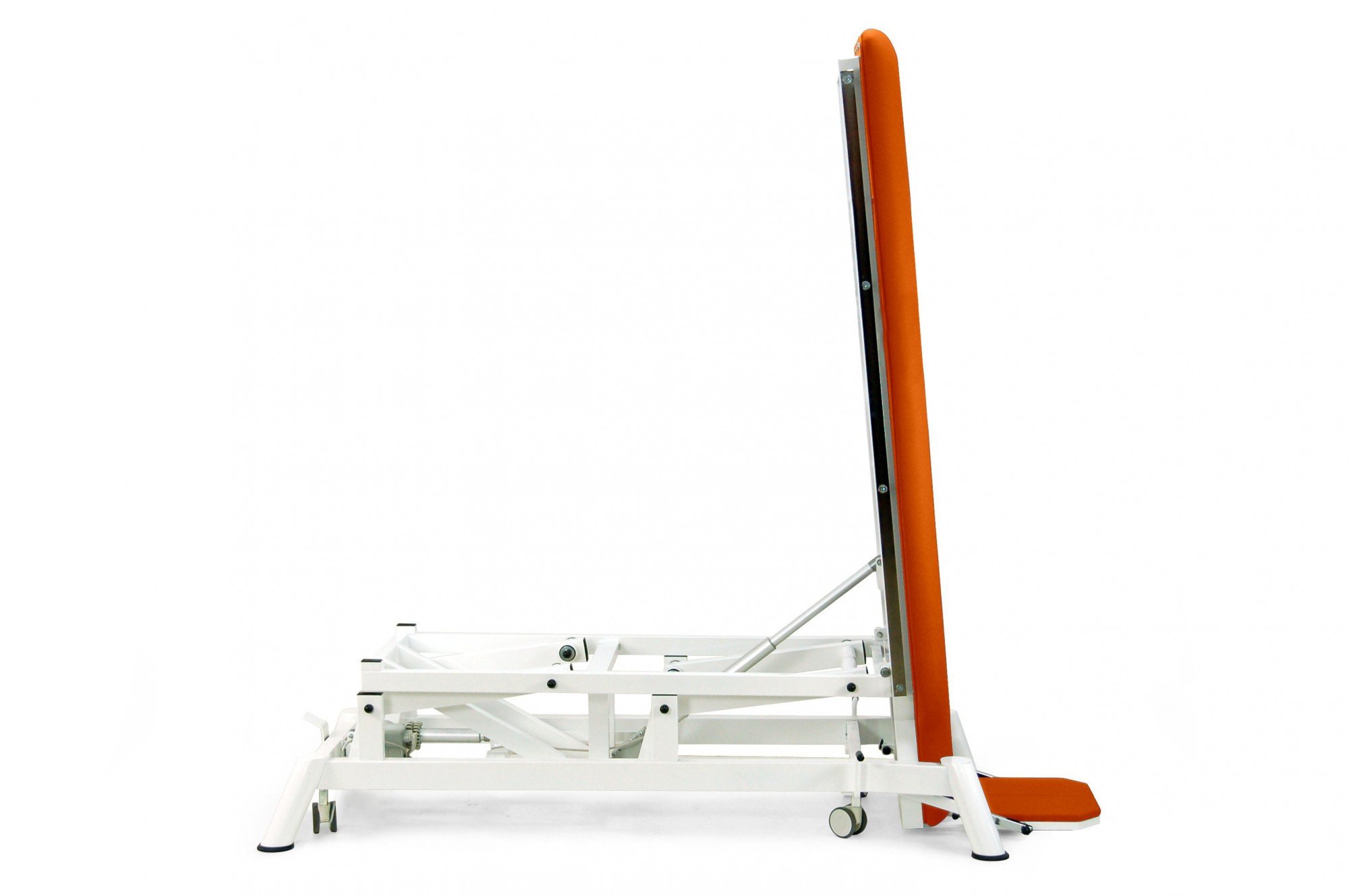

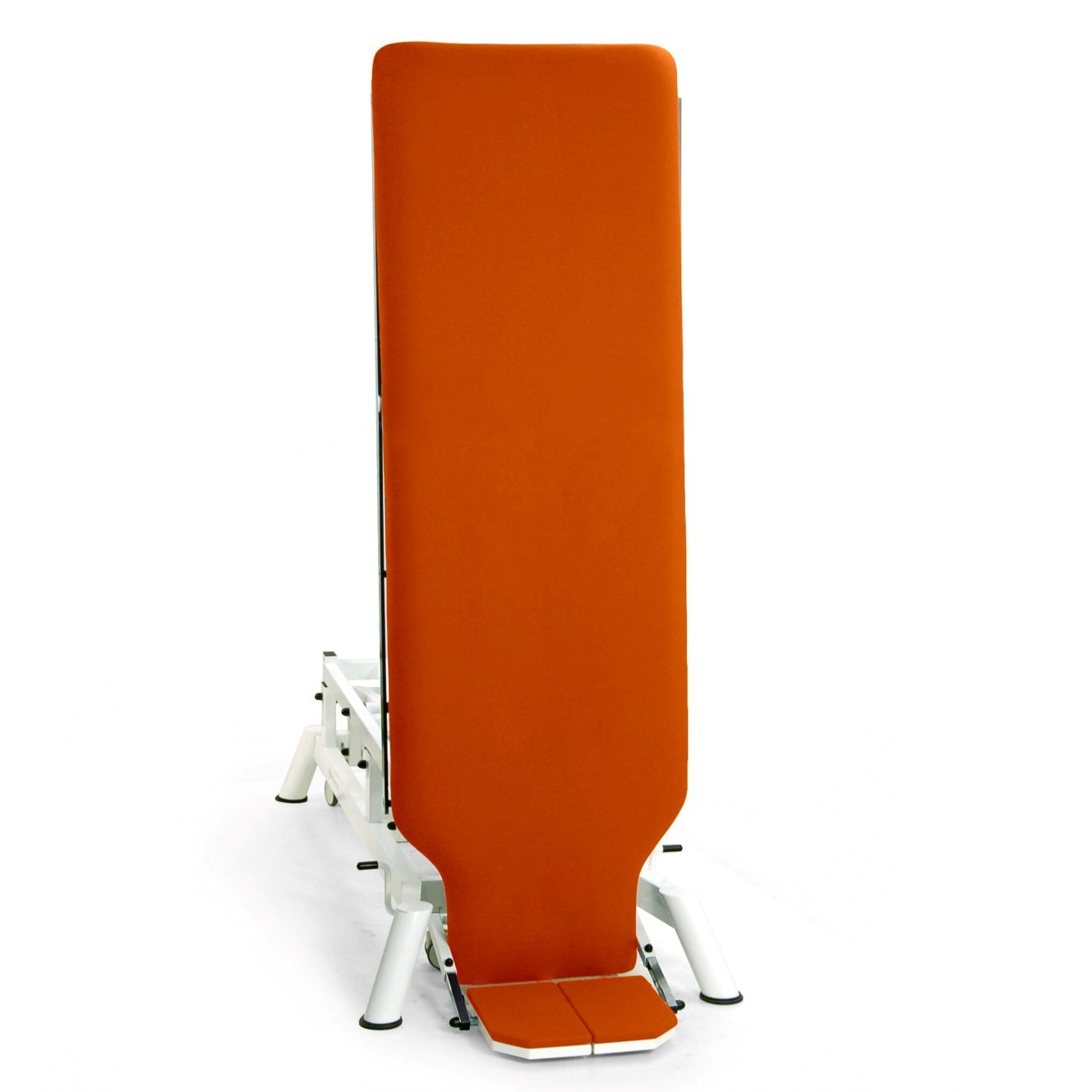

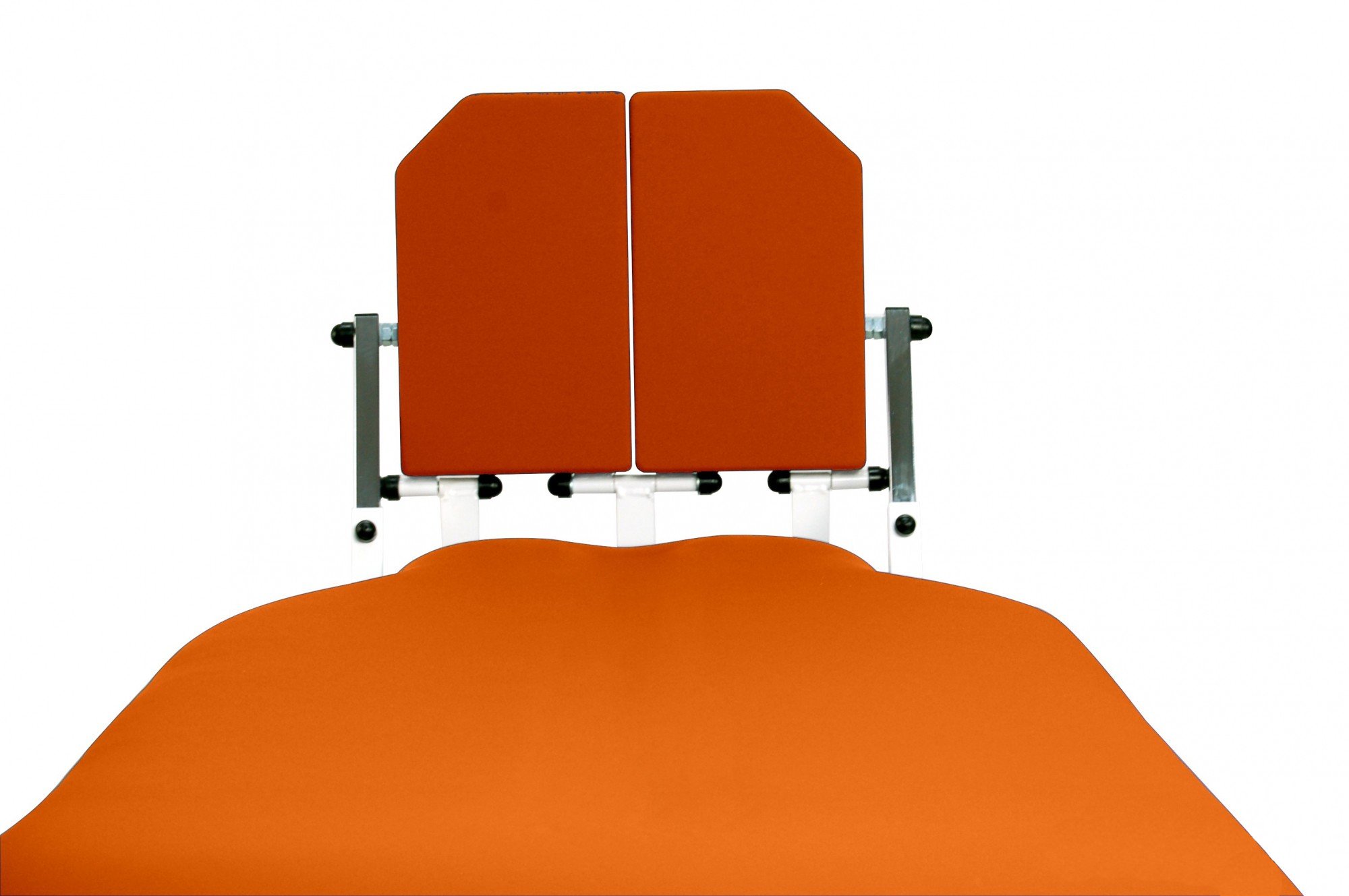

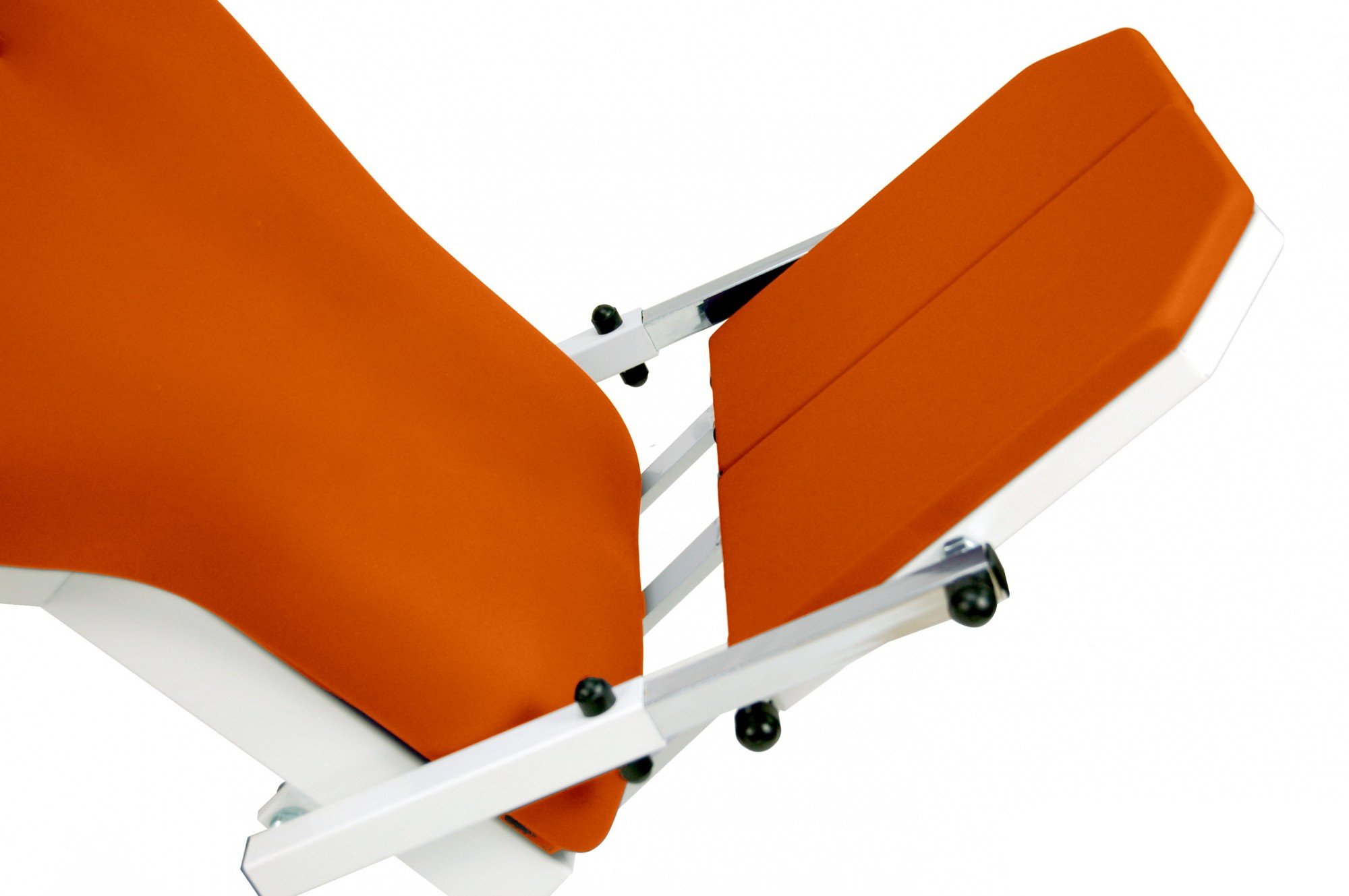

This standing stretcher is designed with an adjustable height from 52 cm to 98 cm and 1 body that allows its verticalization thanks to one of its incorporated electric motors, adjustable by a comfortable hand control. In addition, it has independent footrests adjustable in proclivity and declivity depending on the needs of the treatment.

General characteristics:
- It has side guides for anchoring restraint straps and various accessories.
- It has double wheels of 75 mm diameter retractable by pedals.
- E30/5 5 cm 30 kg/m3 foam padding.
- Hand control for two motors.
- 3-year warranty.
- The motors comply with European safety regulations.
- Made in Spain.

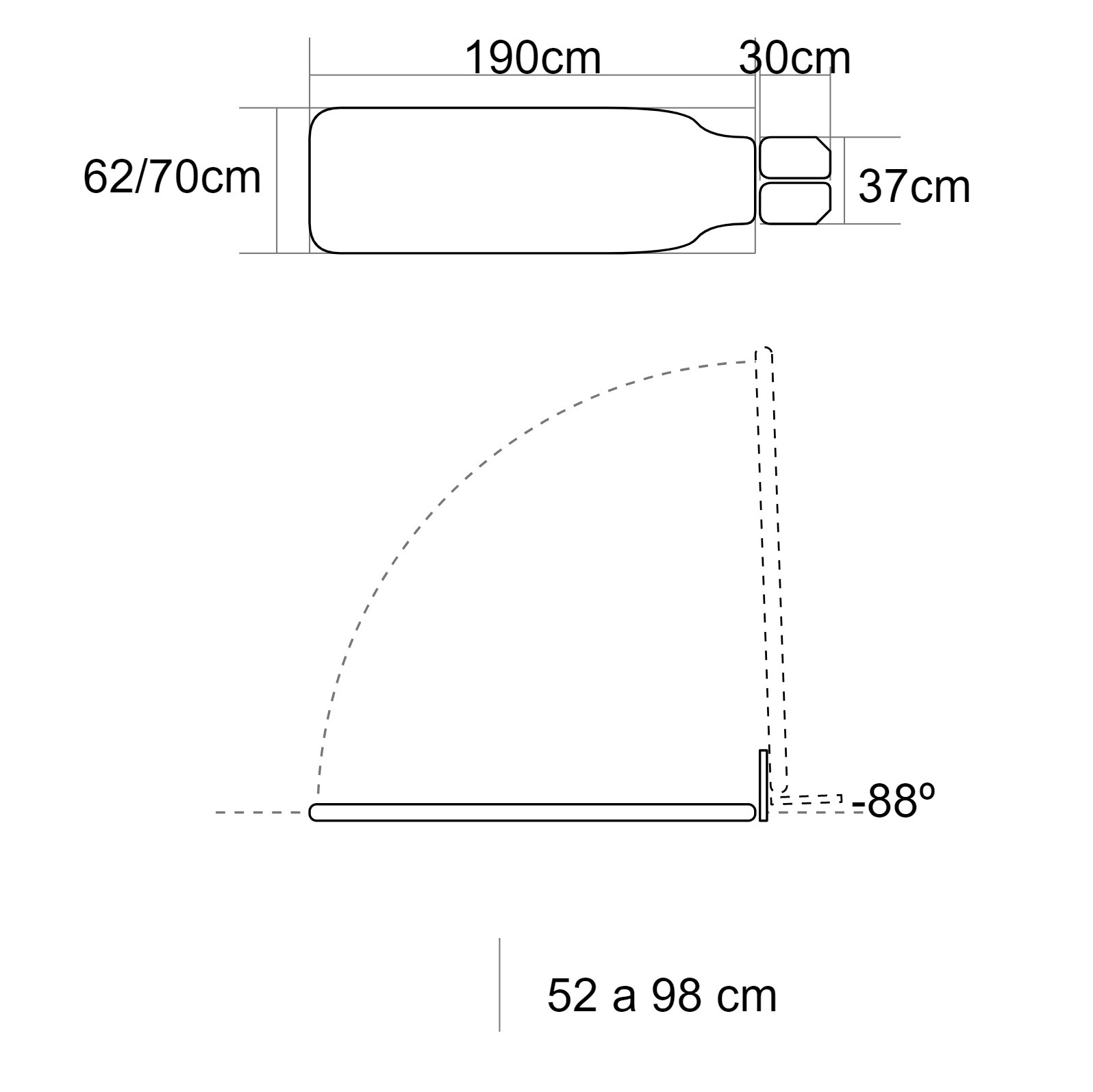

Technical specifications:
- Stretcher length: 190 cm.
- Footrest length: 30 cm.
- Total length: 220 cm.
- Stretcher width: 62 cm.
- Footrest width: 37 cm.
- Foam thickness: 5 cm.
- Foam density: 30 k/m³.

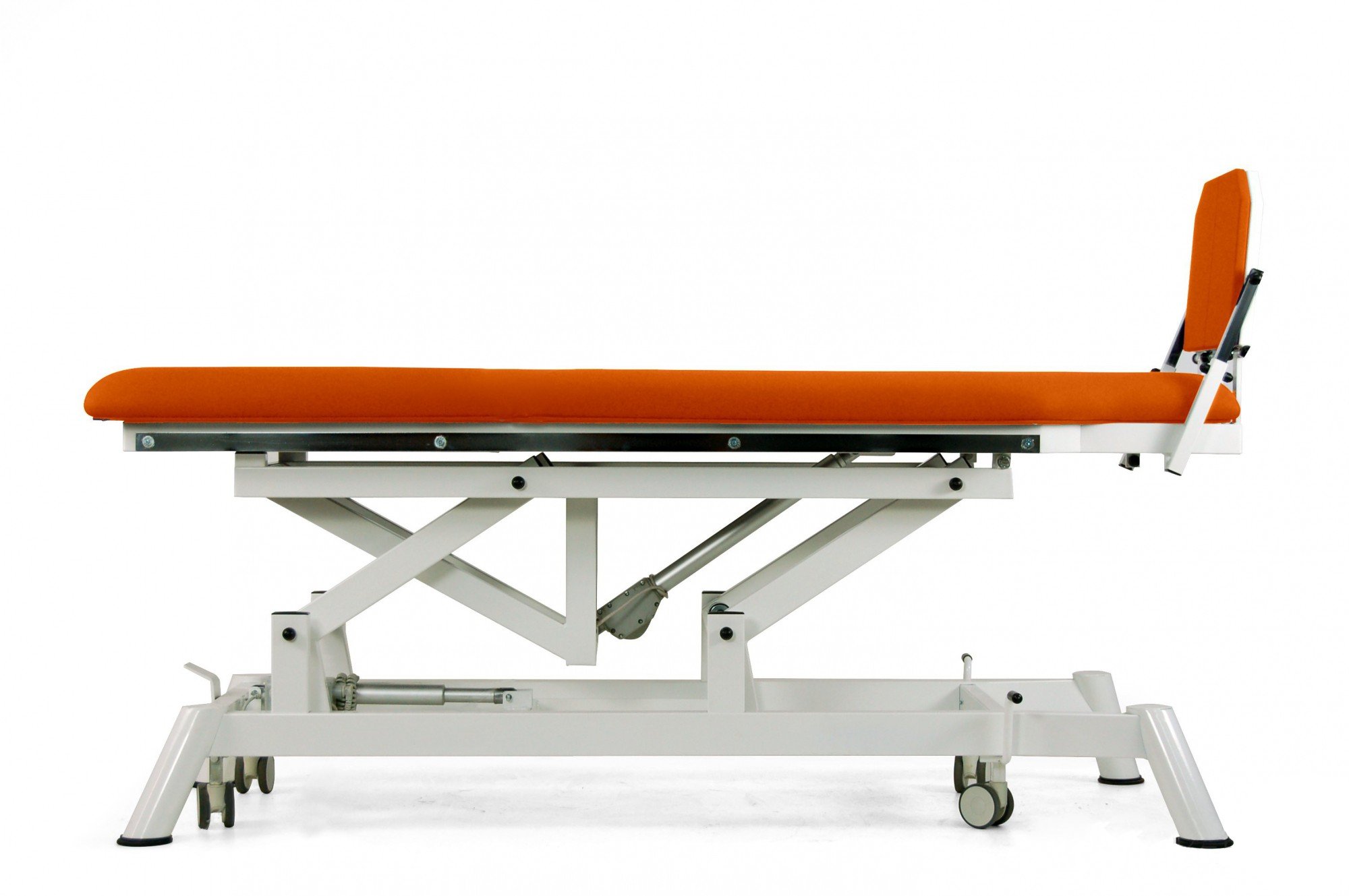

- Adjustable height: 52 - 98 cm.
- Verticalization angle: 88º.
- Structure material: steel tube coated with epoxy powder, baked in an oven at 210ºC.

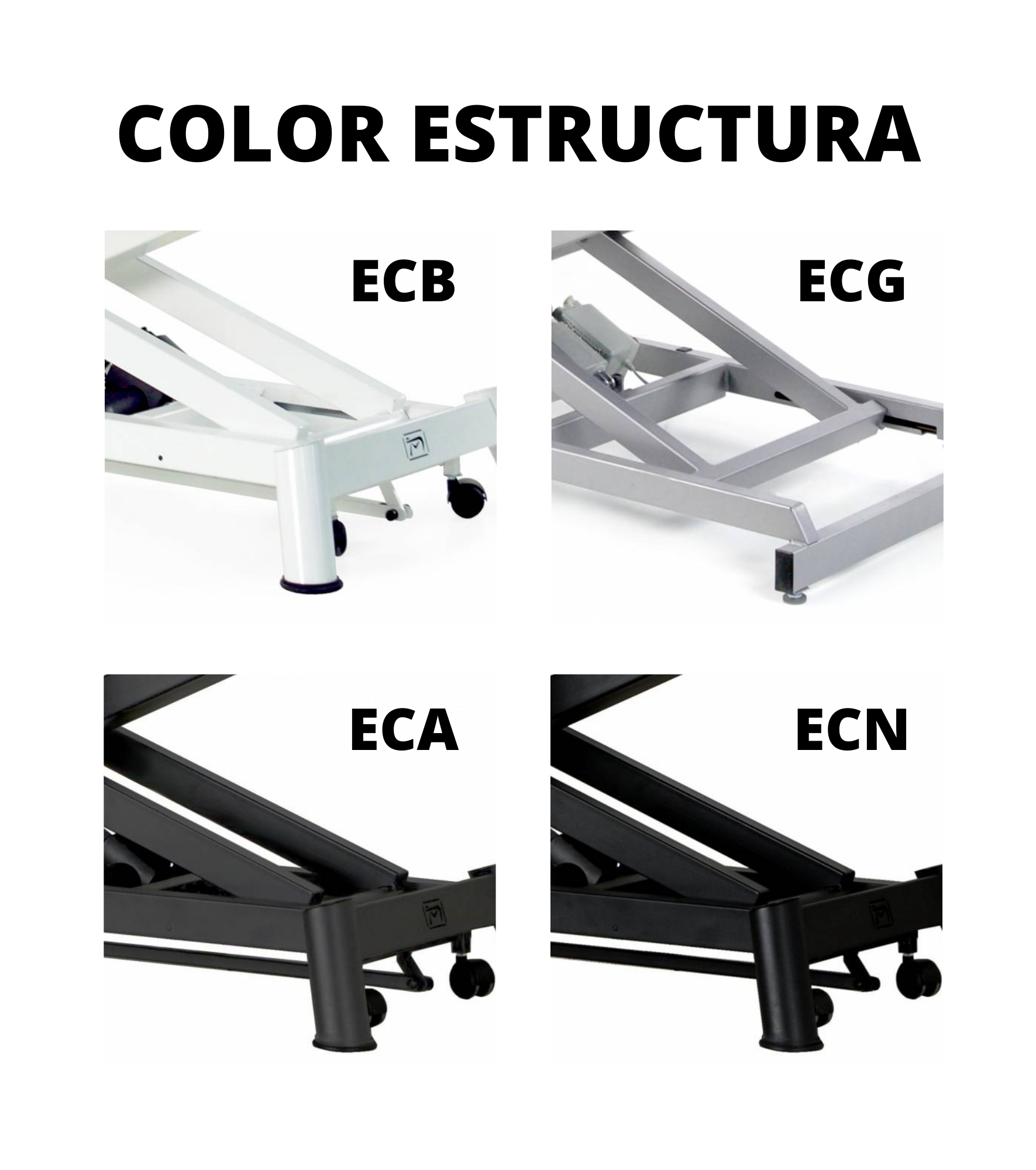

- Structure color: white.
- Supported weight: 140 kg.

Upholstery characteristics:
- Antimicrobial protection.
- Antibacterial protection.
- Antifungal protection.
- Fireproof material (consult the attached image for the regulation on fireproof materials it complies with).
- Resistance to sweat and human saliva.
- Resistant to urine, blood and UV light.
- Waterproof.
- High abrasion resistance.
- Sunflower oil resistance.
- Stain resistant surface.
- Also complies with UNE EN/71-3 standard.

Upholstery cleaning instructions:
Any stain, spill or dirt should be immediately cleaned from the upholstery to avoid the possibility of a permanent stain. Use a mixture of liquid soap (neutral pH) and water or the compatible cleaners specified in the attached image. Any excess of the mixture should be completely removed with a clean, wet, white cloth and the surface dried. Lacquers, strong cleaners, detergents, cleaning solutions containing xylene, ketones (MEK) or acetates, cause immediate damage and contribute to the deterioration of the material.

If you want more complete cleaning instructions, please contact us.

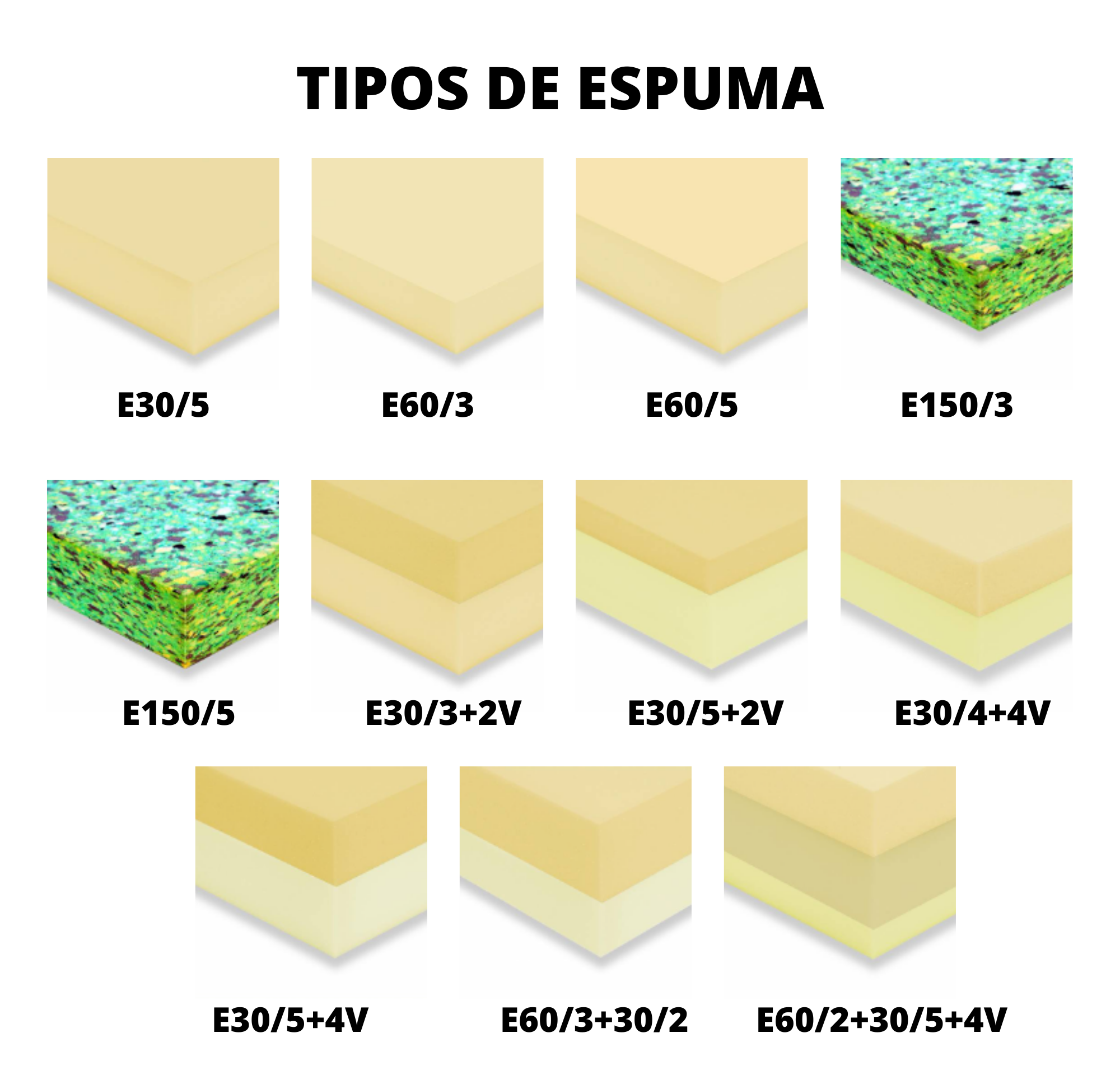

Foam options:
If you wish, you can purchase your stretcher with a different type of foam (at an additional cost).
- 3 cm 30Kg/m³+ 2cm visco
- 5 cm 150Kg/m³
- 3 cm 150Kg/m³
- 4 cm 30Kg/m³ + 4 cm visco
- 5 cm 30Kg/m³ + 2 cm visco
- 2 cm 60Kg/m³ + 5 cm 30Kg/m³ + 4 cm visco
- 5 cm 30Kg/m³ + 4 cm visco
- 3 cm 60Kg/m³
- 2 cm 60Kg/m³ + 3 cm 30Kg/m³
- 5 cm 60Kg/m³

Transport:
Material delivery is at street level. It is not the carrier's obligation to bring the goods inside the customer's premises.

*If you want to purchase the stretcher with different characteristics in terms of upholstery, width, foam and structure finish, please contact us.
