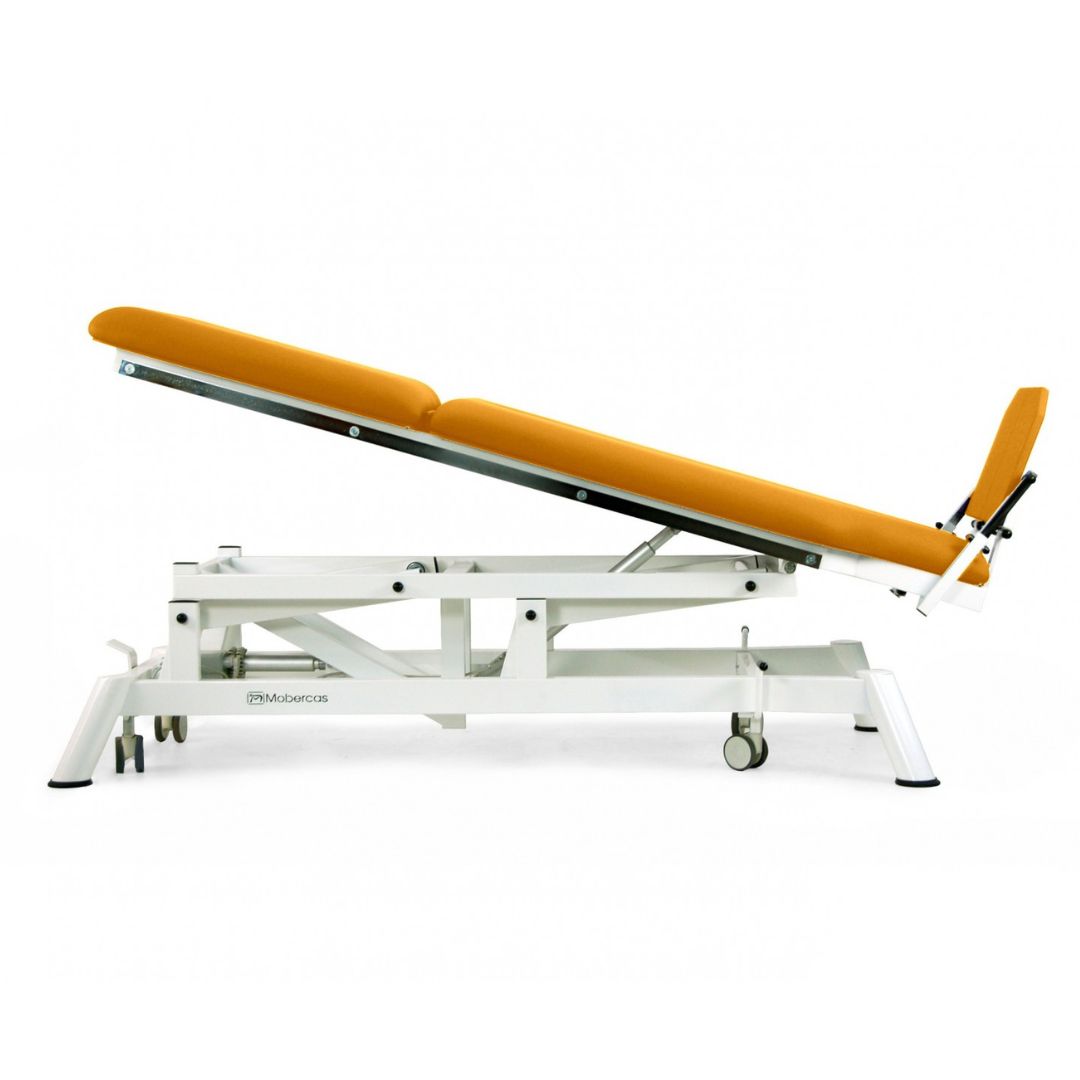

Inclined plane for pediatrics with 2 bodies with motorized height and verticalization. Various colors.

Inclined plane of 2 bodies developed with 2 electric motors, 1 to regulate the height from 52 to 98 cm and another to adjust the verticalization angle up to a maximum of 88º. Both functions are controlled by a comfortable and practical hand control.

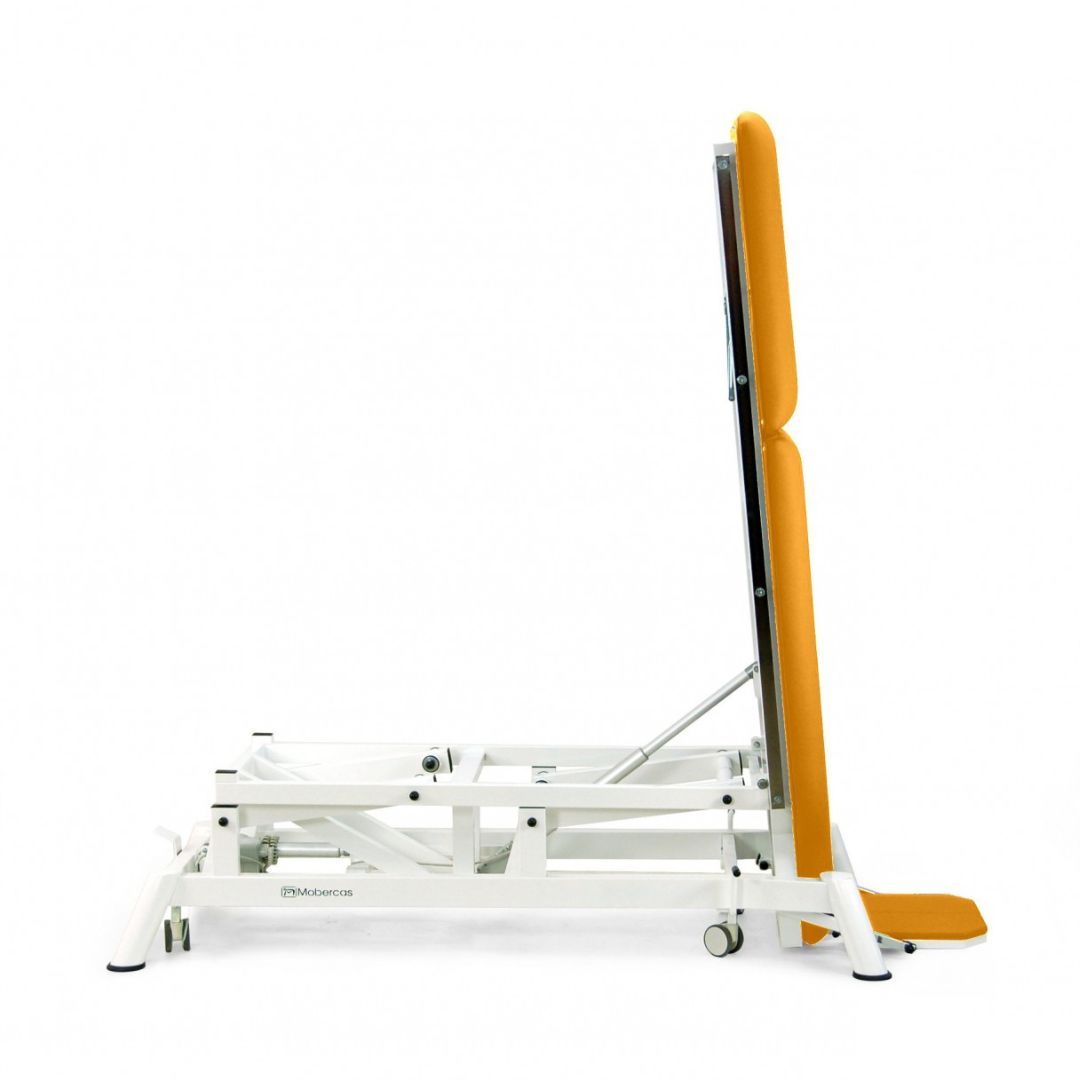

It is designed to move the patient from a horizontal to a vertical position during the development of physical therapy and injury rehabilitation exercises. Its design is intended to place the patient directly in the bipedal position without directly supporting them on the floor, ensuring that their weight exerts moderate pressure on the legs. Therefore, it is ideal for exercising the musculature of the lower limbs in order to regain strength and joint resistance in the area.

It incorporates lateral guides 126 cm long for the placement of a multitude of auxiliary equipment such as armrests or plastered rollers, among others. It also has retractable wheels operated by pedals to provide ergonomics and facilitate its movement in consultation. And, moreover, for the maximum comfort of the patient during treatment, it has been made with a high-density foam padded upholstery.

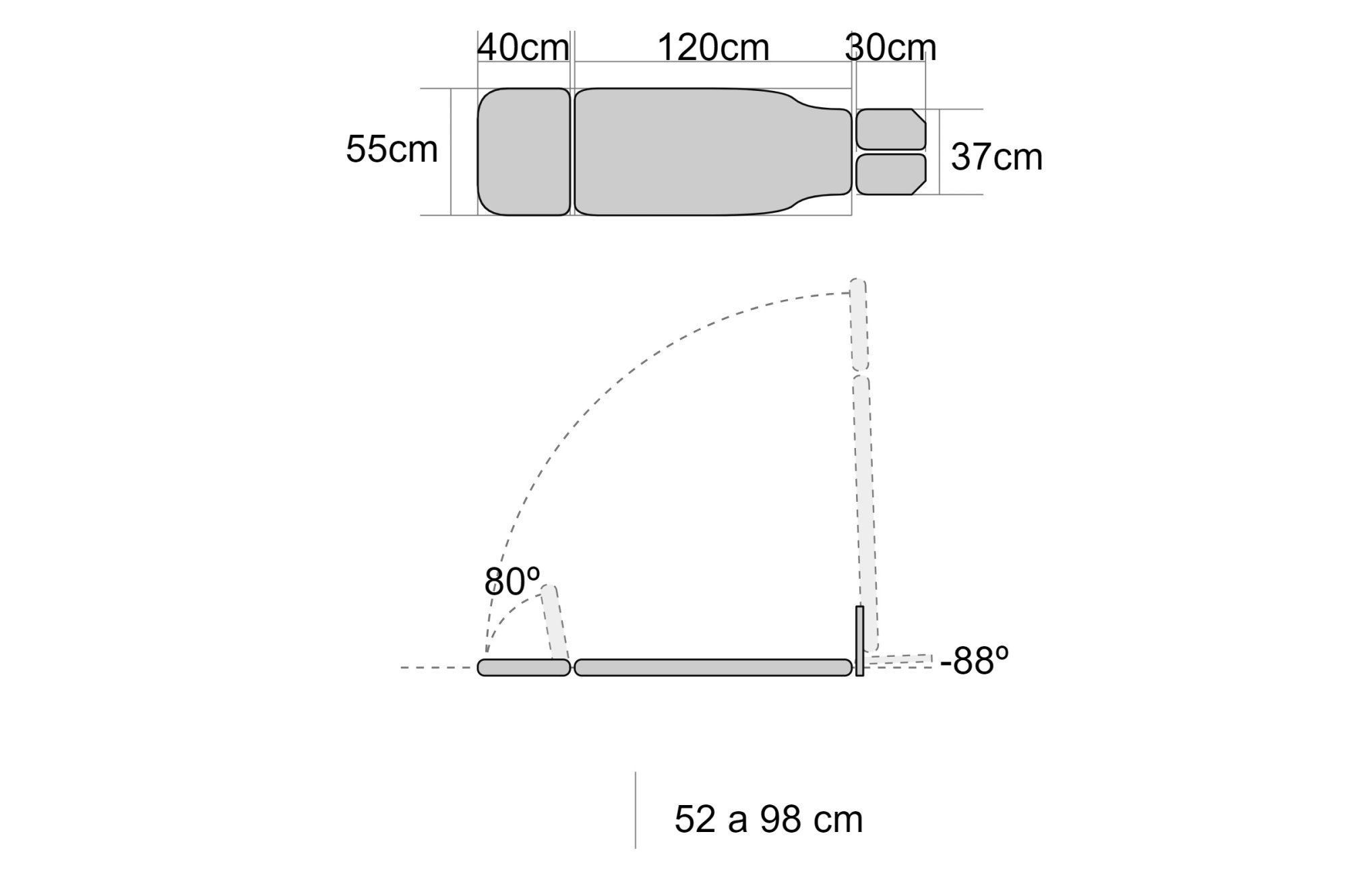

Technical specifications:
- Seat length: 160 cm.
- Footrest length: 30 cm.
- Total length: 190 cm.
- Stretcher width: 55 cm.
- Footrest width: 37 cm.
- Independent and adjustable footrests in proclive/declive.
- Height: 52-98 cm.
- Verticalization angle: 88º.
- Backrest inclination angle by rack: 80º.

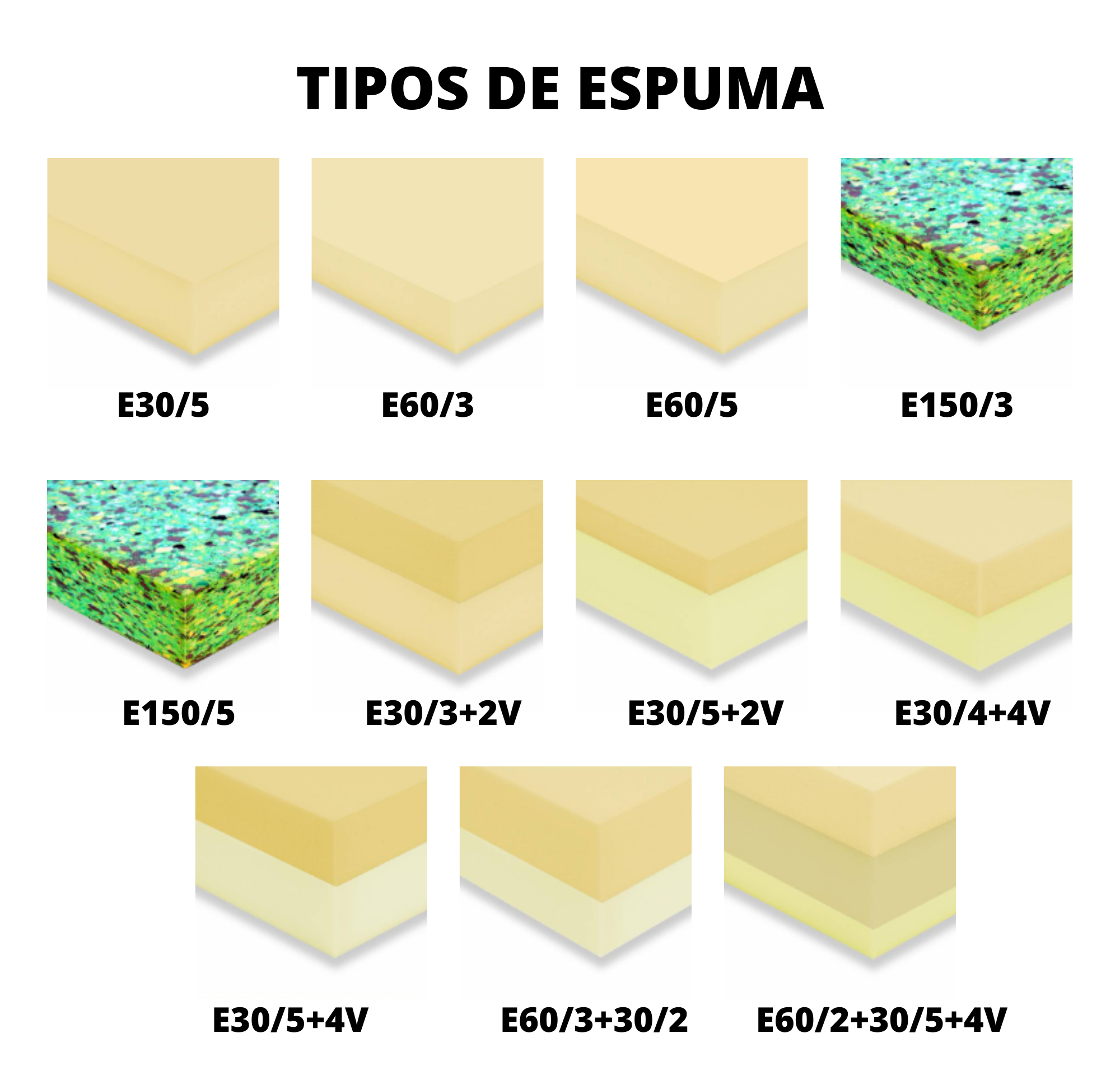

- Foam thickness: 5 cm.
- Foam density: 30 k/m³.
- Retractable wheel diameter: 75 mm.
- Structure material: steel tube coated with epoxy powder, baked at 210ºC.

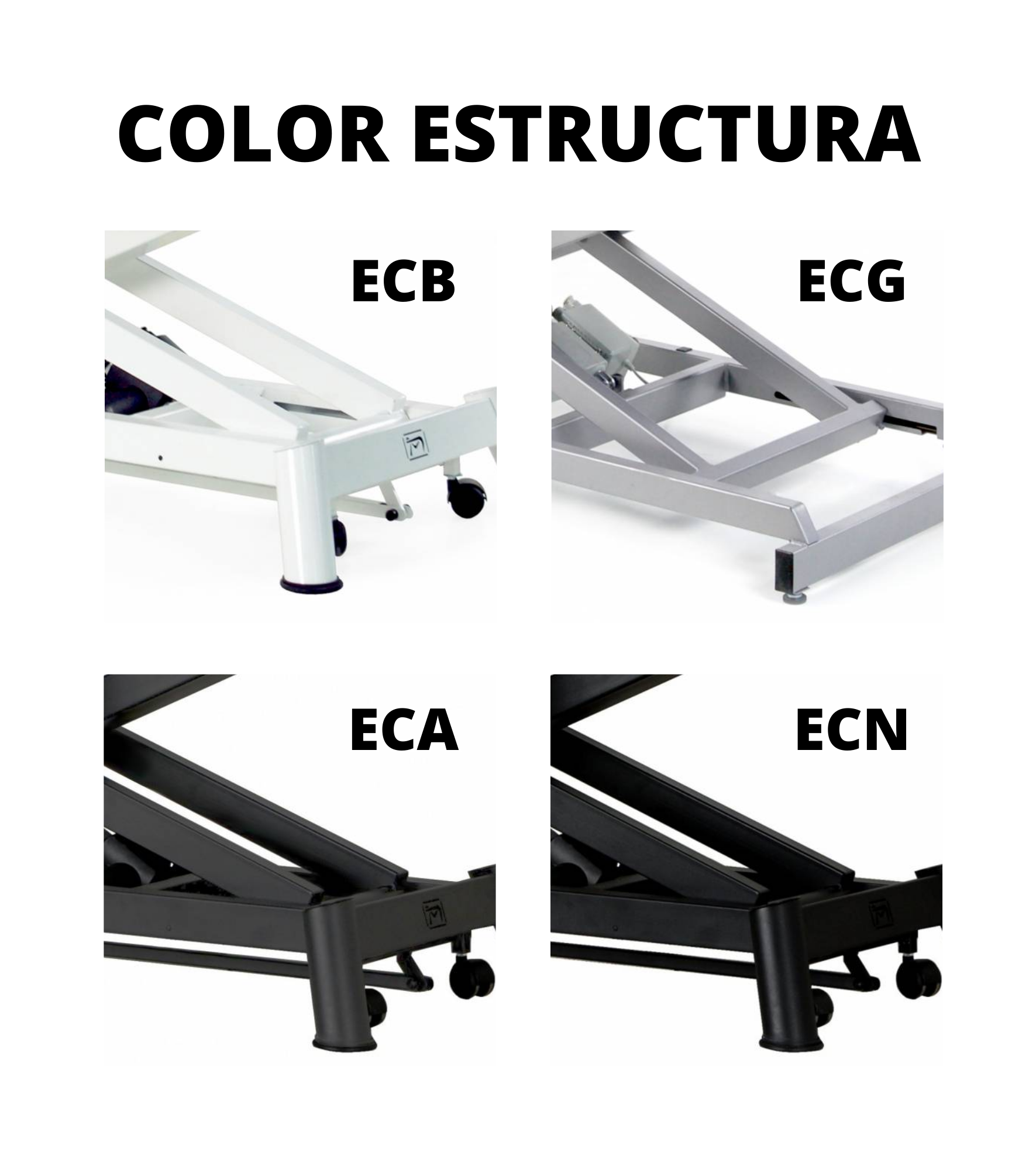

- Structure color: white.
- Maximum load: 140 kg.
- Made in Spain.
- 3 years warranty.

Upholstery features:
- Fireproof material (check in the attached image the regulations on fireproof materials it complies with).
- Antimicrobial protection.
- Antibacterial protection.
- Antifungal protection.
- High resistance to abrasion.
- Resistance to sweat and human saliva.
- Resistant to urine, blood and UV light.
- Waterproof.
- Resistance to sunflower oil.
- Stain-resistant surface.
- Complies with UNE EN/71-3 standard (Toy safety).

Upholstery cleaning instructions:
- Any stain, spill or dirt should be quickly cleaned from the upholstery to avoid permanent staining.
- Soft soap solutions or special vinyl fabric cleaning products should be used to remove stains from the material's surface. Check the compatible cleaning solutions specified in the attached image.
- It is recommended to clean only with damp white cloths.
- Lacquers, strong cleaners, detergents, xylene-based liquids, acetone and MEK cause immediate damage and contribute to the material's deterioration.

If you want more complete cleaning instructions, please contact us.

Transport:
Delivery of the material is at street level. It is not the carrier's obligation to enter the goods into the customer's premises.

*If you wish to purchase the stretcher with different characteristics in terms of upholstery, width, foam and structure finish, please contact us.
