Inclined plane for 1 body with 2 motors for pediatrics, adjustable height. Various colors.

Inclined plane of 1 body developed with 2 electric motors, 1 to regulate the height from 52 to 98 cm and another to adjust the verticalization angle up to a maximum of 88º. Both functions are controlled by a handy and practical hand control.

It is designed to move the pediatric patient from a horizontal to a vertical position during the development of physiotherapy exercises and rehabilitation of injuries. Its design is intended to put the patient directly in the bipedal position without directly supporting on the floor, ensuring that their weight exerts moderate pressure on the legs. Therefore, it is ideal for exercising the musculature of the lower limbs in order to recover the strength and joint resistance of the area.

It incorporates side guides for the placement of a multitude of auxiliary equipment such as armrests or plaster rollers, among others. It also has retractable wheels via pedals with the aim of providing ergonomics and facilitating its movement in consultation. And, in addition, for the maximum comfort of the patient during treatment, it has been made with a padded upholstery of high-density foam.

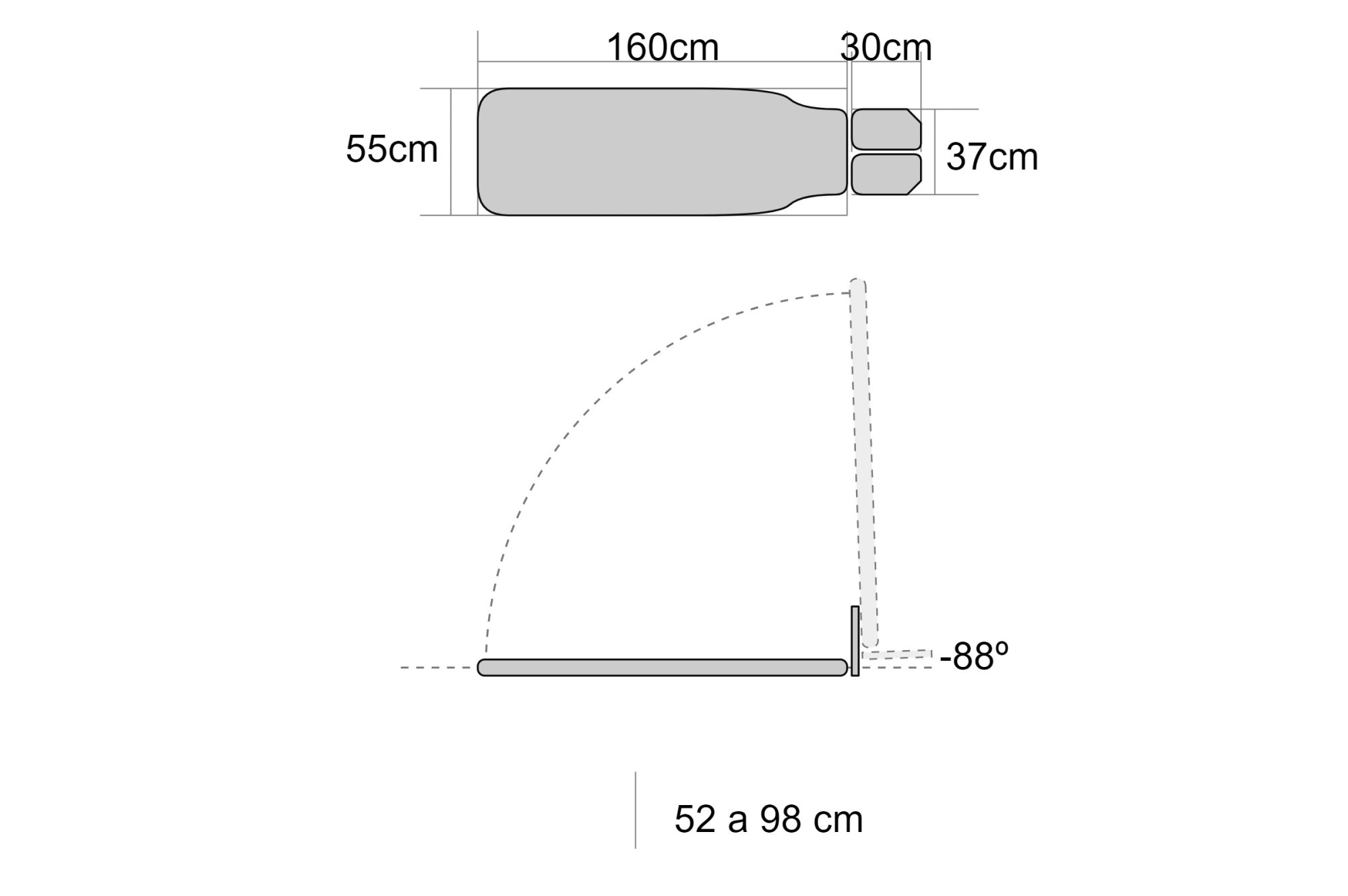

Technical specifications:
- Seat length: 160 cm.
- Footrest length: 30 cm.
- Total length: 190 cm.
- Stretcher width: 55 cm.
- Footrest width: 37 cm.
- Height: 52-98 cm.
- Verticalization angle: 88º.
- Foam thickness: 5 cm.
- Foam density: 30 k/m³.
- Retractable wheel diameter: 75 mm.
- Structure material: epoxy powder coated steel tube, baked in oven at 210ºC.
- Structure color: white.
- Maximum load: 140 kg.
- Made in Spain.

Upholstery features:
- Fireproof material (please see attached image for regulations on fireproof materials it meets).
- Antimicrobial protection.
- Antibacterial protection.
- Antifungal protection.
- High resistance to abrasion.
- Resistance to sweat and human saliva.
- Resistant to urine, blood and UV light.
- Waterproof.
- Resistance to sunflower oil.
- Surface resistant to stains.
- Compliant with the UNE EN/71-3 standard (Toy Safety).

Upholstery cleaning instructions:
- Any stain, spill or dirt must be cleaned quickly from the upholstery to prevent permanent staining.
- Soft soapy solutions or special vinyl fabric cleaning products should be used to remove stains from the material surface. Please refer to the compatible cleaning solutions specified in the attached image.
- It is recommended to clean only with damp white cloths.
- Lacquers, strong cleaners, detergents, xylene-based liquids, acetone, and MEK cause immediate damage and contribute to material deterioration.

If you want more complete cleaning instructions, please contact us.

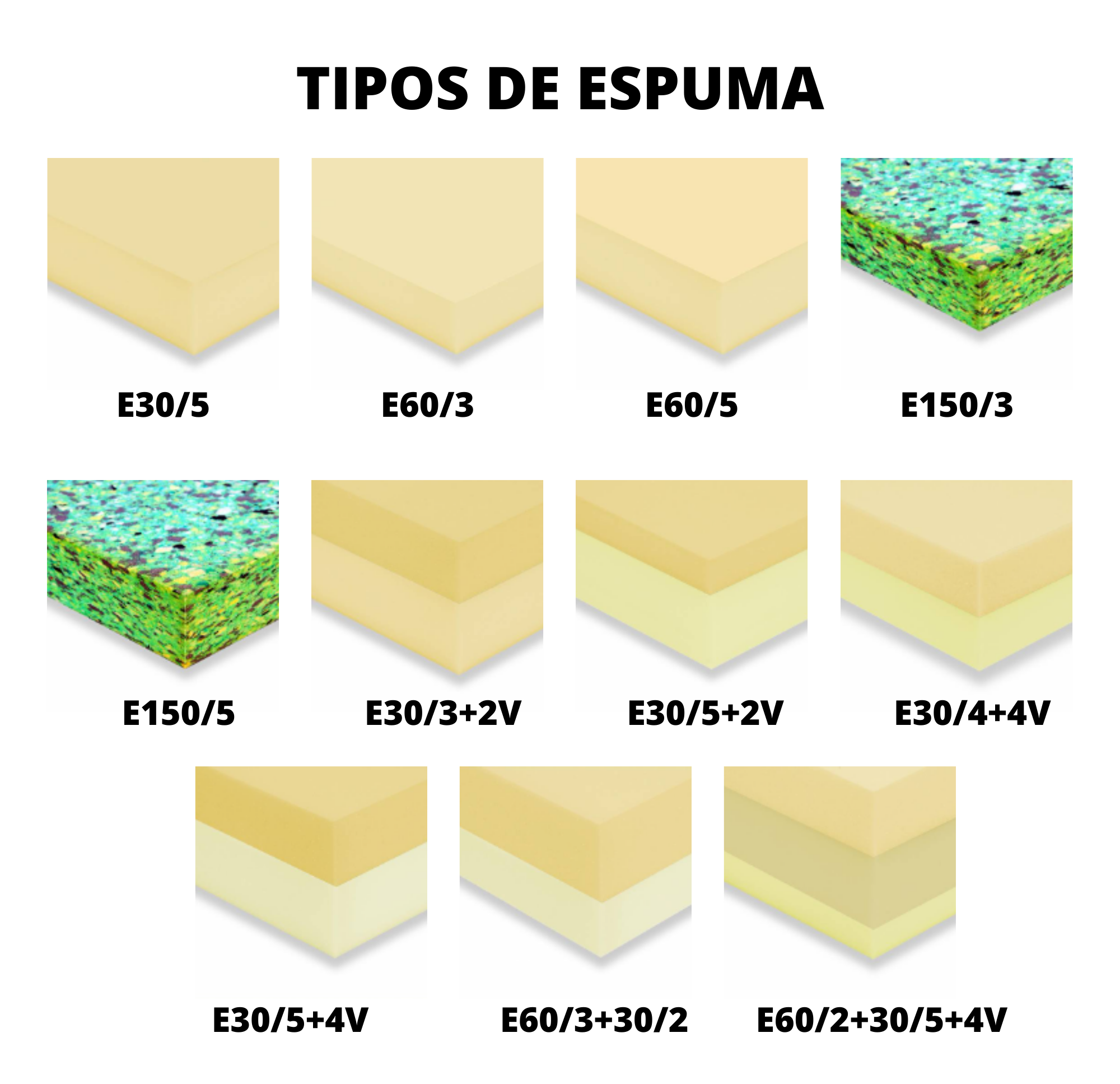

Foam options:
If you wish, you can purchase your stretcher with another type of foam (at an additional cost).
- 3 cm 30Kg/m³+ 2cm visco
- 5 cm 150Kg/m³
- 3 cm 150Kg/m³
- 4 cm 30Kg/m³ + 4 cm visco
- 5 cm 30Kg/m³ + 2 cm visco
- 2 cm 60Kg/m³ + 5 cm 30Kg/m³ + 4 cm visco
- 5 cm 30Kg/m³ + 4 cm visco
- 3 cm 60Kg/m³
- 2 cm 60Kg/m³ + 3 cm 30Kg/m³
- 5 cm 60Kg/m³

Transport:
The delivery of the material is at street level. The carrier is not obliged to bring the goods inside the customer's facilities.

*If you wish to purchase the stretcher with different features in terms of upholstery, width, foam and structure finish, please contact us.
