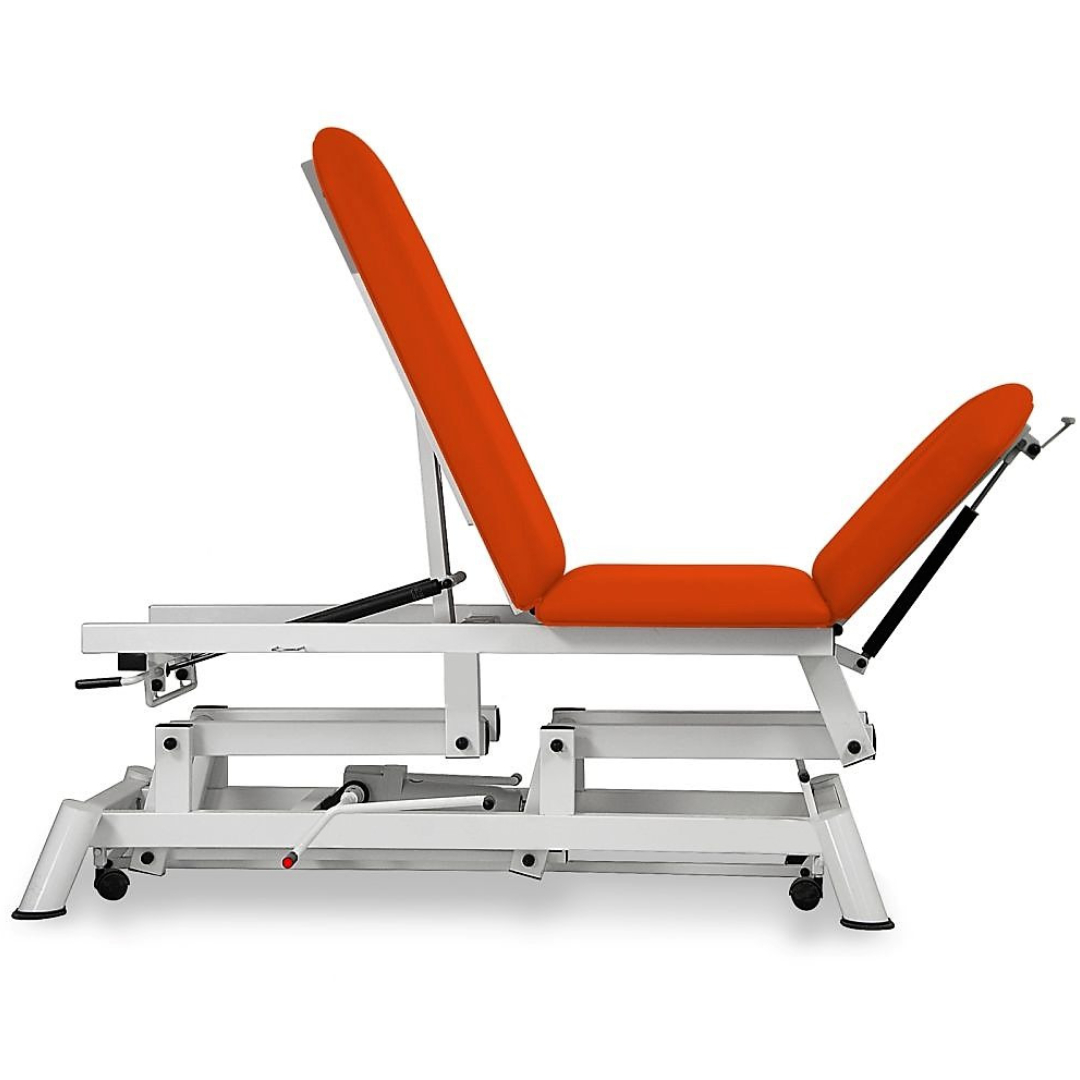

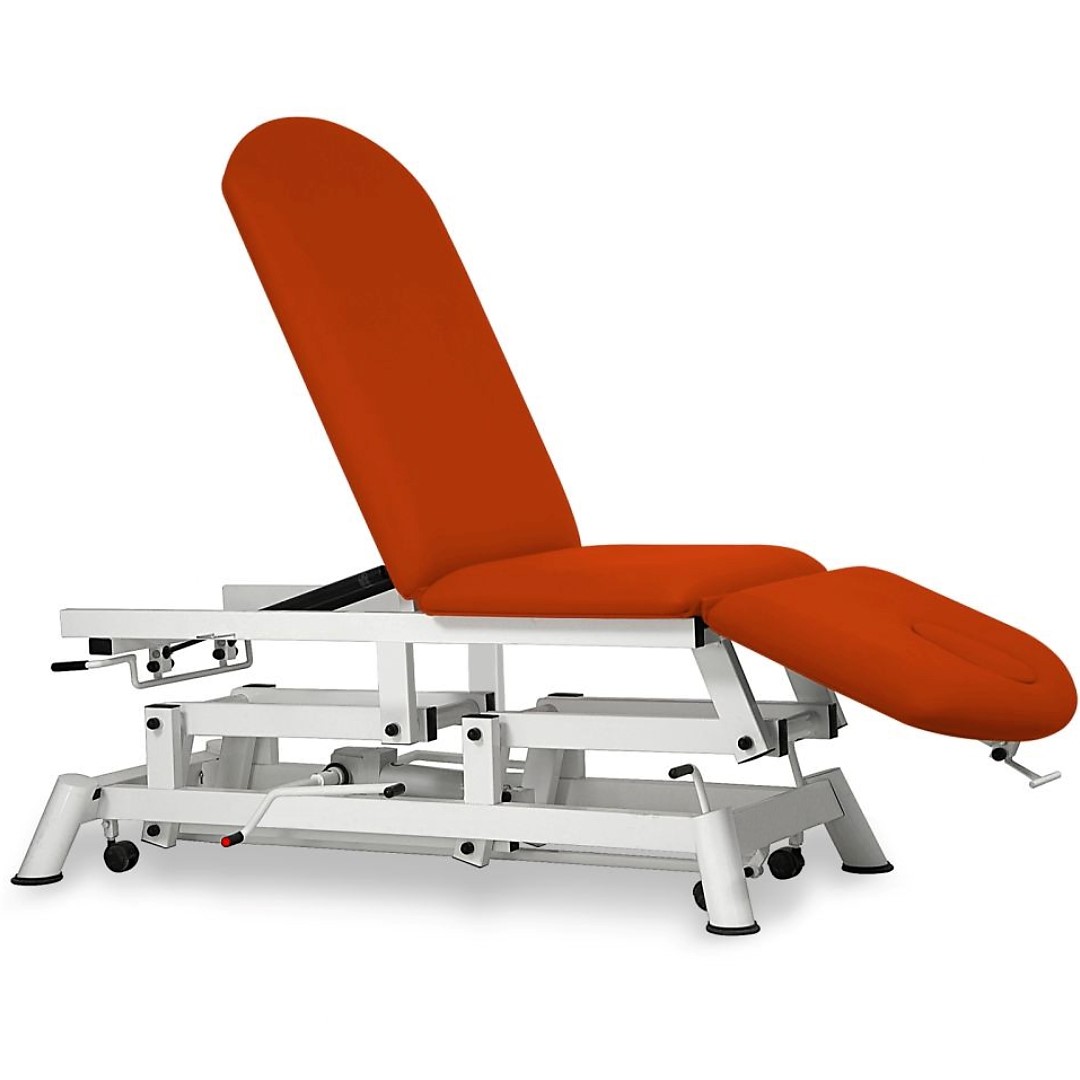

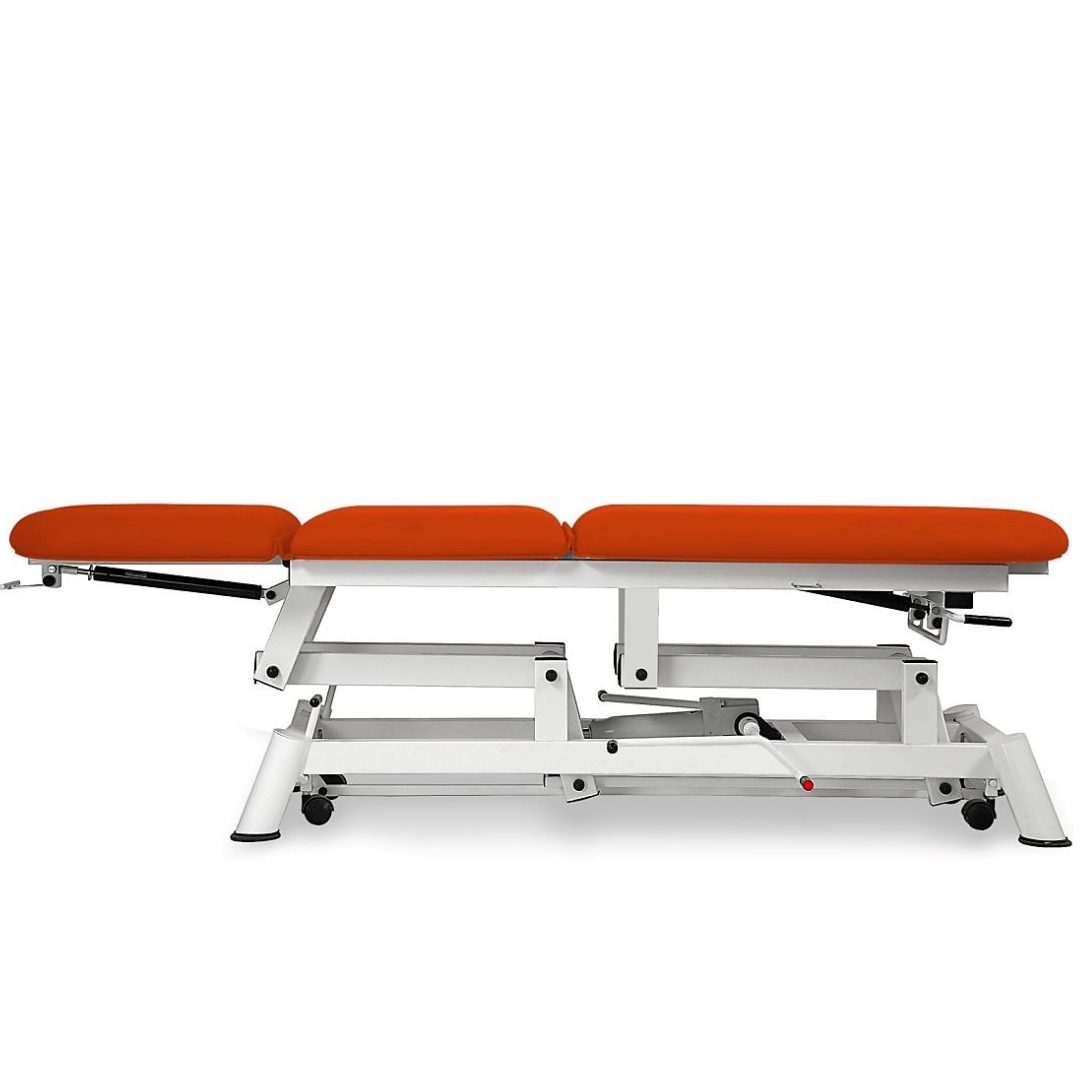

3-section hydraulic stretcher, 70x191cm, with short reclining backrest in negative. Various colors

A 3-section stretcher that allows its height to be adjusted through hydraulic operation between 50 and 90 cm, thus providing a wide range of positions to choose from to best suit the needs of the procedure. Its practical and versatile design and its multiple functions make it an ideal stretcher for use in different medical specialties, especially in the field of physiotherapy and rehabilitation.

General features:
- It has a system of 4 double wheels with a diameter of 50 mm that can be retracted by means of a manual operation pedal. In this way, it is possible to easily and comfortably change the location of the stretcher.
- It has been developed with a facial hole to improve patient positioning and provide maximum comfort in the prone position. It includes the respective facial plug to cover the hole when treatment needs require it.
- Via a gas piston, the inclination of the backrest can be adjusted from -50º to 45º depending on the type of procedure.
- The leg rest is adjustable in inclination up to a maximum of 80º, allowing a wide range of positions.
- It is designed with a steel tube structure coated in epoxy powder which ensures greater durability, resistance and stability of the stretcher.
- The upholstery is developed from exclusive quality synthetic leather and is available in a multitude of shades to adapt to different interiors.

Upholstery features:
- Fireproof material (see attached image for compliance with fireproof material regulations).
- Antimicrobial protection.
- Antibacterial protection.
- Antifungal protection.
- High resistance to abrasion.
- Resistance to perspiration and human saliva.
- Resistant to urine, blood and UV light.
- Waterproof.
- Resistance to sunflower oil.
- Stain-resistant surface.
- Also complies with UNE EN/71-3 standard (Toy Safety).

Upholstery cleaning instructions:
Any stain, spill or dirt must be cleaned immediately from the upholstery to avoid the possibility of a permanent stain. Use a mixture of liquid soap (neutral pH) and water or the compatible cleaners specified in the attached image. Completely remove the excess mixture with a clean, damp white cloth and dry the surface. Lacquers, strong cleaners, detergents, cleaning solutions containing xylene, ketones (MEK) or acetates, cause immediate damage and contribute to the deterioration of the material.

If you want more complete cleaning instructions, please contact us.

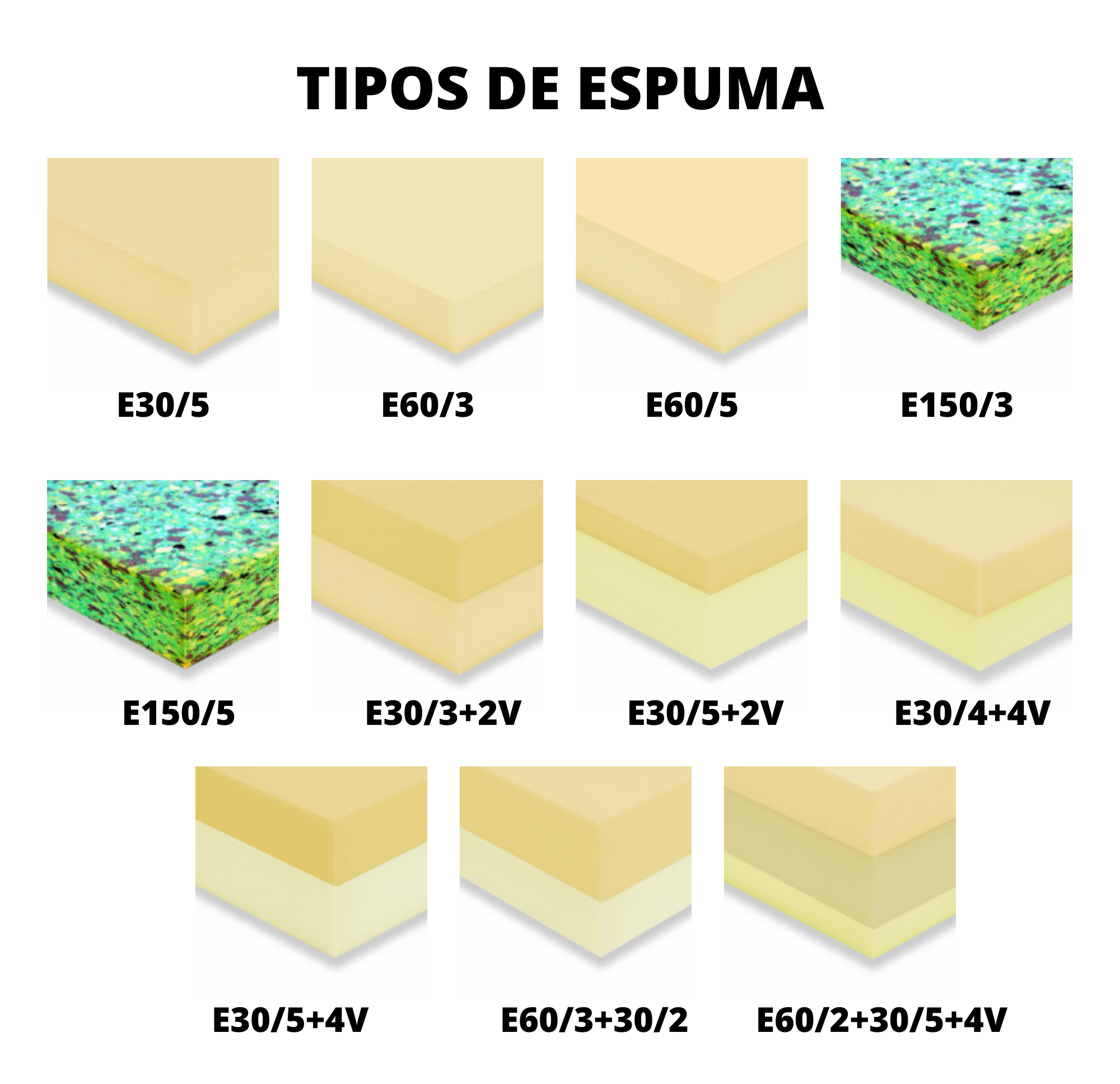

Foam options:
If desired, you can purchase your stretcher with another type of foam (at an additional cost).
- 3 cm 30Kg/m³+ 2cm visco
- 5 cm 150Kg/m³
- 3 cm 150Kg/m³
- 4 cm 30Kg/m³ + 4 cm visco
- 5 cm 30Kg/m³ + 2 cm visco
- 2 cm 60Kg/m³ + 5 cm 30Kg/m³ + 4 cm visco
- 5 cm 30Kg/m³ + 4 cm visco
- 3 cm 60Kg/m³
- 2 cm 60Kg/m³ + 3 cm 30Kg/m³
- 5 cm 60Kg/m³

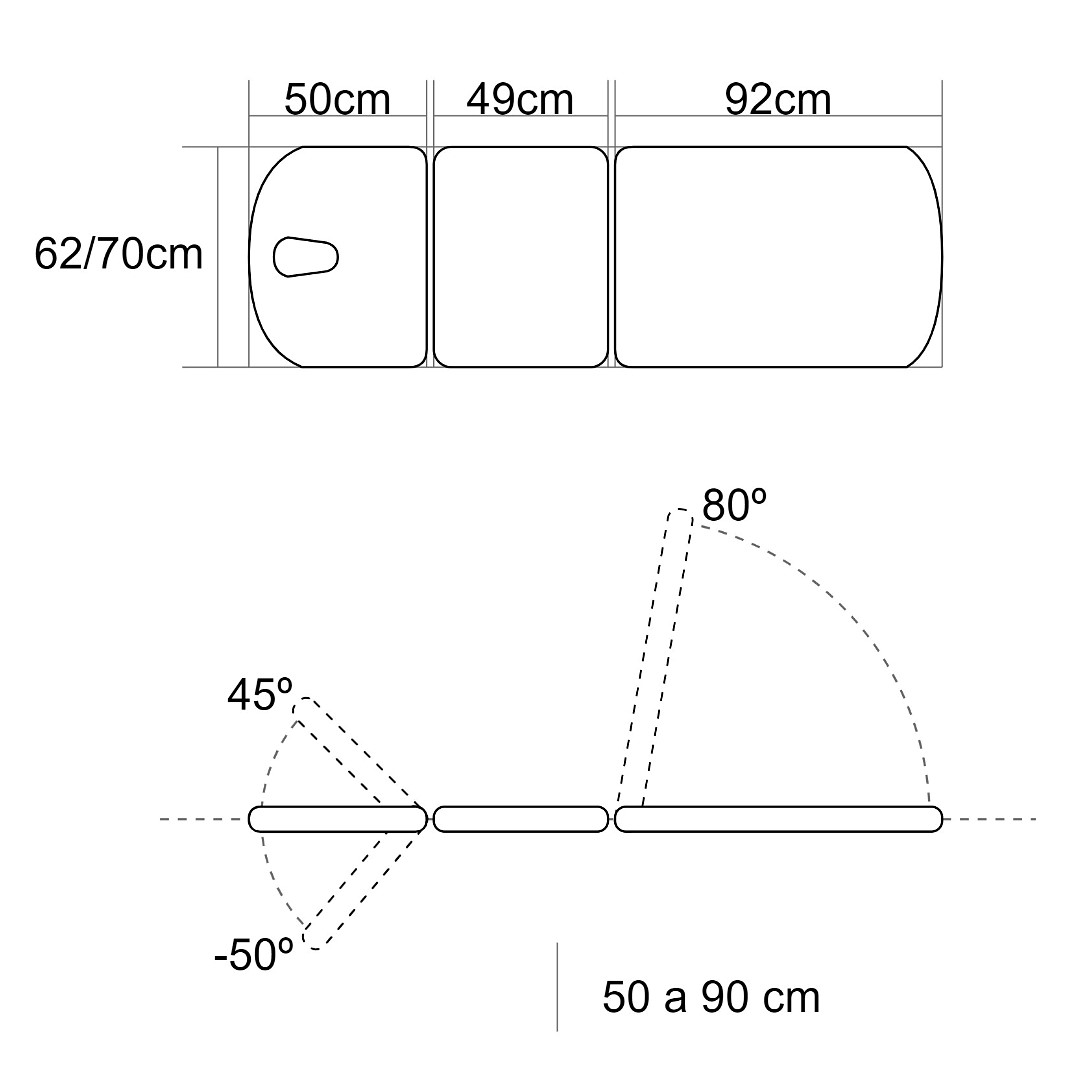

Technical specifications:
- Backrest length: 50 cm.
- Seat length: 49 cm.
- Leg rest length: 92 cm.
- Total length: 191 cm.
- Width: 70 cm.
- Foam thickness: 5 cm.
- Foam density: 30 k/m³.
- Adjustable height: 50 to 90 cm.
- Positive backrest inclination angle: 45º.
- Negative backrest inclination angle: -50º.
- Leg rest inclination angle: 80º.
- Structure material: epoxy powder coated steel tube, oven baked at 210ºC.
- Structure color: white.
- Maximum load: 180 kg.
- 3-year warranty.
- Made in Spain.

Transport:
Material delivery is at street level. It is not the carrier's obligation to bring the goods inside the customer's facilities.

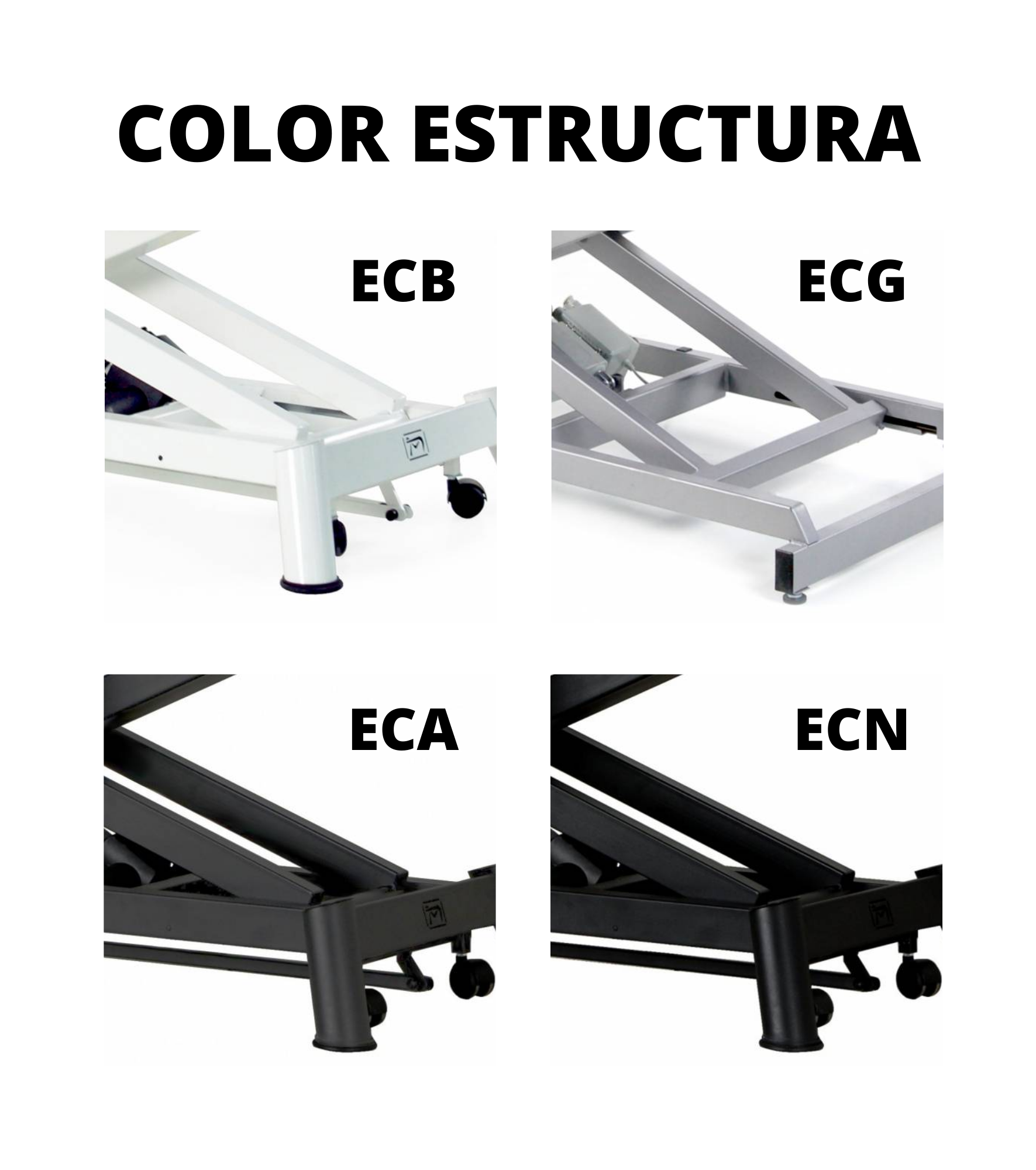

*If you wish to purchase the stretcher with different characteristics in terms of upholstery, foam, structure finish and height, please contact us.
