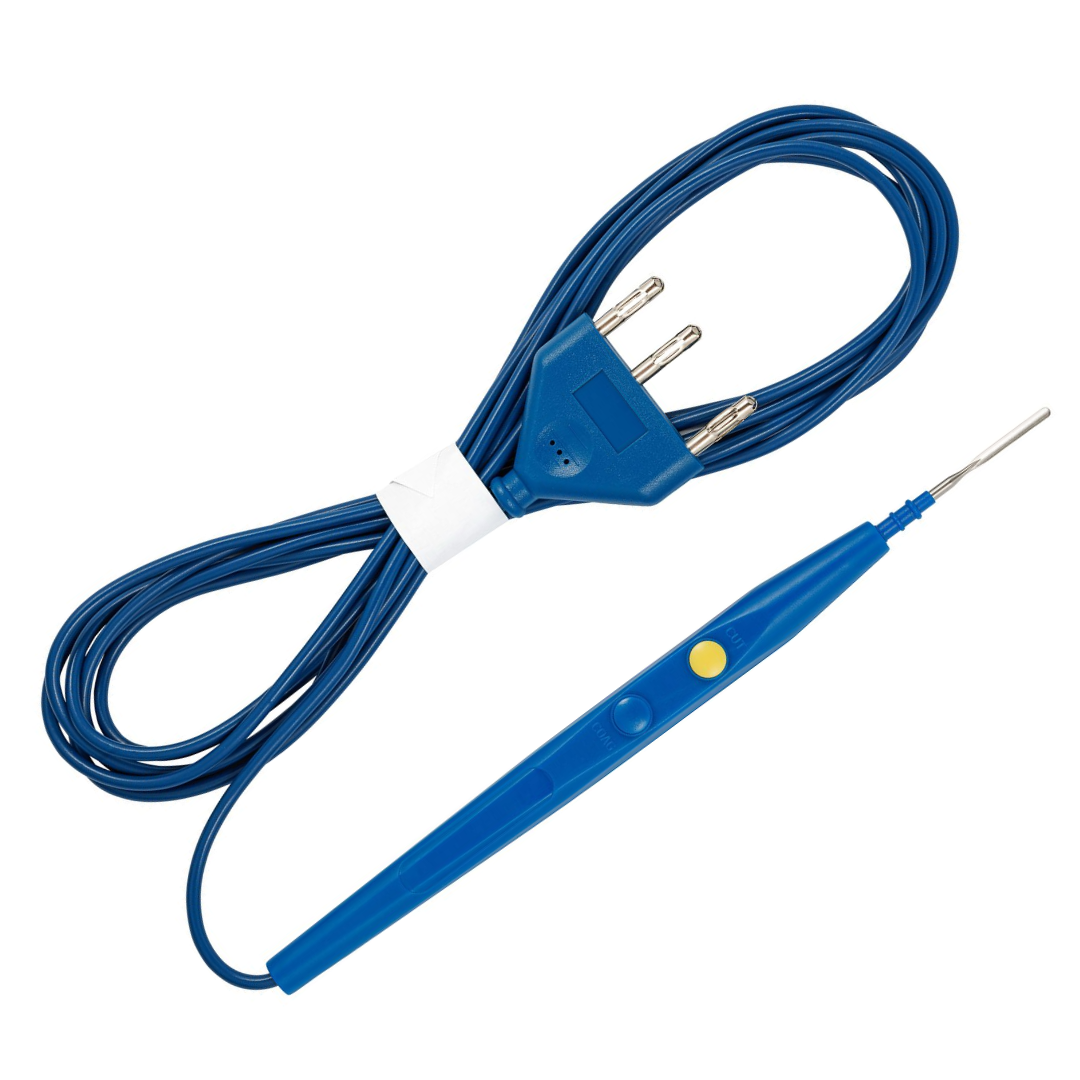

Disposable electrosurgical handle with 5 m cable and 70 mm electrode

The Blayco® electrosurgical handle allows the use of electrosurgery equipment without the need for additional equipment. Supplied in a sterile form, it comes with a connection cable and a 70-millimeter blade electrode included, allowing direct use without prior preparation. In addition, it has a universal 3-pin connection plug, so it is compatible with the vast majority of electrosurgical equipment.

General Features
- Disposable manual control electrosurgical handle
- With universal 3-pin connector and 70 mm blade electrode
- Supplied with a 5 m connection cable
- Free from latex-derived products
- Sterilized by ethylene oxide
- Non-cytotoxic, non-skin sensitizing and pyrogen-free

Technical Specifications
- Banana plug dimensions: Ø 4 x 3 ± 0.2 mm
- Cable length: 500 ± 15 cm

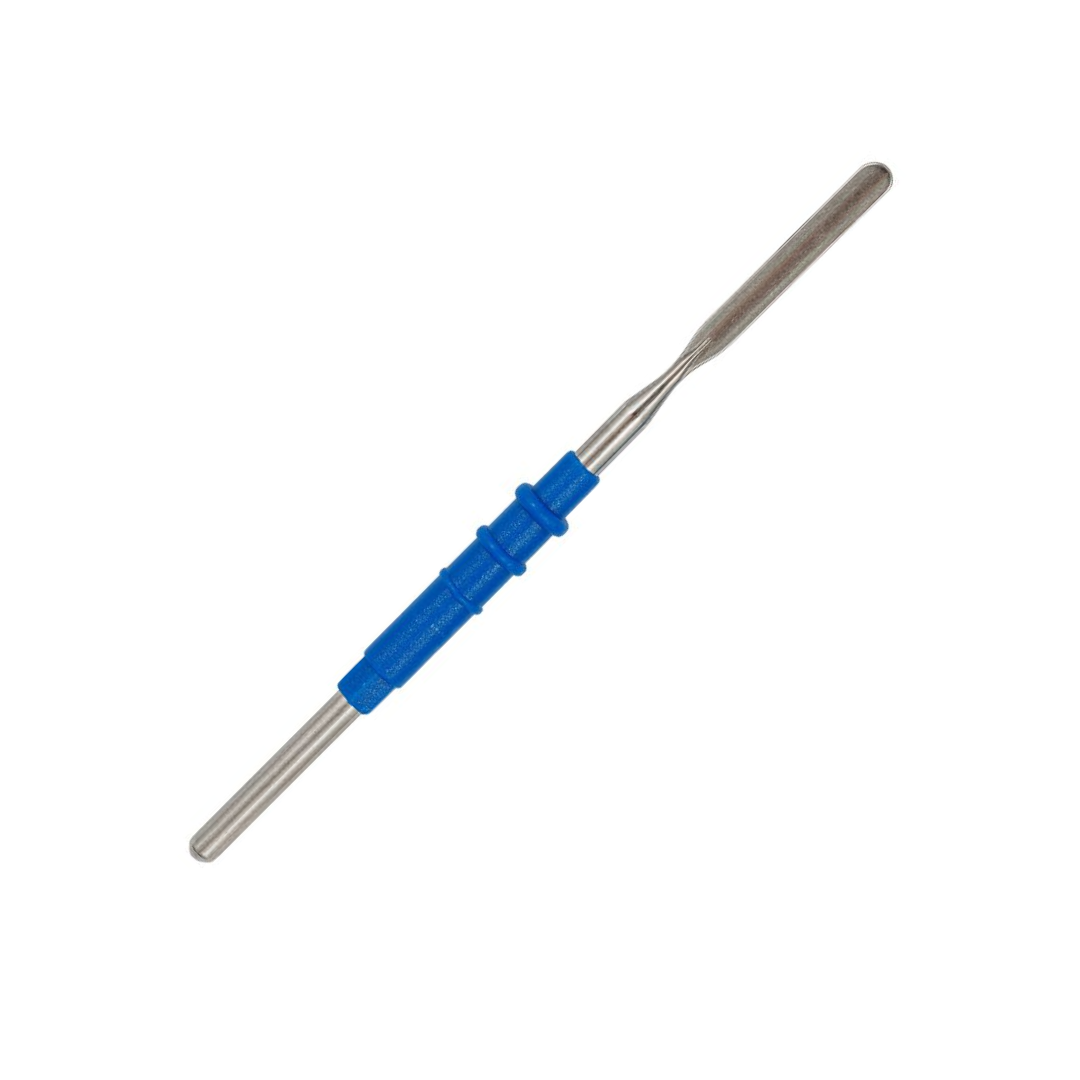

- Electrode length (total): 70 ± 1 mm
- Electrode diameter: 2.36 ± 0.03 mm
- Electrode insertion: hexagonal
- Shelf life: 5 years

Materials
- Handle cover: ABS
- Electrode connector: copper
- Printed circuit: PCB
- CUT&OAG buttons: ABS
- Connector mold: ABS
- Connector pins: brass
- Cable: copper coated with PVC
- Blade electrode body: 304 stainless steel
- Blade electrode plastic anchor: ABS
- Blade electrode tip protector: PE

Regulations and Certifications
- EN 60601-2-2
- ISO-10993-5
- ISO 10993-10
- ISO 10993-11
- ISO 10993-4
- ISO 13485
- Directive 93/42/EEC, sterile class IIb medical device
