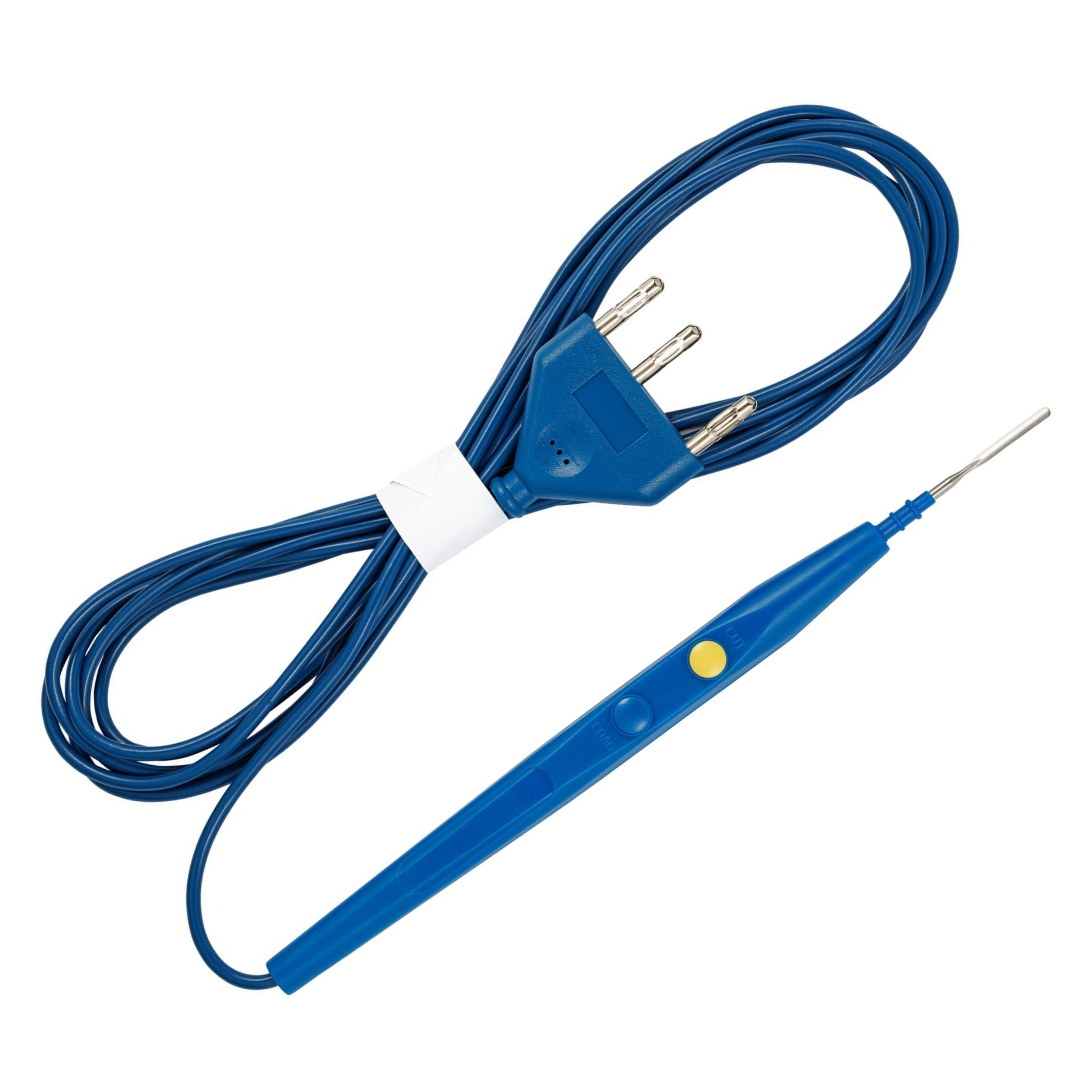

Disposable electrosurgical handle with 3 m cable and 70 mm electrode

The Blayco® electrosurgical handle features an exceptionally simple, intuitive, and practical design for use. It is supplied sterile and comes with a connection cable and a blade electrode included so that it can be used directly in surgery without the need for prior preparation. All this is accompanied by a 3-pin plug that makes it compatible with the vast majority of electrosurgery devices, making it extremely versatile and comfortable for health professionals.

General features
- Single use manual control electrosurgical handle
- Provided with universal 3-pin connector and a 70 mm blade electrode
- With included 3 m connection cable
- Produced without latex derivatives for greater biocompatibility
- Sterilized by ethylene oxide
- Non-cytotoxic, non-skin sensitizing and pyrogen-free

Technical specifications
- Banana pin dimensions: Ø 4 x 3 ± 0.2 mm
- Cable length: 300 ± 15 cm

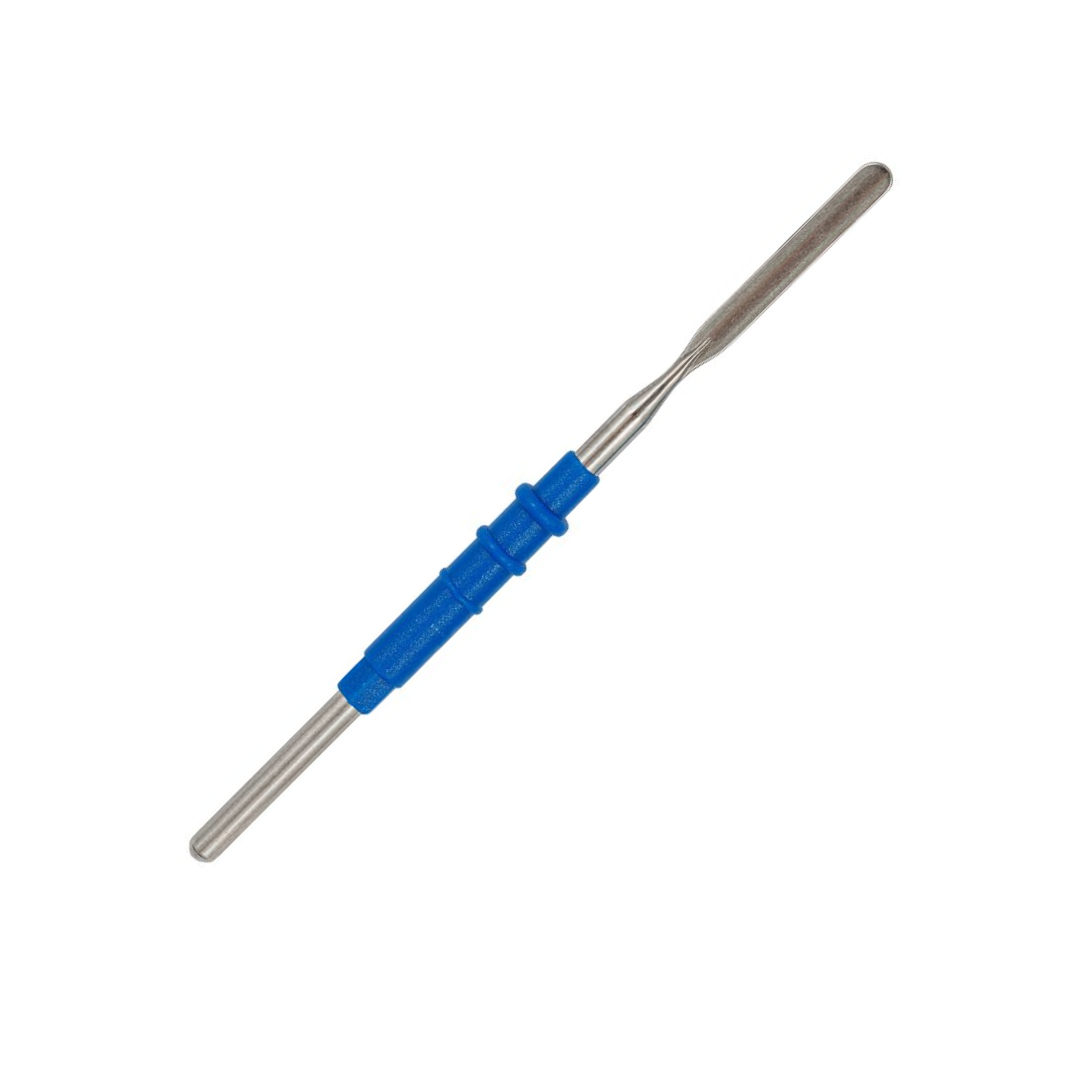

- Electrode length (total): 70 ± 1 mm
- Electrode diameter: 2.36 ± 0.03 mm
- Electrode insertion: hexagonal
- Lifespan: 5 years

Materials
- Handle cover: ABS
- Electrode connector: copper
- Printed circuit: PCB
- CUT&OAG buttons: ABS
- Connector mold: ABS
- Connector pins: brass
- Cable: copper coated with PVC
- Blade electrode body: 304 stainless steel
- Plastic blade electrode anchor: ABS
- Blade electrode tip protector: PE

Standards and certifications
- EN 60601-2-2
- ISO-10993-5
- ISO 10993-10
- ISO 10993-11
- ISO 10993-4
- ISO 13485
- Directive 93/42/EEC, sterile class IIb medical device
