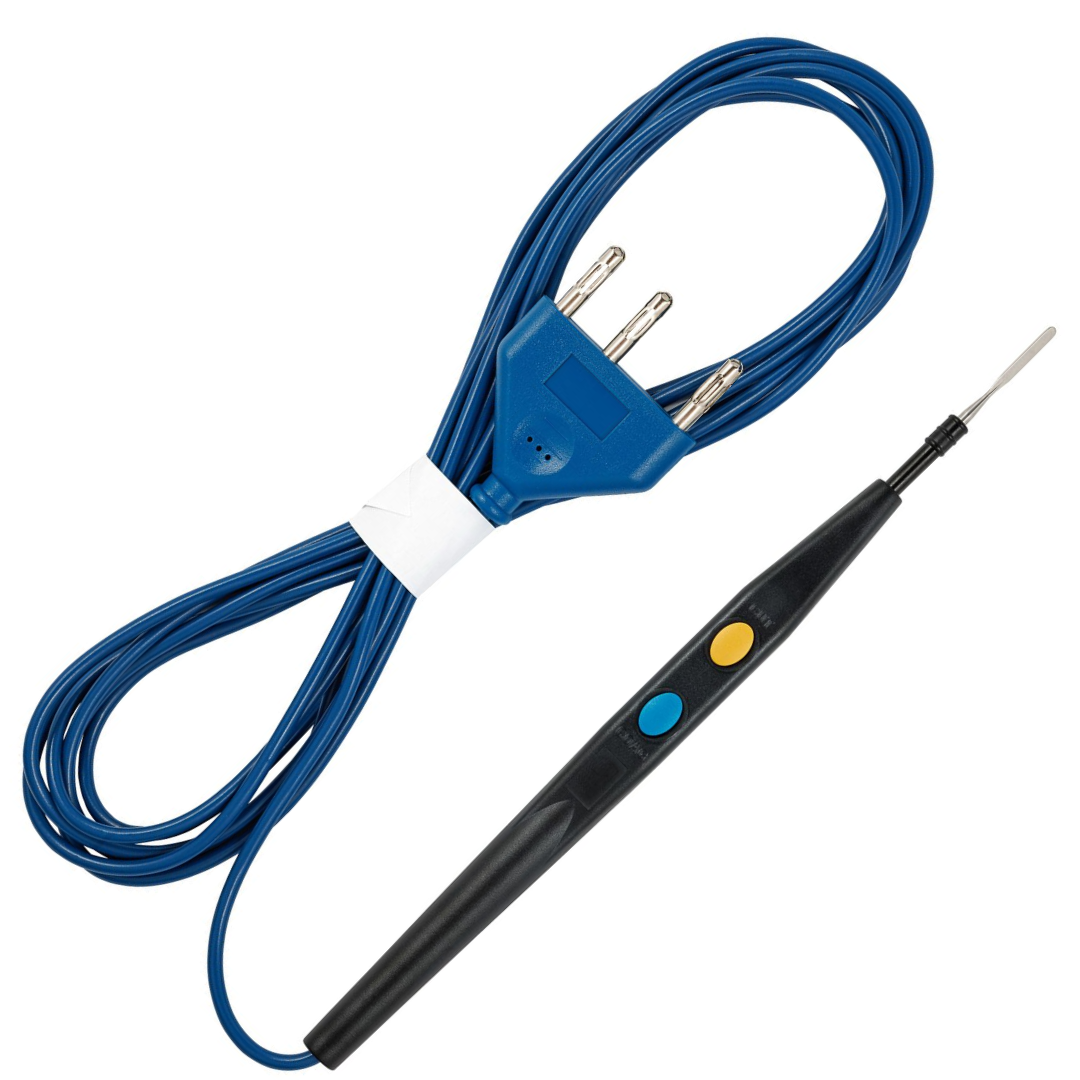

Reusable electrosurgical handle with 3m cable and 70mm electrode

This Blayco® electrosurgical handle can be sterilized up to 30 times, allowing it to be safely used in different surgeries. Equipped with a connection cable with a 3-pin plug, it is compatible with the vast majority of electrosurgical generators on the market, making it very versatile and practical to use for healthcare professionals. In addition, it is made of biocompatible materials that are not derived from latex, so it can be used on all types of patients without risk of adverse reactions.

General features
- Non-sterile manual control electrosurgical handle reusable for 30 times
- With 3-pin universal connector and 70-millimeter electrode
- Supplied with a 3-meter long connection cable
- Non-cytotoxic, non-sensitizing and not irritating to the skin
- Free from latex-derived products

Technical specifications
- Handle length without active electrode: 154.3 mm
- Handle length with active electrode: 201.5 mm
- Cable length: 300 cm
- Cable diameter: 3.2 mm
- Active electrode diameter: 2.37 mm
- Active electrode length: 70 mm
- Banana connector terminal diameter: 3.81 mm (Valleylab type)
- Maximum high frequency voltage: 9k Vpp
- Expiration: 5 years
- Uses: 30 (estimated)

Materials
- Handle body: polyphenylsulfone
- Electrode: stainless steel
- Electrode support: polyphenylsulfone
- Buttons (blue and yellow): polyphenylsulfone
- Electrode insulator: polyphenylsulfone
- Outer plug cover: thermoplastic elastomer
- Plug contacts: copper (nickel plated)
- 3-core cable: cable with silicone and polytetrafluoroethylene insulation

Standards and certifications
- IEC 60601-2-2
- ISO 10993-5
- ISO 10993-10
- ISO 13485
- Directive 93/42/EEC, class IIb medical device
