Reference. 400130695

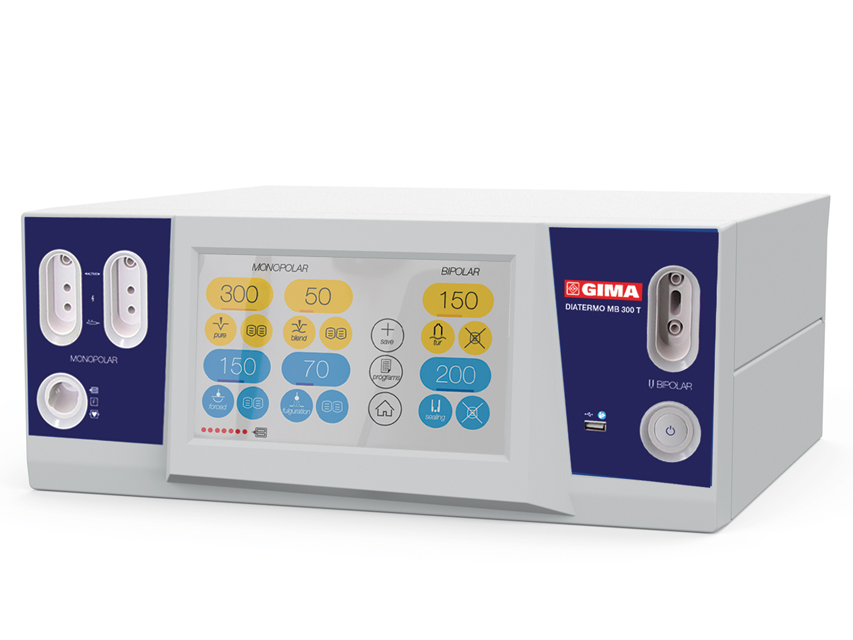

MB 300 Touch Diathermy Electrocautery Monopolar-Bipolar 300 Watt
300W high-frequency electrosurgical unit, suitable for mono, bipolar and precision microsurgery, without tissue alterations.
Personal advice
Description
The Diatermo MB 300 Touch electrosurgical unit is a next-generation electrosurgery device that allows two surgeons to work simultaneously, suitable for microsurgery and precision surgery in monopolar and bipolar mode.
Features:
- Simultaneous activation of monopolar and bipolar.
- Dual contemporary monopolar.
- Dual contemporary bipolar.
- Power control based on impedance.
- Power activation with pedal and/or handpiece.
- Control of neutral electrode-patient contact.
- TUR saline solution cutting function.
- Modular cutting in BLEND wet conditions.
- Vessel sealing for clamping vessels up to 7 mm.
- Possibility of use for minimally invasive surgery.
- Monopolar/bipolar functions.
- Automatic start/ automatic stop in bipolar mode.
- Sound intensity adjustment.
If a split neutral plate is used, the device checks the contact between the electrode and the patient to ensure that the neutral electrode is properly connected.
Moreover, just by the touch of a finger, you can choose between a white or black screen, how to customize and save your work settings, change the cutting or coagulation power, and manage every function of the device.
Recommended for dermatology, endoscopy, gastroenterology, general surgery, gynecology, neurosurgery, orthopedics, otolaryngology, pediatric surgery, plastic surgery, pulmonology, urology, veterinary, RTU or vascular surgery.
Technical specifications:
- Maximum PURE CUT output power: 300 W - 300 Ohm.
- Maximum BLEND output power: 200 W - 300 Ohm.
- Maximum ENHANCED output power: 200 W - 300 Ohm.
- Maximum FORCED COAG output power: 120 W - 150 Ohm.
- Maximum SOFT COAG output power: 120 W - 200 Ohm.
- Maximum TUR BIPOLAR output power: 250 W - 200 Ohm.
- Maximum BIPOLAR CUT output power: 150 W - 100 Ohm.
- Maximum BIPOLAR COAG output power: 150 W - 50 Ohm.
- Maximum BIPOLAR SEALING output power: 250 W - 50 Ohm.
- Maximum FULGURATION output power: 80 W - 500 Ohm.
- Working frequency: 360 kHz.
- Patient circuit: F.
- Selectable input voltage: 100-240 Vac.
- Network frequency: 50-60 Hz.
- Input electric voltage: 1000 VA.
- Size WxHxD: 450 x 200 x 420 mm.
- Weight: 15.5 kg.
- Controls: Patient circuit/plate monitoring, output power monitoring, self-check control, high frequency leakage current control, network fluctuation compensation.
- Safety: EN60601-1, EN60601-1-2, EN60601-2-2, Electrical class: I CF, MDD 93/42/EC Class: II b.
Standard accessories:
- Flexible steel neutral plate with cable.
- 5m power cable.
- Reusable handle with switches.
- Waterproof pedal.
- 3 blade electrodes - 16 cm.
- 3 blade electrodes - 7 cm.
- 3 hole electrodes Ø 4 mm - 6 cm.
Features:
- Simultaneous activation of monopolar and bipolar.
- Dual contemporary monopolar.
- Dual contemporary bipolar.
- Power control based on impedance.
- Power activation with pedal and/or handpiece.
- Control of neutral electrode-patient contact.
- TUR saline solution cutting function.
- Modular cutting in BLEND wet conditions.
- Vessel sealing for clamping vessels up to 7 mm.
- Possibility of use for minimally invasive surgery.
- Monopolar/bipolar functions.
- Automatic start/ automatic stop in bipolar mode.
- Sound intensity adjustment.
If a split neutral plate is used, the device checks the contact between the electrode and the patient to ensure that the neutral electrode is properly connected.
Moreover, just by the touch of a finger, you can choose between a white or black screen, how to customize and save your work settings, change the cutting or coagulation power, and manage every function of the device.
Recommended for dermatology, endoscopy, gastroenterology, general surgery, gynecology, neurosurgery, orthopedics, otolaryngology, pediatric surgery, plastic surgery, pulmonology, urology, veterinary, RTU or vascular surgery.
Technical specifications:
- Maximum PURE CUT output power: 300 W - 300 Ohm.
- Maximum BLEND output power: 200 W - 300 Ohm.
- Maximum ENHANCED output power: 200 W - 300 Ohm.
- Maximum FORCED COAG output power: 120 W - 150 Ohm.
- Maximum SOFT COAG output power: 120 W - 200 Ohm.
- Maximum TUR BIPOLAR output power: 250 W - 200 Ohm.
- Maximum BIPOLAR CUT output power: 150 W - 100 Ohm.
- Maximum BIPOLAR COAG output power: 150 W - 50 Ohm.
- Maximum BIPOLAR SEALING output power: 250 W - 50 Ohm.
- Maximum FULGURATION output power: 80 W - 500 Ohm.
- Working frequency: 360 kHz.
- Patient circuit: F.
- Selectable input voltage: 100-240 Vac.
- Network frequency: 50-60 Hz.
- Input electric voltage: 1000 VA.
- Size WxHxD: 450 x 200 x 420 mm.
- Weight: 15.5 kg.
- Controls: Patient circuit/plate monitoring, output power monitoring, self-check control, high frequency leakage current control, network fluctuation compensation.
- Safety: EN60601-1, EN60601-1-2, EN60601-2-2, Electrical class: I CF, MDD 93/42/EC Class: II b.
Standard accessories:
- Flexible steel neutral plate with cable.
- 5m power cable.
- Reusable handle with switches.
- Waterproof pedal.
- 3 blade electrodes - 16 cm.
- 3 blade electrodes - 7 cm.
- 3 hole electrodes Ø 4 mm - 6 cm.
