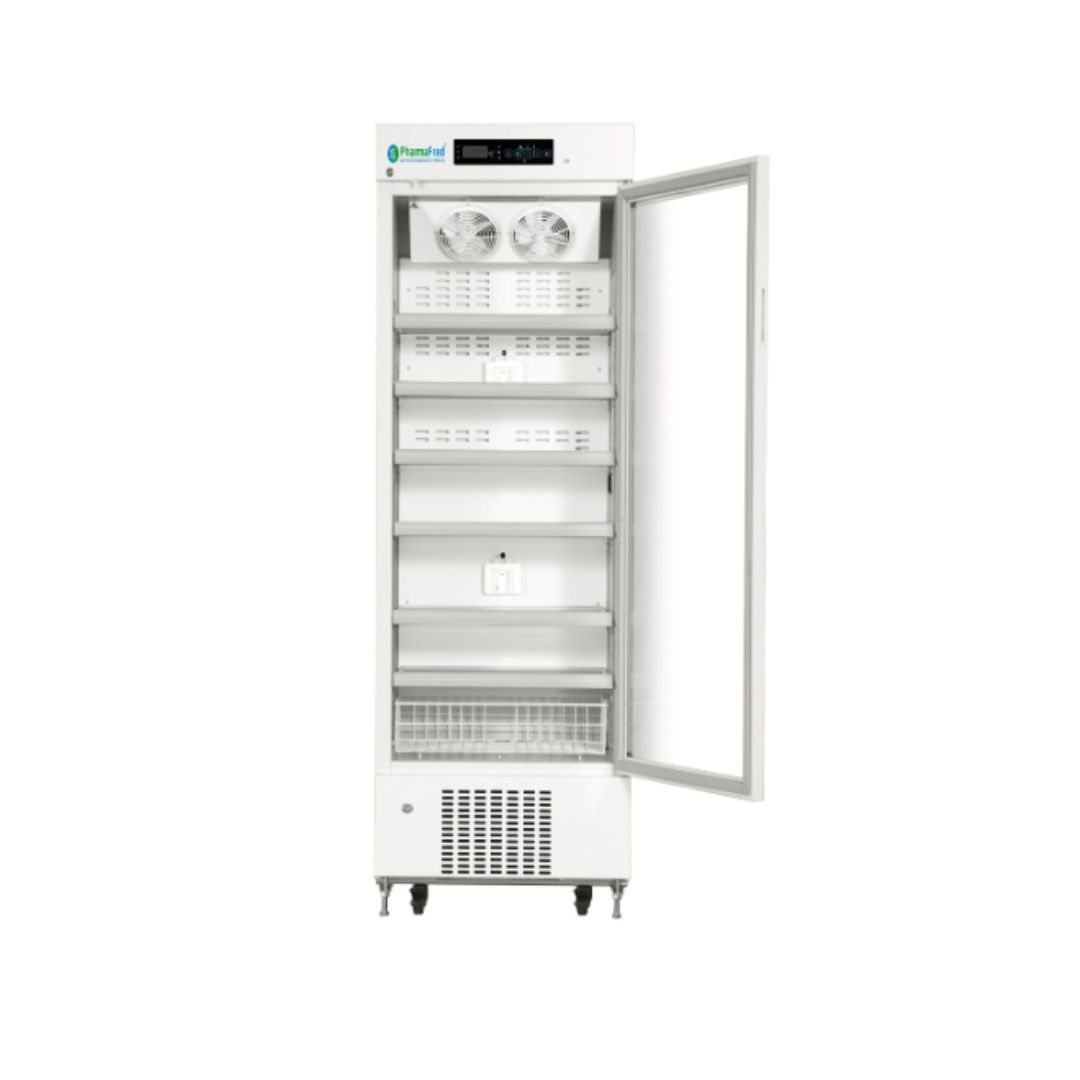

416L refrigerator with glass door, 785 x 552 x 1927 mm. DIN standard 13277

Galvanized steel fridge cabinet intended to store pharmaceutical and medical products. It operates through a state-of-the-art cooling system based on the use of R290 gas, an eco-friendly refrigerant that does not emit CO2. It has been built using plasticized galvanized steel, a material that gives it exceptional insulation and allows it to maintain a uniform internal temperature between 2 and 8 degrees Celsius. It incorporates an alarm system that alerts the user to malfunctions that could damage the stored material, such as excessive temperature fluctuations or power supply failure. In addition, it also includes an emergency battery with 72 hours of autonomy to monitor the internal temperature even if there is no current.

The refrigerator has been manufactured according to the specifications of the DIN 13277 standard and the quality and environment standards dictated by the ISO9001, ISO14001 and ISO13485 standards. Because of its characteristics and its guarantee of excellence, it is an ideal refrigeration equipment for professional installations such as pharmacies, laboratories, clinics and medical centers.

General Features
- Rapid temperature drop
- Forced air cooling system
- 2 Temperature simulation probes
- Real precision of product temperature
- Forced air circulation system
- 2 Fans for better air circulation
- Universal swivel wheels
- Wheels with brakes and height-adjustable legs
- Door with lock; set of 3 keys
- High quality steel materials
- Antibacterial and corrosion resistant
- Precise temperature control
- Maximum precision digital control 0.1℃
- 7 Types of alarms
- Optical and acoustic alarms
- Interior with height-adjustable shelves and basket
- Environmentally friendly
- CFC-free refrigerant, energy saving
- Certifications ISO9001, ISO14001, ISO13485 and CE

Performance
- Cooling method: forced air cooling
- Defrosting: automatic
- Shelf/basket: 6/1
- Temperature range: +2℃ / +8℃
- Ambient temperature: +10ºC / +32 ℃
- Net/gross weight: 120/146 kg
- Noise level: 50 dB

Cooling System
- Refrigerant: R290
- Temperature controller: microprocessor 0.1ºC
- Sensor type: NTC
- Display: digital display
- External material: white plasticized galvanized steel
- Internal material: white plasticized galvanized steel
- Capacity: 416 L
- Compressors: 1

Alarms
- Temperature/high low
- Power supply failure
- Thermostat failure
- Door ajar
- Ambient temperature
- Condenser failure
- Backup battery: 72 hours (for temperature monitoring only)

Electrical Data
- Voltage and frequency: 220V, 50/60Hz
- Power: 330 W
- Current: 1.94 A
- Energy consumption: 4.23 kW/h per 24 hours

Dimensions
- Packaging dimensions: 880 x 640 x 2100 mm
- External dimensions: 785 x 552 x 1927 mm
- Internal dimensions: 685 x 429 x 1380 mm
- Volume: 1.18 m3
- Wheels: 4
- Leveling feet: 2

Others
- Remote alarm port
- Passthroughs: 2/25 mm
- USB output
- Product simulation probe holder: 2
- RS485 port
