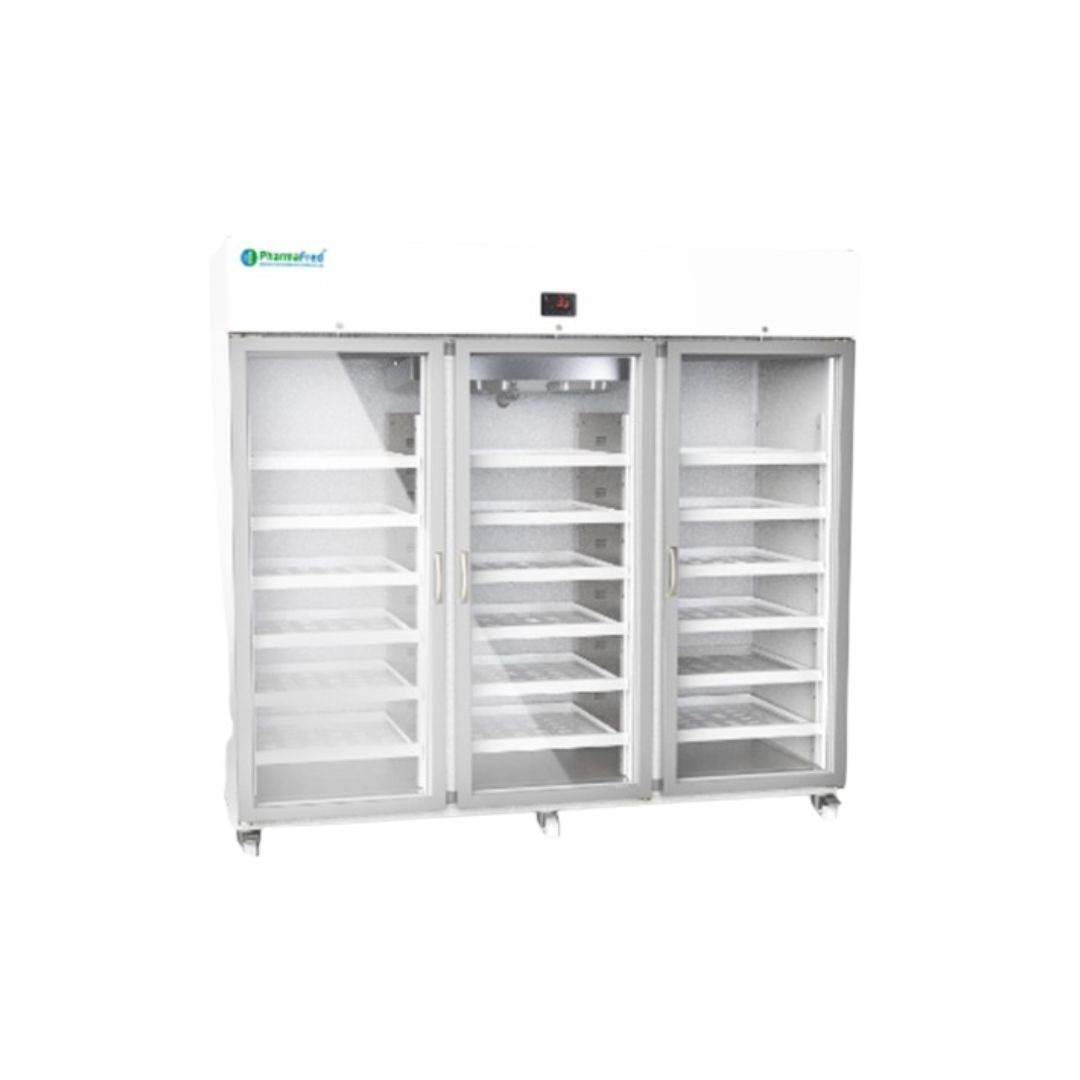

2130L capacity refrigerator with glass doors and 18 removable shelves. DIN standard 13277

A 2130 liter capacity refrigerator with 18 adjustable shelves. It has been manufactured following DIN 13277 regulations, thereby allowing the safe and quality guaranteed storage of medications and medical substances. It incorporates various climate control systems and has alarm mechanisms, both acoustic and optical, against situations such as a marked increase or decrease in internal temperature, prolonged door opening, probe failure, or power outage. For emergency situations, it includes a backup battery with a autonomy of more than 12 hours that allows monitoring of the interior temperature of the equipment even without electricity.

The PHG2200 model is manufactured with approved materials that combine stainless steel, epoxy steel and thermoformed ABS. It operates through ecological refrigeration mechanisms, so its use has a lower environmental impact than other refrigerators with similar characteristics. In addition, it has installed low consumption compressors and fans, thus reducing its energy cost and generating less noise.

General features
- Glass doors
- White plastic coated steel finish
- 18 adjustable 40 mm drawers
- Uniform temperature throughout the interior
- Corner with curves for easy cleaning
- Rack and guide system in adjustable 100 mm ASI-304 stainless steel
- Steel sheet drawers with epoxy coating and label holders
- Double LED lighting
- Reversible door opening
- Door with automatic self-closing
- Heated door perimeter frame
- Lock with key
- Easily removable rubber gasket
- Floating contact (tension-free)
- Ventilated refrigeration system (forced draft)
- Automatic defrosting
- Optimized defrosts
- Digital controller with maximum precision 0.1°C
- Visual and acoustic alarms
- High and low temperature alarm
- Door open alarm with timer
- Probe failure alarm
- High condensation temperature alarm
- Power supply failure alarm
- Backup lithium battery (only for temperature monitoring)
- Remote alarm connection
- Anti-freeze safety thermostat
- Product simulation probe
- Wall pass-through for external probe
- Set of 6 wheels (2 with brakes)

Technical specifications
- Nominal capacity liters: 2130 liters
- Adjustable temperature range: +2°C / +8°C
- External dimensions: 2055 x 850 x 2080
- CFC-free insulation thickness: 85 mm
- Zero GWP and zero ODP thermal insulation density: 40 kg/m2
- Interior base: AISI-304 18/8 stainless steel
- Distributed load capacity: 100 kg/m3
- Noise level: <60 db
- Components according to ATEX 014/34/UE
- Backup battery autonomy for emergency monitoring: +12 hours
- Wall pass-through diameter: 12 mm
- Ecological refrigerant gas: R290
- Consumption W/h: 943
- Power supply; 230V/1/50Hz

Accessories (not included)
The refrigerator has optional accessories that are not included in its purchase. The following additional items can be purchased at an additional cost:
- Datalogger USB temperature recorder.
- Datalogger WIFI temperature recorder.
- Additional 40 mm drawer with guides
- 70 mm drawer with telescopic guides.
- Set of wheels
- Set of legs (90 mm; 135 mm)
- 20 mm regulator
- Display shelves.
- Internal electrical outlet for equipment connection.
- AISI 304 stainless steel finish
