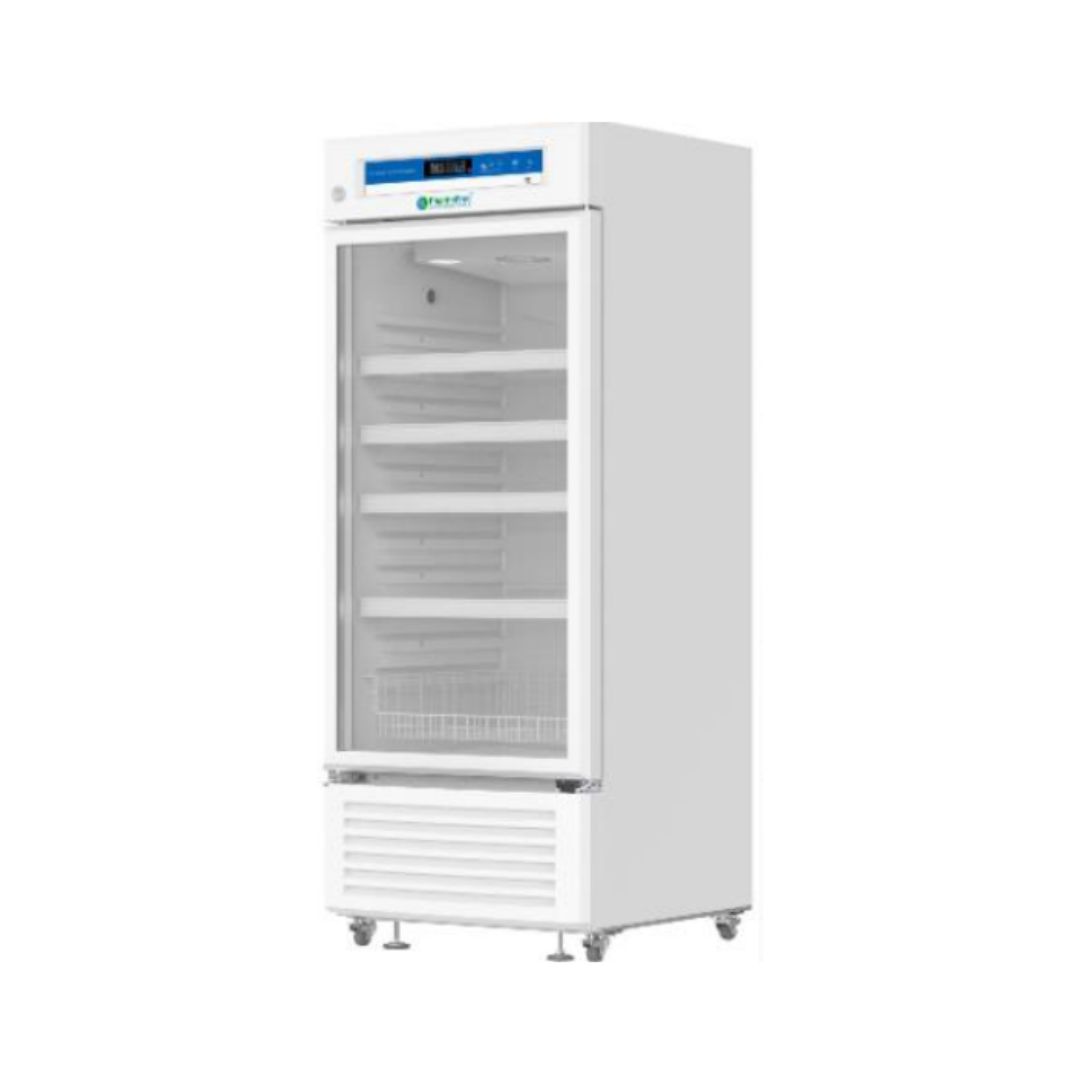

315L refrigerator with glass door, 650 x 673 x 1762 mm. DIN 13277 standard

Pharmacy refrigeration cabinet made of steel and aluminum and designed to store medicines and vaccines. It operates through a novel refrigeration system based on the use of non-polluting gases and has low-consumption compressors and fans with reduced noise emission. It has a transparent door that locks to secure the stored material and has an alarm system that emits optical and acoustic signals to alert the user. The alarm is triggered if the equipment detects an excessive rise or fall in temperature, a probe failure, or a supply cut. In addition, it includes a backup lithium battery with a autonomy of more than 20 hours to monitor the interior temperature in emergency cases.

The refrigerator has been designed following the specifications marked by the DIN 13277 standard and has several ISO certificates in terms of quality and environment. For all these reasons, it is a safe model for the conservation of pharmaceutical material in the professional field.

General characteristics
- Exterior finish: white steel
- Interior finish: sprayed aluminum plate
- Easily removable shelving material: white plasticized steel
- Uniform temperature throughout the interior
- Rounded corners for easy cleaning
- LED lighting with independent switch
- General switch
- Lock with key
- Door with automatic self-closing system
- Heated door perimeter frame
- Easily removable rubber gasket
- Floating contact free of tension
- Built-in handle and corrosion-resistant hinges
- Ventilated refrigeration (forced type) with fan
- Automatic defrost
- Digital controller of maximum precision - microprocessor
- Optical and acoustic alarms
- High and low temperature alarm
- Open door alarm with timer
- Temperature probe failure alarm
- USB failure alarm
- Power supply failure alarm
- Backup lithium battery +20 hours (only to monitor the internal temperature)
- Anti-freeze safety thermostat
- USB temperature recorder output
- Record every 10 minutes
- Modbus RS485 communication port
- Remote alarm connection
- Pass-through for external probe Ø 25mm
- Set of 2 wheels + leveling feet
- Certificates: ISO9001, ISO13485, ISO14001 and CE

Technical specifications
- Net capacity: 315 liters
- Adjustable temperature range: +2°C / +8°C
- Set temperature: +5°C
- Door type: glass
- External dimensions L x W x H: 650 x 673 x 1762 mm
- Internal dimensions L x W x H: 580 x 553 x 1122 mm
- CFC-free insulation thickness: 52 mm
- Thermal insulation density: 40 kg/m3
- Number of adjustable shelves with anti-tip system: 4 + 1 drawer
- Distributive load capacity: 100 kg/m3
- Noise level: < 46 dB
- Ecological refrigerant: R600a
- Electric power: 245 W
- Consumption: 3.3 kW/h
- Power supply: 220V/50Hz

Optional accessories (not included and with additional cost)
- Smart supervision system - MAX LOGGER WIFI. Includes temperature deviation and voltage failure warning by email, app, IOT software, call or SMS; data analysis and reports by temperature control and humidity and real-time data verification 24/7.
