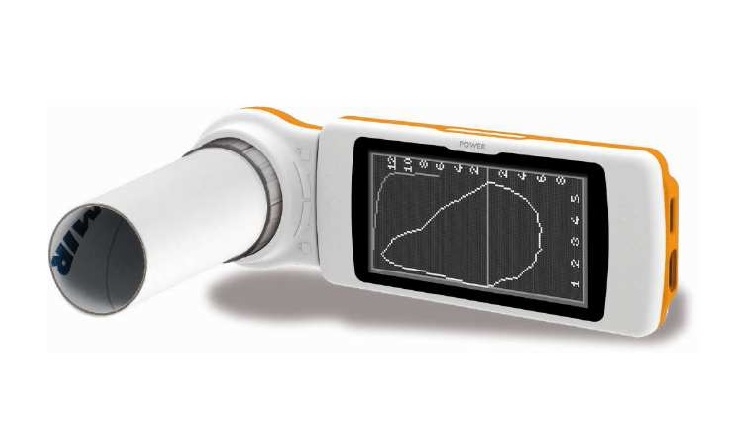

Handheld Spirodoc Spirometer with reusable turbine

Spirodoc is an innovative medical instrument that combines four essential functions into a single compact and easy-to-use device. With its advanced technology and ergonomic design, Spirodoc simplifies and optimizes the process of diagnosing and monitoring patients with respiratory conditions.

Cutting-edge Spirometer:
This equipment features an intuitive touchscreen that allows for accurate pulmonary function tests, including FVC, VC, IVC, MVV, and PRE-POST. Additionally, it provides accurate interpretation of spirometry results, even after bronchodilation, and has the capacity to store up to 10,000 exams.

3D Accelerometer for Oxygen Prescription:
Following the ATS recommendations on COPD, Spirodoc quantifies exercise capacity during monitoring and respiratory rehabilitation. It also complies with the guidelines of the European Union Commission for Telemedicine in COPD, integrating respiratory functionality, saturation analysis, symptom questionnaire, and physical activity.

Questionnaire:
Spirodoc allows for easy and quick introduction of symptoms through its touchscreen. It offers a wide configuration and personalization of questions about quality of life, which are automatically stored in the patient's diary.

Data collected by Spirodoc can be easily transmitted via USB or Bluetooth to telecare centers for more accurate diagnosis. Additionally, it has been designed with different usage modes: advanced parameters for specialists, reduced options for screening, and a simplified version for home use.

Includes user manual, SPIRODOC Bag, USB connection cable, winspiroPRO PC software, nasal clip, rechargeable battery, 12-month warranty.

Technical specifications:
- Backlit LCD touchscreen 128 x 64 pixels.
- Power supply: Rechargeable Lithium-Ion Battery 3.7V, 1100 mA.
- Data transmission: USB 2.0 On-The-Go and Bluetooth 2.1.
- Accelerometer: triaxial +/- 2g, sampling 400 Hz.
- Dimensions: 101 x 48 x 16 mm.
- Weight: 99 g.
- Detachable turbine holder head: 46 x 47 x 24 mm, 27 g.
- SpO2 range: 0-99%.
- SpO2 accuracy: +/- 2% (70-99% SpO2).
- Pulse range: 30-254 ppm.
- Pulse frequency accuracy +/- 2ppm or 2%, whichever is greater.
