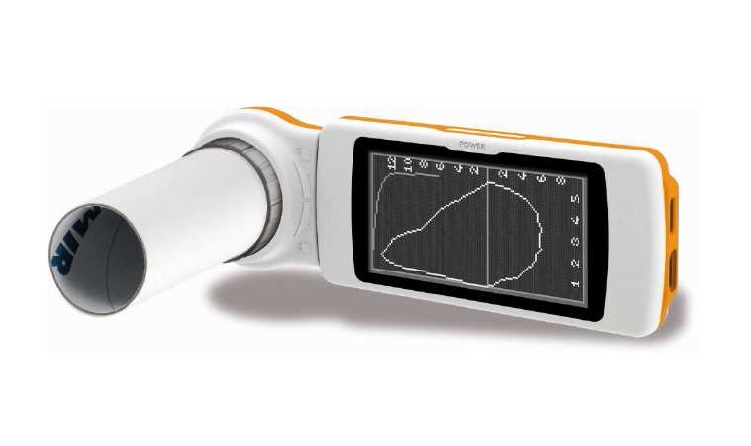

Handheld Spirodoc Spirometer with disposable turbines

Spirodoc is an innovative medical instrument that combines four essential functions into a single compact and easy-to-use device. With its advanced technology and ergonomic design, Spirodoc simplifies and optimizes the process of diagnosing and monitoring patients with respiratory conditions.

Cutting-edge Spirometer:
This equipment features an intuitive touchscreen that allows for precise pulmonary function tests, including FVC, VC, IVC, MVV and PRE-POST. Thanks to the disposable FlowMIR turbines, Spirodoc ensures maximum accuracy and 100% hygiene. Additionally, it offers an accurate interpretation of spirometry results, even after bronchodilation, and can store up to 10,000 exams.

3D Accelerometer for Oxygen Prescription:
Following the ATS recommendations on COPD, Spirodoc quantifies exercise capacity during monitoring and respiratory rehabilitation. It also complies with the guidelines of the European Union Commission for Telemedicine in COPD, integrating respiratory functionality, saturation analysis, symptom questionnaire, and physical activity.

Questionnaire:
Spirodoc allows for a quick and easy introduction of symptoms through its touchscreen. It offers a wide configuration and customization of quality of life questions, which are automatically stored in the patient's journal.

The data collected by Spirodoc can easily be transmitted via USB or Bluetooth to telecare centers for a more accurate diagnosis. Moreover, it has been designed with different usage modes: advanced parameters for specialists, reduced options for screening, and a simplified version for home use.

Includes user manual, SPIRODOC Bag, USB connection Cable, PC software winspiroPRO, nasal Clip, rechargeable Battery, 12-month warranty.

Technical Specifications:
- Backlit LCD touchscreen 128 x 64 pixels.
- Power: Rechargeable Lithium-Ion battery 3.7V, 1100 mA.
- 60 disposable turbines that comply with ATS/ERS standards.
- Data transmission: USB 2.0 On-The-Go and Bluetooth 2.1.
- Accelerometer: triaxial +/- 2g, sampling 400 Hz.
- Dimensions: 101 x 48 x 16 mm.
- Weight: 99 g.
- Detachable turbine holder head: 46 x 47 x 24 mm, 27 g.
- SpO2 range: 0-99%.
- SpO2 accuracy: +/- 2% (70-99% SpO2).
- Pulse range: 30-254 ppm.
- Pulse frequency accuracy +/- 2ppm or 2%, whichever is greater.
