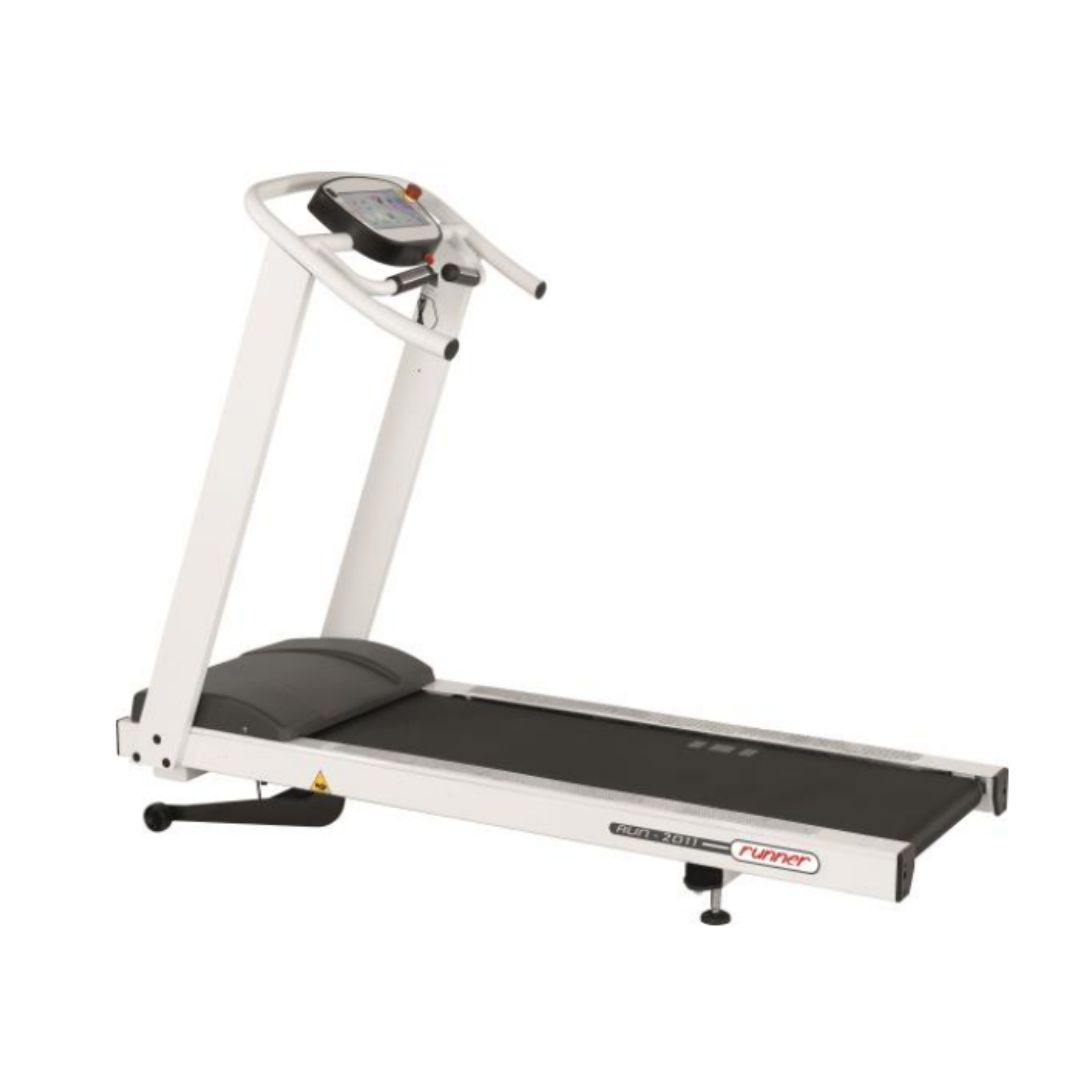

RUN2011/TJ-PC Treadmill with programmable console, 70 x 188 x 142 cm

Treadmill equipped with a latest generation motor that allows stress tests to be carried out on all kinds of patients. It has a multifunction touch screen that can be controlled manually or remotely and allows programming of various resistance tests such as Cooper, VAMEVAL, ACIP, Bruce or Ellestad. It has a large surface to facilitate walking and has a wide range of speeds and inclines available, so it is able to adapt to each person and clinical case.

It has been designed following the specifications indicated by ISO13485 standard and is classified as class IIa medical device. Its electrical, electronic and mechanical systems have a 2-year warranty, while its external structure has up to 10. Additionally, it is compatible with the most commonly used electrocardiograms in the professional field, such as those manufactured by Amedtec, Beneware, BTL, Cardioflex, Cardiolex, Cosmed or Fukuda, making it an ideal choice for clinics, outpatient clinics, medical centers and hospitals.

General features
- Width: 70 cm (86 with adjustable height handrails)
- Length: 188 cm
- Height: 142 cm
- Weight: 145 kg

Technical specifications
- Durable 10.1 inch touch screen
- PC iMX6 DL 1 GB, Micro SD 8GB, S.O. Linux
- RS323 analog interface with optical isolation for connection with ECG through the Trackmaster protocol (compatible with ECG Amedtec, Beneware, BTL, Cardioflex, Cardiolex, Cosmed, CubeStress Cardioline, Customed, Edan, Egoline, Fukuda, Imed-Cardiax, Labtech, Medical Econet, Neurosoft, Norav, Schiller, Sentinel 10, Teka, Vyaire, XScribe Mortara)
- Dual direction walk (forward/backward)
- Forward speed range: 0.1 - 20 km/h
- Reverse speed range: 0.1 - 5 km/h
- Incline: 0%, +22%
- Speed increase: 0.1 km/h
- Incline increase: 0.5 - 1%
- Electronic variation of speed and incline
- Belt self-centering system
- Belt self-lubrication system
- Walking surface: 140 x 48 cm
- Toroidal transformer: 1700 VA
- Single-phase inverter: 230V ~ 1.5 kW
- Power supply: 220~240Vac, 50/60Hz, 10Amp
- Auxiliary incline circuit: 18 Vac
- Console auxiliary circuit: 12 Vdc
- Motor: 2 HP AC
- Power absorbed at maximum speed: 2000 VA
- Nominal power absorbed: 1500 VA
- Noise: < 30 dB
- Cushioned platform
- Maximum user weight: 150 kg
- Button and handle with magnet for emergency stop
- CE conformity certificate 93/42/CEE
- Compatibility with Polar H7, H9 and H10 BLE chest bands (Bluetooth Low Energy) through certified dongle (not included). The band can only be used if an ECG device is available.

Standard accessories (included)
- Wheels to move the treadmill
- Service equipment
- Power cable
- RS232 cable

Optional accessories (not included and at an additional cost)
- Incline -3%, +19%
- Long handrails without holes for axillary support (maximum weight 150 kg) (Ref. 4063EE0639)
- Long handrails with holes for axillary support (maximum weight 150 kg) (Ref. 4063EE0654)
- Axillary support (maximum weight 150 kg) (Ref. 4063EE0623)
- Adjustable front and side handrails (maximum weight 150 kg) (Ref. 4063EE0706)
- Harness system for long handrails (Ref. 4063EE0640)
- Adjustable height long handrails (maximum weight 150 kg) (Ref. 4063EE0793/1)
- Front handrail (maximum weight 150 kg) (Ref. 4063EE0794)
- Harness system for adjustable height long handrails (maximum weight 150 kg) (Ref. 4063EE0649)
- Special support and vest for harness system (maximum weight 150 kg) (Ref. 4063EE0642)
- Ramp (maximum weight 150 kg) (Ref. 4063EE0692)
- Bluetooth dongle for Polar chest band (Ref. 4063EE0713)

Console functions
- Remote use through the RS232 interface
- Manual use and indicator of time, distance and calories
- 10 profiles (default)
- 100 free profiles
- Setting for Cooper, VAMEVAL, ACIP, modified Astrand, Bruce, modified Bruce, Ellestad and free tests (Test 01 - Test 116)
