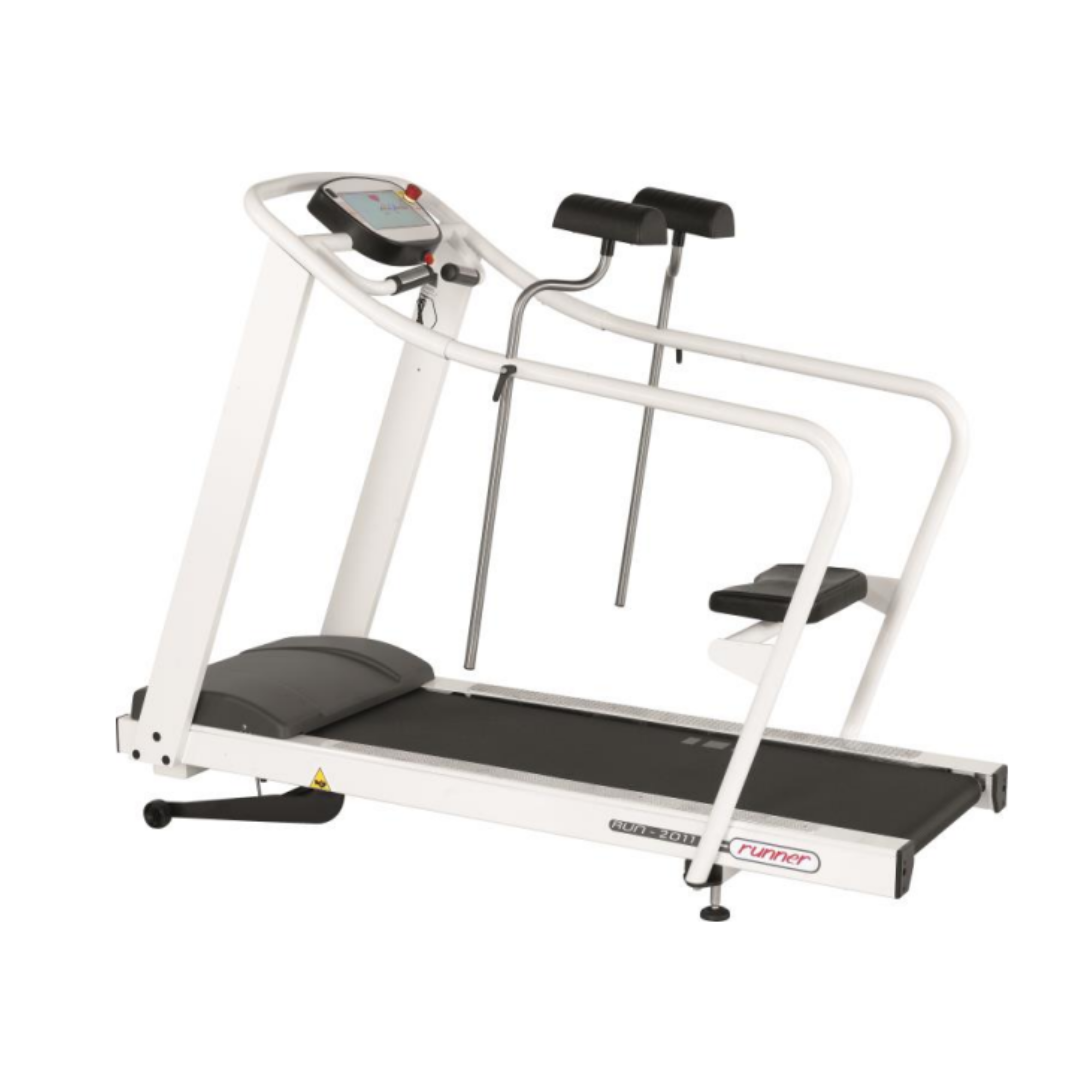

Orthopedic treadmill RUN2011/TJO-PC with programmable console, 70 x 188 x 142 cm

Orthopedic medical device intended for stress testing in the medical field. It has a state-of-the-art motor capable of reaching 20 kilometers per hour and supporting up to 150 kilograms with barely any noise, positioning itself as one of the most efficient and versatile models on the market. It includes an orthopedic chair and support stands for patients with mobility problems and has a double walking system to walk both forward and backward. Likewise, it is compatible with the vast majority of electrocardiograms and integrates a touch screen that allows programming the most common resistance tests in the health field, such as Cooper, VAMEVAL, ACIP, Bruce or Ellestad.

The RUN2011/TJO-PC treadmill is classified as a class IIa medical product, it has been designed following the CE directive 93/42/EEC and has been certified for quality by ISO13485. In addition, it has a 10-year warranty on its external structure and 2 on its electronic, electrical and mechanical systems.

General Features
- Width: 70 cm
- Length: 188 cm
- Height: 142 cm
- Weight: 145 kg

Technical Specifications
- Durable 10.1" touch screen
- PC iMX6 DL 1 GB, Micro SD 8GB, S.O. Linux
- Analog RS323 interface with optical isolation for connection with ECG through the Trackmaster protocol (compatible with ECG Amedtec, Beneware, BTL, Cardioflex, Cardiolex, Cosmed, CubeStress Cardioline, Customed, Edan, Egoline, Fukuda, Imed-Cardiax, Labtech, Medical Econet, Neurosoft, Norav, Schiller, Sentinel 10, Teka, Vyaire, XScribe Mortara)
- Double walking direction (forward/backward)
- Forward speed range: 0.1 - 20 km/h
- Reverse speed range: 0.1 - 5 km/h
- Incline: 0%, +22%
- Speed increase: 0.1 km/h
- Incline increase: 0.5 - 1%
- Electronic variation of speed and incline
- Belt auto-centering system
- Belt self-lubrication system
- Walking surface: 140 x 48 cm
- Toroidal transformer: 1700 VA
- Single-phase inverter: 230V ~ 1.5 kW
- Power supply: 220~240Vac, 50/60Hz, 10Amp
- Auxiliary incline circuit: 18 Vac
- Console auxiliary circuit: 12 Vdc
- Motor: 2 HP AC
- Power absorbed at maximum speed: 2000 VA
- Nominal absorbed power: 1500 VA
- Noise: < 30 dB
- Cushioned platform
- Maximum user weight: 150 kg
- Button and handle with magnet for emergency stop
- CE conformity certificate 93/42/EEC
- Compatibility with Polar H7, H9 and H10 BLE chest bands (Bluetooth Low Energy) through certified dongle (not included). The band can only be used if an ECG device is available.

Standard Accessories (included)
- Wheels to move the treadmill
- Service equipment
- Power cable
- RS232 cable
- Long handrail (maximum weight 150 kg)
- Axillary support (maximum weight 150 kg)
- Adjustable and removable seat

Optional Accessories (not included and with additional cost)
- Incline -3%, +19%
- Adjustable front and side handrails (maximum weight 150 kg) (Ref. 4063EE0706)
- Harness system for long handrails (maximum weight 150 kg) (Ref. 4063EE0640)
- Special support and vest for harness system (maximum weight 150 kg) (Ref. 4063EE0642)
- Ramp (maximum weight 150 kg) (Ref. 4063EE0692)
- Bluetooth dongle for Polar chest band (Ref. 4063EE0713)

Console Functions
- Remote use through RS232 interface
- Manual use and indicator of time, distance and calories
- 10 profiles (default)
- 100 free profiles
- Setting for Cooper, VAMEVAL, ACIP, modified Astrand, Bruce, modified Bruce, Ellestad and free tests (Test 01 - Test 116)
