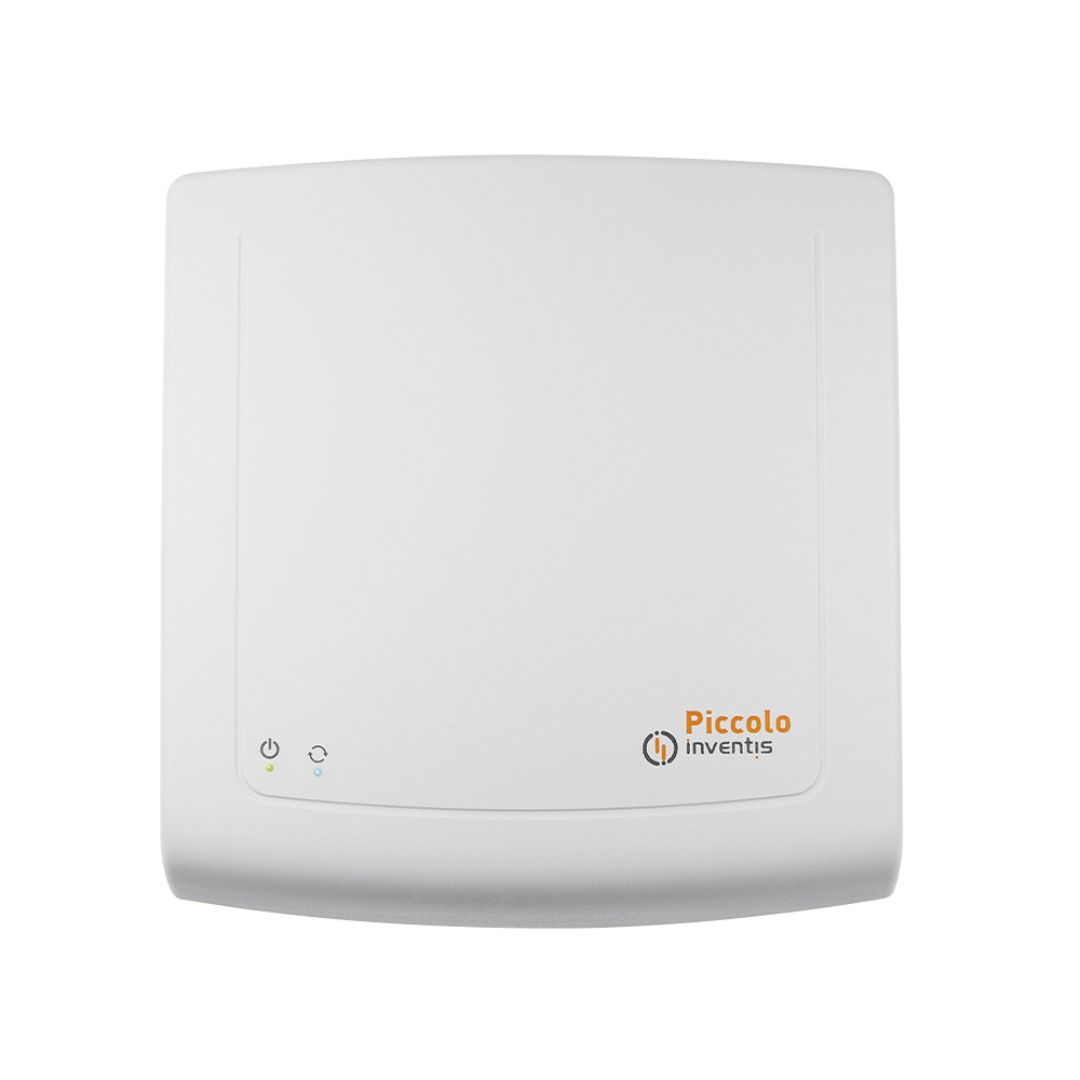

Piccolo Speech Portable Audiometer: pure tone and speech audiometry

Piccolo is a portable diagnostic audiometer, offering air, bone, and speech audiometry functions. It can be controlled from your computer or, for the first time in this type of devices, from an iPad® with a wireless Bluetooth connection.
It has a lightweight design (less than 300 grams), compact and powerful, with easy-to-use software, and no need for a power source, which makes Piccolo the ideal instrument for the professional on the move.

Control from your computer:
Connect Piccolo to the USB port of your computer and you will be ready to use it. You do not need to install a driver, nor connect it to a power source. It is possible to control Piccolo through the interface of the Maestro module, which is incredibly easy to use and is available for Daisy and Noah software.

Technical specifications:
• Intensity: AC: -10 to 120 dB HL. BC: -10 to 80 dB HL
• Frequency range: 125-8000 Hz
• Input: Tone, pulsed tone, EXT 1-2, mic
• Masker: NBN, WN, SN
• Output: AC L+R, BC
• Talk over: External microphone
• PC connection: USB
• Compatible software: Daisy or Noah with Maestro module (both included)
• Control App: Maestro
• Measurements: 16 x 16 x 3 cm (WxHxD)
• Weight: 300 g

Regulations:
• Pure tone Audiometry: EN60645-1 / ANSI S3.6 type 3
• Calibration: EN ISO 389-1 (TDH 39), EN ISO 389-2 (ER-3 and ER-5), EN ISO 389-3 (B71)
• Safety: EN 60601-1, Class 1, type BF
• EMC: EN 60601-1-2
• CE certification: 93/42/EEC Class IIa

Contents:
• DD-45 headphones, B71 bone vibrator
• Medical grade power cable
• Patient response switch
• Clip microphone
• USB connection cable
• Carrying bag
• User manual
• Inventis Software Suite CD
