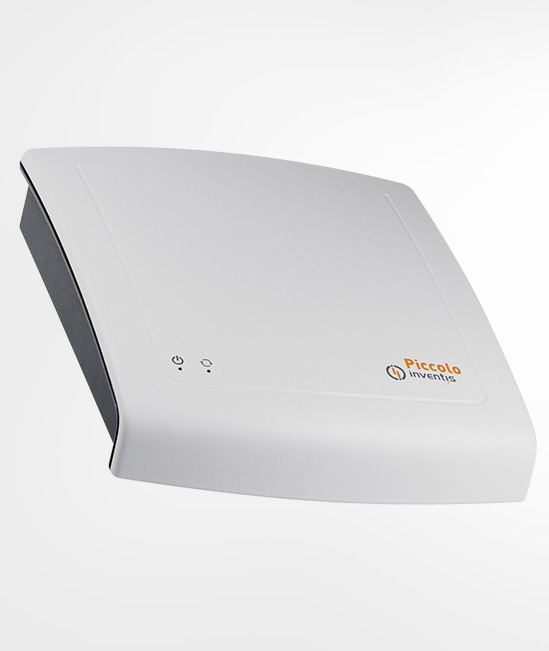

Piccolo Plus Portable Audiometer: Pure Tone Audiometry

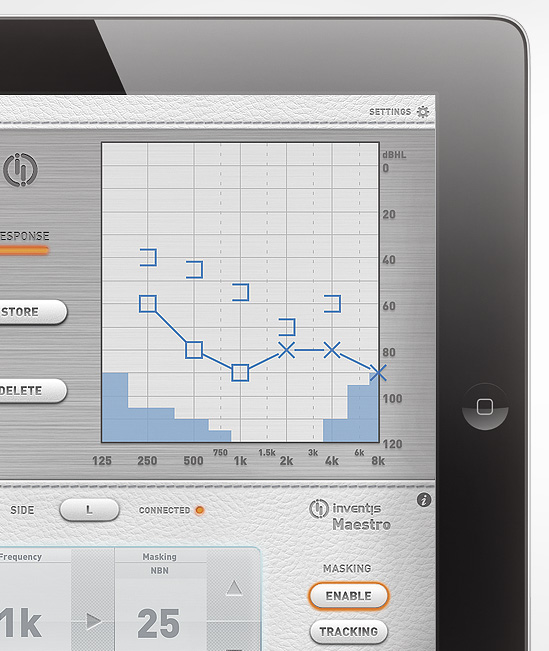

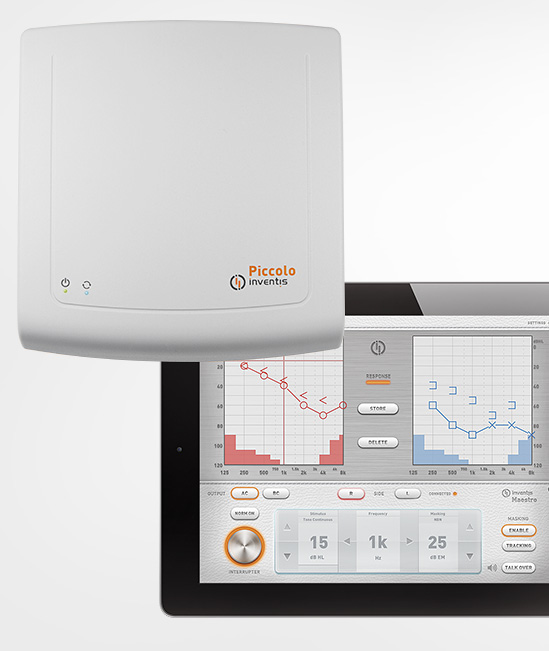

Piccolo is a portable diagnostic audiometer, which offers air and bone audiometry functions. It can be controlled from your computer or, for the first time in this type of device, from an iPad® with a wireless Bluetooth connection.

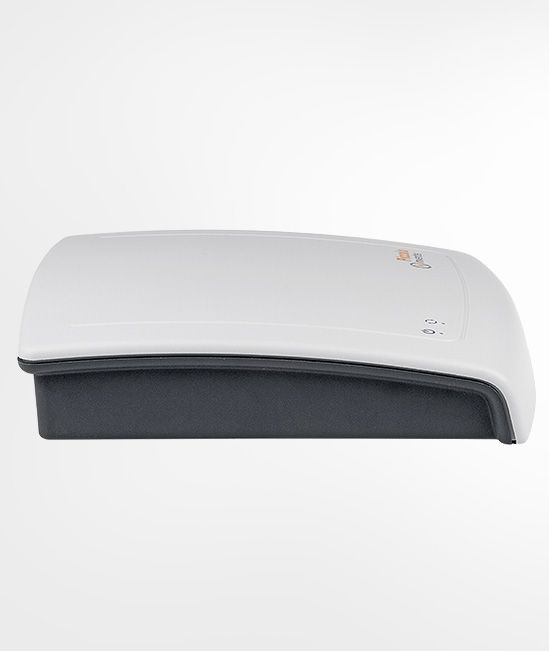

It has a lightweight (less than 300 grams), compact and powerful design, with easy-to-use software, and without the need for a power source, which makes Piccolo the ideal instrument for the professional on the move.

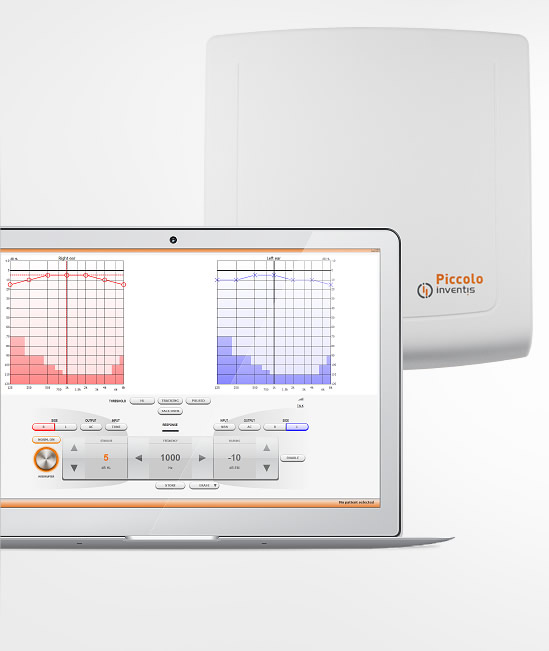

Control from your computer:
Connect Piccolo to the USB port of your computer and it will be ready to use. No need to install a driver, or connect it to a power source. It is possible to control Piccolo through the interface of the Maestro module, which is incredibly easy to use and is available for the Daisy and Noah software.

Technical specifications:
• Intensity: AC: -10 to 120 dB HL. BC: -10 to 80 dB HL
• Frequency range: 125-8000 Hz
• Input: Tone, pulsed tone
• Masker: NBN
• Output: AC L+R, BC
• Talk over: External microphone
• Connection to PC: USB
• Compatible software: Daisy or Noah with Maestro module (both included)
• Control App: Maestro
• Measurements: 16 x 16 x 3 cm (LxWxH)
• Weight: 300 g

Regulation:
• Pure tone audiometry: EN60645-1 / ANSI S3.6 type 3
• Calibration: EN ISO 389-1 (TDH 39), EN ISO 389-2 (ER-3 and ER-5), EN ISO 389-3 (B71)
• Safety: EN 60601-1, Class 1, type BF
• EMC: EN 60601-1-2
• CE Certification: 93/42/EEC Class IIa

Content:
• DD-45 headphones, B71 bone vibrator
• Power cable medical grade
• Patient response switch
• Clip microphone
• USB connection cable
• Carrying bag
• User manual
• Inventis Software Suite CD
