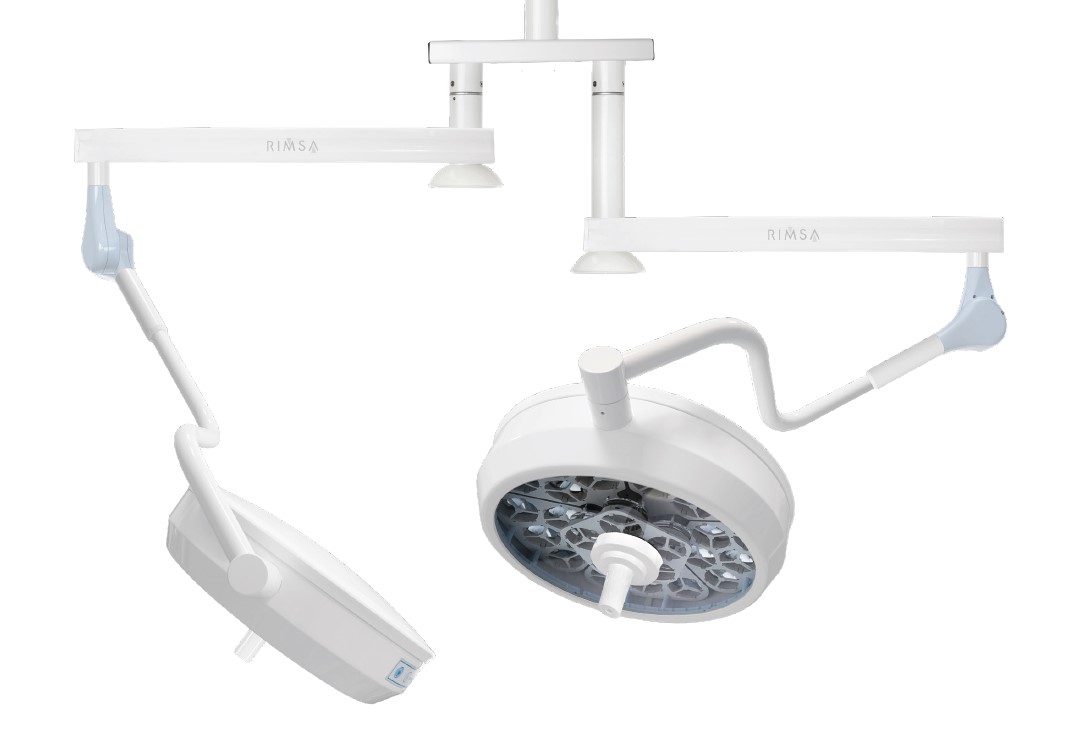

Pentaled 30EL surgery lamp with double arm, 160,000lux at 1m. Ceiling up to 3m.

The Pentaled 30EL surgical lamp is a perfect combination of revolutionary new technology, innovation and ergonomics with established concepts such as white light and indirect light.

Personal advice

Pentaled 30EL surgery lamp with double arm, 160,000lux at 1m. Ceiling up to 3m.

Offer!

-7% 7.347,00€ ~~7.895,00€~~ (8.889,87€ VAT INCLUDED)

Secure payment

Approximate delivery time 30 to 60 days

Inquiry about the product

Description

The Pentaled E Series surgical lamp is part of a highly innovative and superior performing line, which is an evolution of the well-known Pentaled Series. It features 30 elliptical reflectors divided into 6 modules, each with 5 LEDs, providing a total of 160,000 Lux.
Pentaled 30E is especially recommended for operating in theaters where the surgeon needs a small lamp to avoid interference with other aerial equipment. It is particularly useful in oral, maxillofacial, and aesthetic plastic surgeries.

Features:
- Indirect light: Ensures cool light, depth, and absence of stress or glare. This is thanks to its meticulously placed parabolic dishes that reflect the full spectrum of light emitted by each LED in a point-like manner and without dispersion.
- Always focused light: Thanks to its innovative lens, the illuminated field can be expanded/reduced without altering the light intensity at the center of the field.
- E-View System: Allows adjusting the extent of the illuminated field to obtain the right type of light for each surgical procedure.
- Endoled Function: Provides comfortable lighting during endoscopic surgery. When this function is activated, a single module is lit, the light intensity and temperature of which can be easily adjusted.

Certificates: CE Class I medical product.

Technical specifications:
- Light intensity: 160,000 lux at 1 m.
- No. of LEDs: 30.
- Dome diameter: 40 cm.
- Color temperature: 4,500-5,000 K.
- Total radiated energy: 580 W/m².
- Ratio between radiated energy and illumination: 3.68 mW/m2.lx.
- LED lifespan: up to 60,000 hours.
- Primary alternating voltage: (a.c.): 100-240 V.
- Color rendering index: 96 Ra.
- R9: ≥ 90.
- Illuminated field diameter: 140-280 mm.
- 60% illumination depth: 60 cm.
- 20% illumination depth: 95 cm.
- Frequency: 50/60 Hz.
- Power consumption: 52 W.

Support: ceiling mounting (up to 3 m height).

*Installation not included.
*Contact us for installations on ceilings over 3 meters.
