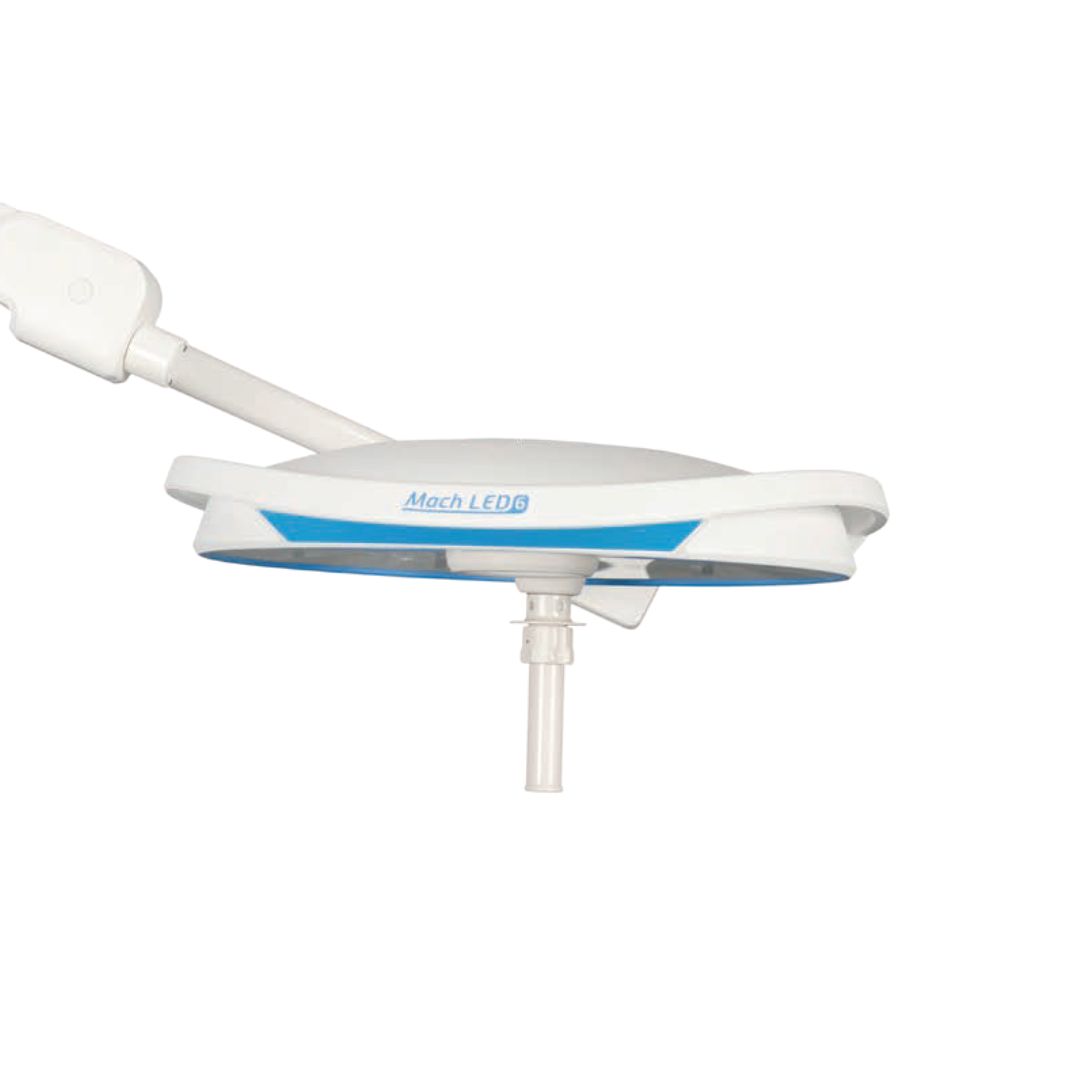

Dr. Mach LED 6MC Basic surgical lamp, 140,000 Lux at 1 m. Anchoring to low ceilings less than 2.8 m.

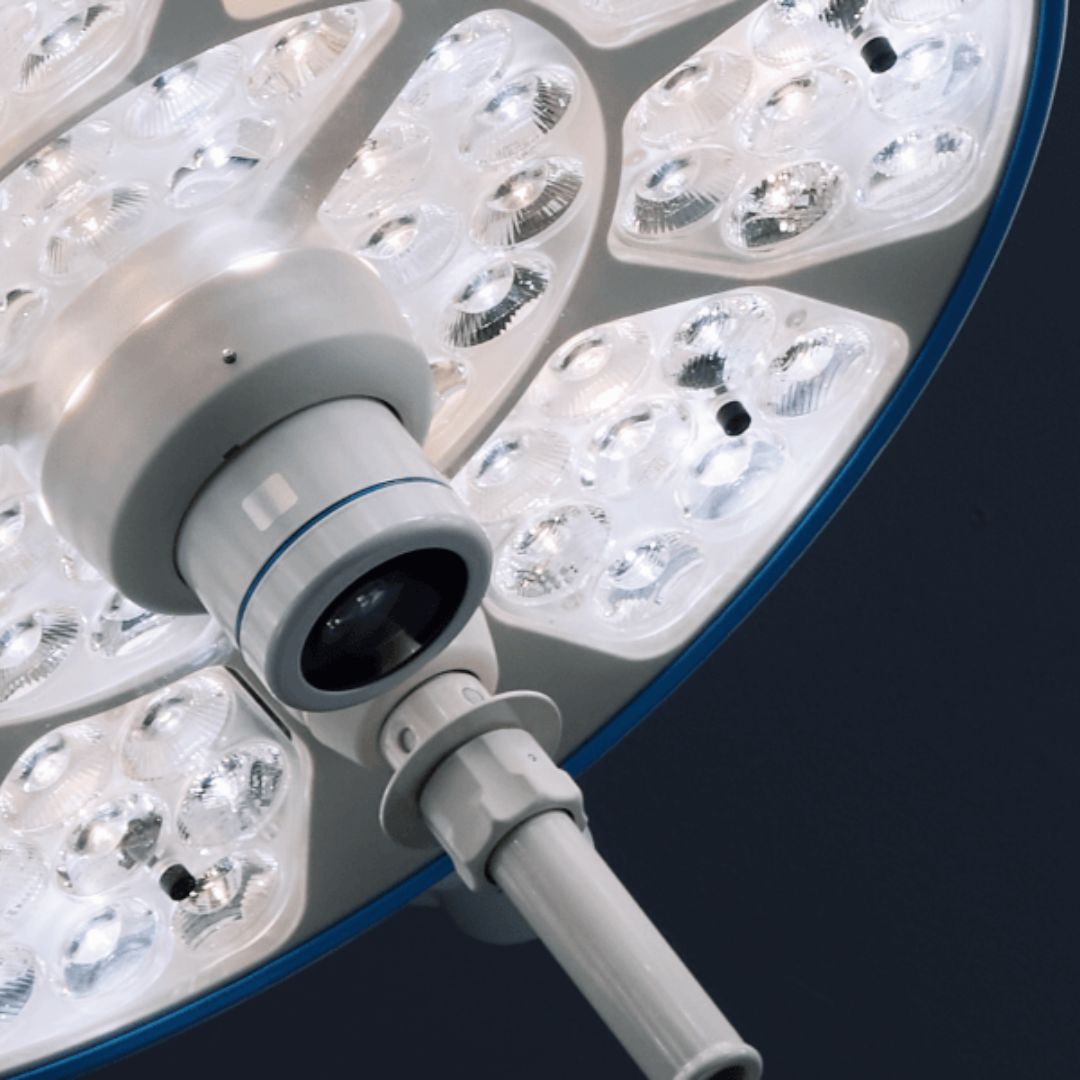

This operating room lamp allows for in-depth illumination of the surgical field while respecting the chromatic representation of the visual plane, making it suitable for all types of procedures. It consists of an aluminum structure coated with antimicrobial materials to prevent pathogens from proliferating on its surface and has a plate of powerful LED lights that generate minimal heat during use, making it extremely comfortable for the surgeon. The only difference with the standard model of the LED 6MC line is its color temperature, which cannot be adjusted and is always fixed at 4,250 K.

General features
- Latest generation surgical lamp with high power LED light
- Housing made of aluminum coated with antimicrobial materials to prevent the proliferation of pathogens
- Removable positioning handle capable of withstanding up to 200 sterilization cycles
- Intuitive, comfortable and easy to use operating interface
- Elegant design, with aerodynamic finishes to promote air circulation in air-conditioned operating rooms
- Electronic focus of the beam for exceptionally precise illumination
- Easy calibration of light intensity to suit the demands of the procedure
- Endo mode with green light for internal surgeries
- Low heat generation for comfort of surgical professionals
- Cascade lighting system to illuminate deep wounds
- Highly reliable and accurate chromatic reproduction
- Ability to connect with other interfaces and external systems (Storz, Bender, etc)
- Classified as a Class I medical device according to the MDR

Technical specifications
- Luminous density (at 1 m distance): 140,000 Lux
- Luminous field diameter (d10): 180 mm
- Luminous field diameter (d50): 103 mm
- Residual light intensity with one shadow: 50 %
- Residual light intensity with two shadows: 45 %
- Illumination depth at 20 %: 2,000 mm
- Illumination depth at 60 %: 1,050 mm
- Color rendering index Ra: 98
- Color rendering index R9: 99
- Color rendering index R13: 99
- Lamp body diameter: 58 cm
- Focusable light field diameter: 18 - 30 cm
- Color temperature: 4,250 K
- Number of LEDs: 69
- Working distance: 70 - 160 cm
- Dimming range: 50 - 100 %
- Dimming levels: 5
- Power supply: 24 - 30 V DC
- Consumption: 66 W/2.7 A max.
- Input voltage: 100 - 240 V AC, 50/60 Hz
- Input current consumption: 5.8 A max.
- Output voltage: 28 V DC
- Output power: 190 W
- Luminous efficiency: 280 lm/W
- Radiation force at a distance of 1 m: 518 W/m2
- Maximum radiation force at a distance of 0.69 m: 723 W/m2
- Temperature increase in the upper zone: 0.5 ºC
- Ee/Ec ratio: 3.56 (mW/m2)/lx
- Turbulence level: 17% (according to DIN 1946-4)
- Interference suppression: EN 55011 (CISPR 11), EN 60601-1-2 (IEC 60601-1-2)
- Protective type: I
- IP protection class (according to IEC 60529): IP 54 (lamp) and IP 20 (suspension system)
- Estimated service life: 10 years
- Estimated LED life: 60,000 h
- Lamp body weight (including accessories): 16.9 kg max.
- Operating temperature: from +5 °C to +40 °C
- Relative operating humidity: from 30% to 75%
- Operating pressure: from 700 hPa to 1060 hPa

Optional accessories (not included and at an additional cost)
- Articulated version with gimbals
- Increase in luminous intensity up to 160,000 Lux
- Modification of the dimming range (from 20 to 100 %)

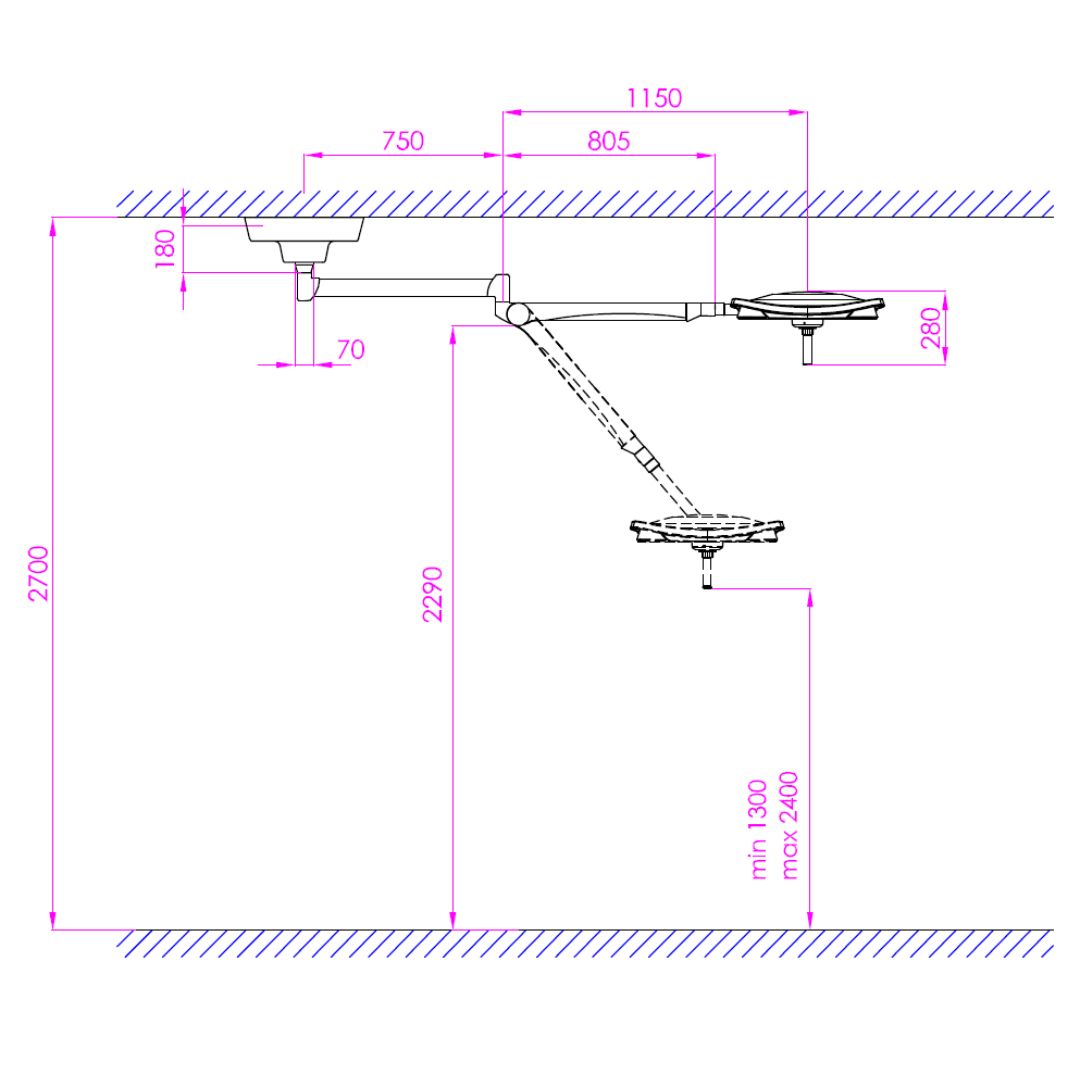

Support: Attachment to ceilings less than 2.8 m high

Includes model TK 270 ceiling mounting ring (ref. 401415000270).

* Installation not included.

* Images may contain optional accessories not included in the price.
